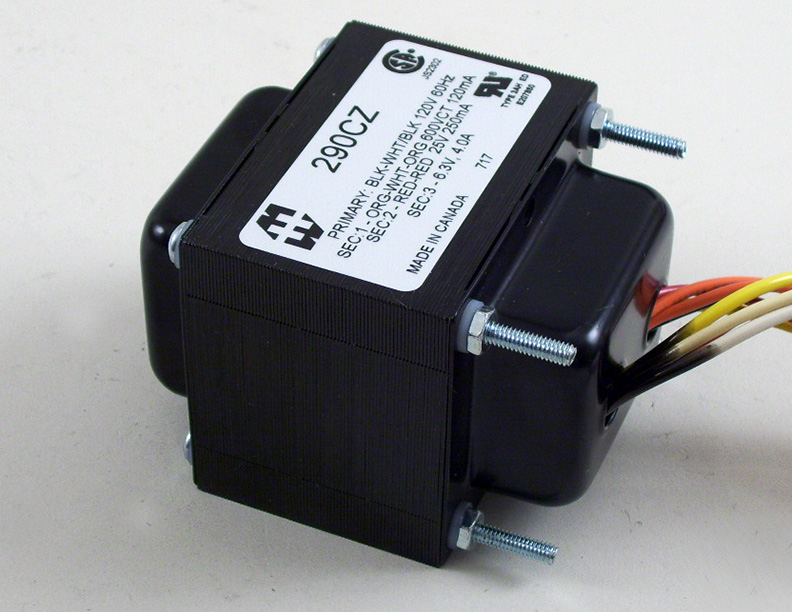

Hammond 290CEZ Vox AC15C1 Dual-Primary Replacement Transformer
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Replacement for Vox AC15C1 (reference only)
- 120/240 VAC 50/60 Hz primary (two 120V windings)
- 600VCT @ 120mA high-voltage output
- 25V @ 250mA and 6.3V @ 4A outputs
- Hipot 2500V, 60Hz, 1 sec primary to secondary
- Bobbin winding; made in Canada per drawing
- RoHS and REACH compliant; 7.65 lbs
The 290CEZ is a 290 Series replacement power transformer for a Vox guitar amplifier, listed for the Vox AC15C1 (reference only). With a 120/240 VAC, 50/60 Hz primary, it suits technicians servicing that amp on either mains standard.
The part drawing shows two 120V primary windings (BLK - WHT/BLK and BRN - WHT/BRN, 50/60Hz) and three outputs: ORG - WHT - ORG 600VCT @ 120mA, RED - RED 25V @ 250mA and YEL - YEL 6.3V @ 4A. Drawing test data lists 180mA (TYP) excitation current and no-load voltages of 315V - 0 - 315V, 26.47V and 6.618V (± 2%), with the second primary at 120.0V.
- DC resistance at 20°C (± 20%): BLK - WHT/BLK 4.871, BRN - WHT/BRN 5.221, ORG - ORG 121.0, RED - RED 2.678, YEL - YEL 0.043 ohms
- Hipot: 2500V, 60Hz, 1 sec primary to HV secondary, primary to core, HV secondary to core and primary to secondary; 600V, 60Hz, 1 sec secondary to core and secondary to secondary
The drawing gives dimensions including 3.000, 2.935, 3.610, 2.500 and 2.000, is marked E207860, TYPE: 3AH ED, and made in Canada. The winding is bobbin. As a 290 Series part the 290CEZ is designed for drop in replacement and to preserve the stock "tone". It ships at 7.65 lbs (3.47 kg), is RoHS and REACH compliant, and carries UPC 623980284224.
Ideal For
- Vox AC15C1 power transformer replacement
- Amp service on 120V or 240V mains
- Drop in replacement preserving stock tone
Overview
| Series | 290 Series |
| Description | Power transformer, replacement for Vox guitar amp, 290 series |
| Part Number | 290CEZ |
| Series Name | Tube Guitar Amplifier - Power Transformers |
| Series Tagline | Replacement & Upgrades |
| Short Description | POWER TRANS |
Dimensions
| Drawing Dimensions (In) | 3.000, 2.935, 3.610, 2.500, 2.000, 0.625, 0.840 |
Electrical
| Primary | 120/240 VAC 50/60 Hz. |
| Output 1 | ORG - WHT - ORG 600VCT @ 120mA |
| Output 2 | RED - RED 25V @ 250mA |
| Output 3 | YEL - YEL 6.3V @ 4A |
| Primary Winding 1 | BLK - WHT/BLK 120V 50/60Hz |
| Primary Winding 2 | BRN - WHT/BRN 120V |
| Hipot Primary - Core | 2500V, 60Hz, 1 SEC |
| Hipot Secondary - Core | 600V, 60Hz, 1 SEC |
| Excitation Current (Iex) | 180mA (TYP), BLK - WHT/BLK @ 120V 60Hz |
| Hipot HV Secondary - Core | 2500V, 60Hz, 1 SEC |
| Hipot Primary - Secondary | 2500V, 60Hz, 1 SEC |
| No-Load Voltage RED - RED | 26.47V ±2% |
| No-Load Voltage YEL - YEL | 6.618V ±2% |
| Hipot Secondary - Secondary | 600V, 60Hz, 1 SEC |
| Hipot Primary - HV Secondary | 2500V, 60Hz, 1 SEC |
| No-Load Voltage BRN - WHT/BRN | 120.0V ±2% |
| No-Load Voltage ORG - WHT = WHT - ORG | 315V - 0 - 315V ±2% |
Identifiers
| UPC | 623980284224 |
| UNSPSC | 39121301 |
| Label Marking | E207860, TYPE: 3AH ED |
Packaging & Shipping
| Shipping Weight | 7.65 lbs (3.47 kg) |
Construction & Finish
| Winding | Bobbin |
| Country Of Origin | Made in Canada |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Amplifier Reference (Ref. Only)
| Amp Model | AC15C1 |
| Amp Manufacturer | Vox |
| Equivalent To Vox Part No. | - |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What amp is the 290CEZ for?▾
The Vox AC15C1 (reference only).
Can the 290CEZ run on 240V?▾
Yes. It is listed with a 120/240 VAC 50/60 Hz primary, built as two 120V primary windings.
What are the 290CEZ outputs?▾
600VCT @ 120mA, 25V @ 250mA and 6.3V @ 4A.
What is the difference between the 290CEZ and 290CZ?▾
Both are listed for the Vox AC15C1; the 290CEZ has a 120/240 VAC 50/60 Hz primary and the 290CZ a 120 VAC 60 Hz primary.
What hipot testing is listed?▾
2500V, 60Hz, 1 sec between primary, HV secondary and core, and 600V, 60Hz, 1 sec for secondary to core and secondary to secondary.
