Hammond 26357PSLA 188x120x82 mm Deep Diecast Aluminium Enclosure

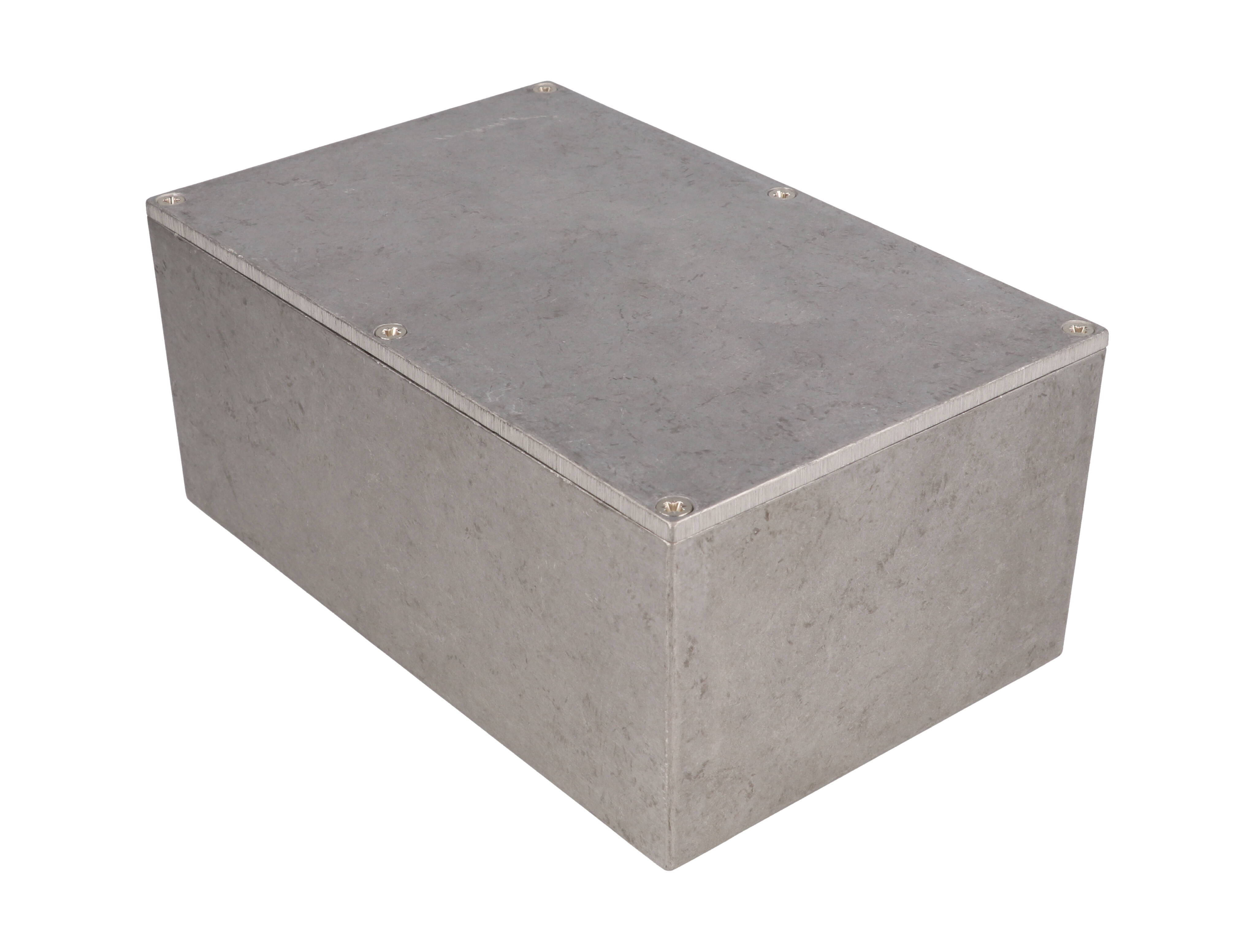

The 26357PSLA is the largest and deepest Eddystone die-cast enclosure, with a 188 mm x 119 mm footprint and 82 mm height (7.4 in x 4.7 in x 3.23 in). It accepts a printed circuit board up to 178.02 mm x 109.72 mm, making it a fit for full instrument boards with tall components.

Box and lid are die-cast from aluminium alloy to BS1490, LM2M, supplied in a natural finish. The material is tough yet easy to machine, so cut-outs and holes can be added to suit the design. A lap joint between lid and box provides protection against dust and splashing water, and the enclosure is rated IP54.

The ordering table lists 7.44 in (189 mm) length, 4.72 in (120 mm) width, 3.23 in (82 mm) total depth and a 0.16 in (4 mm) lid. The drawing shows 188.50 mm [7.42 in] by 120.00 mm [4.72 in] with an 81.55 mm [3.21 in] height. The shipping weight is 1.32 lbs (0.60 kg) and it ships in shrink wrap.

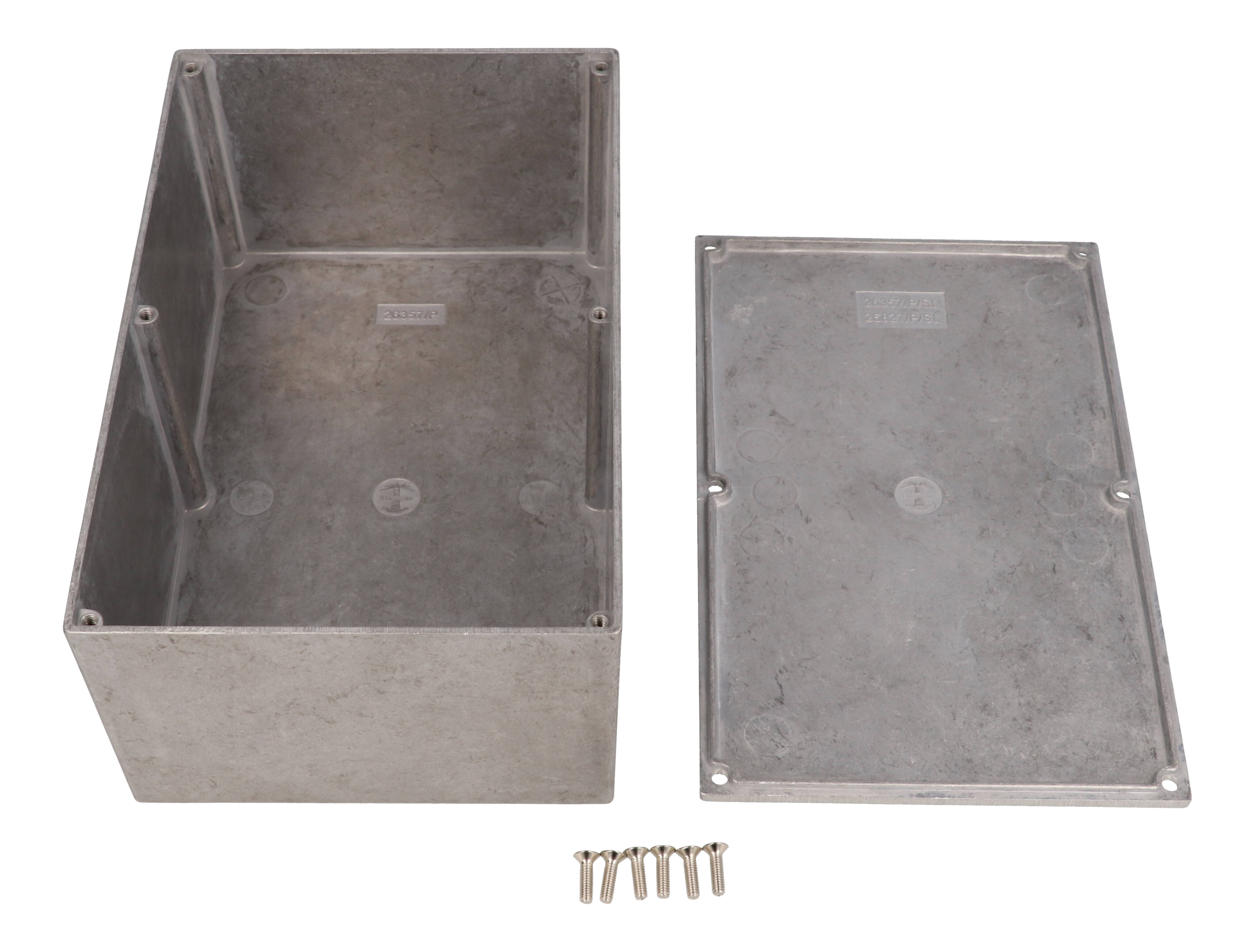

The purchased assembly includes the lid, the box and 6 cover screws. The lid is retained by M3.5 x 12 countersunk screws with a POZIDRIV No. 2 head into countersunk lid holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in]. Side walls have a low draft angle of 2° or less for easy PC board mounting. Replacement cover screws are available as SCR0230-100 (package of 100).

This is an Eddystone design; the Eddystone brand was, purchased by Hammond in 1998. The factory can modify 26357PSLA by milling, drilling or printing, and solid models are available in .stp or .x_t formats. It is RoHS and REACH compliant.
