Hammond 1599CLIPGY Light Gray Belt Clip Kit for 1599 Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray belt clip kit for 1599 series enclosures
- Kit includes clip, 2 nylon mounting screws and mounting template
- Insulated nylon screws avoid internal interference
- Clip size 47.06 mm [1.85 in] x 28.21 mm [1.11 in] x 8.10 mm [.32 in]
- 8-32 NC thread formed after molding
- Recommended torque 25-28 ozf-in (18-20 cN-m)
- RoHS and REACH compliant
The 1599CLIPGY is the light gray belt clip kit for Hammond 1599 series handheld enclosures. It lets product designers add a belt clip to a gray 1599 case so the finished device can be worn or carried hands-free. All 1599 enclosures are compatible, and part numbers ending in "CP" already come with these clips installed.

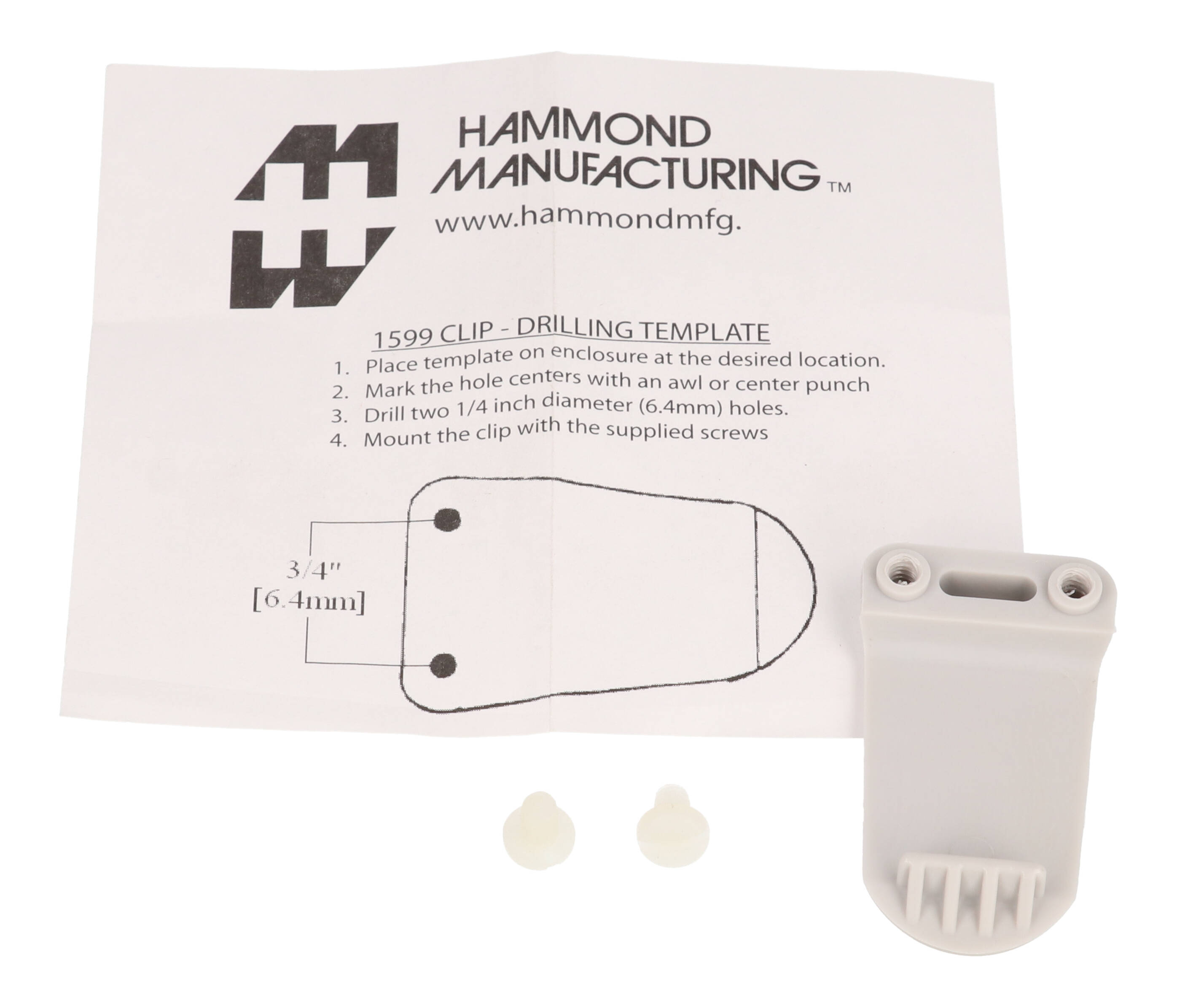

Each kit contains the clip, 2 nylon mounting screws and a mounting template to locate the holes. The nylon screws are insulated to avoid internal interference with the electronics. The series literature and drawing describe the clip as molded from tough nylon (grey nylon for this version), while the part page lists ABS plastic; the colour is light gray.
Drawing dimensions put the clip at 47.06 mm [1.85 in] long, 28.21 mm [1.11 in] wide and 8.10 mm [.32 in] deep, with an 8-32 NC thread made after molding. Tighten to the recommended cover screw torque of 25-28 ozf-in (18-20 cN-m).

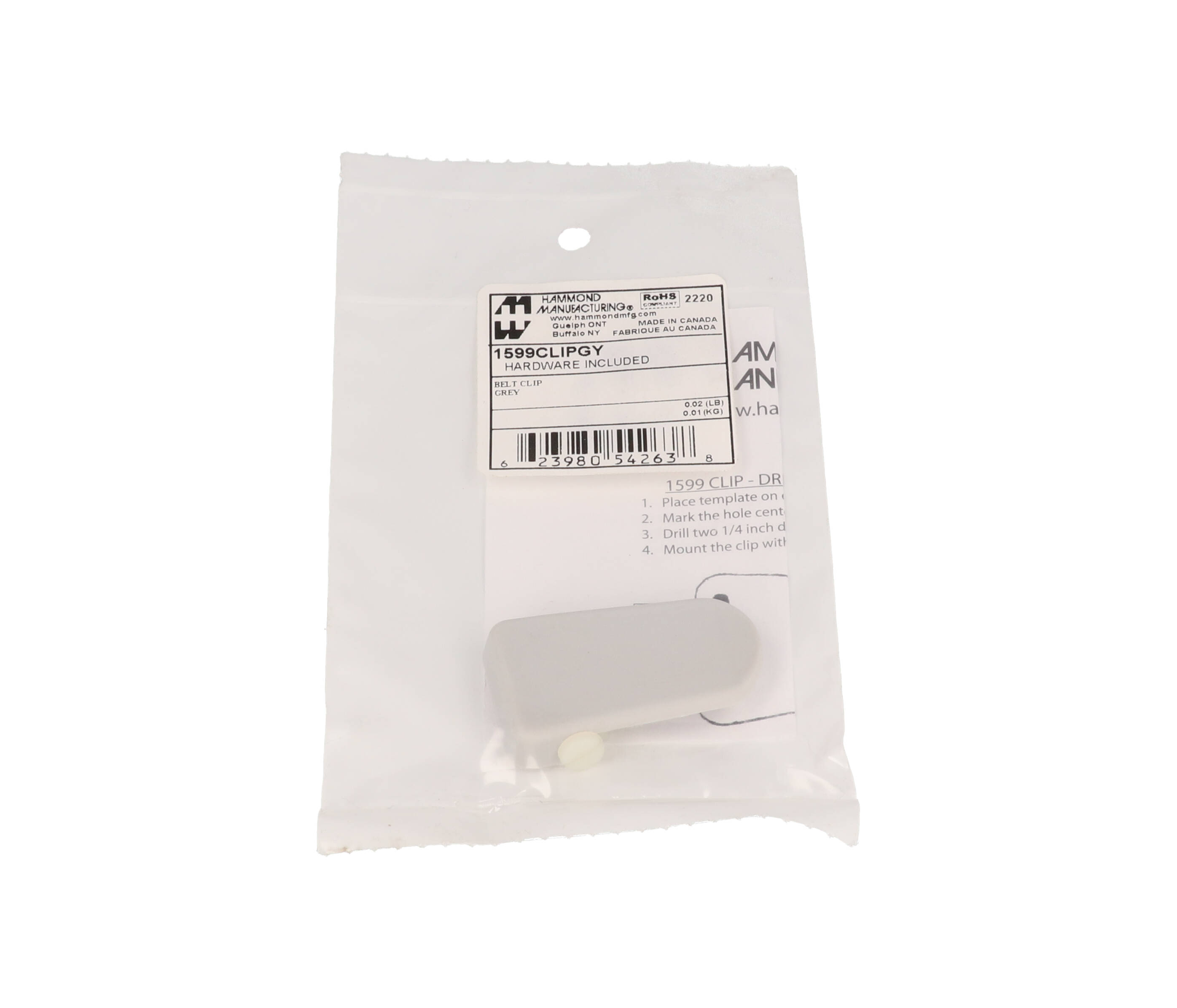

Supplied in a bag at a shipping weight of 0.02 lbs (0.01 kg), the 1599CLIPGY is RoHS and REACH compliant. The same clip in black is 1599CLIP.
Because the clip comes with its own template and insulated nylon screws, it is a simple add-on for any 1599 enclosure that was ordered without a factory-fitted clip.
Ideal For
- Belt clip for gray 1599 handheld enclosures
- Wearable portable test and control devices
- Adding a clip to 1599 enclosures ordered without one
Overview
| Type | Belt clip |
| Series | 1599CLIP Series (Plastic Belt Clip) |
| Included | Clip, 2 nylon mounting screws, mounting template |
| Description | Hardware - belt clip, gray, hardware included |
| Part Number | 1599CLIPGY |
| Compatibility | All 1599 enclosures; part numbers ending in "CP" come with these clips installed |
| Black Equivalent | 1599CLIP |
| Short Description | 1599CLIP KIT GREY NYLON |
Dimensions
| Depth | 8.10 mm [.32 in] |
| Width | 28.21 mm [1.11 in] |
| Length | 47.06 mm [1.85 in] |
Identifiers
| UPC | 623980542638 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Color | Light Gray |
| Screws | 2 nylon screws, insulated to avoid internal interference |
| Thread | 8-32 NC, threaded after molding |
| Material (Part Page) | ABS Plastic |
| Material (Series / Drawing) | Molded from nylon (grey nylon) |
| Recommended Cover Screw Torque | 25-28 ozf-in (18-20 cN-m) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Will the 1599CLIPGY fit my 1599 enclosure?▾
The clip is compatible with 1599 enclosures; part numbers ending in "CP" are supplied with these clips installed.
What comes in the kit?▾
A light gray clip, 2 nylon mounting screws and a mounting template.
What thread does the clip use?▾
The drawing specifies an 8-32 NC thread, threaded after molding.
How tight should the screws be?▾
The recommended cover screw torque is 25-28 ozf-in (18-20 cN-m).
Is a black clip available?▾
Yes, the black version is part number 1599CLIP.
