Hammond 1599CLIP Black Belt Clip Kit for 1599 Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Belt clip kit for 1599 series handheld enclosures

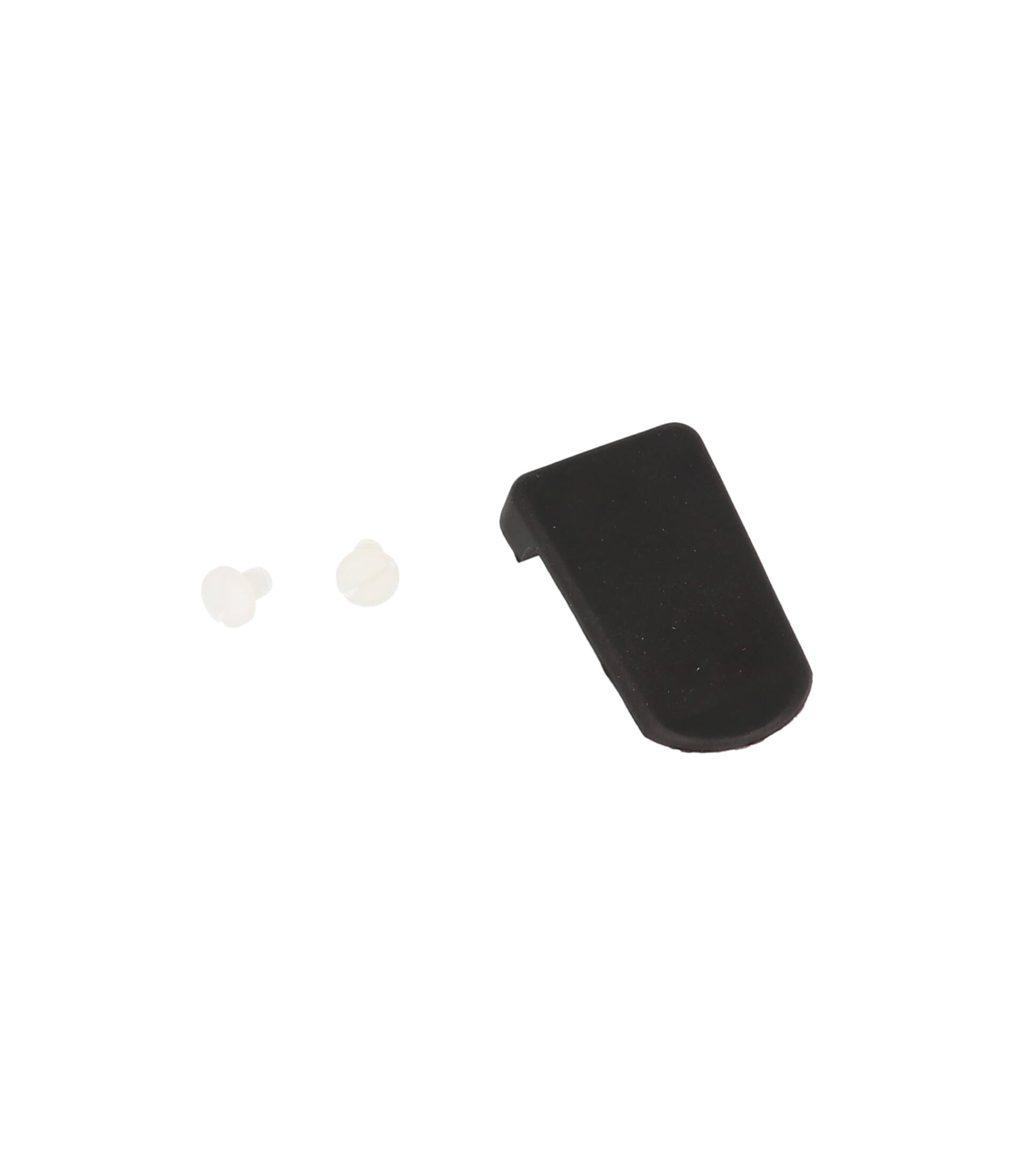

- Includes clip, 2 nylon mounting screws and mounting template
- Nylon screws are insulated to avoid internal interference
- 47.06 mm [1.85 in] long x 28.21 mm [1.11 in] wide x 8.10 mm [.32 in] deep
- 8-32 NC thread, threaded after molding
- Recommended screw torque 25-28 ozf-in (18-20 cN-m)
- Black; RoHS and REACH compliant
The 1599CLIP is a black belt clip kit for 1599 series enclosures. It turns a handheld 1599 enclosure into a belt-worn device, which suits designers of portable instruments, testers and remote controls. Part numbers ending in "CP" come with these clips already installed, and all other 1599 enclosures are compatible with the clip.

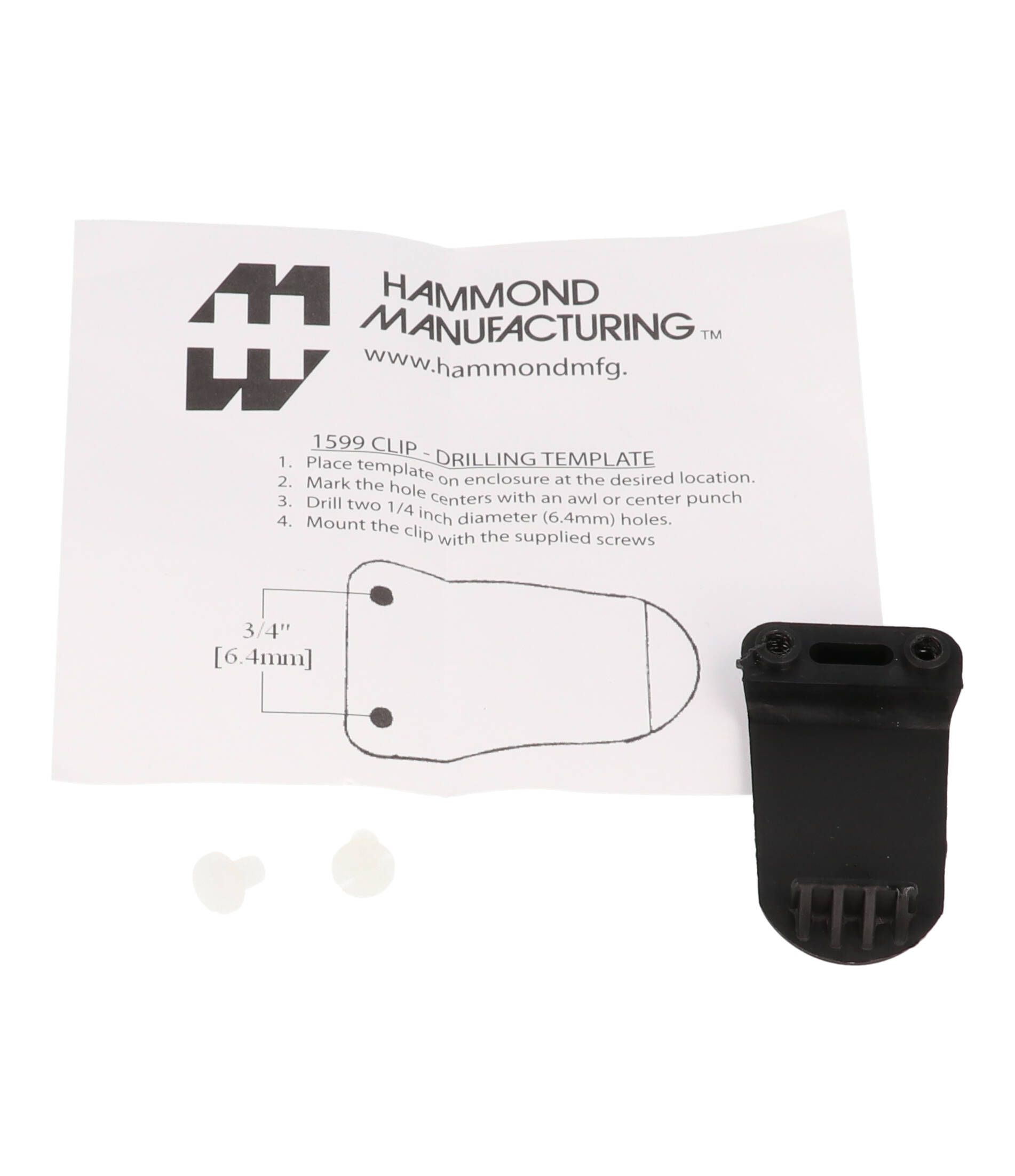

The kit includes the clip, 2 nylon mounting screws and a mounting template. The screws are nylon and insulated to avoid internal interference. The series and drawing describe the clip as molded from tough nylon, while the part page lists the material as ABS plastic; the colour is black.
Per the drawing, the clip is 47.06 mm [1.85 in] long, 28.21 mm [1.11 in] wide at its widest point and 8.10 mm [.32 in] deep, and it features an 8-32 NC thread formed after molding. The recommended cover screw torque is 25-28 ozf-in (18-20 cN-m).

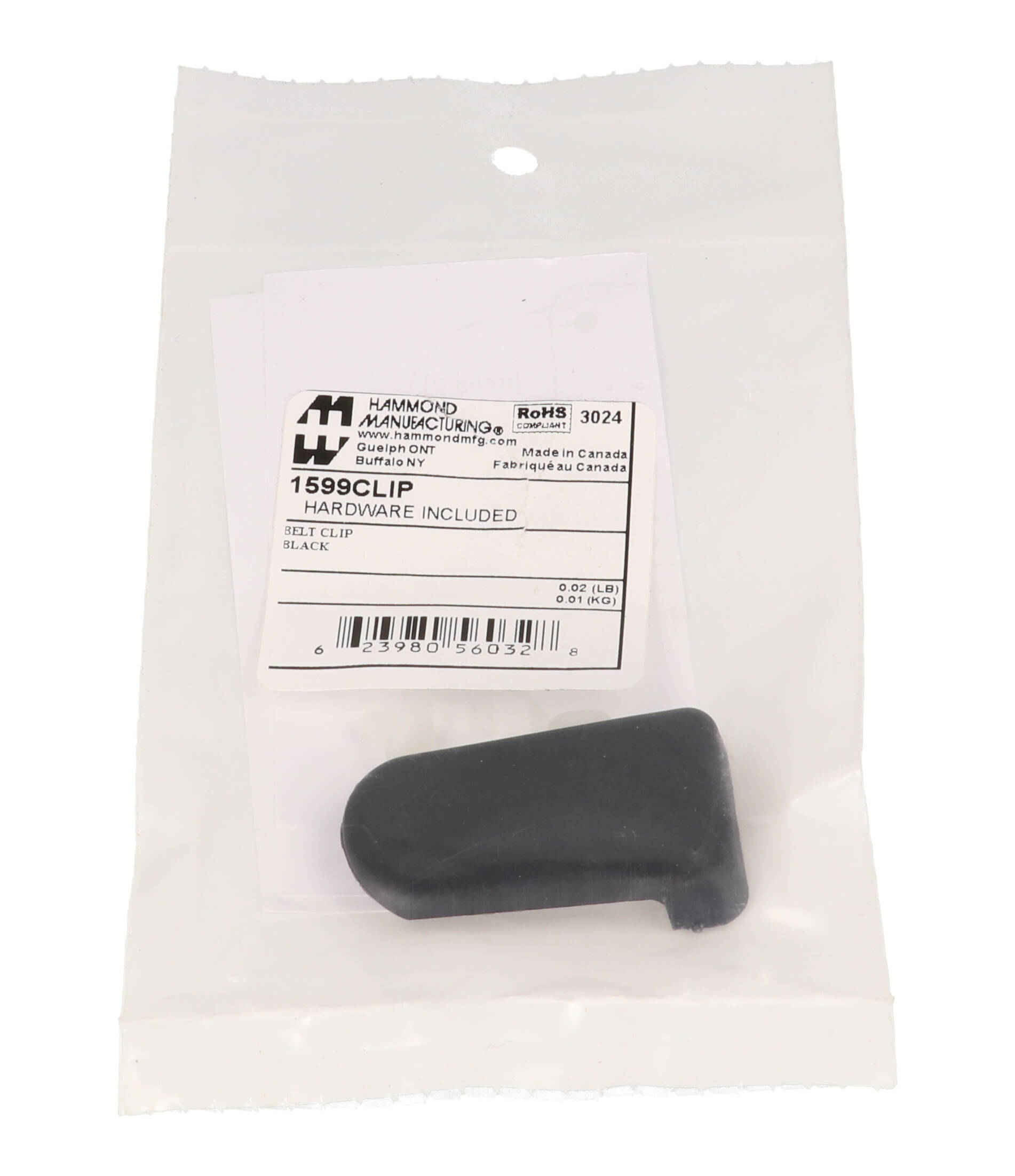

The kit ships in a bag with a shipping weight of 0.02 lbs (0.01 kg) and is RoHS and REACH compliant. A light gray version, 1599CLIPGY, is also offered.
Because the clip mounts with insulated nylon screws and comes with its own template, it is a straightforward add-on for any 1599 enclosure that was ordered without a factory-fitted clip, keeping the clip hardware from interfering with the circuit inside.
Ideal For
- Adding a belt clip to 1599 handheld enclosures
- Belt-worn portable instruments and testers
- Retrofitting 1599 enclosures not supplied with a clip
Overview
| Type | Belt clip |
| Series | 1599CLIP Series (Plastic Belt Clip) |
| Included | Clip, 2 nylon mounting screws, mounting template |
| Description | Hardware - belt clip, black, hardware included |
| Part Number | 1599CLIP |
| Compatibility | All 1599 enclosures; part numbers ending in "CP" come with these clips installed |
| Gray Equivalent | 1599CLIPGY |
| Short Description | BELT CLIP KIT |
Dimensions
| Depth | 8.10 mm [.32 in] |
| Width | 28.21 mm [1.11 in] |
| Length | 47.06 mm [1.85 in] |
Identifiers
| UPC | 623980560328 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Color | Black |
| Screws | 2 nylon screws, insulated to avoid internal interference |
| Thread | 8-32 NC, threaded after molding |
| Material (Part Page) | ABS Plastic |
| Material (Series / Drawing) | Molded from nylon (black nylon) |
| Recommended Cover Screw Torque | 25-28 ozf-in (18-20 cN-m) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1599CLIP fit?▾
It is compatible with 1599 enclosures. Part numbers ending in "CP" come with these clips already installed.
What is included in the kit?▾
The clip, 2 nylon mounting screws and a mounting template.
Why are the screws nylon?▾
The nylon screws are insulated to avoid internal interference.
What torque should I use on the screws?▾
The drawing gives a recommended cover screw torque of 25-28 ozf-in (18-20 cN-m).
How big is the clip?▾
The drawing shows it 47.06 mm [1.85 in] long, 28.21 mm [1.11 in] wide and 8.10 mm [.32 in] deep.
Is there a gray version?▾
Yes, the light gray belt clip is part number 1599CLIPGY.
