Hammond 1593NALTBU 111x75x25mm Transparent Blue Handheld ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Overall size 111.25 mm [4.38 in] x 75.00 mm [2.95 in] x 25.20 mm [.99 in] per drawing
- Inside 101.00 mm L x 68.82 mm W x 19.70 mm H for mounting a printed circuit board
- IP54 rated; lap joint construction resists dust and splashing water
- Two removable 1.63 mm flat aluminum end panels, front and rear
- Recessed top inlay 99.20 mm x 64.00 mm for a membrane display or keypad
- Transparent Blue general purpose ABS, satin texture, UL94 HB flame rating
- 2 self-tapping cover screws in black finish; 57 lbf-in (40 cN-m) torque
- RoHS and REACH compliant; ergonomic shape fits comfortably in the hand

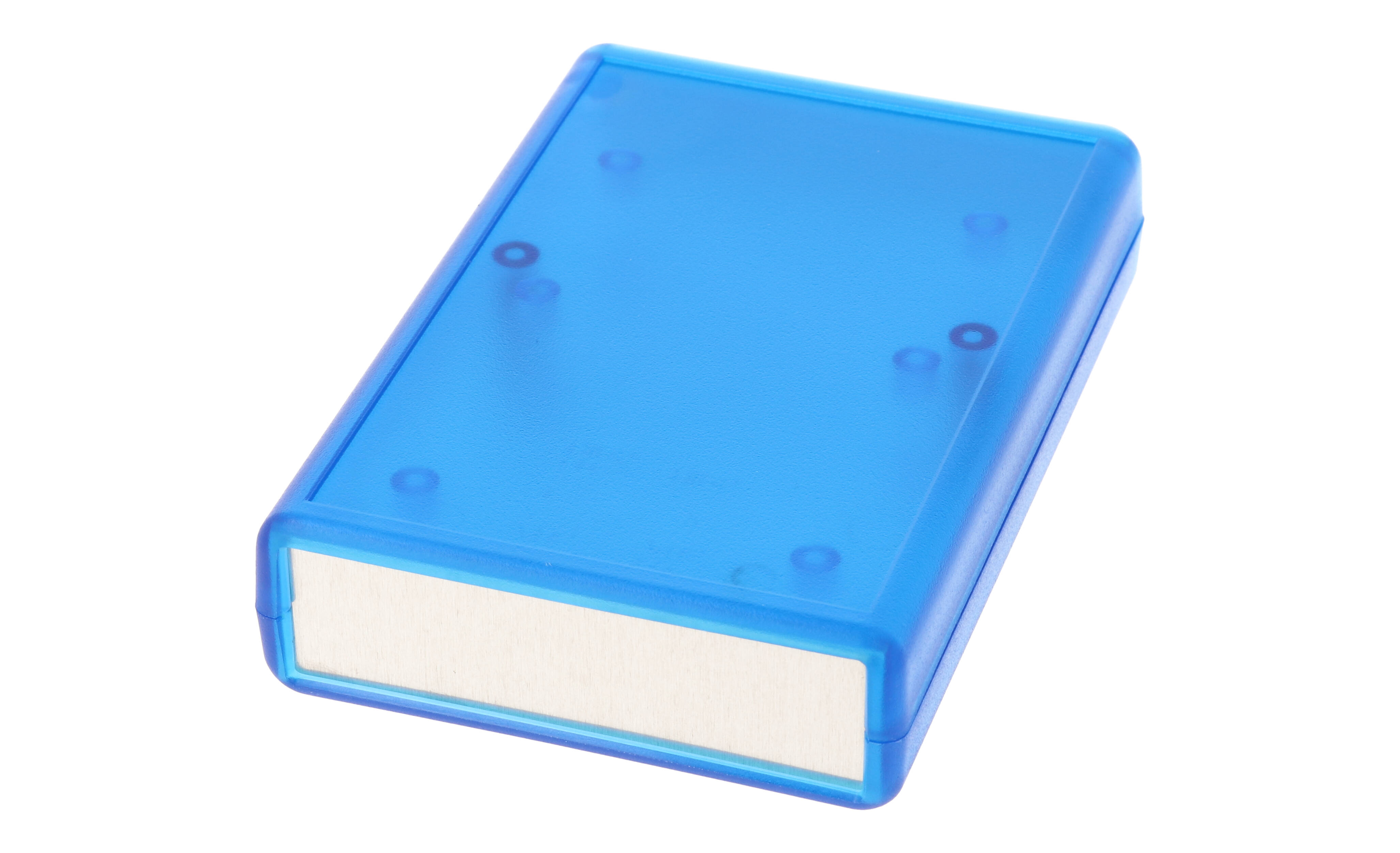

The 1593NALTBU is a transparent blue handheld ABS enclosure in the 1593N size, part of the 1593AL series with aluminum end panels. At 25.20 mm high it is a low-profile case for hand-held instruments, data loggers and remote controls built around a printed circuit board.
The drawing specifies 111.25 x 75.00 x 25.20 mm (4.38 x 2.95 x .99 in) overall; the part page lists a nominal size of 4.3 x 2.9 x 1 in (109 x 74 x 25 mm) and the series table 111 x 75 x 25 mm. Inside, the enclosure measures 101.00 mm long, 68.82 mm wide and 19.70 mm high. The recessed top has a 99.20 x 64.00 mm inlay, 0.75 mm deep, sized for a membrane display or keypad.
Without a battery door, the 1593NALTBU is IP54 rated and uses lap joint construction against dust and splashing water. Two flat aluminum panels, 1.63 mm thick, form the removable front and rear ends. The assembly is closed with two self-tapping cover screws (black for the transparent blue version) at a recommended 57 lbf-in (40 cN-m).
Material is general purpose ABS with a satin texture, flame rated UL94 HB, and the part is RoHS and REACH compliant. The P.C. board is not supplied. Accessories for the 1593N include 1593NAL10 aluminum panels, 1593NIR10 infrared panels, 1593ATS50 board screws and the 1599CLIP / 1599CLIPGY nylon belt clip.
Ideal For
- Hand-held electronic instruments
- Printed circuit board housing
- Membrane keypad or display devices
- Portable devices needing IP54 protection
- Belt-clip mounted portable equipment
Overview
| Top | Recessed for membrane display or keypad |
| Type | General purpose |
| Series | 1593AL Series - ABS Plastic Hand Held/Instrument Enclosures |
| P.C. Board | Not supplied |
| Part Number | 1593NALTBU |
| Battery Door | No |
| Enclosure Size | 1593N |
| Long Description | enclosure - plastic |
| Removable Panels | 2 |
| Manufacturer Description | 110X75X25MM HAND HELD ENCL |
Dimensions
| Inlay Depth | .75 mm [.03 in] |
| Inlay Width | 64.00 mm [2.52 in] |
| Inlay Length | 99.20 mm [3.91 in] |
| Inside Width | 68.82 mm [2.71 in] |
| Inside Height | 19.70 mm [.78 in] |
| Inside Length | 101.00 mm [3.98 in] |
| Series Table Depth | 25 mm |
| Series Table Width | 75 mm |
| End Panel Thickness | 1.63 mm [.06 in] |
| Series Table Length | 111 mm |
| Overall Width (Drawing) | 75.00 mm [2.95 in] |
| Nominal Size (L X W X H) | 4.3 in x 2.9 in x 1 in (109 mm x 74 mm x 25 mm) |
| Overall Height (Drawing) | 25.20 mm [.99 in] |
| Overall Length (Drawing) | 111.25 mm [4.38 in] |
Accessories
| Nylon Belt Clip | 1599CLIP (Black), 1599CLIPGY (Grey) |
| IR Panels (10-pack) | 1593NIR10 |
| Other Colours In Size | 1593NALBK, 1593NALGY |
| Aluminum Panels (10-pack) | 1593NAL10 |
| Cover Screws, Black (100-pack) | 1593QS100BK |
| Cover Screws, Silver (100-pack) | 1593QS100 |
| P.C. Board Screws #4 X 1/4" (50-pack) | 1593ATS50 |
Identifiers
| UPC | 623980987088 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Color | Trans. Blue |
| Closure | Self tapping screws |
| Texture | Satin |
| Material | ABS Plastic (general purpose, GP ABS) |
| End Panels | 2 flat aluminum panels (front and rear) |
| Construction | Lap joint |
| Cover Screws | 2 x #4 x 3/4" self-tapping, black finish |
| Solid Models | .stp or .x_t |
| P.C. Board Mounting | Accepts #4 self-tapping screw |
| Factory Modification | Milling, drilling, printing etc. available from factory |

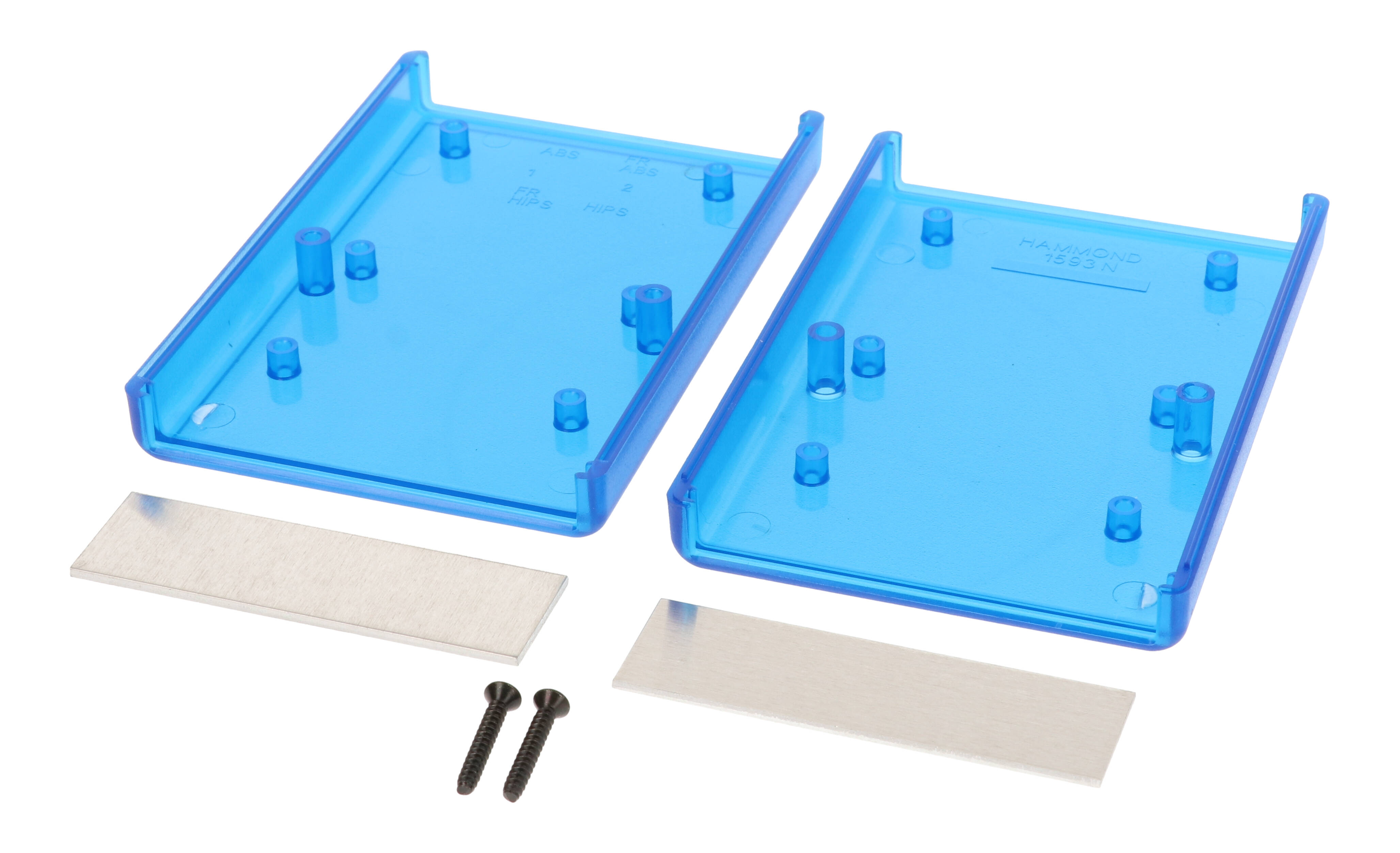

| Included In Assembly | Top and bottom cover, 2 flat aluminum panels for front and rear and 2 cover screws |
| Recommended Cover Screw Torque | 57 lbf-in (40 cN-m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1593NALTBU?▾
The drawing gives 111.25 mm [4.38 in] x 75.00 mm [2.95 in] x 25.20 mm [.99 in] overall, with inside dimensions of 101.00 mm [3.98 in] long, 68.82 mm [2.71 in] wide and 19.70 mm [.78 in] high. The part page lists a nominal size of 4.3 in x 2.9 in x 1 in (109 mm x 74 mm x 25 mm).
Is the 1593NALTBU weatherproof?▾
It is listed as IP54. Versions without a battery door are designed to meet IP54, and lap joint construction protects against dust accumulation and splashing water.
How many end panels are included?▾
Two removable flat aluminum panels, 1.63 mm thick, for the front and rear.
What comes in the box?▾
Top and bottom covers, 2 aluminum panels and 2 cover screws (black finish). A P.C. board is not supplied.
What plastic is it made from?▾
General purpose ABS plastic in transparent blue with a satin texture, flame rated UL94 HB. Acetone, ketones, thread locking compounds, cutting fluid and strong solvents should be avoided.
Can I buy replacement panels or screws?▾
Yes. Aluminum panels come as 1593NAL10 (10-pack), IR panels as 1593NIR10 (10-pack), cover screws as 1593QS100 (silver) or 1593QS100BK (black) and P.C. board screws as 1593ATS50.
