Hammond 1591Z50 PCB Card Adaptors, Package of 50, Black FR Abs
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Package of 50 PC board card adaptors
- Mount PC boards horizontally in 1591 series enclosures
- Flame retardant ABS, UL94 V-0, black
- Cut to fit; clips trimmed 2.1-2.5 mm from top of box
- Recommended PCB thickness 1.5-1.75 mm
- Ships in a bag; RoHS and REACH compliant

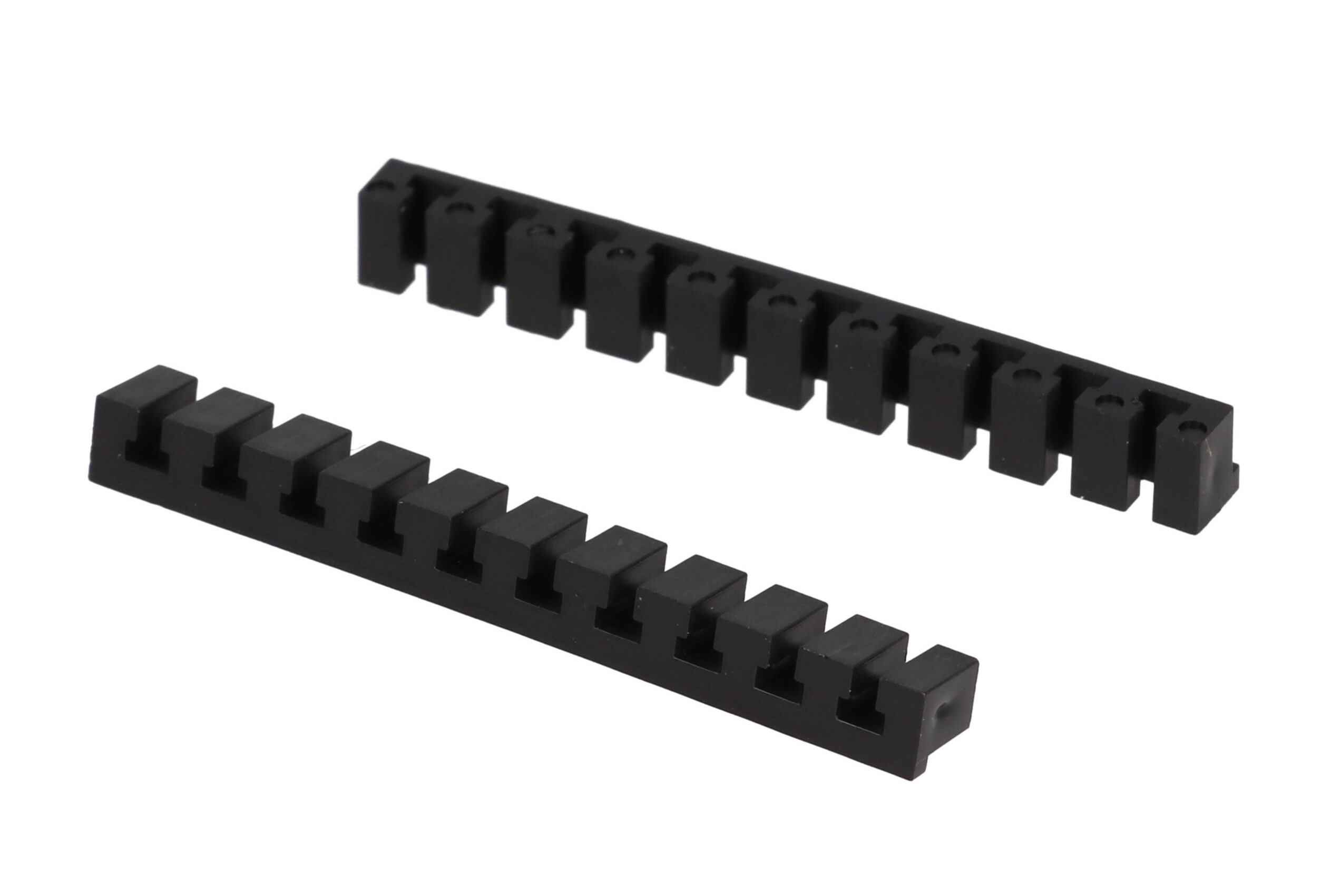

The 1591Z50 is a package of 50 black PC board card adaptors for 1591 series ABS enclosures. The 1591 enclosures are designed for vertical board mounting in their molded card guides; these adaptors allow printed circuit boards to be mounted horizontally within the enclosure instead. The package of 50 suits small production runs where several enclosures are being fitted out.
The adaptors are molded from flame retardant ABS plastic rated UL94 V-0, in black, and are intended to be cut to fit. The drawing shows a length of 52.20 mm (2.06 in).
Installation follows the card adaptor instructions: attach the clips to the PC board on the same level, align the small tabs on the clips with the slots on the box, and insert the board assembly into the box. The clips are then cut 2.1-2.5 mm from the top of the box, and the cover screws are installed to the recommended torque of 42-57 ozf.in (30-40 cN.m). Recommended PCB thickness is 1.5-1.75 mm.
The 1591Z50 ships in a bag, weighs 0.13 lbs (0.06 kg) and is RoHS and REACH compliant. Other pack sizes are 1591Z6, 1591Z50 and 1591Z100.
Ideal For
- Horizontal PCB mounting in 1591 enclosures
- Retrofitting board layouts into card-guide enclosures
- Prototype and production enclosure fit-out
Overview
| Type | card guides |
| Function | Allows mounting of PC boards horizontally within the enclosure |
| For Use With | 1591 series enclosures |
| Product Type | PC board card adaptors |
| Short Description | PC CARD ADAPTORS-ABS |
Dimensions
| Length (Drawing) | 52.20 mm [2.06 in] |
Identifiers
| UPC | 623980557694 |
| UNSPSC | 39121301 |
Installation
| Fitting | Cut to fit; cut clips 2.1-2.5 mm from the top of the box |
| Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
| Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic (flame retardant ABS) |
| CAD Models | Solid models available in STEP or IGES |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the 1591Z50 do?▾
The adaptors allow PC boards to be mounted horizontally within 1591 series enclosures, whose molded card guides are otherwise for vertical mounting.
How many adaptors are included?▾
50 per package.
What PCB thickness is recommended?▾
1.5 mm to 1.75 mm.
Do they need to be trimmed?▾
Yes. The adaptors are cut to fit: the clips are cut 2.1-2.5 mm from the top of the box.
What material are they?▾
Black flame retardant ABS rated UL94 V-0.
