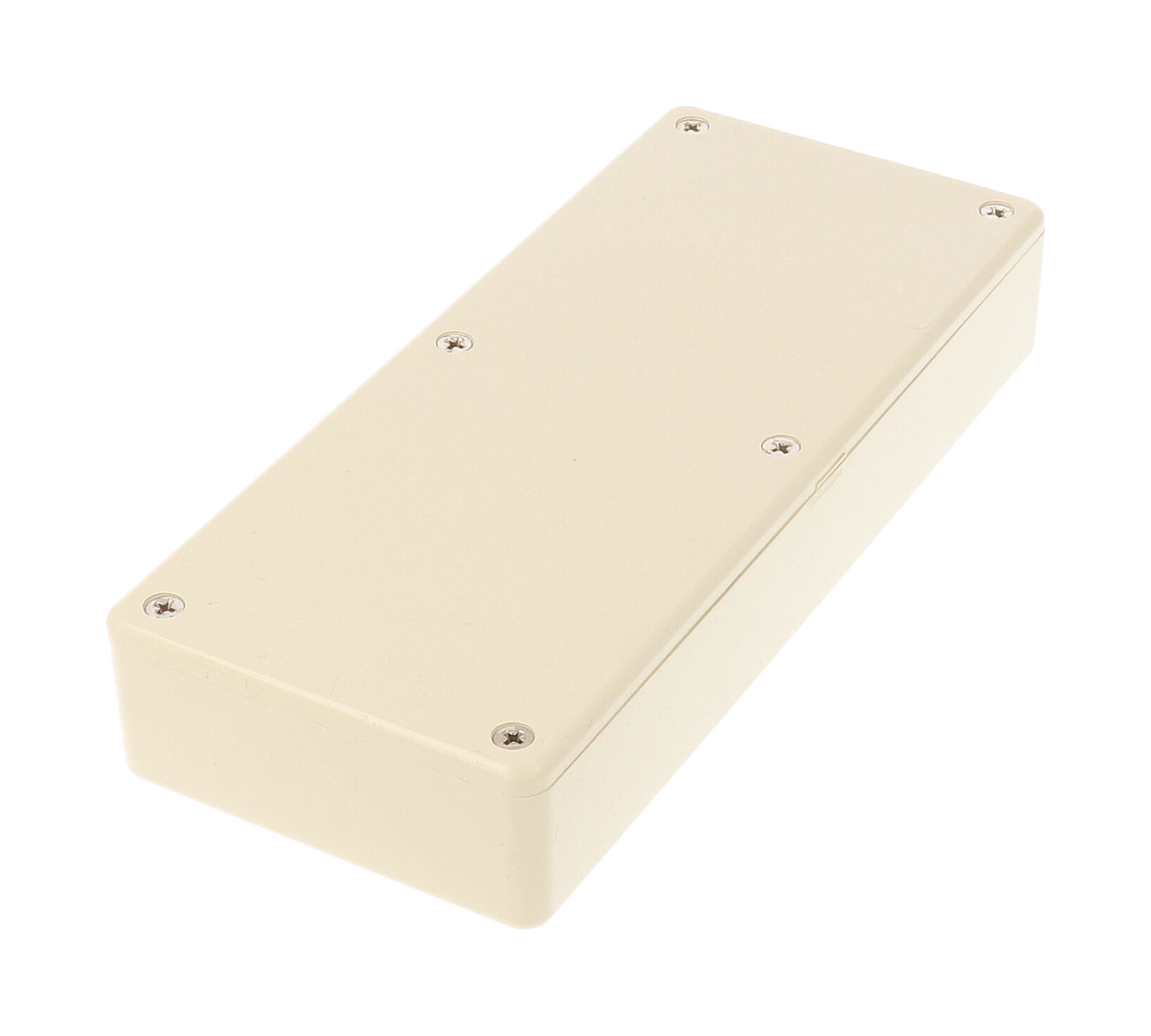

Hammond 1591HBG 166x71x29 mm Beige Flame Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm) beige ABS enclosure
- Flame retardant ABS rated UL94 V-0
- Card guides molded into all side walls accept 1.5 mm (0.062 in) PCBs
- Lap joint construction designed to meet IP54
- M3 machine screws into brass bushings; 6 screws included
- Inside dimensions 159.70 x 64.80 x 25.00 mm
- Optional 1591HC clear polycarbonate lid
- RoHS and REACH compliant
The 1591HBG is a beige flame retardant ABS enclosure in the long, slim 1591H size, measuring 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm). It suits electronics designers and OEMs who need a narrow project box that holds circuit boards vertically on molded card guides.
Card guides are molded into all side walls and accept 1.5 mm (0.062 in) thick boards; the guides are 20.00 mm [0.788 in] high with a 2.00 mm [0.079 in] slot. The interior offers 159.70 mm [6.287 in] of length, 64.80 mm [2.551 in] of width and 25.00 mm [0.984 in] of height, and 1591Z card adaptors allow boards to lie horizontally instead.
The enclosure is molded from easy-to-machine flame retardant ABS carrying a UL94 V-0 rating. Lap joint construction protects against dust and splashing water and is designed to meet IP54. The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, so it tolerates repeated opening; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).

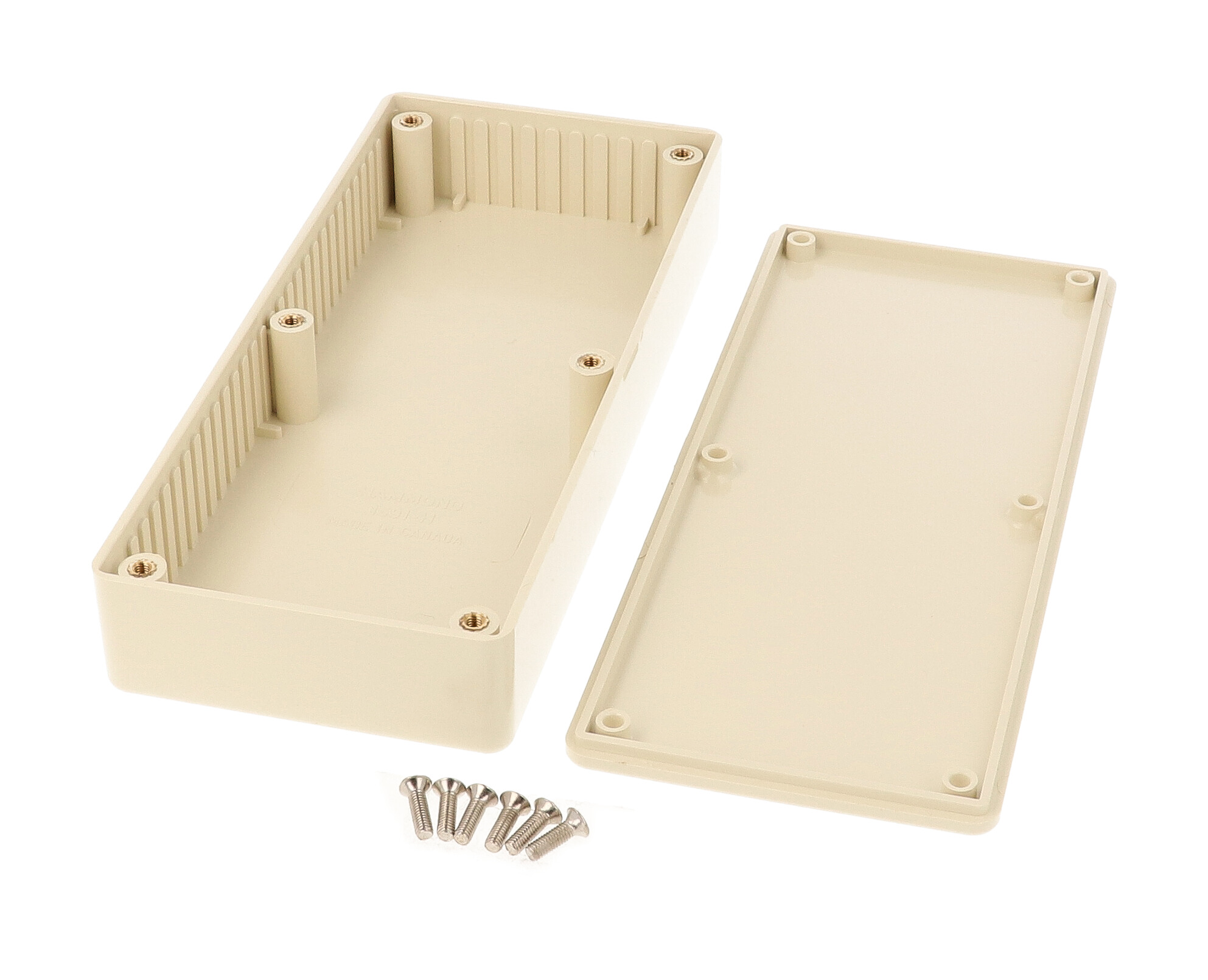

Each 1591HBG includes box, lid, 6 cover screws and pre-installed brass inserts, packed in shrink wrap at 0.22 lbs (0.10 kg). It is RoHS and REACH compliant, the 1591HC clear polycarbonate lid is available for this size, and the factory offers milling, drilling and printing on quotation.
Ideal For
- Vertical PCB mounting on molded card guides
- Flame-retardant electronics project boxes
- Belt or pocket carry with the 1599CLIP nylon clip accessory
- Equipment needing repeated lid removal
Overview
| Type | project box, general purpose |
| Color | Beige |
| Series | 1591 |
| Description | ABS PLST LID & BOX |
| Product Type | ABS plastic multipurpose enclosure with card guides |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [0.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size (L X W X H) | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Nominal Size (L X W X D) | 166 mm x 71 mm x 29 mm |
| Overall Height (Drawing) | 29.00 mm [1.142 in] |
| Overall Length (Drawing) | 165.70 mm [6.524 in] |
Accessories
| Clear Lid Accessory | 1591HC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black) / 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591MS100 (silver) / 1591MS100BK (black), M3 - 0.5 x 10 mm, 100 pack |
Identifiers
| UPC | 623980557540 |
| UNSPSC | 39121301 |
| Drawing | 1591H REV: 06.16.2023 |
| Part Number | 1591HBG |
PCB Mounting
| Card Guides | Molded into all side walls |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 20.00 mm [0.788 in] |
| Guide Slot Width | 2.00 mm [0.079 in] |
| Accepted Board Thickness | 1.5 mm (0.062 in) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
| Horizontal PCB Card Adaptors (Optional) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Included | Box, lid, 6 cover screws, and pre-installed brass inserts |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Material | ABS Plastic |
| 3D Models | Solid models available in .stp or .x_t |
| Lid Fastening | M3 x 10 mm Phillips machine screws threaded into integral brass bushings |
| Material Grade | FR ABS (flame retardant ABS) |
| Lid Screw Thread | Accepts M3 - 0.5 machine screw |
| Joint Construction | Lap joint |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1591HBG?▾
The part page lists 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm). Inside it measures 159.70 mm [6.287 in] long, 64.80 mm [2.551 in] wide and 25.00 mm [0.984 in] high.
Is it flame retardant?▾
Yes. It is flame retardant ABS with a UL94 V-0 flammability rating.
How is the lid fastened?▾
With M3 x 10 mm Phillips machine screws into integral brass bushings. 6 cover screws and the pre-installed brass inserts are included; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
What board thickness fits the card guides?▾
The molded guides accept 1.5 mm (0.062 in) thick PCBs mounted vertically; 1591Z card adaptors allow horizontal mounting.
Is a clear lid available?▾
Yes, 1591HC is the flame retardant polycarbonate clear lid (lid only) for this size.
What color is it?▾
This part number is Beige.
