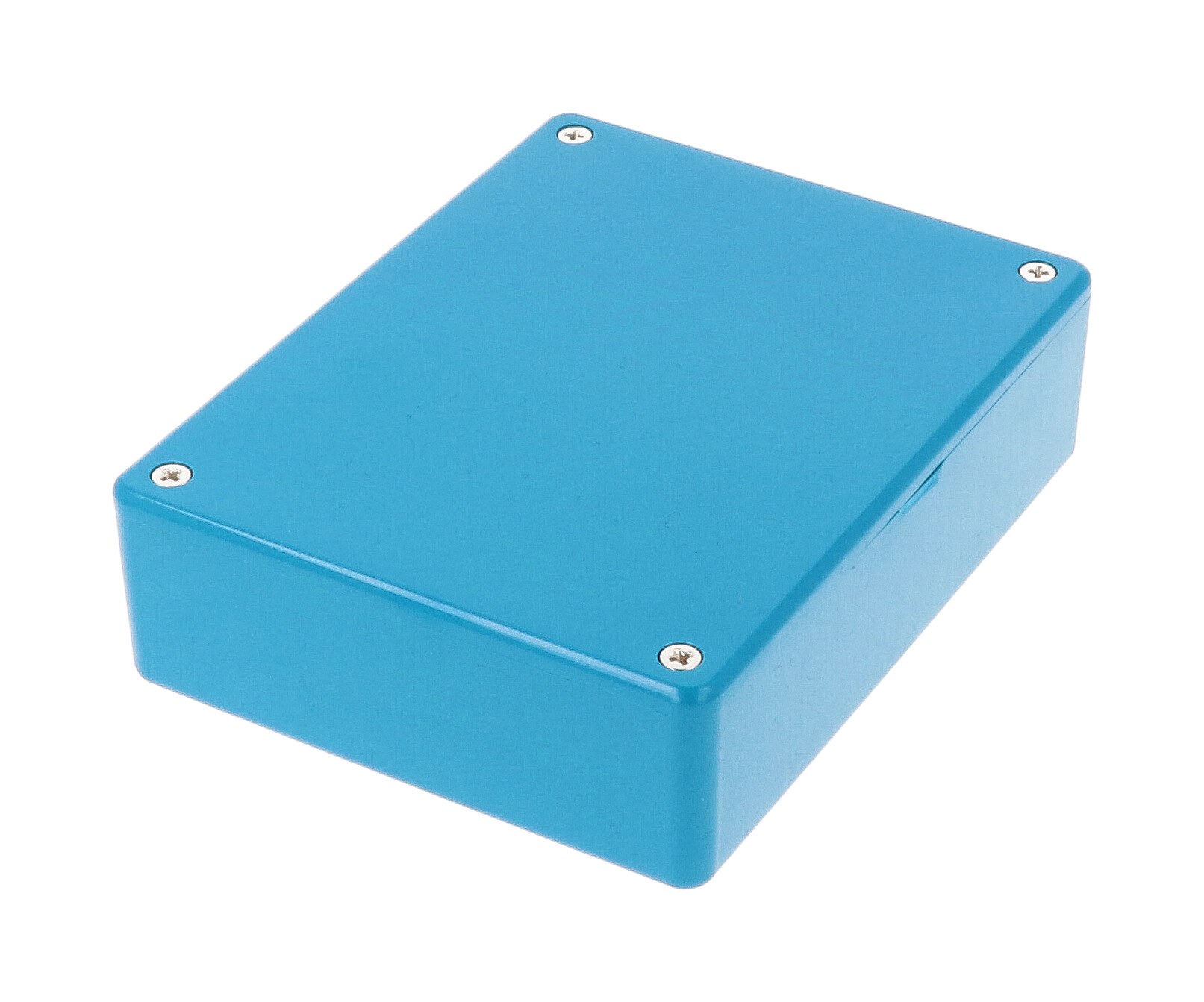

Hammond 1591GBU 121x94x34 mm Blue Flame Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4.74 x 3.69 x 1.34 in (120 x 94 x 34 mm) blue ABS enclosure
- Flame retardant ABS rated UL94 V-0
- Card guides molded into all side walls accept 1.5 mm (0.062 in) PCBs
- Lap joint construction designed to meet IP54
- M3 machine screws into brass bushings; 4 screws included
- Inside dimensions 114.26 x 87.36 x 29.90 mm
- Optional 1591GC clear polycarbonate lid
- RoHS and REACH compliant
The 1591GBU is a blue flame retardant ABS enclosure in the 1591G size of the 1591 multipurpose series, measuring 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm). Its low profile and molded card guides make it a practical project box for electronics designers and OEMs mounting compact circuit boards vertically.
Card guides are molded into all side walls and accept 1.5 mm (0.062 in) thick boards, with a guide height of 24.90 mm [0.980 in] and a 2.03 mm [0.080 in] slot. Inside, the box measures 114.26 mm [4.498 in] long, 87.36 mm [3.439 in] wide and 29.90 mm [1.177 in] high. 1591Z card adaptors allow horizontal board mounting when preferred.
The enclosure is molded from easy-to-machine flame retardant ABS carrying a UL94 V-0 rating. Lap joint construction protects against dust and splashing water and is designed to meet IP54. The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, so it tolerates repeated opening; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).

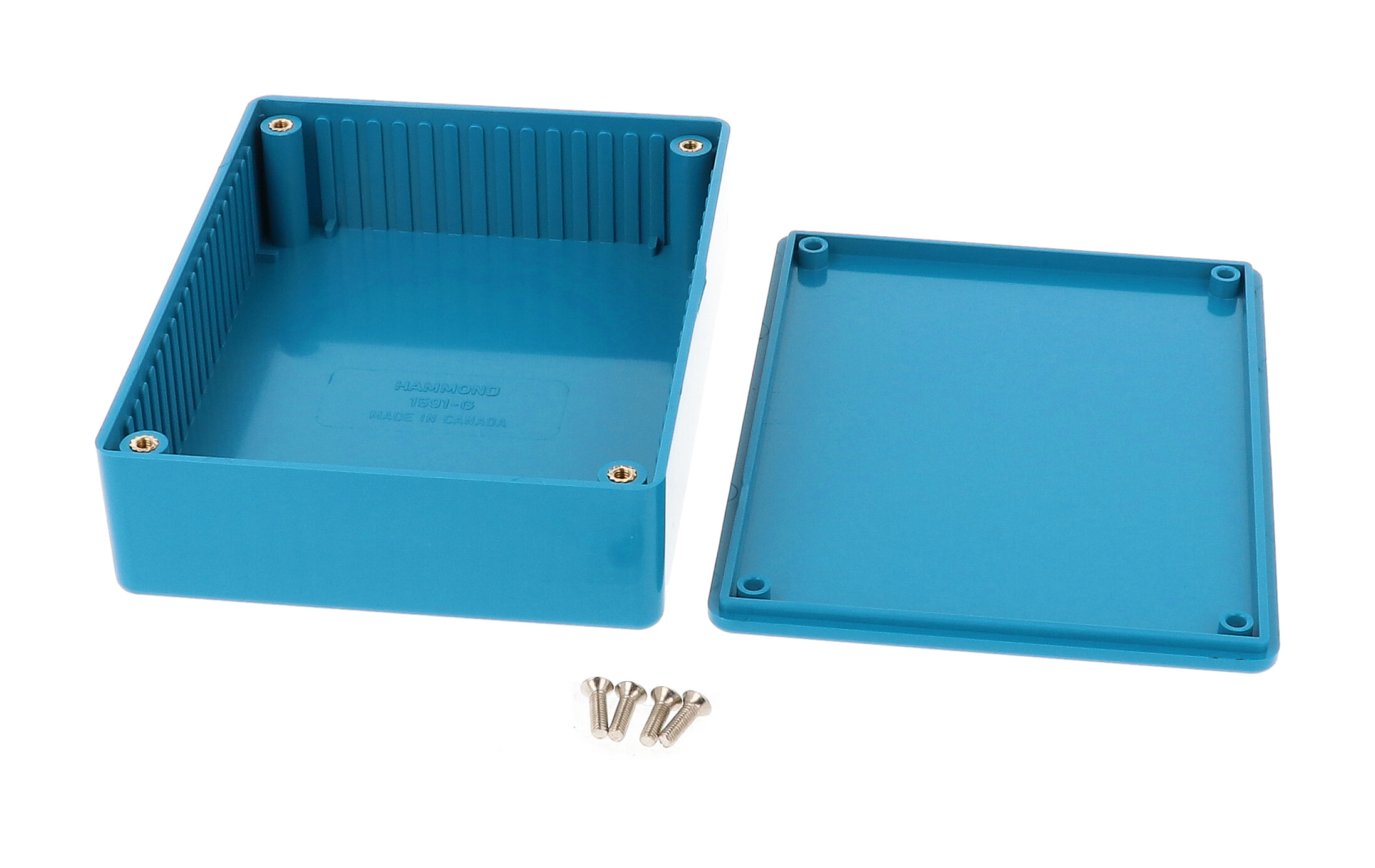

Each 1591GBU includes box, lid, 4 cover screws and pre-installed brass inserts, packed in shrink wrap at 0.21 lbs (0.10 kg). It is RoHS and REACH compliant, the 1591GC clear polycarbonate lid is available for this size, and the factory offers milling, drilling and printing on quotation.
Ideal For
- Vertical PCB mounting on molded card guides
- Flame-retardant electronics project boxes
- Belt or pocket carry with the 1599CLIP nylon clip accessory
- Equipment needing repeated lid removal
Overview
| Type | project box, general purpose |
| Color | Blue |
| Series | 1591 |
| Description | ABS PLST BOX & LID |
| Product Type | ABS plastic multipurpose enclosure with card guides |
Dimensions
| Inside Width | 87.36 mm [3.439 in] |
| Inside Height | 29.90 mm [1.177 in] |
| Inside Length | 114.26 mm [4.498 in] |
| Size (L X W X H) | 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm) |
| Overall Width (Drawing) | 93.60 mm [3.685 in] |
| Overall Height (Drawing) | 34.00 mm [1.339 in] |
| Overall Length (Drawing) | 120.50 mm [4.744 in] |
Accessories
| Clear Lid Accessory | 1591GC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black) / 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591MS100 (silver) / 1591MS100BK (black), M3 - 0.5 x 10 mm, 100 pack |
Identifiers
| UPC | 623980557427 |
| UNSPSC | 39121301 |
| Drawing | 1591G REV: 06.16.2023 |
| Part Number | 1591GBU |
PCB Mounting
| Card Guides | Molded into all side walls |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 24.90 mm [0.980 in] |
| Guide Slot Width | 2.03 mm [0.080 in] |
| Accepted Board Thickness | 1.5 mm (0.062 in) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
| Horizontal PCB Card Adaptors (Optional) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Included | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Material | ABS Plastic |
| 3D Models | Solid models available in .stp or .x_t |
| Lid Fastening | M3 x 10 mm Phillips machine screws threaded into integral brass bushings |
| Material Grade | FR ABS (flame retardant ABS) |
| Lid Screw Thread | Accepts M3 - 0.5 machine screw |
| Joint Construction | Lap joint |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1591GBU?▾
The part page lists 4.74 in x 3.69 in x 1.34 in (120 mm x 94 mm x 34 mm). Inside it measures 114.26 mm [4.498 in] long, 87.36 mm [3.439 in] wide and 29.90 mm [1.177 in] high.
Is it flame retardant?▾
Yes. It is flame retardant ABS with a UL94 V-0 flammability rating.
How is the lid fastened?▾
With M3 x 10 mm Phillips machine screws into integral brass bushings. 4 cover screws and the pre-installed brass inserts are included; recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
What board thickness fits the card guides?▾
The molded guides accept 1.5 mm (0.062 in) thick PCBs mounted vertically; 1591Z card adaptors allow horizontal mounting.
Is a clear lid available?▾
Yes, 1591GC is the flame retardant polycarbonate clear lid (lid only) for this size.
What color is it?▾
This part number is Blue.
