Hammond 1591DBG 150x80x50mm Beige Flame Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Beige FR ABS case and lid, UL94 V-0
- 150 x 80 x 50 mm (5.91 x 3.15 x 1.97 in) outside size
- Card guides accept 1.5 mm (0.062”) boards vertically
- M3 - 0.5 screws into pre-installed brass inserts
- IP54 lap joint construction
- RoHS and REACH compliant, shrink wrapped

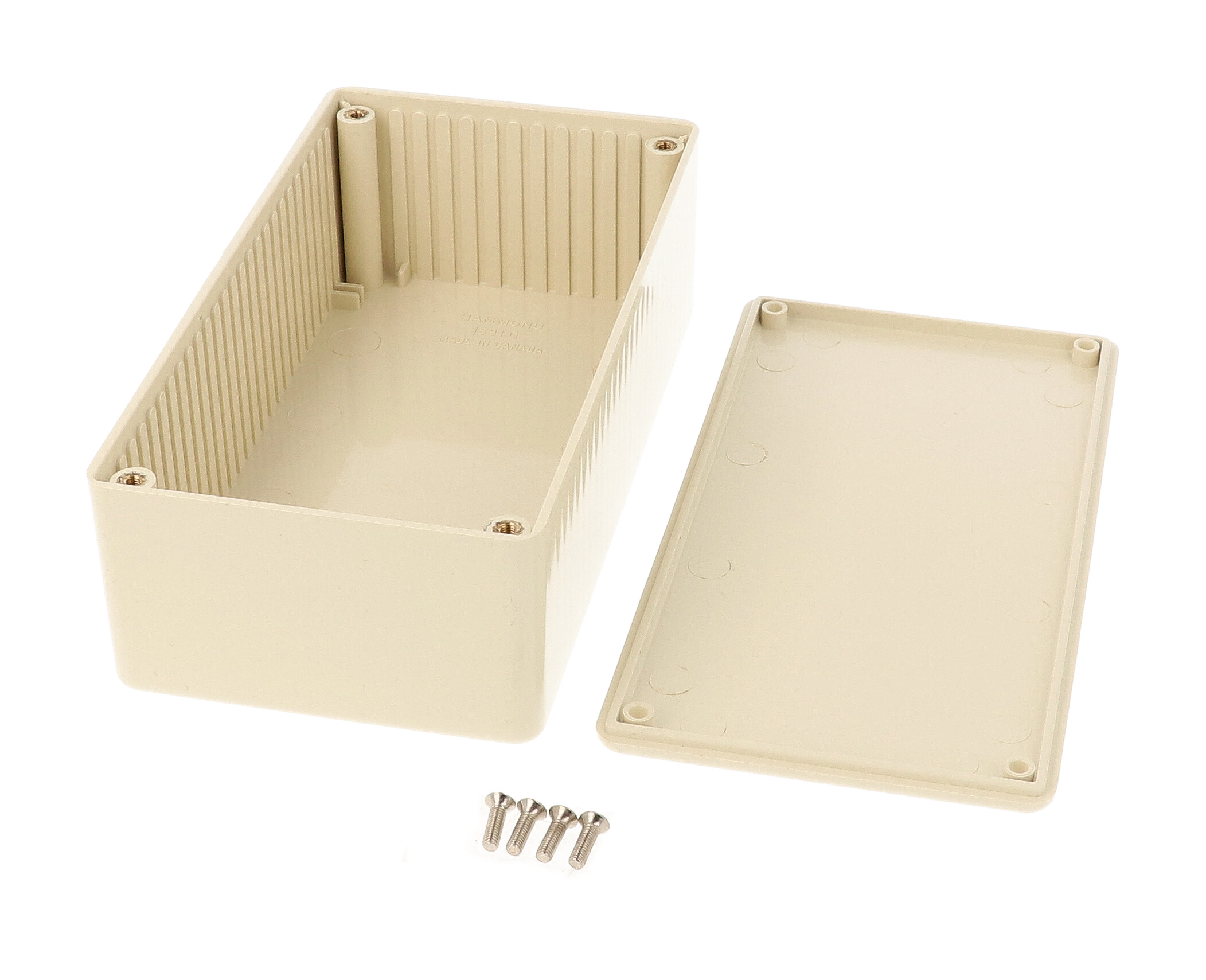

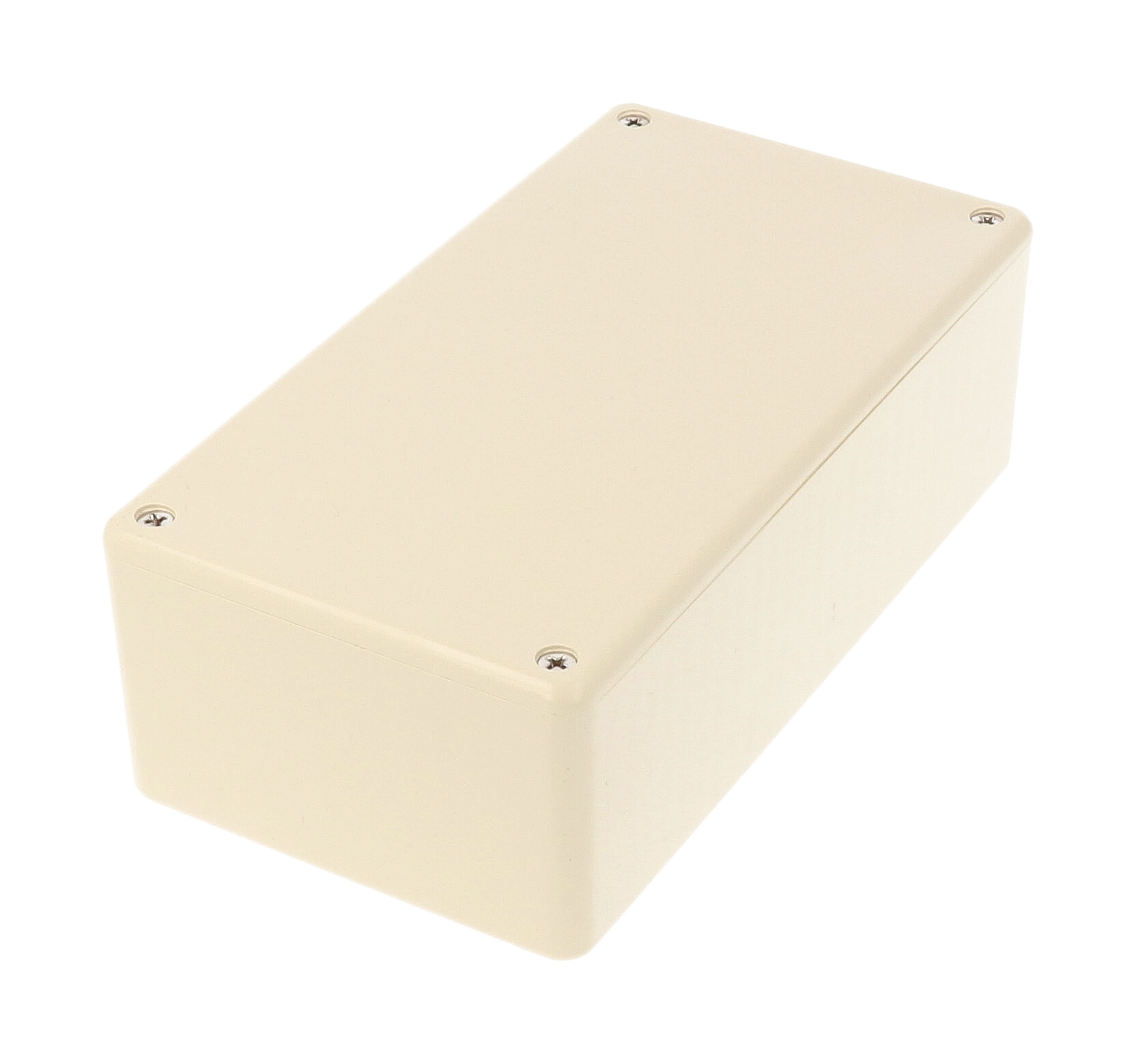

The 1591DBG is a beige flame retardant ABS plastic case and lid in the 1591D size, 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm). The 1591D drawing lists it as FR ABS UL94 -V0 in beige, an option for products that call for a light, neutral housing color.
Card guides molded into all side walls accept 1.5 mm (0.062”) boards for vertical PCB mounting. Inside, the drawing gives 143.61 mm of length, 73.61 mm of width and 46.10 mm of height, with guides 41.10 mm high and 3.00 mm wide.
The lid accepts M3 - 0.5 machine screws into pre-installed brass inserts, suitable for repeated assembly and disassembly. The purchased assembly includes box, lid, 4 cover screws and pre-installed brass inserts, with a recommended torque of 35.5-42.5 ozf.in (25-30 cN.m).
Lap joint construction and an IP54 rating guard against dust and splashing water. The 1591DBG is RoHS and REACH compliant, weighs 0.29 lbs (0.13 kg) shipped and is shrink wrapped, UPC 623980547404. The drawing lists 1591DC clear lid and 1591Z card adapters as accessories.
Ideal For
- Beige housings for electronic products
- Vertical PCB enclosures
- Instrument cases in indoor environments
- IP54 electronics
Overview
| Type | project box, general purpose |
| Color | Beige |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | ABS PLASTIC CASE & LID |
| Long Description | enclosure - plastic |
| Colour Options On Drawing | FR ABS UL94 -V0: Beige 1591DBG, Black 1591DBK, Blue 1591DBU, Grey 1591DGY |
Dimensions
| Inside Width | 73.61 mm [2.898 in] |
| Inside Height | 46.10 mm [1.815 in] |
| Inside Length | 143.61 mm [5.654 in] |
| Size L X W X H | 5.91 in x 3.15 in x 1.97 in (150 mm x 80 mm x 50 mm) |
| Overall Width (Drawing) | 80.00 mm [3.150 in] |
| Overall Height (Drawing) | 50.00 mm [1.969 in] |
| Overall Length (Drawing) | 150.00 mm [5.906 in] |
Accessories
| Clear Lid Accessory | 1591DC (flame retardant polycarbonate, lid only) |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
Identifiers
| UPC | 623980547404 |
| UNSPSC | 39121301 |
| Part Number | 1591DBG |
Documentation
| Drawing | 1591D, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.11 mm [.083 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 41.10 mm [1.618 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.29 lbs (0.13 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What color is the 1591DBG?▾
Beige.
What colors does the 1591D drawing list?▾
FR ABS UL94 -V0 in Beige (1591DBG), Black (1591DBK), Blue (1591DBU) and Grey (1591DGY).
What is the interior size?▾
143.61 mm [5.654 in] x 73.61 mm [2.898 in] x 46.10 mm [1.815 in].
What is the recommended torque?▾
35.5-42.5 ozf.in (25-30 cN.m).
Can a clear lid be fitted?▾
The drawing lists 1591DC, a flame retardant polycarbonate clear lid (lid only).
