Hammond 1590Z250PL 400x230mm Enclosure Galvanized Steel Inner Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 16 gauge galvanized steel panel for 1590Z250, 1590Z250BK and 1590Z250GY
- 380 x 213 x 2 mm (14.96 x 8.39 x 0.06 in)
- Matches the enclosure's 380 x 213 mm maximum P.C. board size
- Mounts on the internal mounting shelf with SCGM6-20 screws
- R12.70 mm corners and 1.59 x 45 degree chamfers per drawing
- 2.09 lb shipping weight; RoHS and REACH compliant

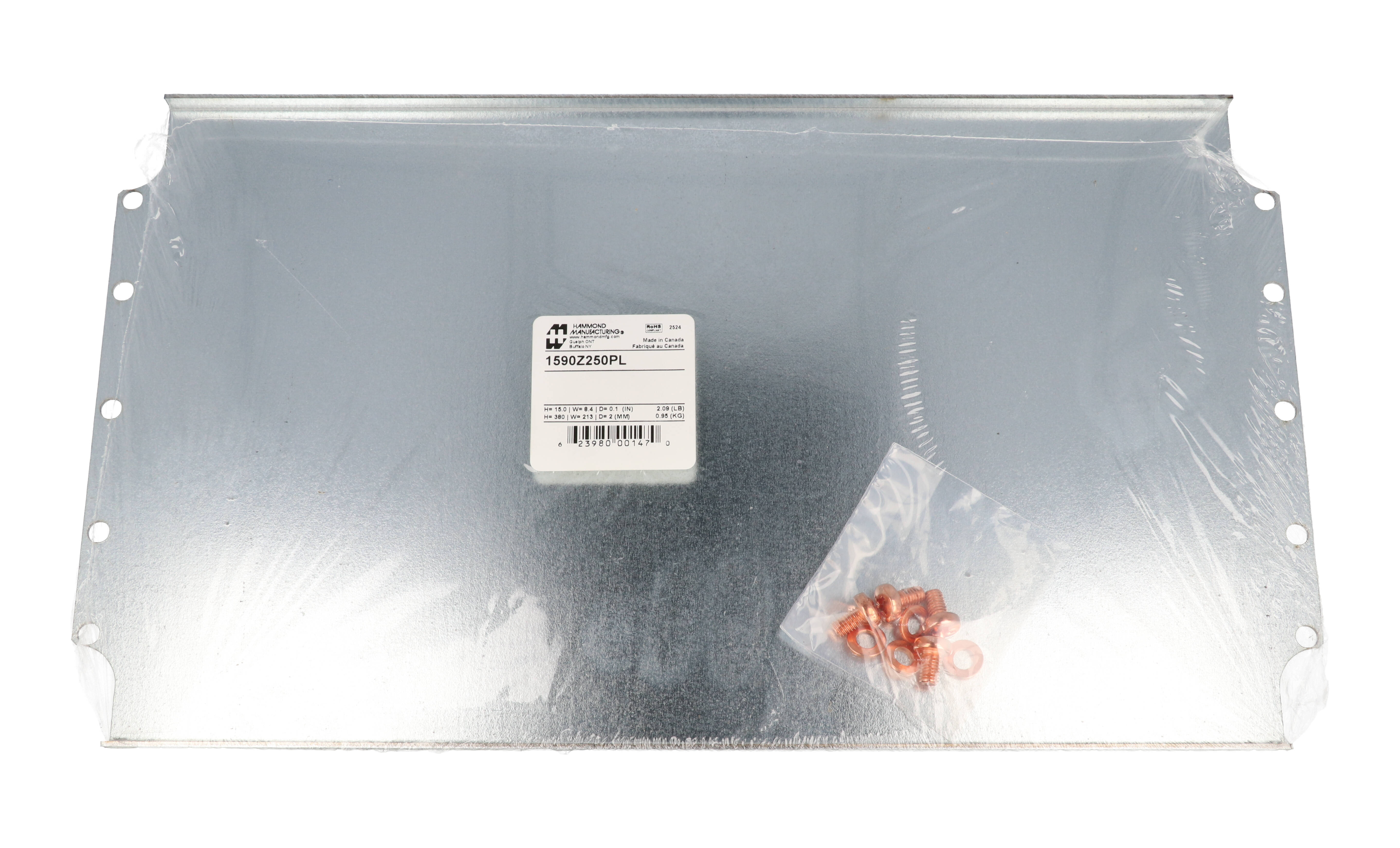

The 1590Z250PL is the inner mounting panel for the 400 x 230 x 180 mm 1590Z250 diecast aluminum enclosures in natural, black (1590Z250BK) and gray (1590Z250GY). It is a removable plate that lets integrators mount and wire components before fitting them into the sealed enclosure.
The panel is 16 gauge galvanized steel. The part page lists 14.96 in x 8.39 in x 0.06 in (380 mm x 213 mm x 2 mm), matching the enclosure's maximum P.C. board size of 380 x 213 mm. The drawing shows R12.70 corner radii and 1.59 x 45.0 degree chamfers.
It rests on the 1590Z250 internal mounting shelf, and the series ordering table pairs it with SCGM6-20 extra panel screws. Shipping weight is 2.09 lbs (0.95 kg), packed in a bag.
Per the drawing, enclosures can be factory modified and solid models are available in .stp or .x_t. The 1590Z250PL is RoHS and REACH compliant. Its parent 1590Z250 enclosure has 180 mm total depth and 170.60 mm inside depth per its drawing, giving tall components room above the panel inside an IP68, cUL US listed housing.
Ideal For
- Component mounting plate for 1590Z250 enclosures
- Deep enclosure control assemblies
- Bench pre-wired electronics panels
Overview
| Type | Inner Panel |
| CAD Models | Solid models available in .stp or .x_t |
| Product Type | Inner mounting panel |
| Fits Enclosures | 1590Z250, 1590Z250BK, 1590Z250GY |
| Short Description | 1590Z250 INNER PANEL |
Dimensions
| Size (L X W X H) | 14.96 in x 8.39 in x 0.06 in (380 mm x 213 mm x 2 mm) |
| Corner Radius (Drawing) | R12.70 mm [R.50 in] |
Identifiers
| UPC | 623980001470 |
| UNSPSC | 39121301 |
| Part Number | 1590Z250PL |
Installation
| Panel Screws | SCGM6-20 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 2.09 lbs (0.95 kg) |
Construction & Finish
| Material | 16 gauge galvanized steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures accept the 1590Z250PL?▾
1590Z250, 1590Z250BK and 1590Z250GY.
What size is the panel?▾
14.96 in x 8.39 in x 0.06 in (380 mm x 213 mm x 2 mm).
What is it made from?▾
16 gauge galvanized steel.
Which screws are used?▾
SCGM6-20 extra panel screws, per the series ordering table.
Is it included with the enclosure?▾
No. Inner panels are optional and sold separately.
