Hammond 1590Z250G 400x230mm Enclosure Silicone Gasket, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two silicone gaskets for 1590Z250, 1590Z250BK and 1590Z250GY
- 396 x 227 x 4 mm (15.61 x 8.92 x 0.16 in) listed size
- Rated -40C to +150C (-40F to 302F)
- One piece seal for the 1590Z tongue and groove joint
- IP66 listed; RoHS and REACH compliant; bagged

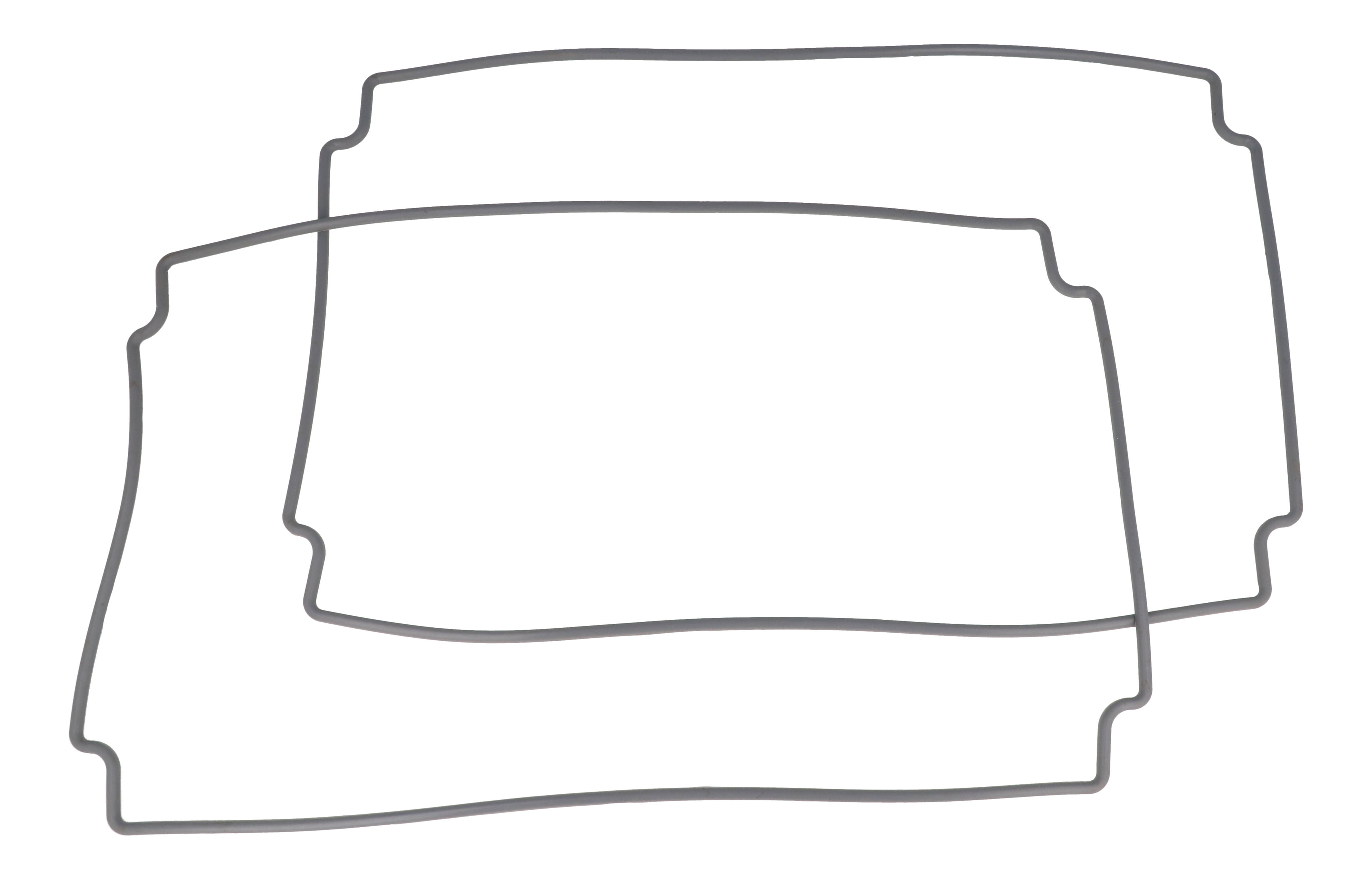

The 1590Z250G is a pack of two silicone replacement gaskets for the 400 x 230 x 180 mm 1590Z250 diecast aluminum enclosures in natural, black (1590Z250BK) and gray (1590Z250GY). It is the spare to order when the original gasket is worn, damaged or lost during service.
1590Z enclosures seal with a replaceable one piece silicone rubber gasket seated in a tongue and groove joint to keep out dust and water. The series rates the gasket from -40C to +150C (-40F to 302F), and the part page lists an IP66 rating for this part.

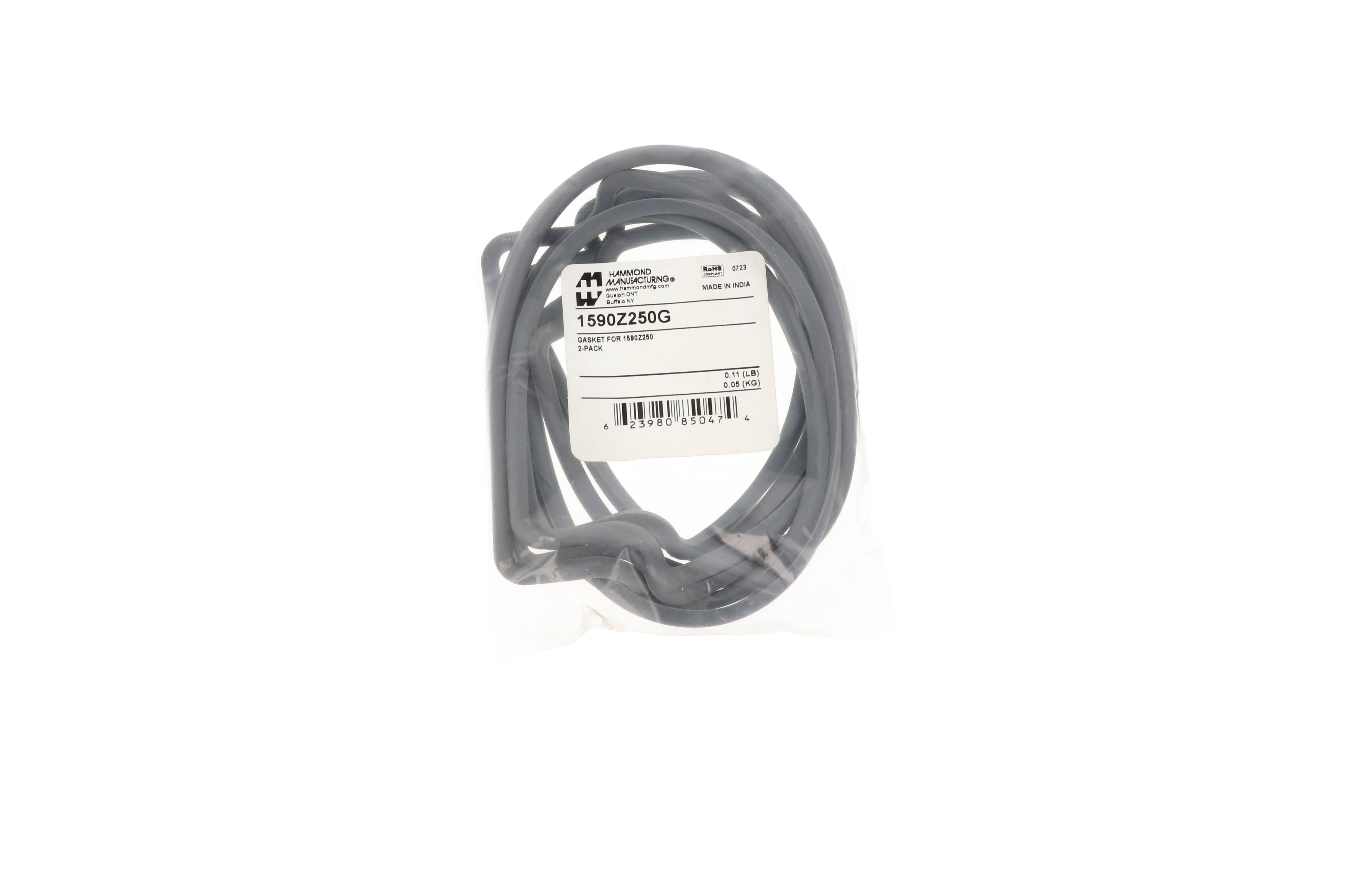

The listed size is 15.61 in x 8.92 in x 0.16 in (396 mm x 227 mm x 4 mm), and the pack ships in a bag at 0.11 lbs (0.05 kg). It fits the 1590Z250, whose drawing lists the purchased assembly as box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers, and recommends a cover screw torque of 17.7-18.6 lbf.in (200-210 cN.m) when the lid is refitted.
The 1590Z250G is RoHS and REACH compliant. Other spares for the 1590Z250 are SC599-12 extra lid screws, the 1590Z250PL steel inner panel and SCGM6-20 extra panel screws.
Ideal For
- Resealing 1590Z250 enclosures
- Spare seals for frequently opened enclosures
- Maintenance stock for sealed electronics housings
Overview
| Type | Gasket |
| Product Type | Replacement gasket (pack of 2) |
| Fits Enclosures | 1590Z250, 1590Z250BK, 1590Z250GY |
| Short Description | 2x GASKET FOR 1590Z250 |
Dimensions
| Size (L X W X H) | 15.61 in x 8.92 in x 0.16 in (396 mm x 227 mm x 4 mm) |
Identifiers
| UPC | 623980850474 |
| UNSPSC | 39121301 |
| Part Number | 1590Z250G |
Packaging & Shipping
| Pack Quantity | 2 |
| Packaging Type | Bag |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Material | Silicone |
| Gasket Style | Replaceable one piece silicone rubber gasket |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1590Z250G fit?▾
1590Z250, 1590Z250BK and 1590Z250GY.
How many gaskets come in a pack?▾
Two ("2x GASKET FOR 1590Z250").
What size is it?▾
15.61 in x 8.92 in x 0.16 in (396 mm x 227 mm x 4 mm).
What temperature range is it rated for?▾
-40C to +150C (-40F to 302F), per the 1590Z series specification.
Related Products
Save 52%1590Z250BK — enclosure - diecast
Hammond Manufacturing · 1590Z250BK

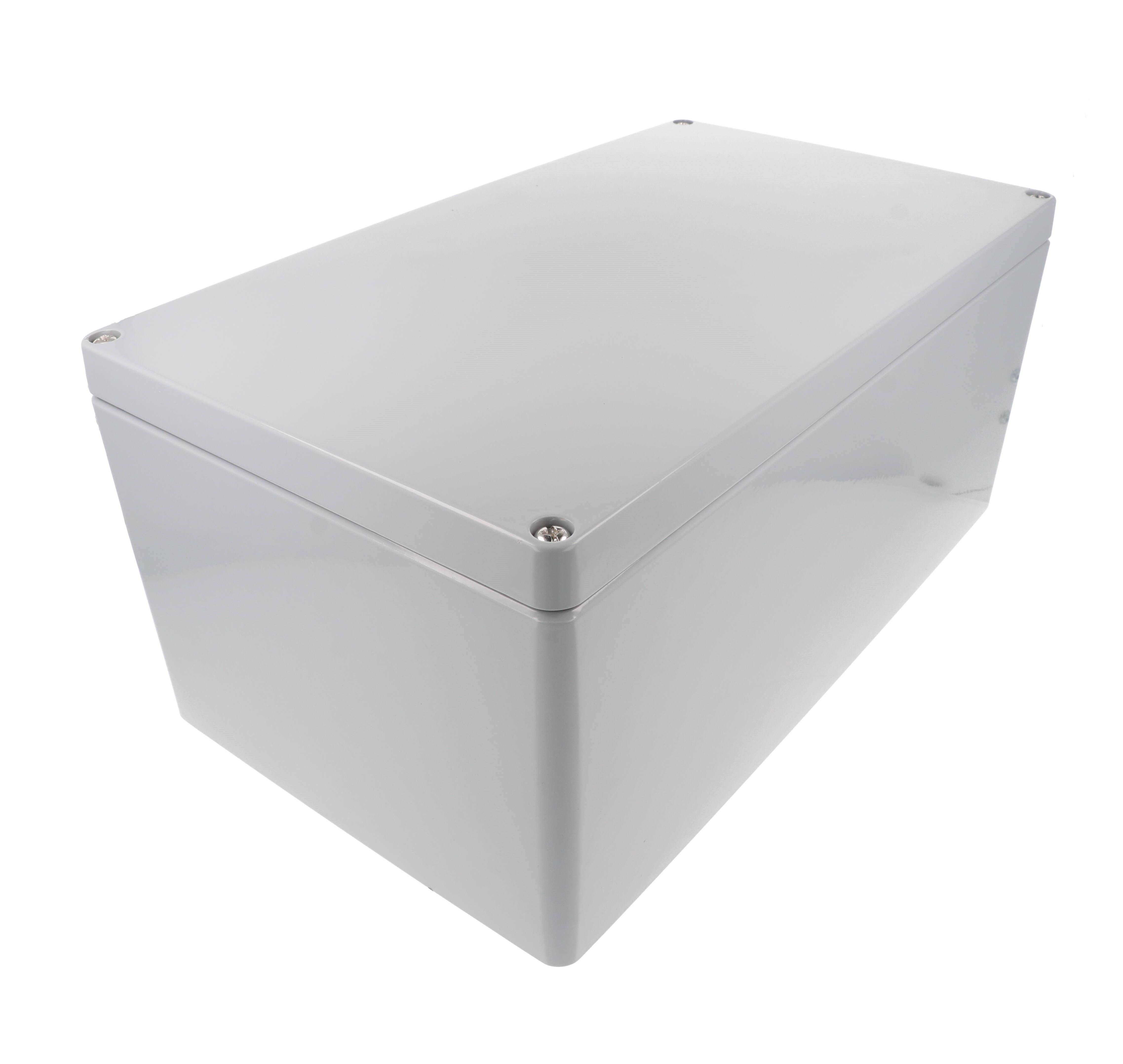

Save 52%1590Z250GY — enclosure - diecast
Hammond Manufacturing · 1590Z250GY
Save 52%1590Z250 — enclosure - diecast
Hammond Manufacturing · 1590Z250

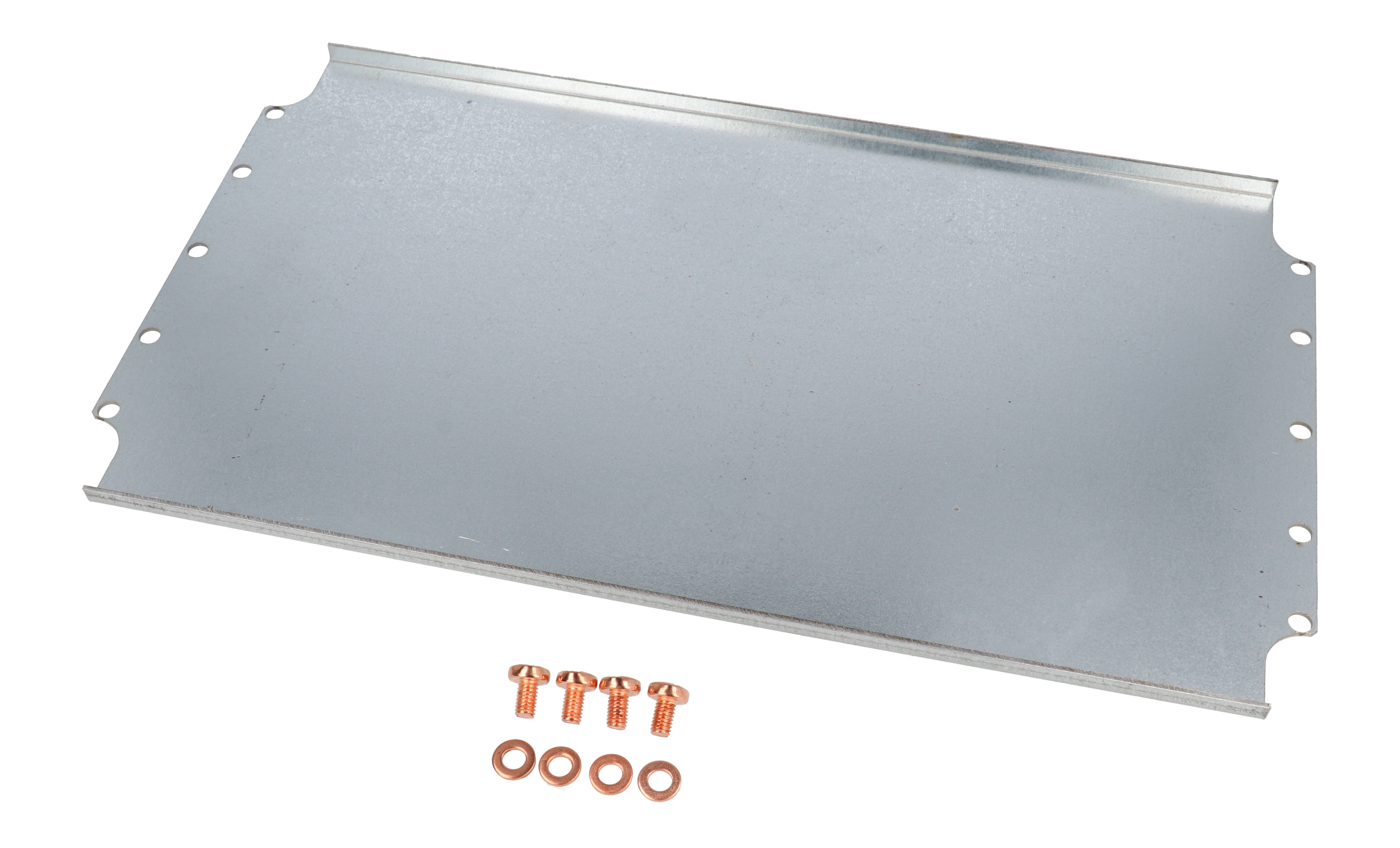

Save 52%1590Z250PL — inner mounting panel for 1590Z250 enclosures
