Hammond 1590Z164PL 360 x 122 mm Enclosure Galvanized Steel Inner Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

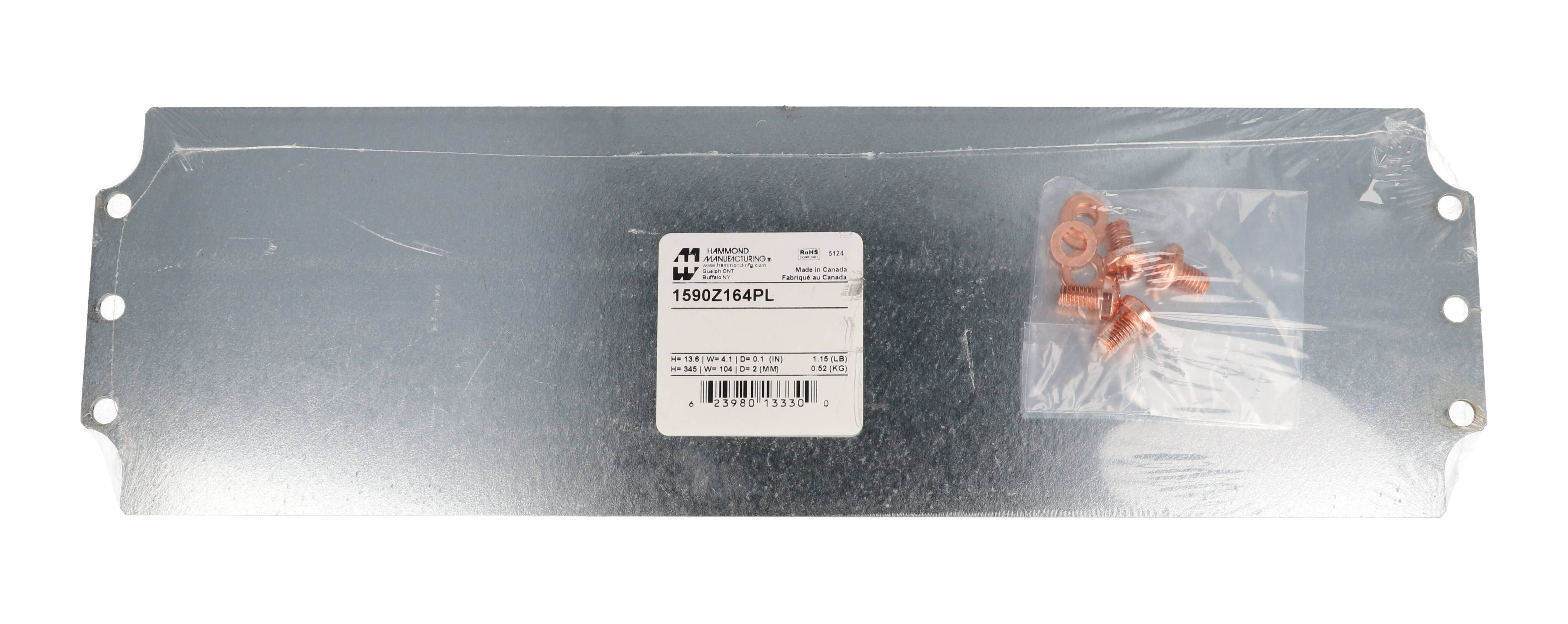

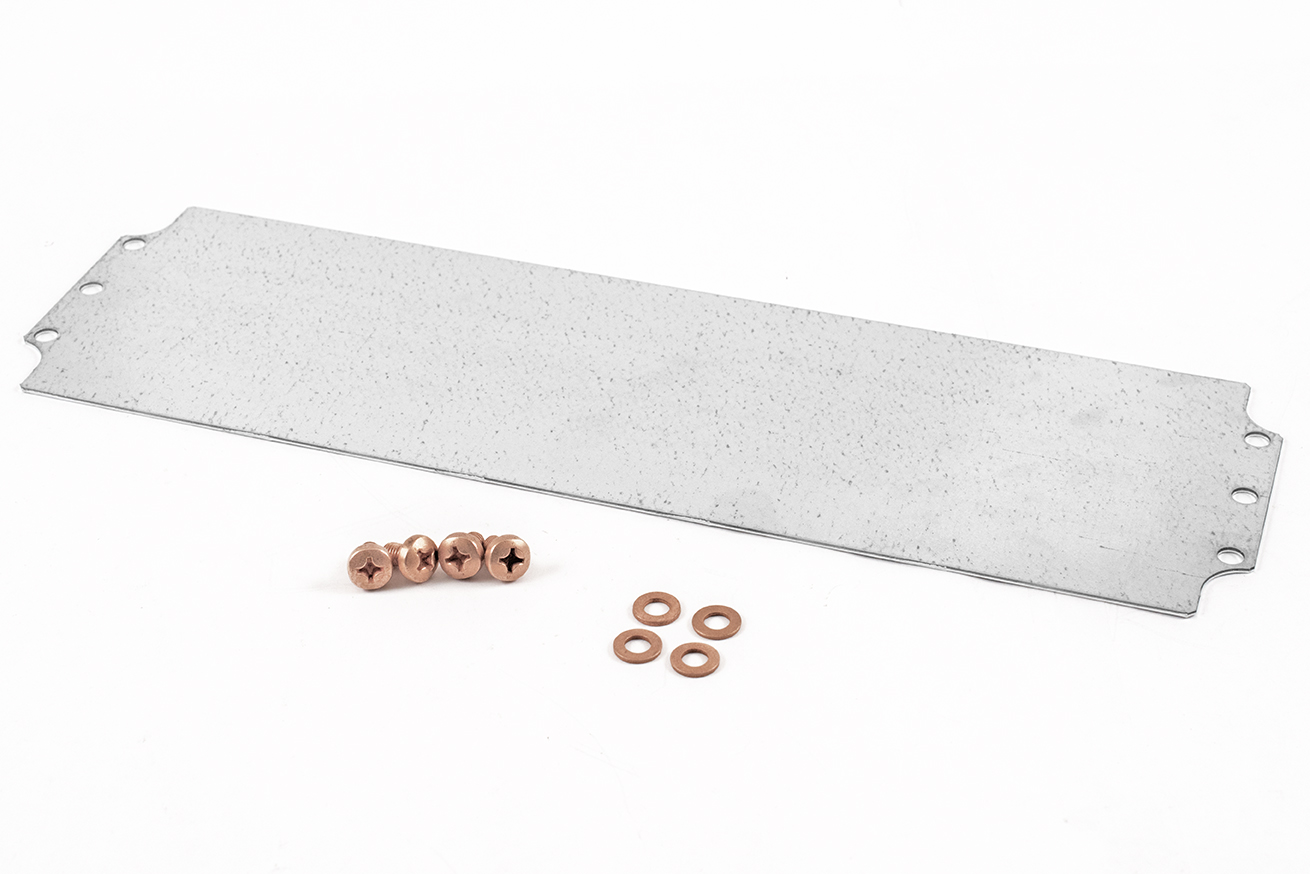

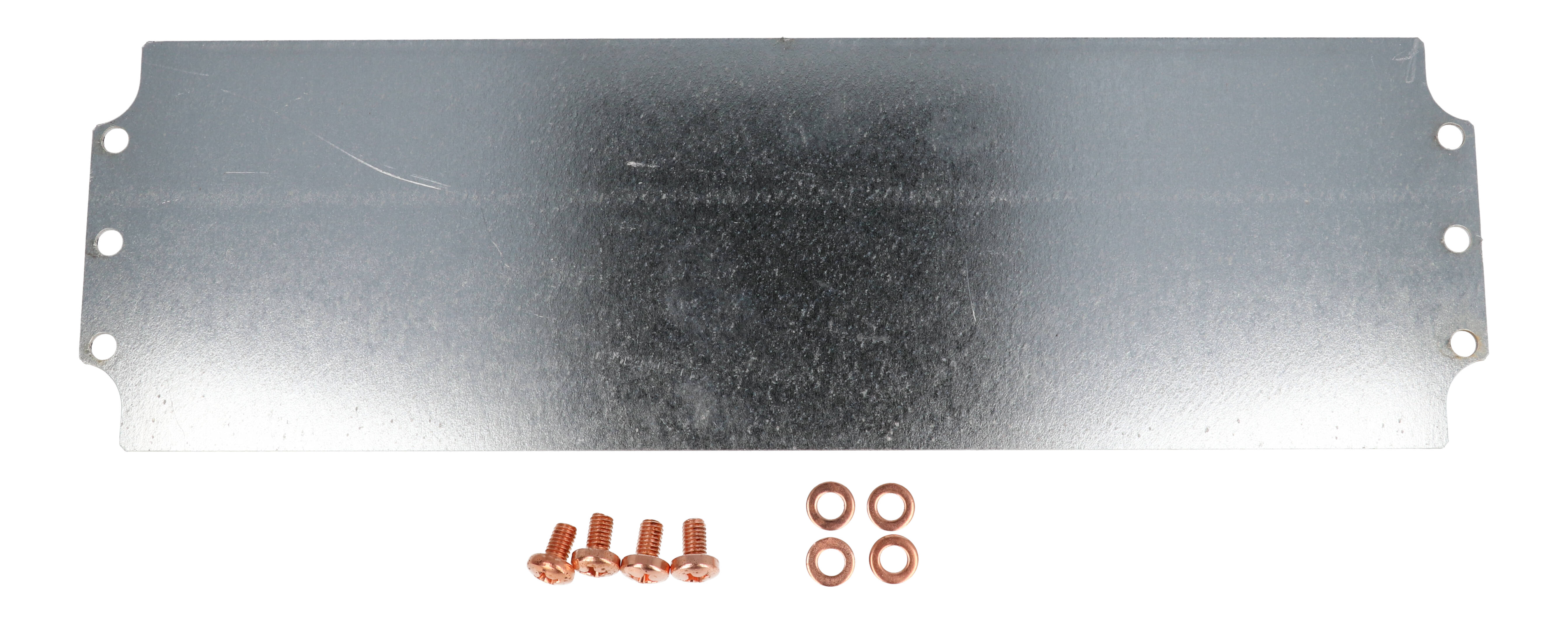

- Inner mounting panel for 1590Z164, 1590Z164BK and 1590Z164GY enclosures
- Long, narrow format: 13.6 in x 4.08 in x 0.06 in (345 mm x 104 mm x 2 mm)
- 16 gauge galvanized steel
- Drawing outline 345.31 x 103.68 mm matches the 1590Z164 max. P.C. board size
- Installs on the internal mounting shelf; SCGM6-20 listed as extra panel screws
- RoHS and REACH compliant; shrink wrap packaging
The 1590Z164PL is the inner mounting panel for the 1590Z164 diecast aluminum enclosures, the long, narrow box that measures 14.17 in (360 mm) long, 4.80 in (122 mm) wide and 3.15 in (80 mm) deep. It fits the natural 1590Z164, the textured black 1590Z164BK and the gray 1590Z164GY, and is meant for engineers who need a long strip of mounting area for boards or terminals inside a sealed housing.
Made from 16 gauge galvanized steel, the panel measures 13.6 in x 4.08 in x 0.06 in (345 mm x 104 mm x 2 mm) on the part page. The drawing dimensions the outline at 345.31 mm [13.60 in] by 103.68 mm [4.08 in], the same figures listed as the maximum P.C. board size for the 1590Z164.
The panel sits on the enclosure's internal mounting shelf. The ordering table lists SCGM6-20 as the extra panel screws for the 1590Z164 size. The panel is sold separately, ships in shrink wrap, and has a shipping weight of 1.15 lbs (0.52 kg).
The 1590Z164PL is RoHS and REACH compliant, with UNSPSC code 39121301. Mounting components on the panel outside the box keeps drilling and wiring off the enclosure itself.
Ideal For
- Mounting long PCBs inside a 1590Z164 enclosure
- Terminal strip and component mounting in a narrow sealed box
- Adding a removable steel plate to a 360 x 122 mm diecast housing
Overview
| Type | Inner Panel |
| Description | 1590Z164 INNER PANEL |
| Part Number | 1590Z164PL |
| Fits Enclosures | 1590Z164, 1590Z164BK, 1590Z164GY |
| Long Description | inner mounting panel for 1590Z164 enclosures |
Dimensions
| Size (L X W X H) | 13.6 in x 4.08 in x 0.06 in (345 mm x 104 mm x 2 mm) |
| Panel Width (Drawing) | 103.68 mm [4.08 in] |
| Panel Length (Drawing) | 345.31 mm [13.60 in] |
Identifiers
| UPC | 623980133300 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Sold | Separately from the enclosure |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.15 lbs (0.52 kg) |
Construction & Finish
| Material | Steel |
| Panel Material (Drawing) | 16 gauge galvanized steel |
| Extra Panel Screws (Listed For Enclosure) | SCGM6-20 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What enclosures does the 1590Z164PL fit?▾
The 1590Z164, 1590Z164BK and 1590Z164GY diecast aluminum enclosures (360 x 122 x 80 mm).
How large is the panel?▾
13.6 in x 4.08 in x 0.06 in (345 mm x 104 mm x 2 mm); the drawing shows 345.31 mm [13.60 in] by 103.68 mm [4.08 in].
What is the panel material?▾
16 gauge galvanized steel.
Is the panel included with the enclosure?▾
No, it is sold separately.
How much does it weigh?▾
The shipping weight is 1.15 lbs (0.52 kg).
