Hammond 1590Z150 221 x 121 mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 221 x 121 x 81 mm (8.70 x 4.76 x 3.19 in) natural diecast aluminum
- IP68 with NEMA 4, 4X, 6, 6P, 12 & 13 ratings
- 4.90 mm average wall thickness; IK08 impact rating
- M6 stainless steel lid screws, self-captivating, 15-17 lbf.in torque
- Holds P.C. boards up to 206.71 x 105.82 mm
- Replaceable silicone gasket rated -40C to +150C
- cUL and UL listed (file #E65324)
The 1590Z150 is a 221 x 121 mm natural diecast aluminum enclosure from the 1590Z thick-wall, watertight series. Its larger footprint and M6 hardware make it a practical housing for electronics builders, controls engineers and field installers packaging larger circuit boards for outdoor or wet environments.
The box and lid are diecast aluminum alloy with two piece tongue and groove construction and an average wall thickness of 4.90 mm [.19 in] per the drawing. A replaceable one piece silicone rubber gasket rated -40C to +150C (-40F to 302F) seals the joint and is supplied loose inside the enclosure. Four recessed stainless steel lid screws, self-captivating and thread-forming on first use, secure the lid; the recommended torque is 15-17 lbf.in (150-170 cN.m).
The ordering table lists 221 mm (8.70 in) length, 121 mm (4.76 in) width, 81 mm (3.19 in) total depth and 21 mm (0.83 in) lid depth. Inside, the drawing shows 104.05 mm width and 73.00 mm depth, and boards up to 206.71 x 105.82 mm are supported. The internal mounting shelf takes the optional 1590Z150PL steel inner panel.
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13; IK08 per IEC62262
- cUL and UL listed (file #E65324), RoHS and REACH compliant
- Mounting holes accept M6 machine screws; M6 ground screw provision

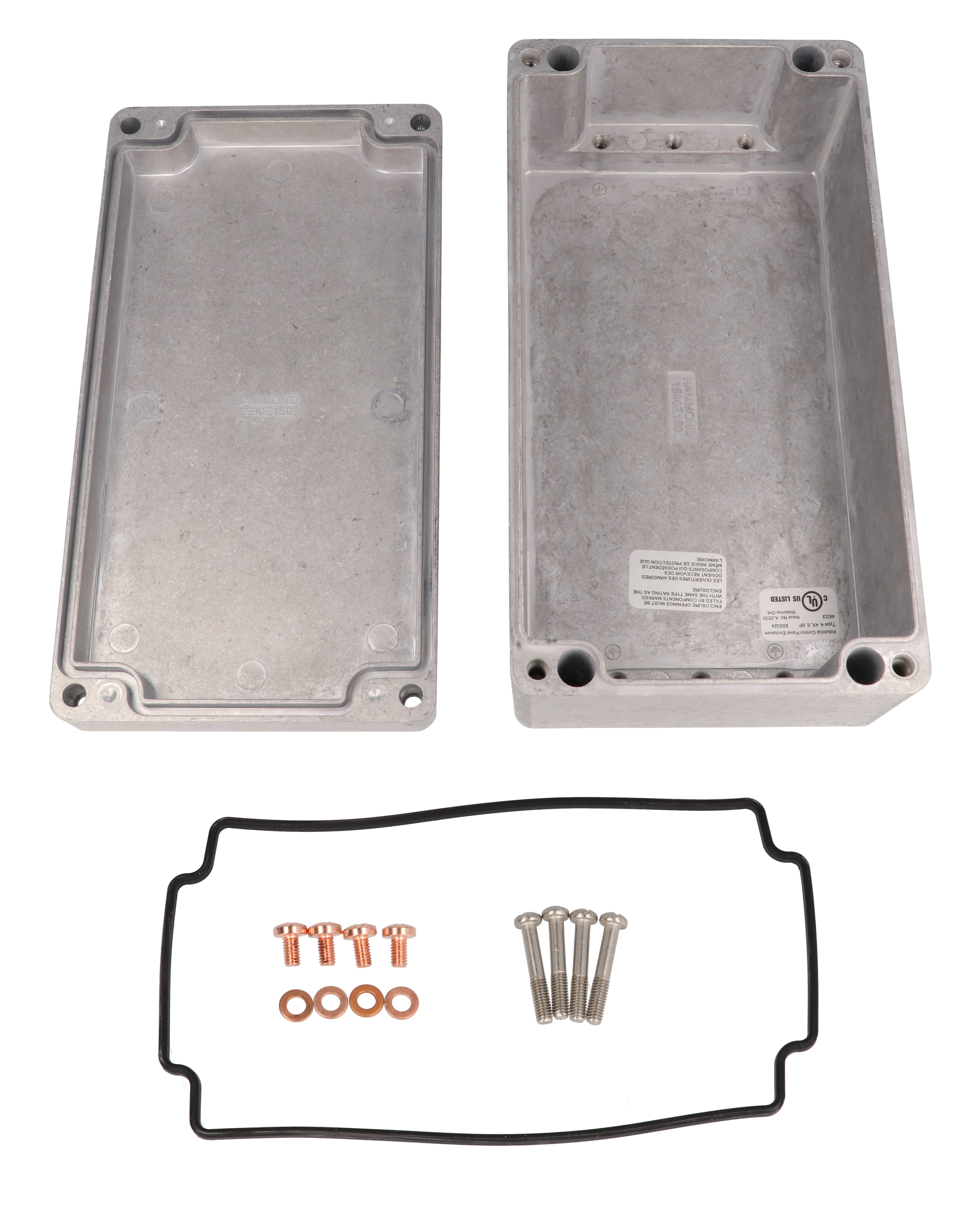

Each 1590Z150 includes the box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers. Customers should conduct their own testing to determine suitability for any specific application.
Ideal For
- Sealed housings for larger control boards
- Outdoor electronics and instrumentation
- Wall-mounted equipment in washdown areas
- Industrial interface and communications assemblies
Overview
| Type | Thick wall, water-tight |
| Color | Natural Aluminum |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| Included | Box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers |
| CAD Models | Solid models available in STEP or IGES |
| Product Type | Enclosure - diecast |
| Short Description | 120 X 220 X 80 HD ALM ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Dimensions
| Width | 4.76 in (121 mm) |
| Length | 8.70 in (221 mm) |
| Lid Depth | 0.83 in (21 mm) |
| Total Depth | 3.19 in (81 mm) |
| Inside Depth | 73.00 mm [2.87 in] |
| Inside Width | 104.05 mm [4.10 in] |
| Size (L X W X H) | 8.7 in x 4.74 in x 3.17 in (221 mm x 120 mm x 81 mm) |
| Max. P.C. Board Width | 206.71 mm |
| Average Wall Thickness | 4.90 mm [.19 in] |
| Max. P.C. Board Length | 105.82 mm |
Accessories
| Extra Lid Screws | SC564-12 - Stainless steel cover screws (12 pkg), M6 - 1.0 x 35mm |
| Extra Panel Screws | SCGM6-20 - Copper ground hardware (20 pack), M6 - 1.0 X 10mm / M6 washer |
| Series Accessories | Pole mount kit, pressure compensation plug, breather kit, small rainproof ventilator, liquid-tight cordgrips (nylon or nickel plated brass) |
| Colour Options In Size | 1590Z150 (natural), 1590Z150BK (black), 1590Z150GY (gray) |
| Inner Panel (Sold Separately) | 1590Z150PL steel inner panel |
| Replacement Gasket (Pack Of 2) | 1590Z150G |
Identifiers
| UPC | 623980544700 |
| UNSPSC | 39121301 |
| Part Number | 1590Z150 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 2.83 lbs (1.28 kg) |
Construction & Finish
| Finish | Unfinished (natural diecast aluminum) |
| Gasket | Replaceable one piece silicone rubber gasket, supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Grounding | Accepts M6 machine ground screw |
| Lid Screws | Self-captivating; create threads on first installation |
| Construction | Two piece tongue and groove construction |
| Lid Fastening | Four recessed stainless steel machine screws secure lid into tapped holes |
| Wall Mounting | Blind through hole construction, located outside of gasket protection |
| Mounting Holes | Accept M6 - 1 machine screw |
| Internal Mounting Shelf | Yes |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) |
| Recommended Cover Screw Torque | 15-17 lbf.in (150-170 cN.m) |
Environmental & Protection
| IP Rating | IP68 (part attribute); series independently tested to IP66, IP67 and IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Suitability Note | Customers should conduct their own testing to determine suitability for any specific application |
Compliance & Certifications
| Listing | cUL and UL listed (UL file #E65324) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions?▾
The drawing shows an inside width of 104.05 mm [4.10 in] and an inside depth of 73.00 mm [2.87 in]. The maximum P.C. board size is 206.71 mm x 105.82 mm.
What screws hold the lid?▾
Four recessed stainless steel machine screws. Replacements are SC564-12, stainless steel cover screws (12 pkg) sized M6 - 1.0 x 35mm.
What is included?▾
The box, lid, silicone gasket, 4 cover screws and 4 ground screws with washers.
Which gasket and inner panel fit the 1590Z150?▾
The replacement gasket is 1590Z150G (pack of 2) and the steel inner panel is 1590Z150PL; both also fit the deeper 1590Z155.
What is the recommended cover screw torque?▾
15-17 lbf.in (150-170 cN.m).
