Hammond 1590Z130G 171x76mm Silicone Replacement Gasket, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 2 gaskets for both 1590Z130 and 1590Z135 enclosure sizes
- Fits natural, black (BK) and gray (GY) versions of each size
- Pre-formed silicone rubber, 171.29 x 76.29 mm [6.744 x 3.003 in]
- IP66 rating listed on the part page
- Series gasket temperature rating -40C to +150C (-40F to 302F)
- RoHS and REACH compliant; bagged

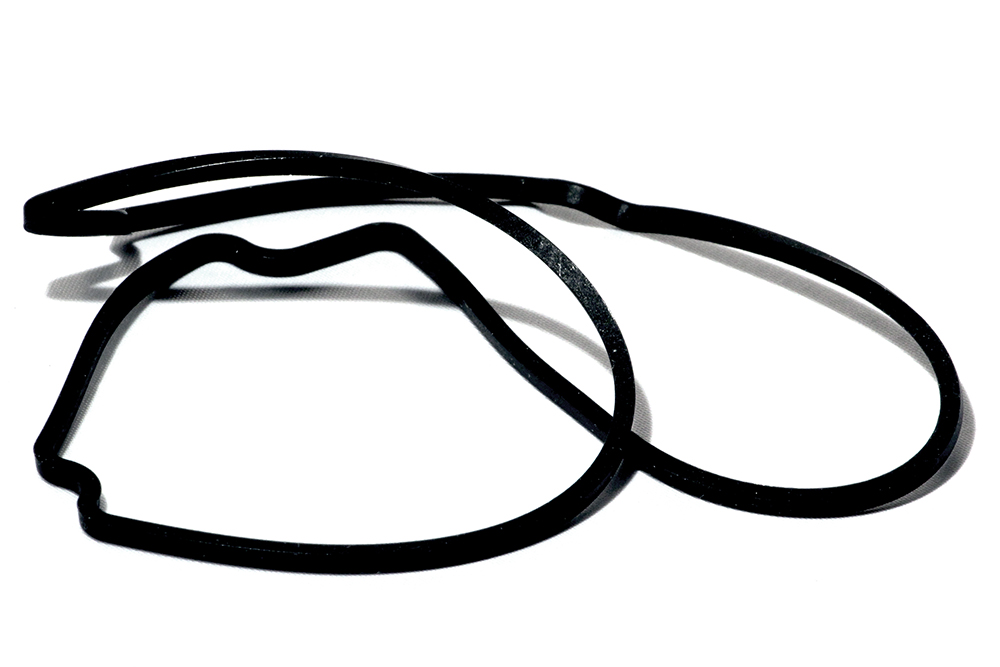

The 1590Z130G is a two-pack of pre-formed silicone gaskets that serves two enclosure sizes in the 1590Z Type 4X/ 6P diecast aluminum series: the 175 x 80 x 52 mm 1590Z130 and the deeper 175 x 80 x 60 mm 1590Z135. Service technicians and OEMs use it to renew the lid seal on either size.
According to its drawing, each gasket measures 6.744 in [171.29 mm] by 3.003 in [76.29 mm], with a 0.098 in [2.50 mm] profile. It is made from silicone rubber, and the drawing lists an alternate material manufactured by SHIN-ETSU, Type KE-931U and KE-941U (1:1) mixture. The part page gives 6.74 in x 3 in x 0.1 in (171 mm x 76 mm x 3 mm), an IP66 rating and a shipping weight of 0.01 lbs (0.00 kg).
The ordering table assigns 1590Z130G as the replacement gasket (pack of 2) for 1590Z130, 1590Z130BK, 1590Z130GY, 1590Z135, 1590Z135BK and 1590Z135GY. In these enclosures the gasket seals the tongue and groove joint between box and lid and is rated from -40C to +150C (-40F to 302F).
The gaskets are RoHS and REACH compliant and are packed in a bag.
Ideal For
- Re-sealing 1590Z130 and 1590Z135 enclosure lids
- Spare gaskets for enclosures that are opened repeatedly
- Shared maintenance stock across two enclosure depths
Overview
| Quantity | Pack of 2 |
| Product Type | Replacement gasket |
| For Enclosures | 1590Z130, 1590Z130BK, 1590Z130GY, 1590Z135, 1590Z135BK, 1590Z135GY |
| Manufacturer Description | 2x GASKET FOR 1590Z130/135 |
Dimensions
| Size L X W X H | 6.74 in x 3 in x 0.1 in (171 mm x 76 mm x 3 mm) |
| Profile (Drawing) | 0.098 in [2.50 mm] |
| Gasket Width (Drawing) | 3.003 in [76.29 mm] |
| Gasket Length (Drawing) | 6.744 in [171.29 mm] |
Identifiers
| UPC | 623980577708 |
| UNSPSC | 39121301 |
| Part Number | 1590Z130G |
Packaging & Shipping

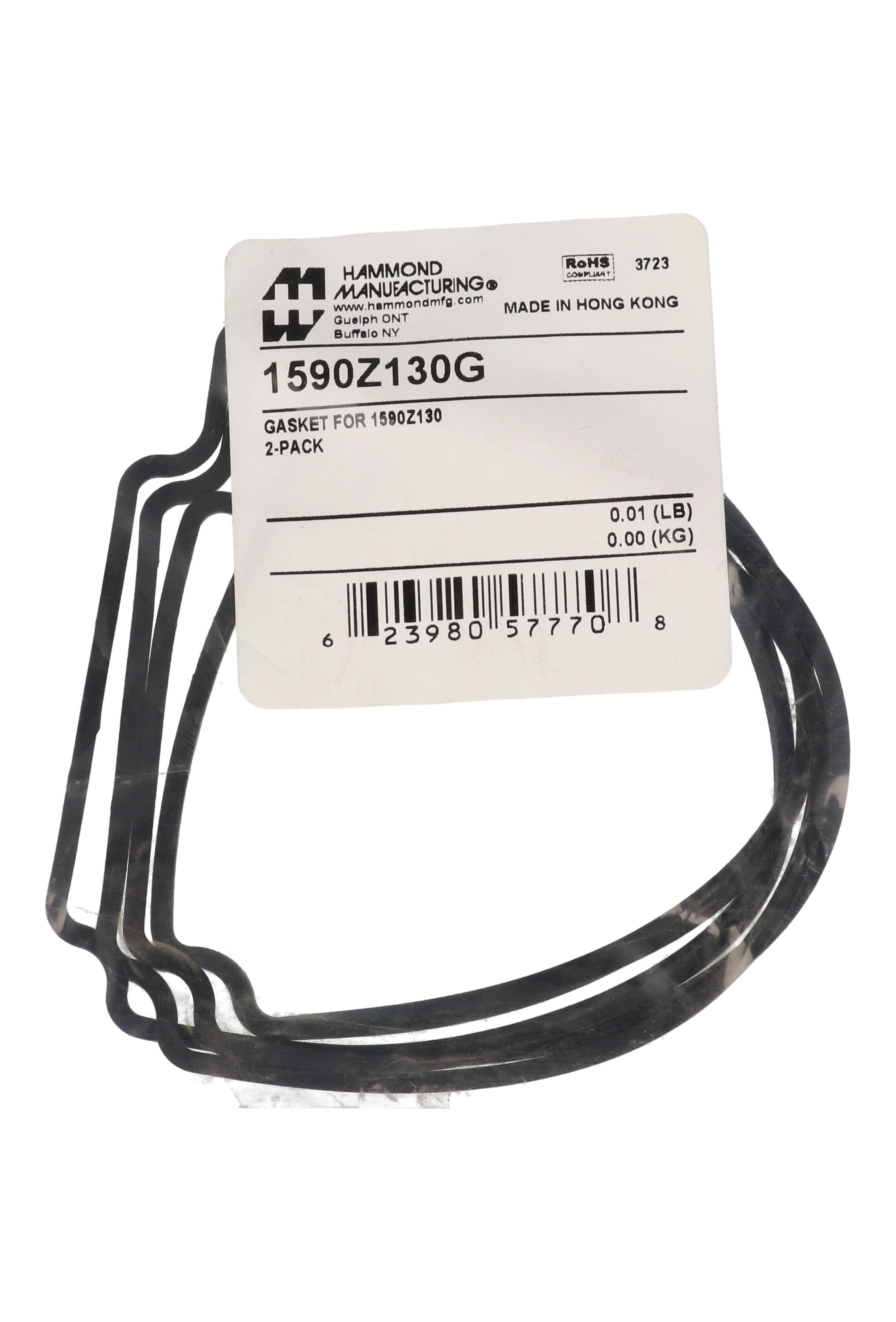

| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Silicone rubber |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating (Series Gasket) | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1590Z130G fit the 1590Z135 too?▾
Yes. It is listed as the replacement gasket for both the 1590Z130 and 1590Z135 enclosures, in natural, black and gray versions.
How many gaskets are included?▾
Two per pack.
What material is the gasket?▾
Silicone rubber; the drawing lists an alternate material manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture.
What are its dimensions?▾
6.744 in [171.29 mm] by 3.003 in [76.29 mm] with a 0.098 in [2.50 mm] profile, per the drawing.
What temperature range is it rated for?▾
The series gasket temperature rating is -40C to +150C (-40F to 302F).
