Hammond 1590WYBK 92x92x42 mm Black Watertight Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket supplied loose for fitting to the lid
- Size 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm)
- No mounting flanges; flanged bottom and flanged lid versions offered in the same size
- Inside space 85.17 mm x 85.17 mm x 36.30 mm; max PC board 84.17 x 84.17 mm
- Die-cast aluminum alloy box and lid, tough yet easy to machine
- Textured black polyester powder paint with black screws included
- Lap joint seam and low 2° (or less) side wall draft for easy PC board mounting
- Includes 4 x 6-32 UNC cover screws in factory-tapped holes; RoHS and REACH compliant

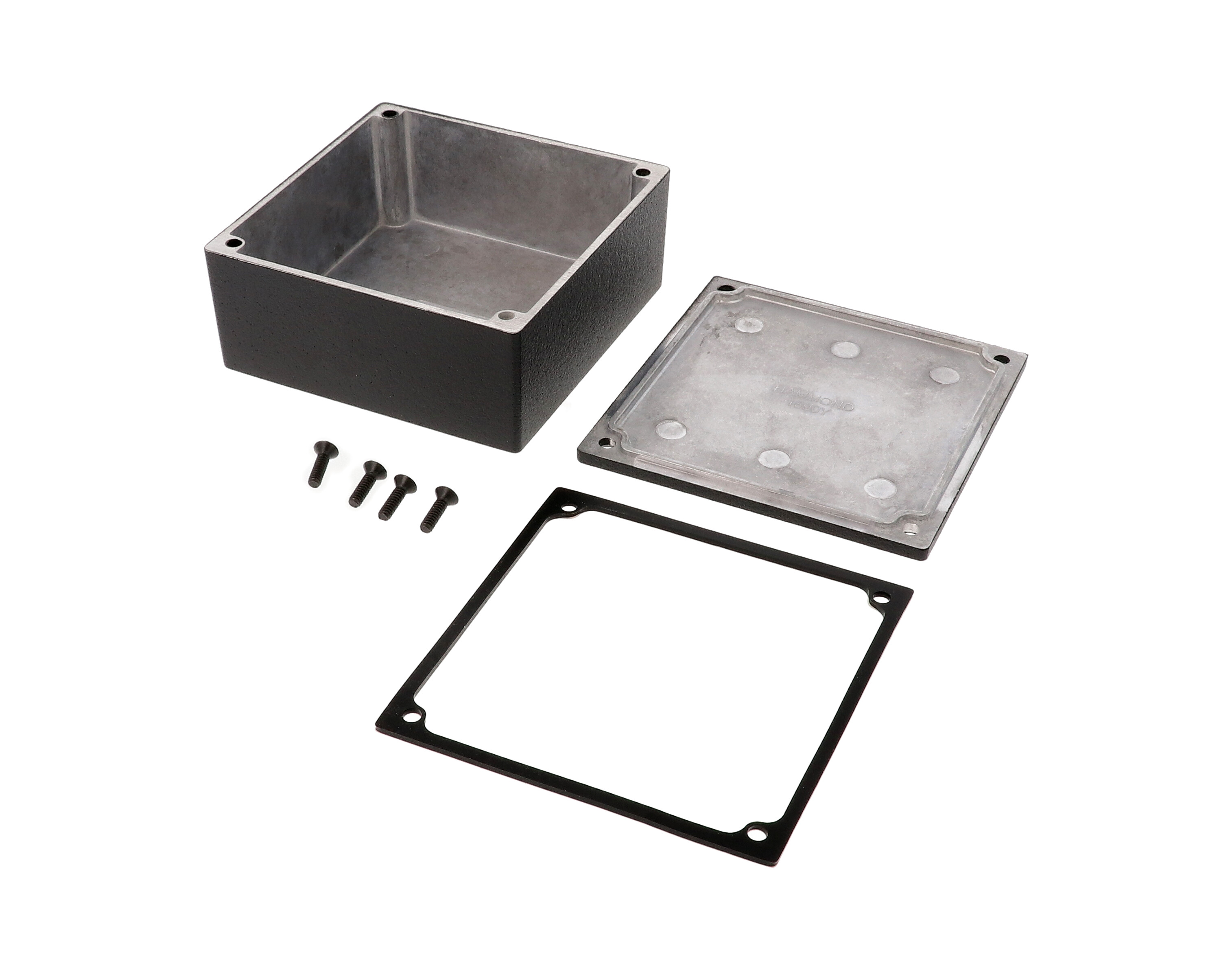

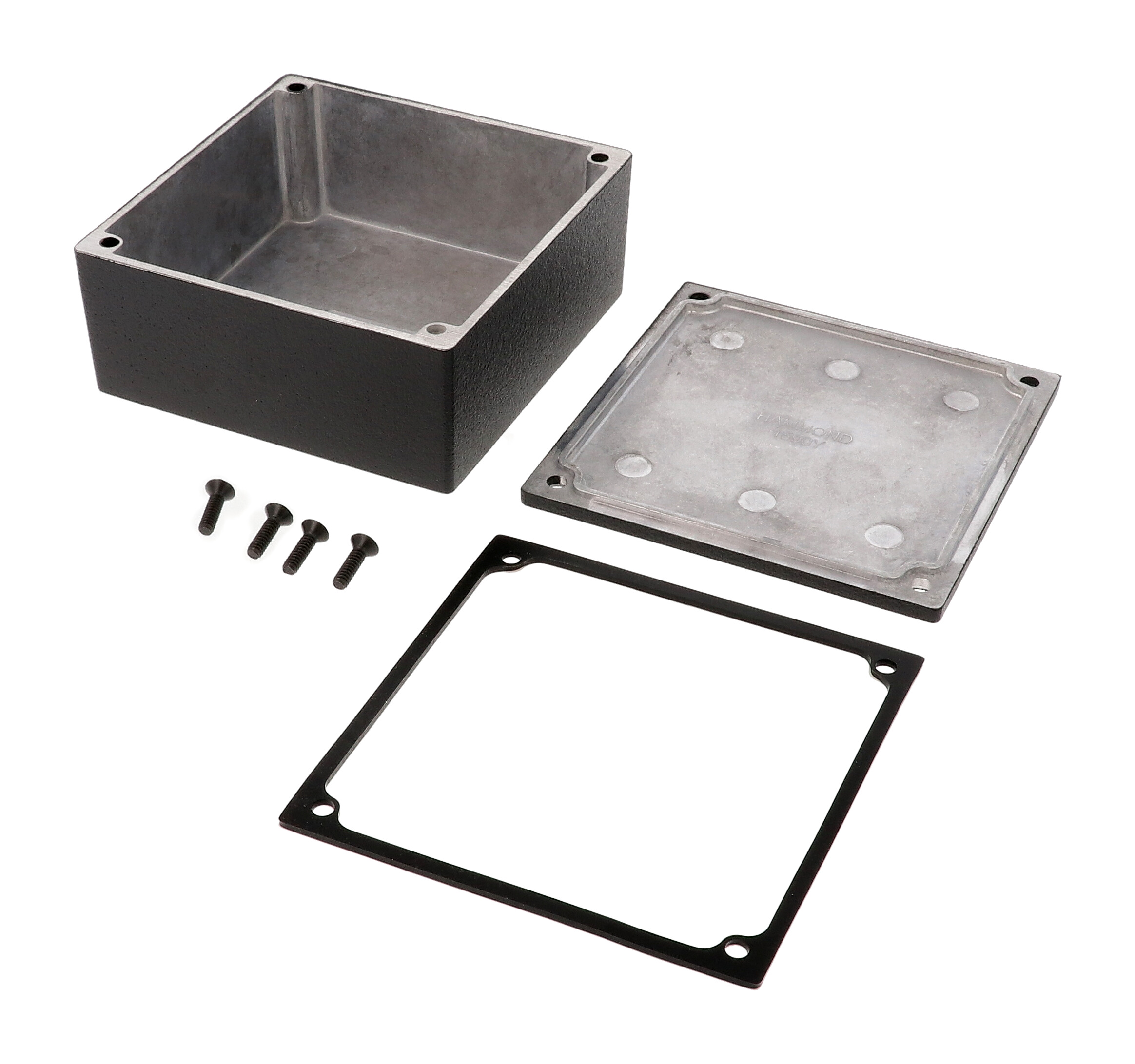

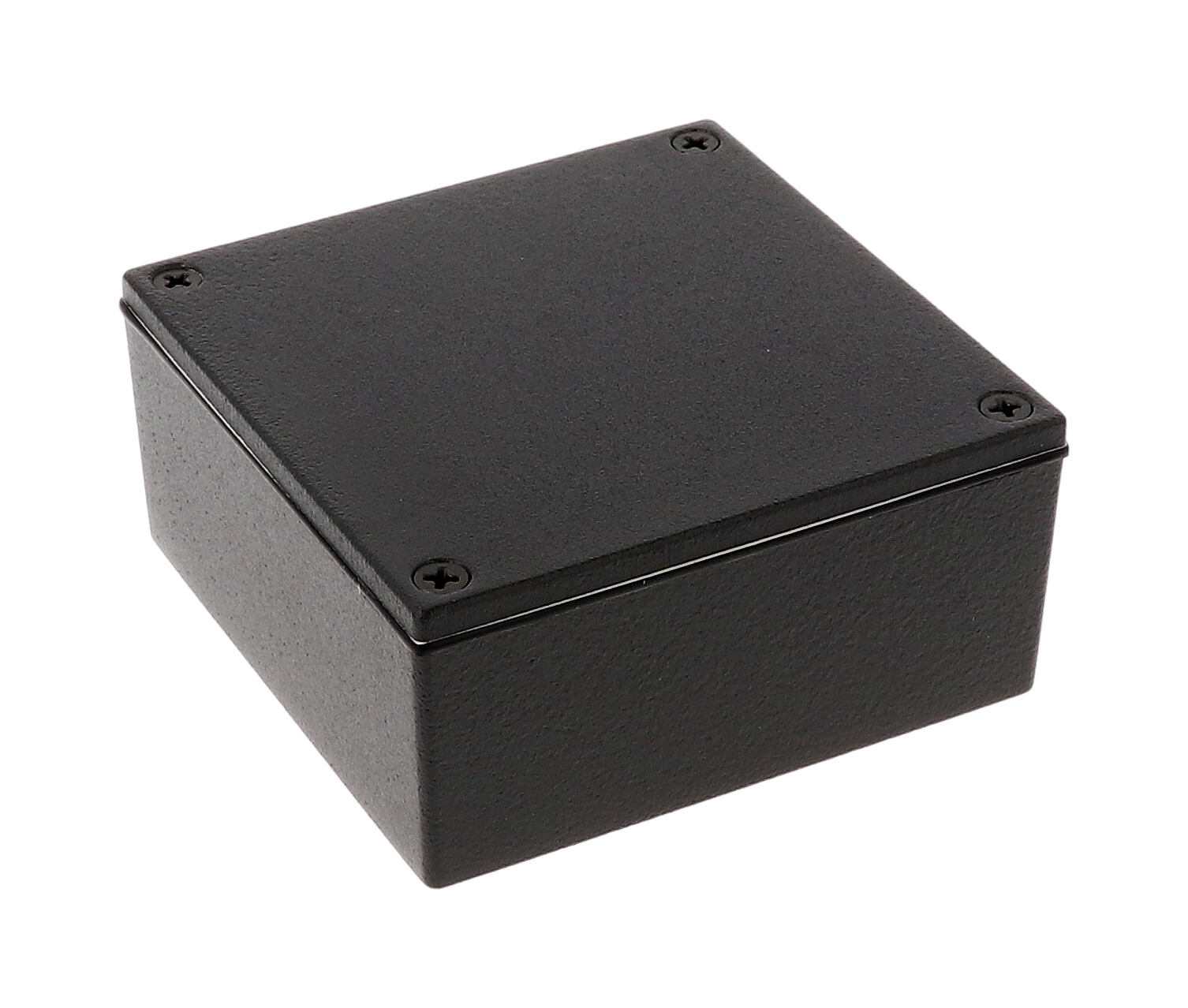

The 1590WYBK is a compact square watertight diecast aluminum enclosure, 92 x 92 x 42 mm (3.62 x 3.62 x 1.65 in), with no mounting flanges. It is sized for compact electronic instrument assemblies that need an enclosure designed to meet IP65 in a small footprint.
The box and lid are die-cast aluminum alloy that is tough yet easy to machine. A lap joint where the lid meets the box guards against dust and splashing water, and a silicone gasket is supplied loose inside for installation on the lid. Low side wall draft angles of 2° or less help PC boards sit squarely. This black version is coated with a textured polyester powder paint that gives a lasting finish, even after machining, and black screws are included to enhance appearance.
Inside, the enclosure provides 85.17 x 85.17 mm [3.353 x 3.353 in] with 36.30 mm [1.429 in] of height, and the listed maximum PC board size is 84.17 x 84.17 mm. The lid is secured by four 6-32 UNC screws in factory-tapped holes; with the gasket fitted, torque them to 25-30 cN.m [36-43 ozf.in].
The assembly includes box, lid and four cover screws, ships shrink wrapped, and is RoHS and REACH compliant. For surface mounting, the same size is offered with a flanged bottom plate (1590WYFBK) or flanged lid (1590WYFLBK). The optional replacement gasket kit is 1590YGASKET.
Ideal For
- General purpose watertight electronic instrument enclosure
- Housing PC board assemblies up to 84.17 x 84.17 mm
- Dust- and splash-protected electronics projects
- Custom enclosures machined for connectors, switches and displays
Overview
| Mounting | No mounting flanges |
| Description | enclosure - watertight diecast |
| Product Type | Die-cast box, water-tight |
| Ordering Table Version | No Mounting Flanges, Water-Tight Version |
| Standard (Non-Watertight) Equivalent | 1590YBK |
Dimensions
| Inside Width | 85.17 mm [3.353 in] |
| Inside Height | 36.30 mm [1.429 in] |
| Inside Length | 85.17 mm [3.353 in] |
| Overall Height | 42.00 mm [1.654 in] |
| Size (L X W X H) | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Body Length X Width | 92.00 mm x 92.00 mm [3.622 in x 3.622 in] |
| Max. P.C. Board Width | 84.17 mm |
| Max. P.C. Board Length | 84.17 mm |
| Nominal Size (Ordering Table) | 3.62 in (92 mm) x 3.62 in (92 mm) x 1.65 in (42 mm) |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980808956 |
| UNSPSC | 39121301 |
| Part Number | 1590WYBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.55 lbs (0.25 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Included | Box, lid and 4 cover screws; silicone gasket (supplied loose, not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint where lid and box meet |
| Cover Screws | 4 x 6-32 UNC, threaded into factory-tapped holes |
| Side Wall Draft Angle | 2° or less |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| Gasket | Silicone, supplied with liquid resistant enclosure |
| IP Rating | IP65 |
| Optional Replacement Gasket Kit | 1590YGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1590WYBK have?▾
It is rated IP65. The watertight version includes a silicone gasket, supplied loose inside the enclosure (not pre-installed), that is applied to the lid; the gasket spec calls for lid screws torqued to 25-30 cN.m (36-43 ozf.in).
What size PC board fits inside?▾
The maximum PC board size is 84.17 mm (length) x 84.17 mm (width). Inside dimensions are 85.17 mm [3.353 in] x 85.17 mm [3.353 in] with an inside height of 36.30 mm [1.429 in].
What is included with the enclosure?▾
The purchased assembly includes the box, lid and 4 cover screws (6-32 UNC, threaded into factory-tapped holes), plus a silicone gasket supplied loose. Black screws are included with the black version.
Does the 1590WYBK have mounting flanges?▾
No. This is the no-mounting-flange version. Flanged bottom plate and flanged lid versions are listed in the ordering table for the same size.
Is a replacement gasket available?▾
Yes. The optional replacement gasket kit for this size is 1590YGASKET. Liquid resistant stainless steel cover screws with O-ring (6-32 x 1/2") are also offered as 1590WMS100 and 1590WMS100BK in packs of 100.
What does the 1590WYBK weigh?▾
The shipping weight is 0.55 lbs (0.25 kg). It is supplied in shrink wrap packaging.
