Hammond 1590WXXFL 145x121x39 mm IP65 Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket supplied loose for fitting to the lid
- Size 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm)
- Wall-mounting flange integrated into the lid; 175.20 mm [6.898 in] overall length
- Inside space 139.00 mm x 115.00 mm x 35.05 mm; max PC board 114 x 138 mm
- Die-cast aluminum alloy box and lid, tough yet easy to machine
- Natural aluminum, vibra finished for a smooth surface with no sharp edges
- Lap joint seam and low 2° (or less) side wall draft for easy PC board mounting
- Includes 4 x 6-32 UNC cover screws in factory-tapped holes; RoHS and REACH compliant

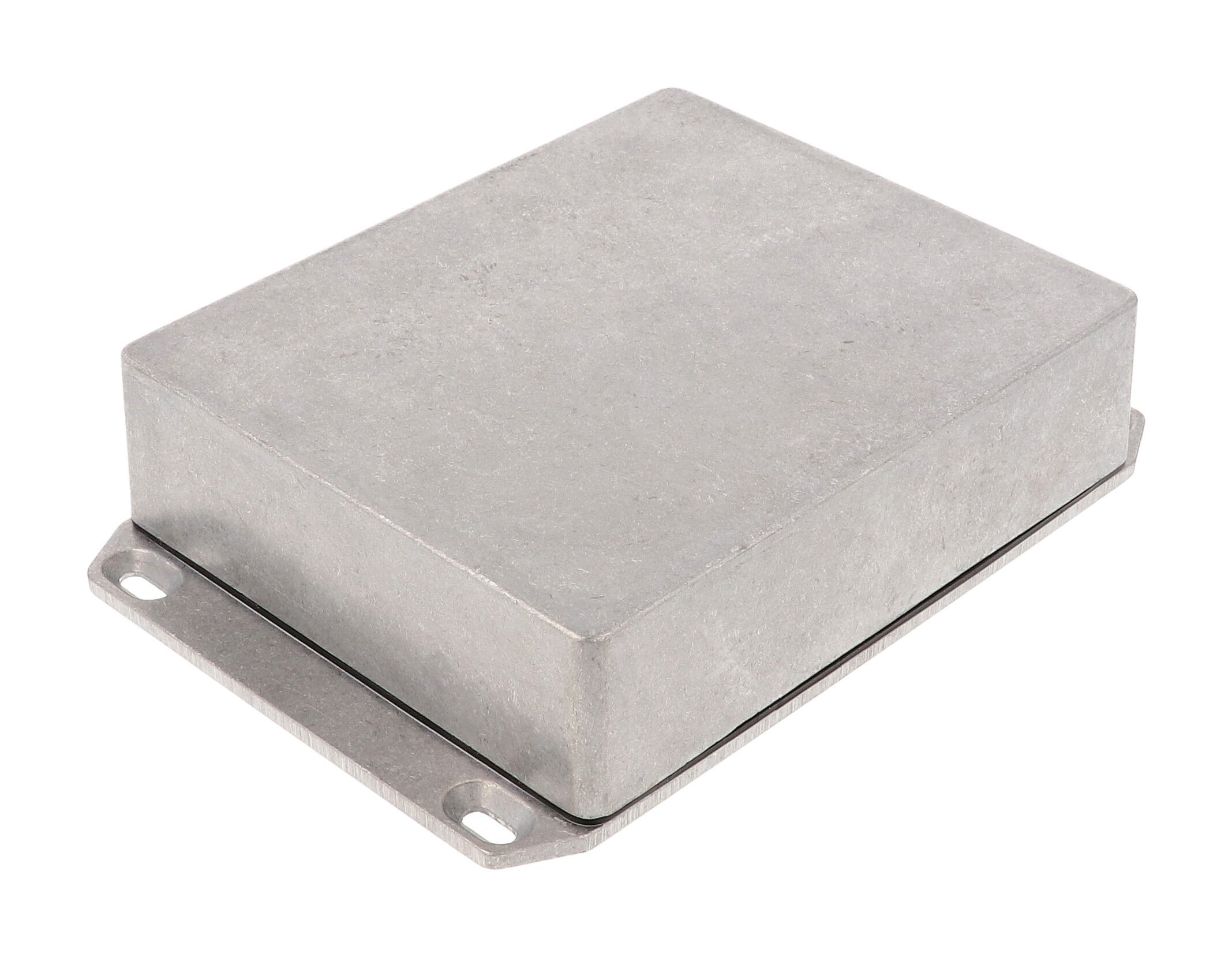

The 1590WXXFL combines the shallow 145 x 121 x 39 mm watertight diecast aluminum box with a lid that has an integrated wall-mounting flange. It is a fit for installers and OEM engineers who need a slim, IP65-designed housing that screws to a wall or panel by the lid.
Die-cast aluminum alloy is tough yet easy to machine for glands and connectors. Lap joint construction protects the lid seam against dust and splashing water, and the silicone gasket, supplied loose inside the enclosure, is applied to the lid. Side walls have a draft angle of 2° or less to ease PC board mounting. The natural aluminum version is left unpainted and vibra finished for a smooth surface with no sharp edges.
The flanged lid gives an overall length of 175.20 mm [6.898 in], and the enclosure stands 39.30 mm [1.547 in] tall. Inside dimensions are 139.00 x 115.00 mm [5.472 x 4.528 in] with an inside height of 35.05 mm [1.380 in]; maximum PC board size is listed as 114 mm (length) by 138 mm (width).
The lid closes with four 6-32 UNC cover screws into factory-tapped holes, torqued to 25-30 cN.m [36-43 ozf.in] with the gasket. Box, lid and screws ship together in shrink wrap, and the part is RoHS and REACH compliant. Order 1590XGASKET for a replacement gasket kit.
Ideal For
- Wall-mounted IP65 electronics enclosure
- Machine or chassis-mounted control housings
- Custom PC board assemblies up to 114 x 138 mm
- Projects needing drilled or milled connector and gland cut-outs
Overview
| Mounting | Wall-mounting flange integrated into lid |
| Description | enclosure - watertight diecast |
| Product Type | Die-cast box, water-tight |
| Ordering Table Version | w/ Flanged Lid, Water-Tight Version |
| Standard (Non-Watertight) Equivalent | 1590XXFL |
Dimensions
| Inside Width | 115.00 mm [4.528 in] |
| Inside Height | 35.05 mm [1.380 in] |
| Inside Length | 139.00 mm [5.472 in] |
| Overall Height | 39.30 mm [1.547 in] |
| Size (L X W X H) | 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm) |
| Max. P.C. Board Width | 138 mm |
| Max. P.C. Board Length | 114 mm |
| Nominal Size (Ordering Table) | 5.71 in (145 mm) x 4.76 in (121 mm) x 1.57 in (40 mm) |
| Overall Length (Incl. Lid Flange) | 175.20 mm [6.898 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980036090 |
| UNSPSC | 39121301 |
| Part Number | 1590WXXFL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws; silicone gasket (supplied loose, not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint where lid and box meet |
| Cover Screws | 4 x 6-32 UNC, threaded into factory-tapped holes |
| Side Wall Draft Angle | 2° or less |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| Gasket | Silicone, supplied with liquid resistant enclosure |
| IP Rating | IP65 |
| Optional Replacement Gasket Kit | 1590XGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1590WXXFL have?▾
It is rated IP65. The watertight version includes a silicone gasket, supplied loose inside the enclosure (not pre-installed), that is applied to the lid; the gasket spec calls for lid screws torqued to 25-30 cN.m (36-43 ozf.in).
What size PC board fits inside?▾
The maximum PC board size is 114 mm (length) x 138 mm (width). Inside dimensions are 139.00 mm [5.472 in] x 115.00 mm [4.528 in] with an inside height of 35.05 mm [1.380 in].
What is included with the enclosure?▾

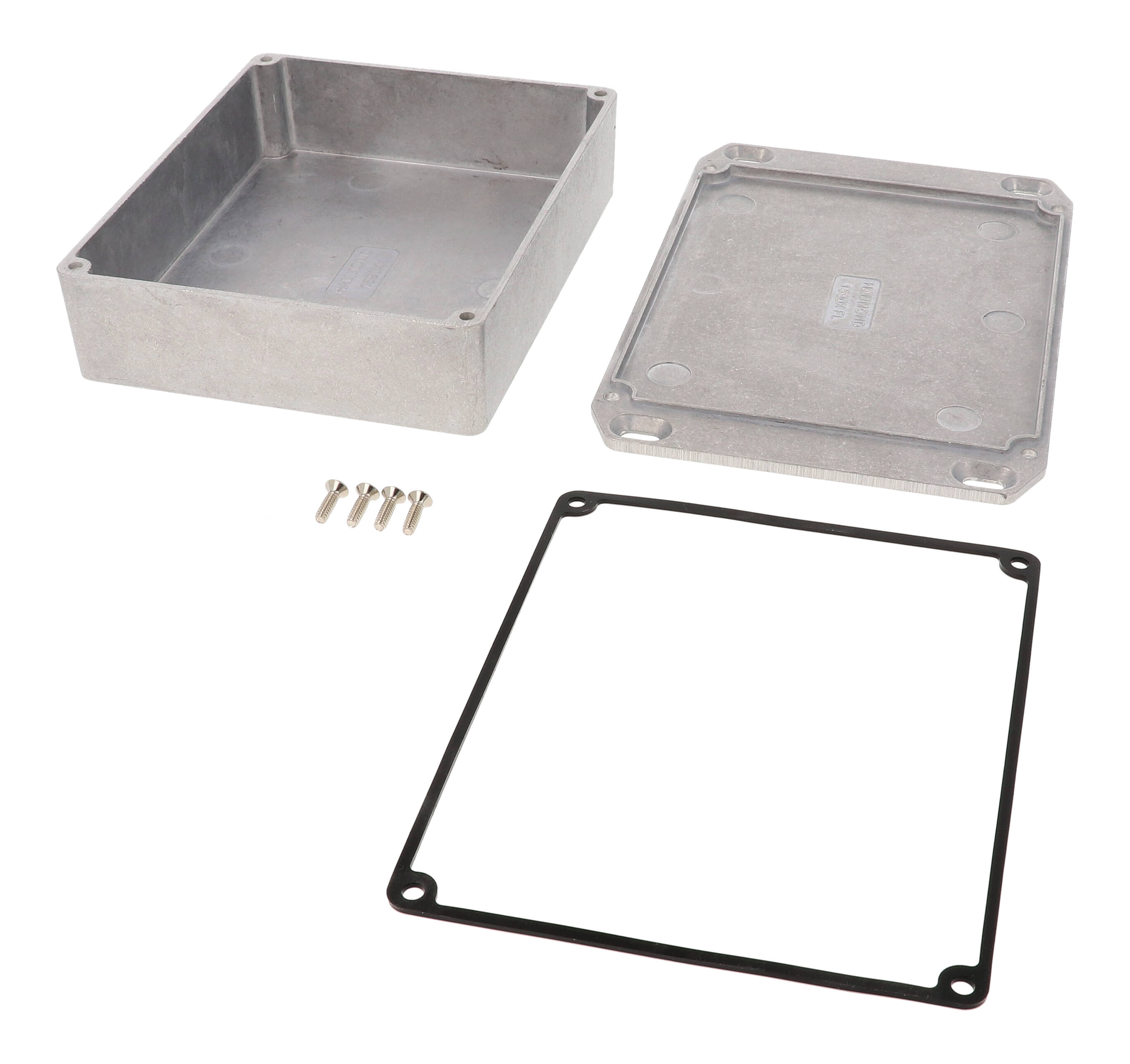

The purchased assembly includes the box, lid and 4 cover screws (6-32 UNC, threaded into factory-tapped holes), plus a silicone gasket supplied loose.
How does the 1590WXXFL mount?▾
The wall-mounting flange is integrated into the lid, giving an overall length of 175.20 mm [6.898 in], so the enclosure can be fastened to a wall or surface by its lid.
Is a replacement gasket available?▾
Yes. The optional replacement gasket kit for this size is 1590XGASKET. Liquid resistant stainless steel cover screws with O-ring (6-32 x 1/2") are also offered as 1590WMS100 and 1590WMS100BK in packs of 100.
What does the 1590WXXFL weigh?▾
The shipping weight is 0.8 lbs (0.36 kg). It is supplied in shrink wrap packaging.
Related Products
Save 52%1590WXXBK — enclosure - watertight diecast
Hammond Manufacturing · 1590WXXBK

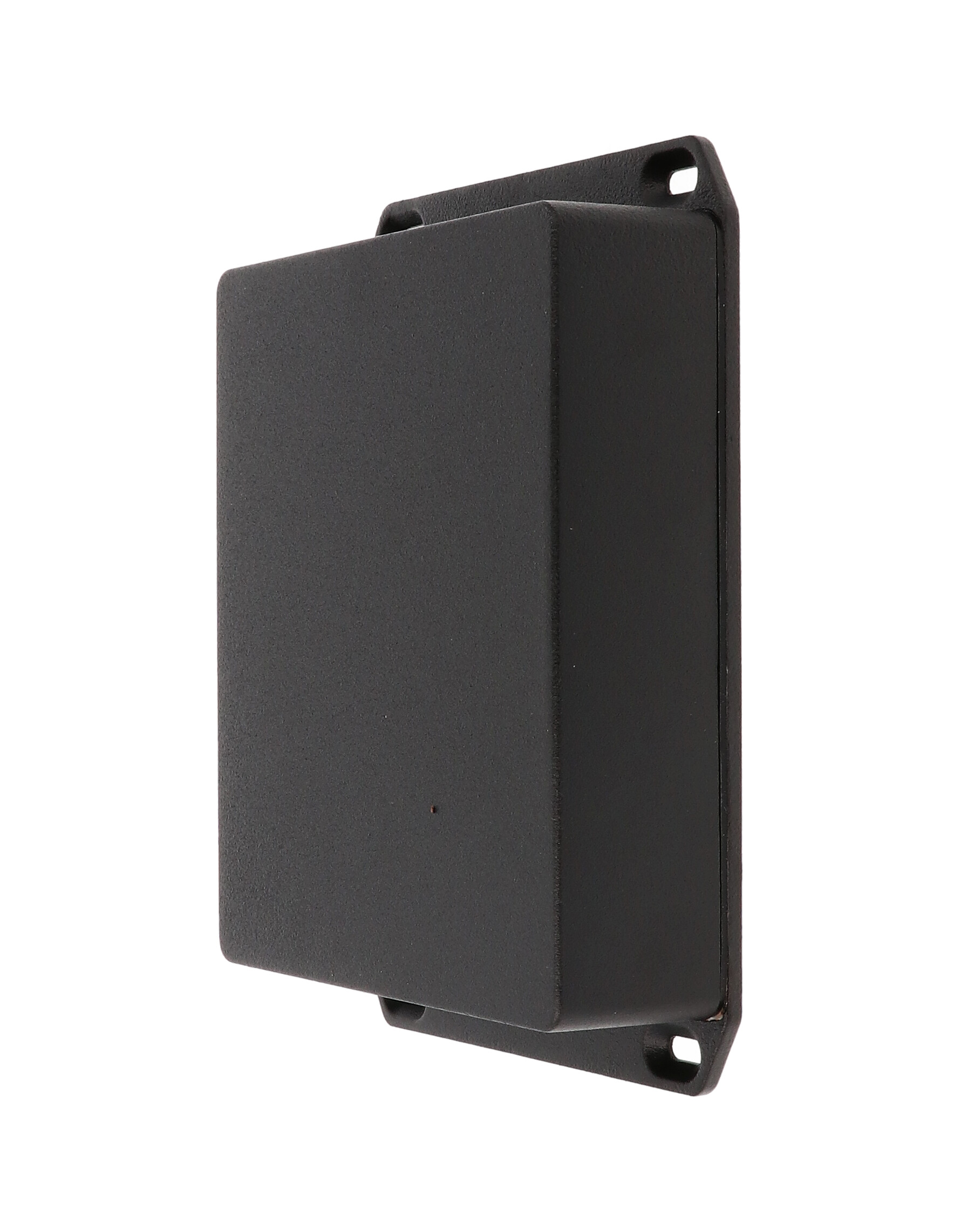

Save 52%1590WXXFLBK — enclosure - watertight diecast
Hammond Manufacturing · 1590WXXFLBK
Save 52%1590WXX — enclosure - watertight diecast
Hammond Manufacturing · 1590WXX

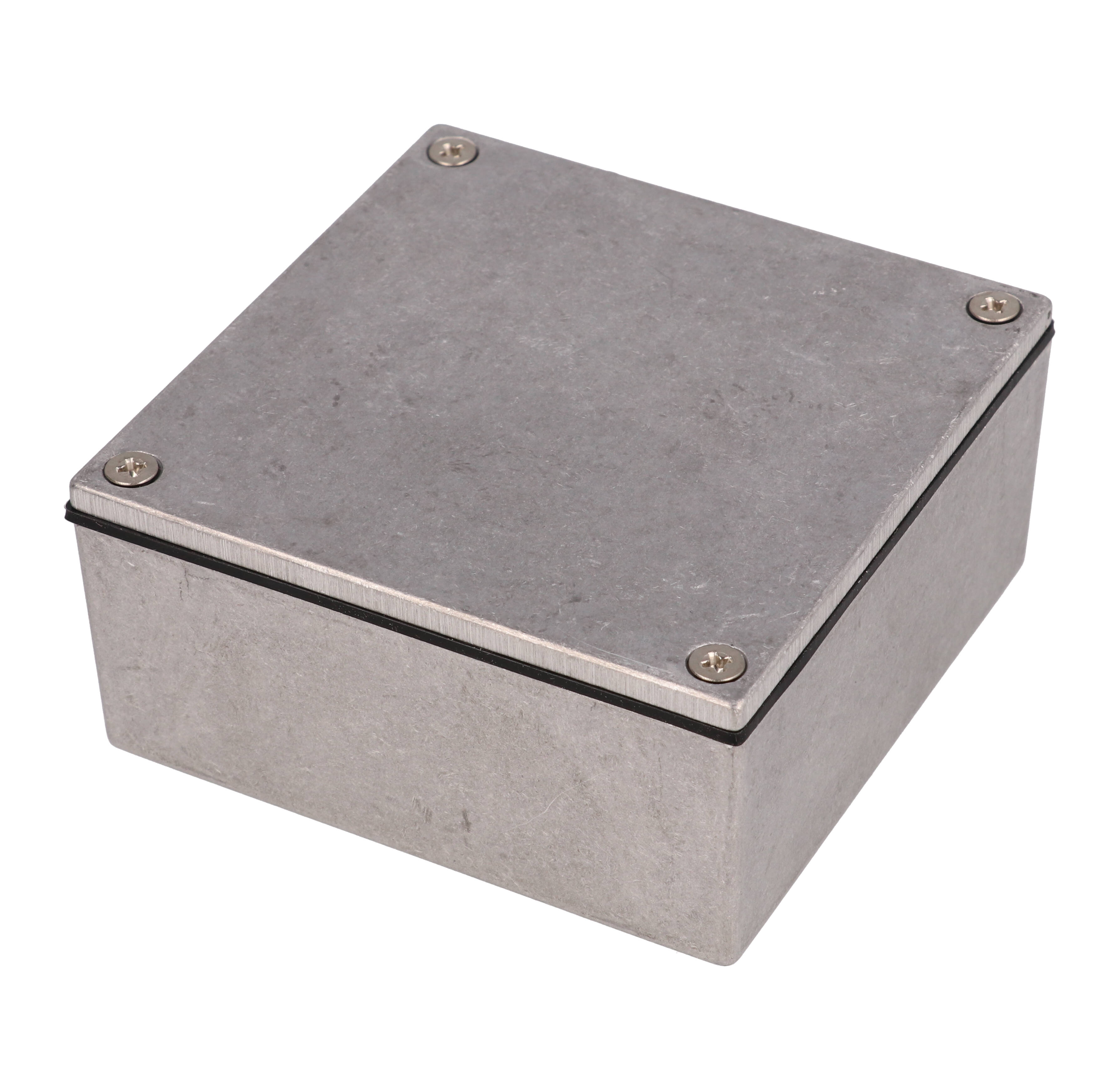

Save 52%1590WY — enclosure - watertight diecast
