Hammond 1590WXFL 145x121x56 mm IP65 Diecast Enclosure, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket supplied loose for fitting to the lid
- Size 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm)
- Wall-mounting flange integrated into the lid; 175.20 mm [6.898 in] overall length
- Inside space 138.09 mm x 114.09 mm x 52.40 mm; max PC board 113.09 x 137.09 mm
- Die-cast aluminum alloy box and lid, tough yet easy to machine
- Natural aluminum, vibra finished for a smooth surface with no sharp edges
- Lap joint seam and low 2° (or less) side wall draft for easy PC board mounting
- Includes 4 x 6-32 UNC cover screws in factory-tapped holes; RoHS and REACH compliant

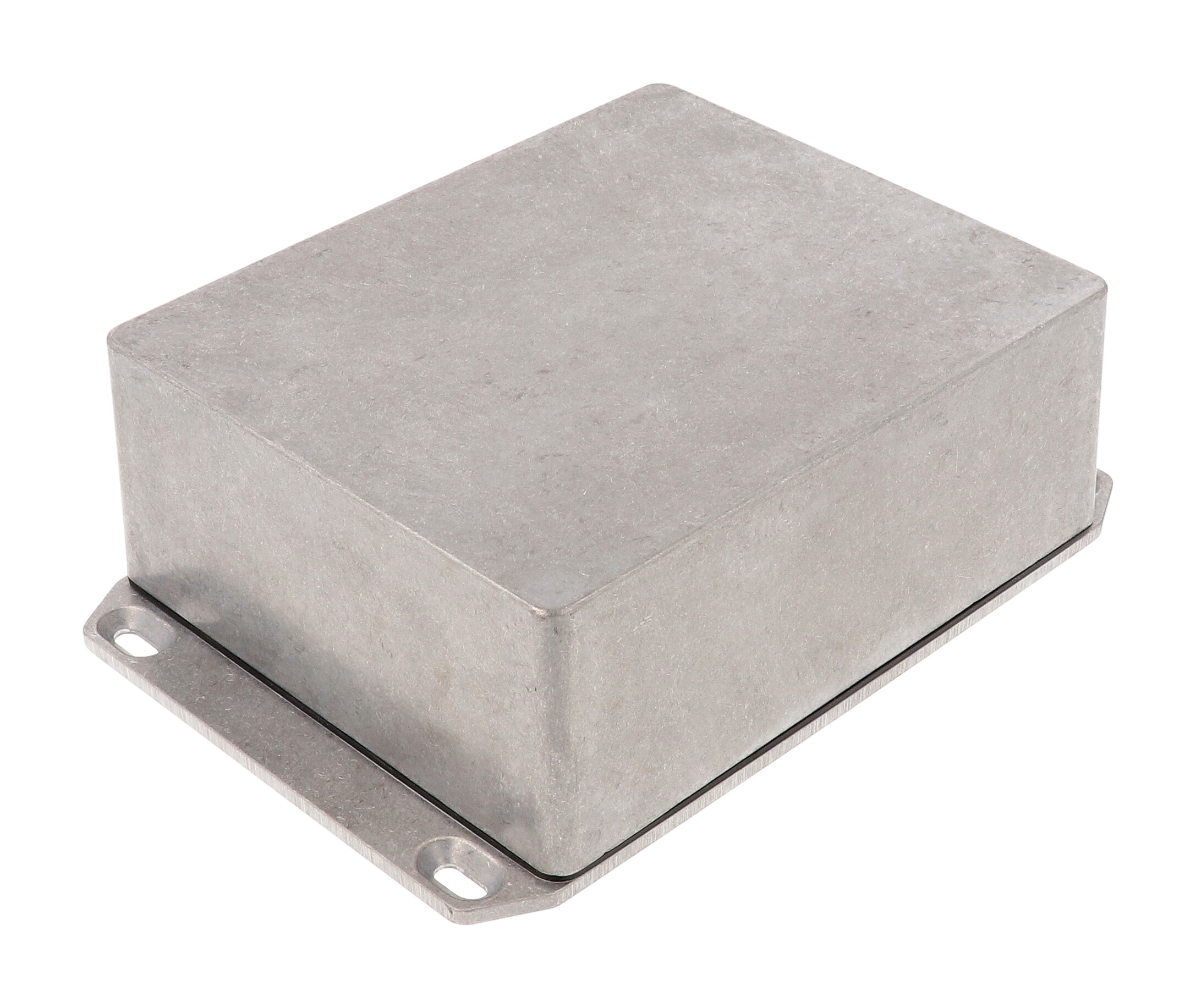

The 1590WXFL is a 145 x 121 x 56 mm watertight diecast aluminum enclosure with a wall-mounting flange integrated into the lid. It is intended for integrators and OEM engineers who need a rectangular IP65-designed housing that fixes to a wall, panel or machine frame by its lid.
Die-cast aluminum alloy construction is rugged yet straightforward to drill and mill. The lap joint between lid and box protects against dust and splashing water, and the silicone gasket, supplied loose inside, is applied to the lid to seal the enclosure. Side wall draft is 2° or less for easier PC board mounting. The natural aluminum version is left unpainted and vibra finished for a smooth surface with no sharp edges.
With the flanged lid the overall length is 175.20 mm [6.898 in]; the box body is 145.20 x 121.20 mm [5.717 x 4.772 in] and 56.40 mm [2.220 in] high. Inside dimensions are 138.09 x 114.09 mm [5.437 x 4.492 in] with an inside height of 52.40 mm [2.063 in]. Listed maximum PC board dimensions are 113.09 mm (length) by 137.09 mm (width).
Four 6-32 UNC cover screws thread into factory-tapped holes; torque to 25-30 cN.m [36-43 ozf.in] with the gasket installed. The purchased assembly includes box, lid and four screws, ships shrink wrapped, and is RoHS and REACH compliant. The replacement gasket kit is 1590XGASKET.
Ideal For
- Wall-mounted IP65 electronics enclosure
- Machine or chassis-mounted control housings
- Custom PC board assemblies up to 113.09 x 137.09 mm
- Projects needing drilled or milled connector and gland cut-outs
Overview
| Mounting | Wall-mounting flange integrated into lid |
| Description | enclosure - watertight diecast |
| Product Type | Die-cast box, water-tight |
| Ordering Table Version | w/ Flanged Lid, Water-Tight Version |
| Standard (Non-Watertight) Equivalent | 1590XFL |
Dimensions
| Body Width | 121.20 mm [4.772 in] |
| Inside Width | 114.09 mm [4.492 in] |
| Inside Height | 52.40 mm [2.063 in] |
| Inside Length | 138.09 mm [5.437 in] |
| Overall Height | 56.40 mm [2.220 in] |
| Size (L X W X H) | 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm) |
| Max. P.C. Board Width | 137.09 mm |
| Max. P.C. Board Length | 113.09 mm |
| Nominal Size (Ordering Table) | 5.71 in (145 mm) x 4.76 in (121 mm) x 2.20 in (56 mm) |
| Overall Length (Incl. Lid Flange) | 175.20 mm [6.898 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980036106 |
| UNSPSC | 39121301 |
| Part Number | 1590WXFL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.8 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |

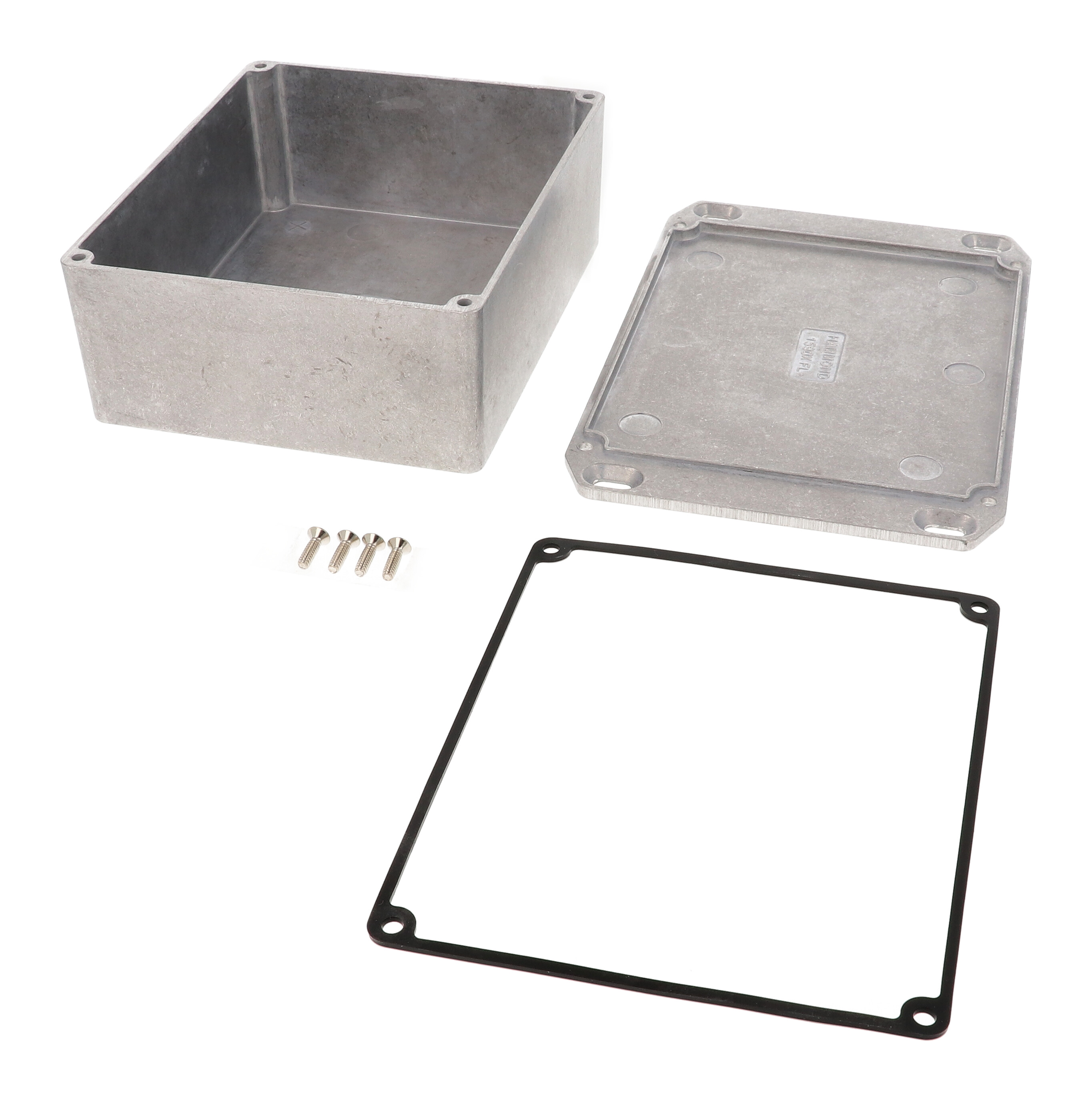

| Included | Box, lid and 4 cover screws; silicone gasket (supplied loose, not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint where lid and box meet |
| Cover Screws | 4 x 6-32 UNC, threaded into factory-tapped holes |
| Side Wall Draft Angle | 2° or less |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| Gasket | Silicone, supplied with liquid resistant enclosure |
| IP Rating | IP65 |
| Optional Replacement Gasket Kit | 1590XGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1590WXFL have?▾
It is rated IP65. The watertight version includes a silicone gasket, supplied loose inside the enclosure (not pre-installed), that is applied to the lid; the gasket spec calls for lid screws torqued to 25-30 cN.m (36-43 ozf.in).
What size PC board fits inside?▾
The maximum PC board size is 113.09 mm (length) x 137.09 mm (width). Inside dimensions are 138.09 mm [5.437 in] x 114.09 mm [4.492 in] with an inside height of 52.40 mm [2.063 in].
What is included with the enclosure?▾
The purchased assembly includes the box, lid and 4 cover screws (6-32 UNC, threaded into factory-tapped holes), plus a silicone gasket supplied loose.
How does the 1590WXFL mount?▾
The wall-mounting flange is integrated into the lid, giving an overall length of 175.20 mm [6.898 in], so the enclosure can be fastened to a wall or surface by its lid.
Is a replacement gasket available?▾
Yes. The optional replacement gasket kit for this size is 1590XGASKET. Liquid resistant stainless steel cover screws with O-ring (6-32 x 1/2") are also offered as 1590WMS100 and 1590WMS100BK in packs of 100.
What does the 1590WXFL weigh?▾
The shipping weight is 0.8 lbs (0.36 kg). It is supplied in shrink wrap packaging.
