Hammond 1590WLLB Low-Profile 51mm Square IP65 Diecast Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Low 25 mm (0.98 in) profile, 51 x 51 mm footprint
- Watertight version designed to meet IP65
- Inside 45.63 x 45.63 x 21.00 mm; PC board up to 44.83 x 44.83 mm
- Diecast aluminum alloy, easy to machine
- Unpainted vibra finish, no sharp edges
- Silicone gasket supplied loose; four 6-32 UNC screws included
- Replacement gasket kit: 1590LBGASKET

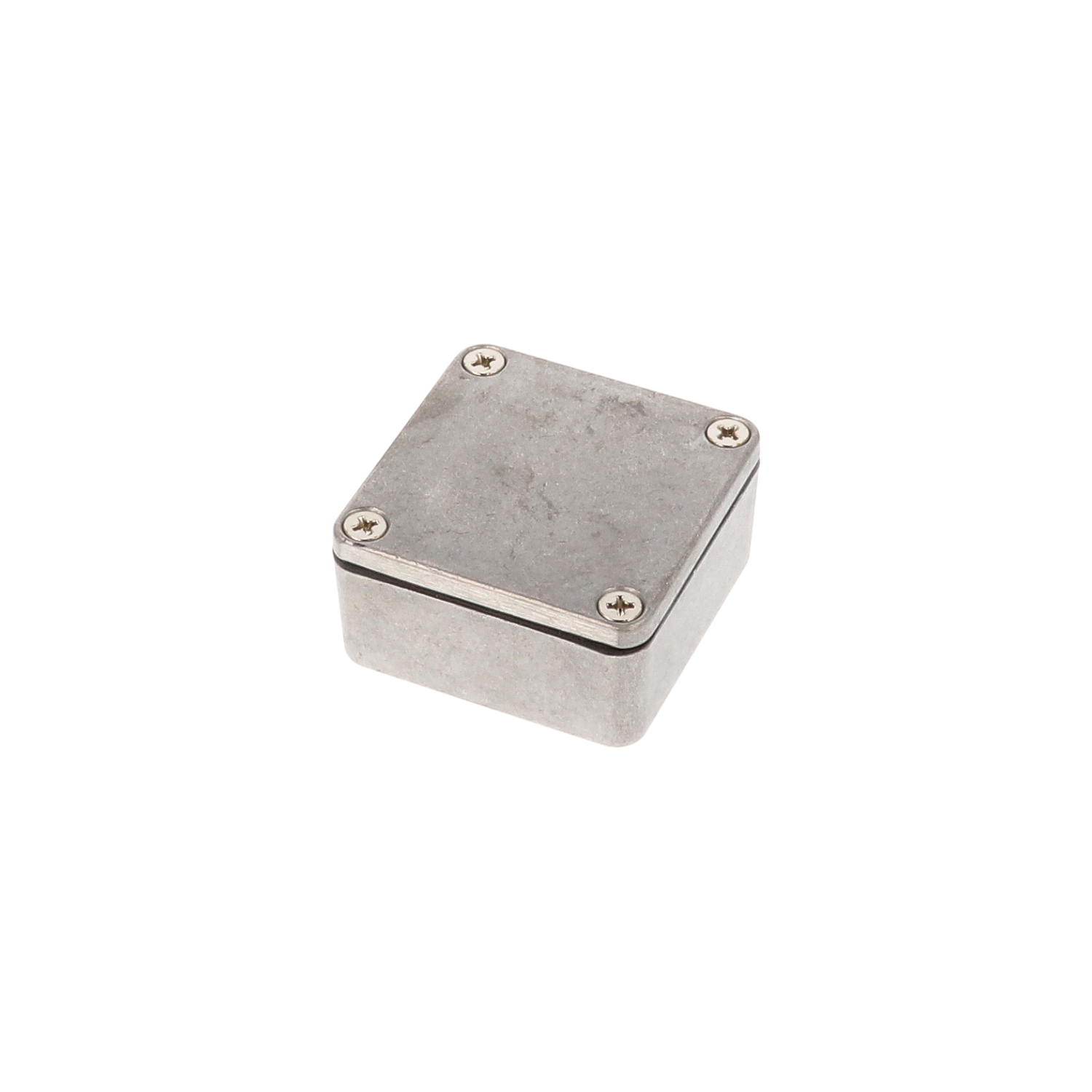

The 1590WLLB is a natural, low-profile watertight enclosure in the 1590 Series, measuring 1.99 x 1.99 x 0.98 in (51 x 51 x 25 mm). It is the shallower 1590LLB size with no mounting flanges, useful when a small board or module needs sealing but depth is limited.
The drawing gives outside dimensions of 50.50 x 50.50 x 25.00 mm and inside dimensions of 45.63 x 45.63 mm with 21.00 mm (0.827 in) of inside height. The maximum PC board size is 44.83 x 44.83 mm, and side walls have a draft angle of 2° or less for easier board fitting. Lid height is 0.16 in (4 mm).
Box and lid are made from diecast aluminum alloy, which is tough yet easy to machine. This version has an unpainted, vibra-finished surface that is smooth with no sharp edges. The lap joint between lid and box helps block dust and splashing water.

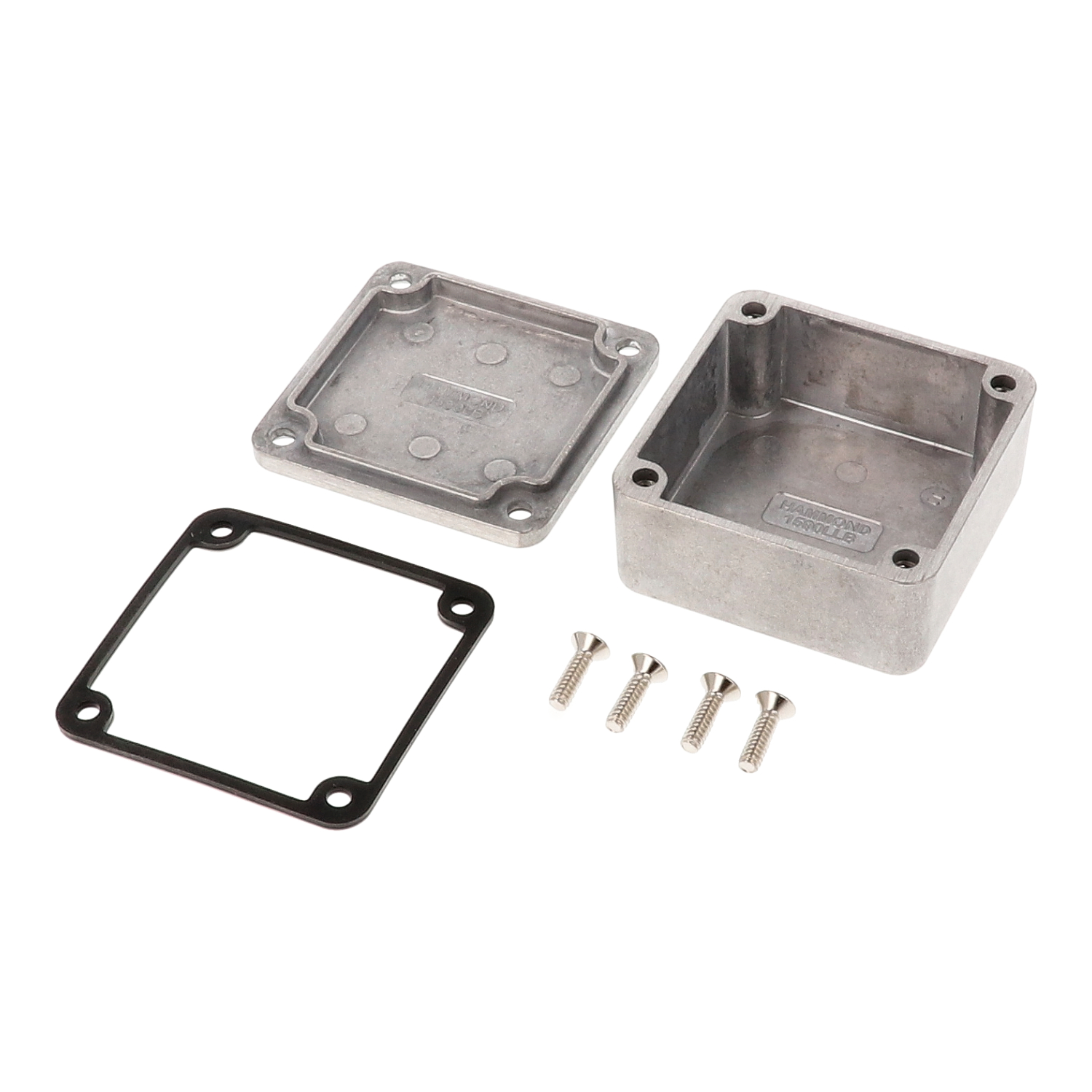

Designed to meet IP65, the watertight version includes a silicone gasket supplied loose inside the box, plus four 6-32 UNC cover screws. Torque to 50-55 cN.m, or 25-30 cN.m with the gasket. RoHS and REACH compliant; shrink wrapped, shipping weight 0.14 lbs (0.06 kg).
Ideal For
- Low-profile sealed electronics
- Compact sensor modules
- Slim IP65 interface boxes
- Custom-machined small enclosures
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590LBGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WLLB |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - watertight diecast |
| Short Description | 50 X 50 X 25MM WPROOF ALM BOX |
| Standard (IP54) Equivalent | 1590LLB |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.63 mm [1.796 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 45.63 mm [1.796 in] |
| Size L X W X H | 1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm) |
| Max. P.C. Board Width | 44.83 mm |
| Max. P.C. Board Length | 44.83 mm |
| Overall Width (Drawing) | 50.50 mm [1.988 in] |
| Overall Height (Drawing) | 25.00 mm [.984 in] |
| Overall Length (Drawing) | 50.50 mm [1.988 in] |
| Nominal Width (Ordering Table) | 2.01 in (51 mm) |
| Nominal Height (Ordering Table) | 0.98 in (25 mm) |
| Nominal Length (Ordering Table) | 2.01 in (51 mm) |
Identifiers
| UPC | 623980808826 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Joint | Lap joint where lid and box meet |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How deep is the 1590WLLB?▾
Overall height is 0.98 in (25 mm); the drawing shows 21.00 mm of inside height.
What board size fits inside?▾
The maximum PC board size is 44.83 x 44.83 mm, with inside length and width of 45.63 mm.
Does it come with a gasket?▾
Yes. As the watertight version it includes a silicone gasket, supplied loose inside the enclosure rather than pre-installed. It is designed to meet IP65.
Which replacement gasket kit fits?▾
The ordering table lists 1590LBGASKET for the 1590LLB size.
Is there a black version?▾
Yes, 1590WLLBBK.
