Hammond 1590WLBFBK Black 51mm IP65 Diecast Box with Flanged Bottom
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for direct surface mounting
- Overall length 78.99 mm with 67.72 mm flange hole spacing
- Watertight version designed to meet IP65; gasket supplied loose
- 51 x 51 x 31 mm body; inside 45.50 x 45.50 x 27.05 mm
- Holds PC boards up to 44.7 x 44.7 mm
- Textured black polyester powder paint, black screws included
- Diecast aluminum alloy box and lid with four 6-32 UNC cover screws

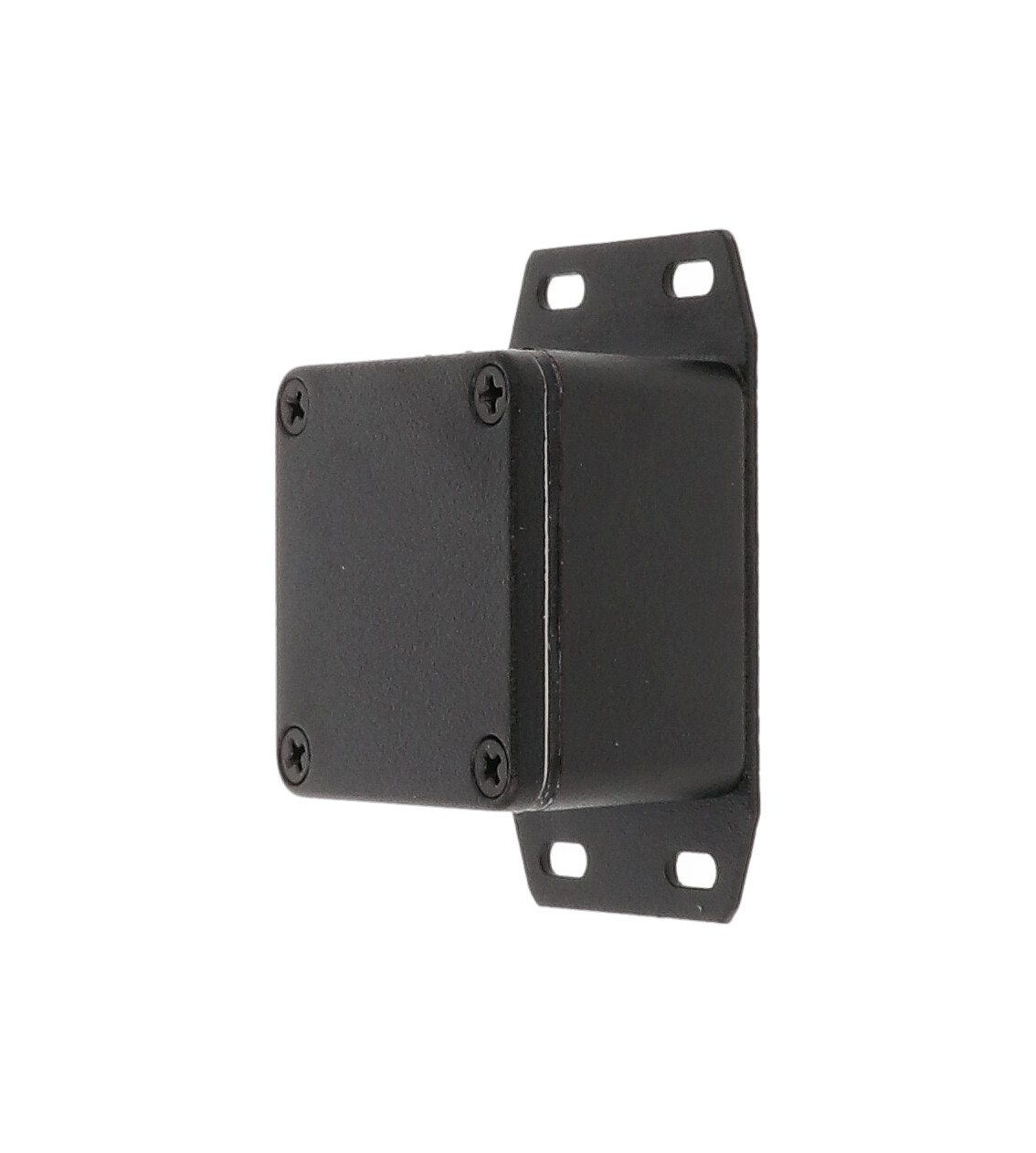

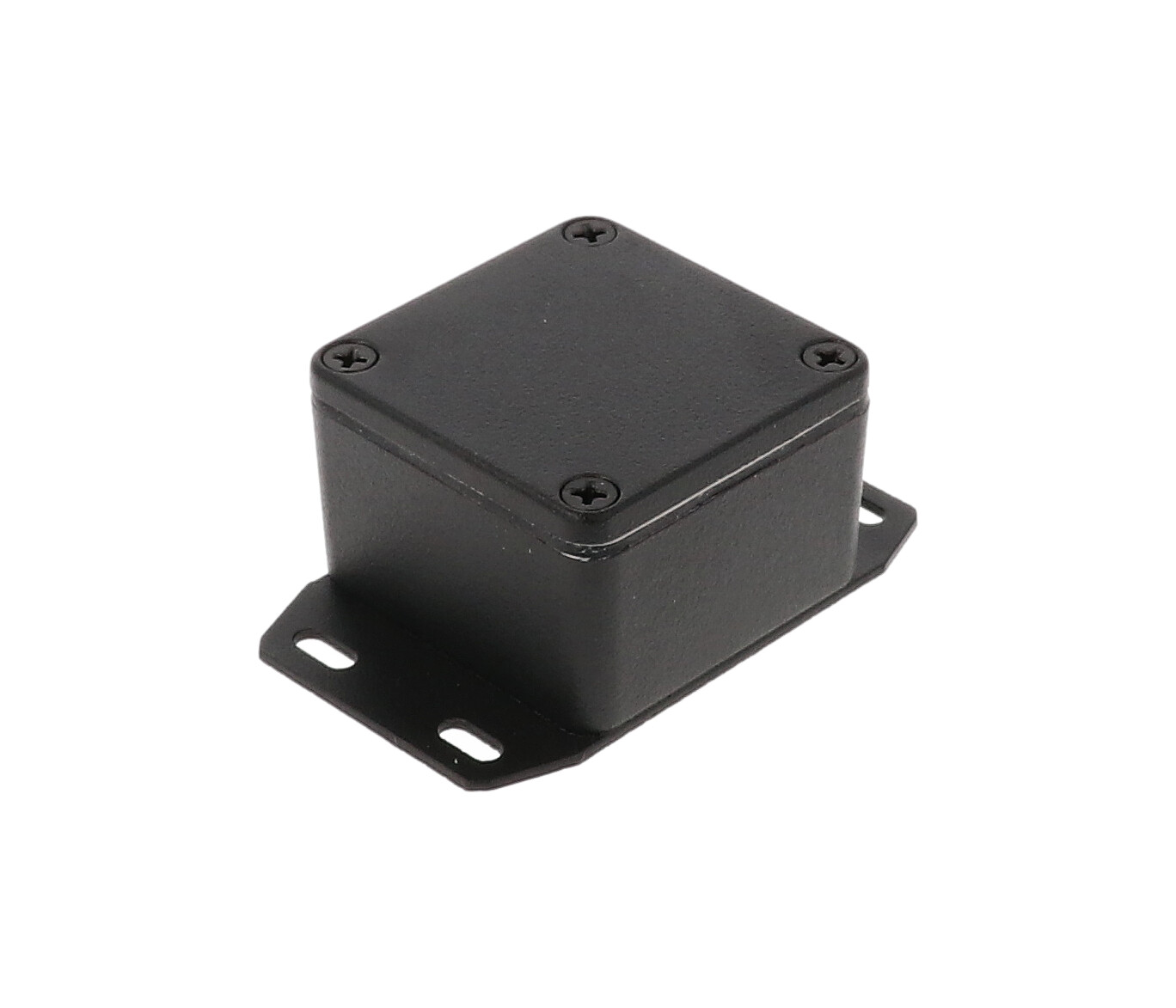

The 1590WLBFBK is a black watertight 1590 Series diecast aluminum enclosure built on the 1590LB body (1.99 x 1.99 x 1.22 in / 51 x 51 x 31 mm) with a flanged bottom plate. The welded bottom flange lets the box be fastened directly to a panel, wall or chassis, which suits OEM builders and installers who need a small sealed box that stays put.
Per the drawing, the flange extends the overall length to 78.99 mm (3.110 in), with 67.72 mm (2.666 in) between the flange mounting holes and an overall height of 32.50 mm (1.280 in). The body itself measures 50.55 x 50.60 mm.
Box and lid are diecast aluminum alloy, tough yet easy to machine. This version carries textured black polyester powder paint, a finish the series literature describes as lasting even after machining, and it ships with black screws to match. Inside dimensions are 45.50 x 45.50 mm with 27.05 mm of height, and PC boards up to 44.7 x 44.7 mm fit; side walls have a draft angle of 2° or less.

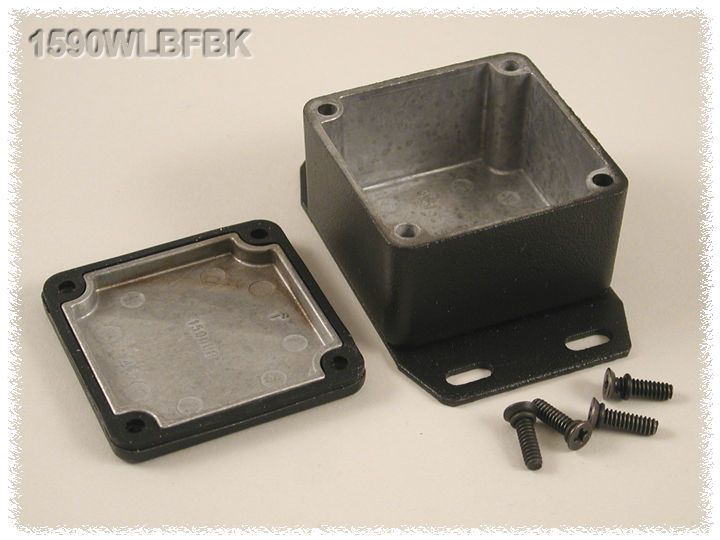

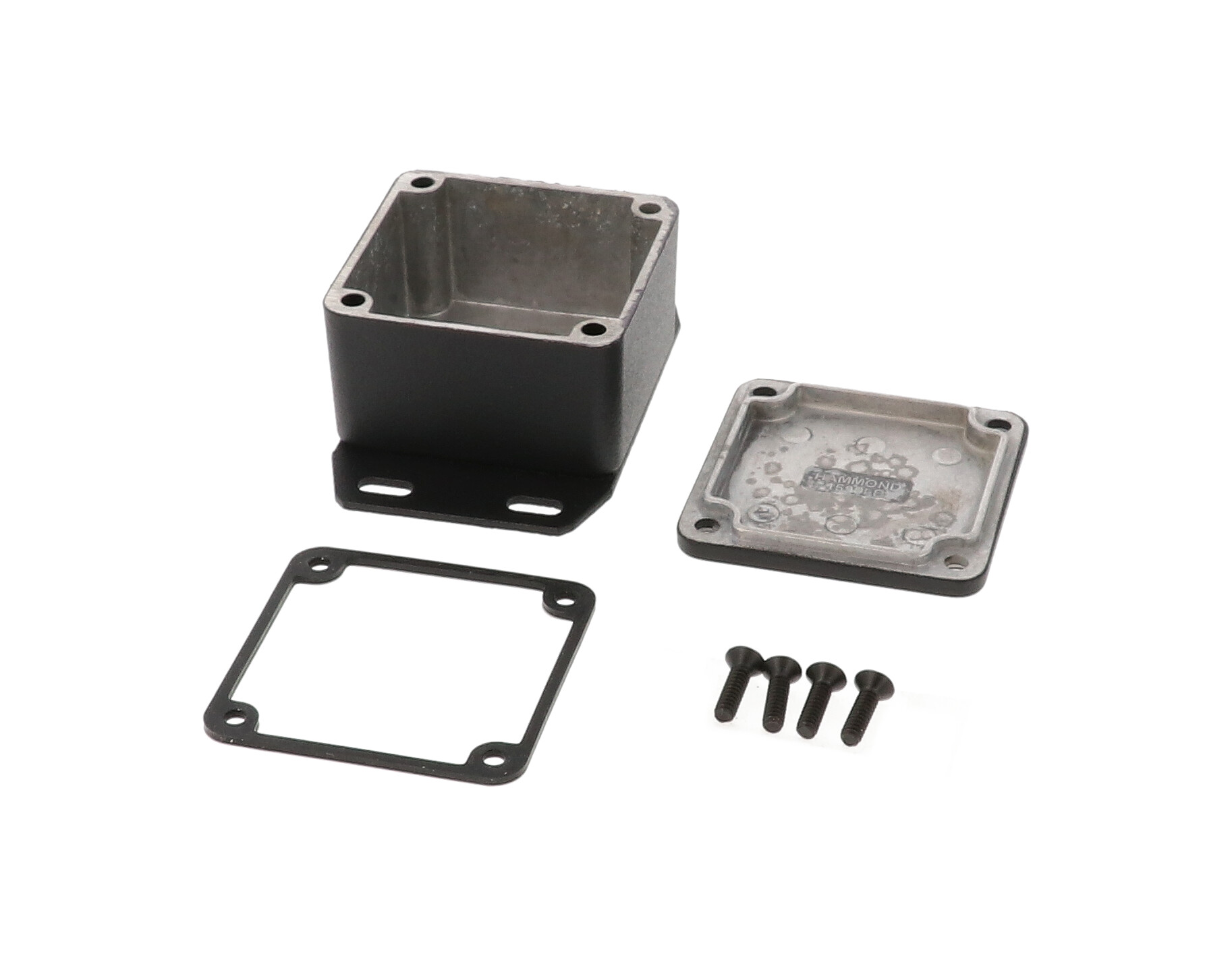

Designed to meet IP65, it includes a silicone gasket supplied loose (not pre-installed), plus the box, lid and four 6-32 UNC cover screws. Tighten to 50-55 cN.m, or 25-30 cN.m with the gasket. RoHS and REACH compliant; shipping weight 0.19 lbs (0.09 kg), shrink wrapped.
Ideal For
- Surface-mounted sealed junction boxes
- Panel- or chassis-mounted control electronics
- Wall-mounted sensor housings
- OEM equipment requiring IP65 protection
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590LBGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WLBFBK |
| Mounting Style | Flanged bottom plate (welded bottom flange) |
| Long Description | enclosure - watertight diecast |
| Short Description | 1590LB W-PROOF FLNGD BOX BLACK |
| Standard (IP54) Equivalent | 1590LBFBK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.50 mm [1.791 in] |
| Inside Height | 27.05 mm [1.065 in] |
| Inside Length | 45.50 mm [1.791 in] |
| Size L X W X H | 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm) |
| Body Width (Drawing) | 50.60 mm [1.992 in] |
| Body Length (Drawing) | 50.55 mm [1.990 in] |
| Max. P.C. Board Width | 44.7 mm |
| Max. P.C. Board Length | 44.7 mm |
| Nominal Width (Ordering Table) | 2.01 in (51 mm) |
| Nominal Height (Ordering Table) | 1.22 in (31 mm) |
| Nominal Length (Ordering Table) | 2.01 in (51 mm) |
| Overall Height Incl. Flange (Drawing) | 32.50 mm [1.280 in] |
| Flange Mounting Hole Spacing (Drawing) | 67.72 mm [2.666 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 78.99 mm [3.110 in] |
Identifiers
| UPC | 623980677323 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint where lid and box meet |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590WLBFBK mounted?▾
It has a flanged bottom plate; the drawing notes the bottom flange is welded. The flange brings the overall length to 78.99 mm, with 67.72 mm between the mounting holes.
What is the IP rating?▾
IP65. The silicone gasket is supplied loose inside the enclosure and must be installed; torque the lid screws to 25-30 cN.m with the gasket.
What size circuit board fits?▾
The maximum PC board size is listed as 44.7 x 44.7 mm. Inside dimensions per the drawing are 45.50 x 45.50 mm with 27.05 mm inside height.
Which gasket kit replaces the original?▾
1590LBGASKET is listed as the replacement gasket kit.
Is it available in another colour?▾
The same flanged-bottom watertight size is listed in natural aluminum as 1590WLBF.
