Hammond 1590WLBBK Black 51mm Square IP65 Diecast Aluminum Box, 31mm Tall
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Watertight version designed to meet IP65; silicone gasket supplied loose
- Compact 51 x 51 x 31 mm (1.99 x 1.99 x 1.22 in) footprint, no flanges
- Inside space 45.50 x 45.50 x 27.05 mm; PC board up to 44.7 x 44.7 mm
- Diecast aluminum alloy box and lid, easy to machine
- Textured black powder-coat finish with matching black screws
- Includes box, lid and four 6-32 UNC cover screws
- Lap joint lid construction; side wall draft angle of 2° or less

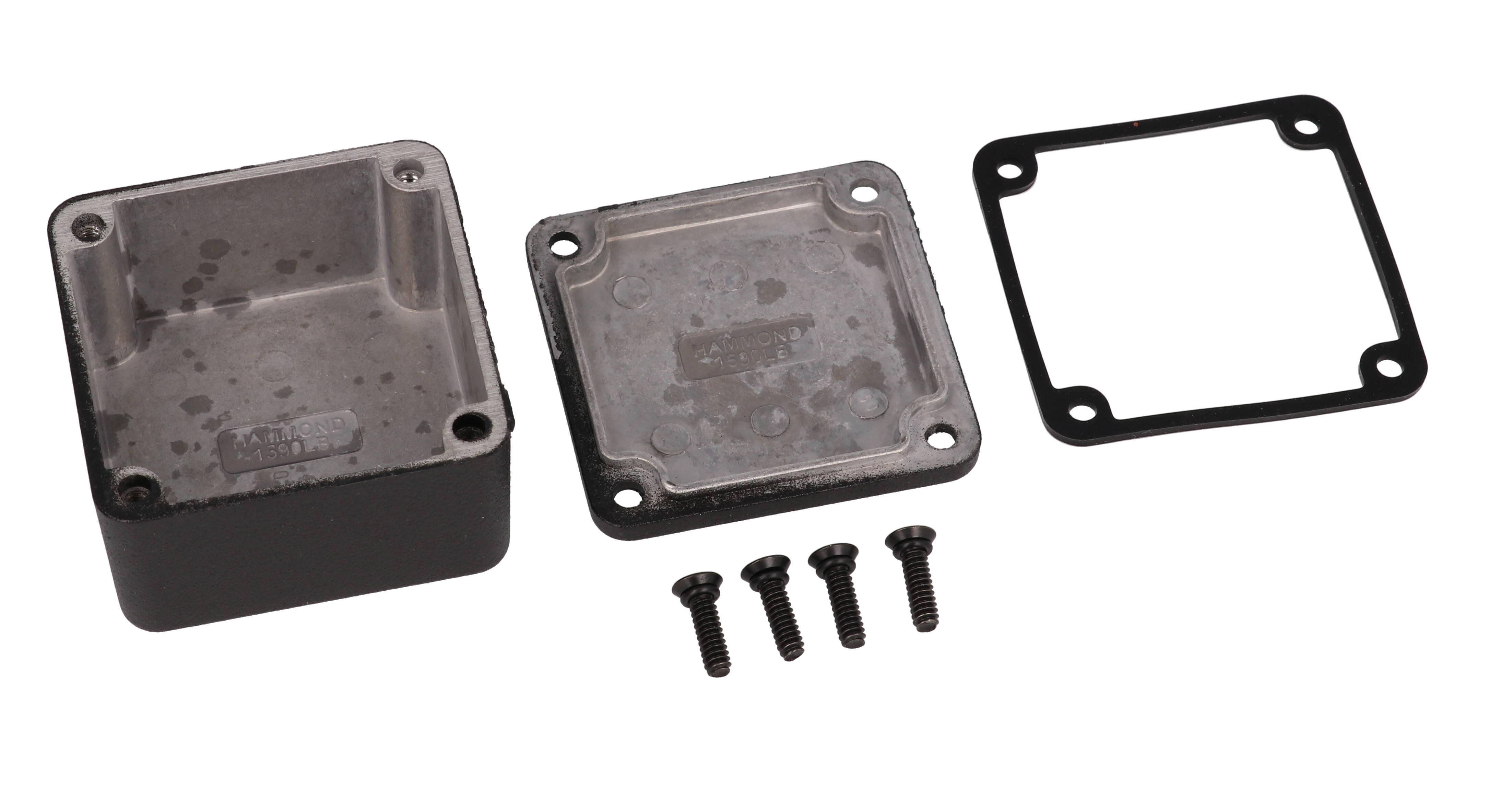

The 1590WLBBK is a black, watertight diecast aluminum enclosure from the 1590 Series, sized at 1.99 x 1.99 x 1.22 in (51 x 51 x 31 mm). It is a plain box with no mounting flanges, suited to engineers and integrators who need a compact, sealed housing for a small circuit board, sensor interface or control module.
Box and lid are diecast aluminum alloy, a material that is tough yet easy to machine for connectors, switches and cable entries. This version has textured black polyester powder paint, a finish the series literature describes as lasting even after machining, and it ships with black screws to match. A lap joint where the lid meets the box helps keep out dust and splashing water.
Inside, the drawing shows 45.50 x 45.50 mm (1.791 x 1.791 in) with 27.05 mm (1.065 in) of inside height, and the maximum PC board size is listed as 44.7 x 44.7 mm. Side walls have a draft angle of 2° or less for easier board mounting, and the lid height is 0.16 in (4 mm).
As the water-tight version it is designed to meet IP65. The silicone gasket is supplied loose inside the enclosure rather than pre-installed, and the assembly includes the box, lid and four 6-32 UNC cover screws. Recommended torque is 50-55 cN.m, or 25-30 cN.m with the gasket fitted. It is RoHS and REACH compliant, and ships shrink wrapped at 0.15 lbs (0.07 kg).
Ideal For
- Small sealed electronics housings
- Compact sensor and interface modules
- Custom-machined instrument boxes
- Dust- and splash-exposed installations
Hardware
| Included | Box, lid and 4 cover screws |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Replacement Gasket Kit | 1590LBGASKET |
| Watertight Replacement Screws | 1590WMS100 (stainless steel, 6-32 x 1/2" with O-ring, pkg 100); 1590WMS100BK (black stainless steel, pkg 100) |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590WLBBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - watertight diecast |
| Short Description | 1590LB WATERPROOF PAINTED BLAC |
| Standard (IP54) Equivalent | 1590LBBK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.50 mm [1.791 in] |
| Inside Height | 27.05 mm [1.065 in] |
| Inside Length | 45.50 mm [1.791 in] |
| Size L X W X H | 1.99 in x 1.99 in x 1.22 in (51 mm x 51 mm x 31 mm) |
| Max. P.C. Board Width | 44.7 mm |
| Max. P.C. Board Length | 44.7 mm |
| Overall Width (Drawing) | 50.60 mm [1.992 in] |
| Overall Height (Drawing) | 31.00 mm [1.220 in] |
| Overall Length (Drawing) | 50.55 mm [1.990 in] |
| Nominal Width (Ordering Table) | 2.01 in (51 mm) |
| Nominal Height (Ordering Table) | 1.22 in (31 mm) |
| Nominal Length (Ordering Table) | 2.01 in (51 mm) |
Identifiers
| UPC | 623980677019 |
| UNSPSC | 39121301 |
Customization
| Solid Models | STEP or IGES |
| Factory Modification | Available (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint where lid and box meet |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the outside and inside dimensions of the 1590WLBBK?▾
The listed size is 1.99 x 1.99 x 1.22 in (51 x 51 x 31 mm). The drawing gives inside dimensions of 45.50 x 45.50 mm with 27.05 mm inside height.
Is the gasket already installed?▾
No. The silicone gasket is supplied loose inside the enclosure and is not pre-installed. With the gasket fitted and the lid screws torqued to 25-30 cN.m, the enclosure is designed to meet IP65.
What screws come with it?▾
The assembly includes the box, lid and four cover screws, which thread into factory-tapped 6-32 UNC holes. Watertight replacement screws are available as 1590WMS100 and 1590WMS100BK.
What replacement gasket fits this enclosure?▾
The ordering table lists 1590LBGASKET as the replacement gasket kit for this size.
Is there a natural aluminum version?▾
Yes, the same watertight 1590LB size is listed as 1590WLB.
