Hammond 1590WKFBK 125x125x79mm IP65 Diecast Box, Flanged Base, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP65 watertight diecast aluminum enclosure; silicone gasket supplied loose inside
- Size 4.92 in x 4.92 in x 3.11 in (125 mm x 125 mm x 79 mm); inside 118.10 mm x 118.10 mm x 73.50 mm
- Welded flanged bottom plate for mounting, 154.18 mm overall length
- Black textured polyester powder paint with black screws included
- Lap joint where lid and box meet guards against dust and splashing water
- Lid fastens with four 6-32 UNC screws into factory-tapped holes
- Low side wall draft angle (2 degrees or less) for easy PC board mounting
- RoHS and REACH compliant; diecast aluminum is tough yet easy to machine

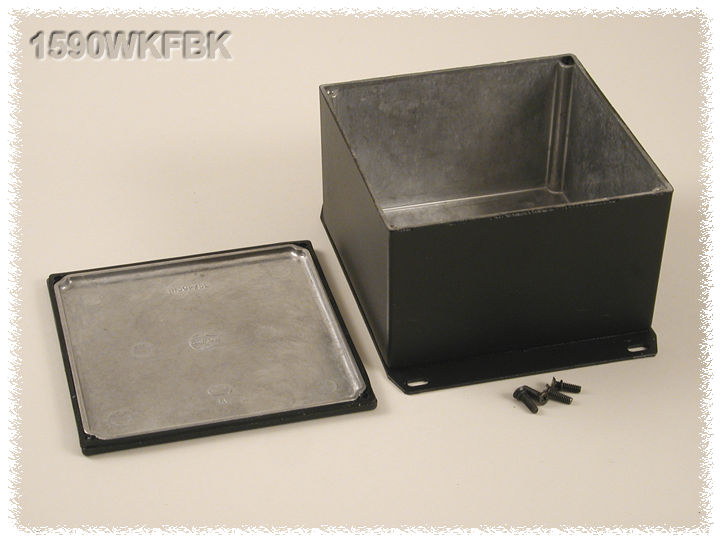

The 1590WKFBK is a square 125 x 125 mm rugged diecast aluminum electronic instrument enclosure with a deep 73.50 mm inside height, built liquid-resistant for electronics exposed to dust and splashing water. It is the black watertight version with a flanged bottom plate, rated IP65 and listed by the manufacturer as a die-cast box, water-tight. It suits OEM engineers and integrators who want a sealed metal housing they can machine themselves, since diecast aluminum is tough yet easy to machine.

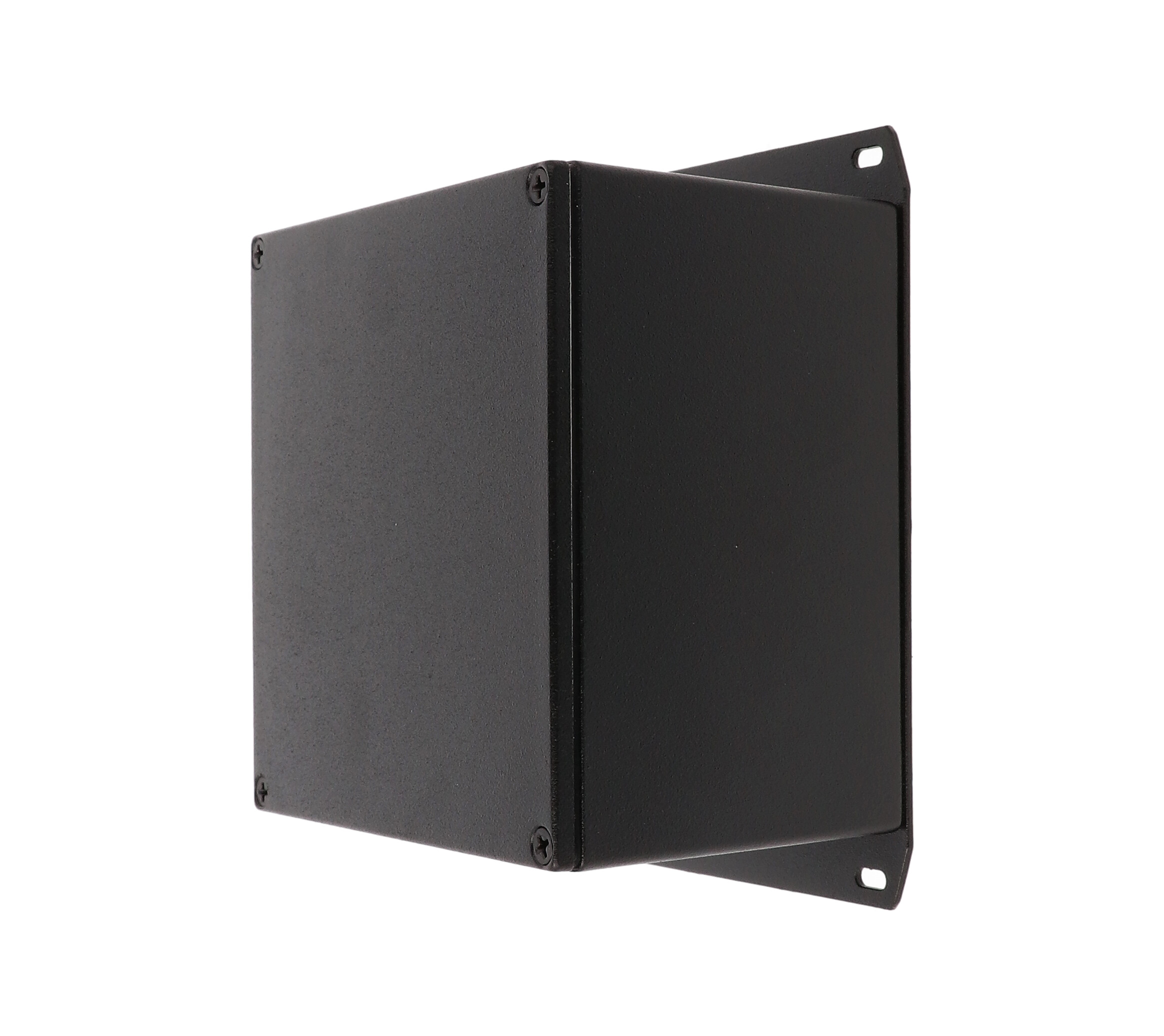

Box and lid are made from diecast aluminum alloy. Lap joint construction where lid and box meet guards against dust and splashing water, and this black version is coated with a textured polyester powder paint that keeps a lasting finish even after machining, with black screws included to match. A welded bottom flange plate extends beyond the box ends to provide mounting points.
Outside, the enclosure measures 125.00 mm long, 125.00 mm wide and 80.50 mm high on the drawing, with the flanged plate bringing overall length to 154.18 mm. Inside there is 118.10 mm of length, 118.10 mm of width and 73.50 mm of height, and the listing gives maximum PC board figures of 116.1 mm and 116.1 mm. Side walls have a low draft angle of 2 degrees or less to make board mounting easier. Shipping weight is 1.16 lbs (0.53 kg).

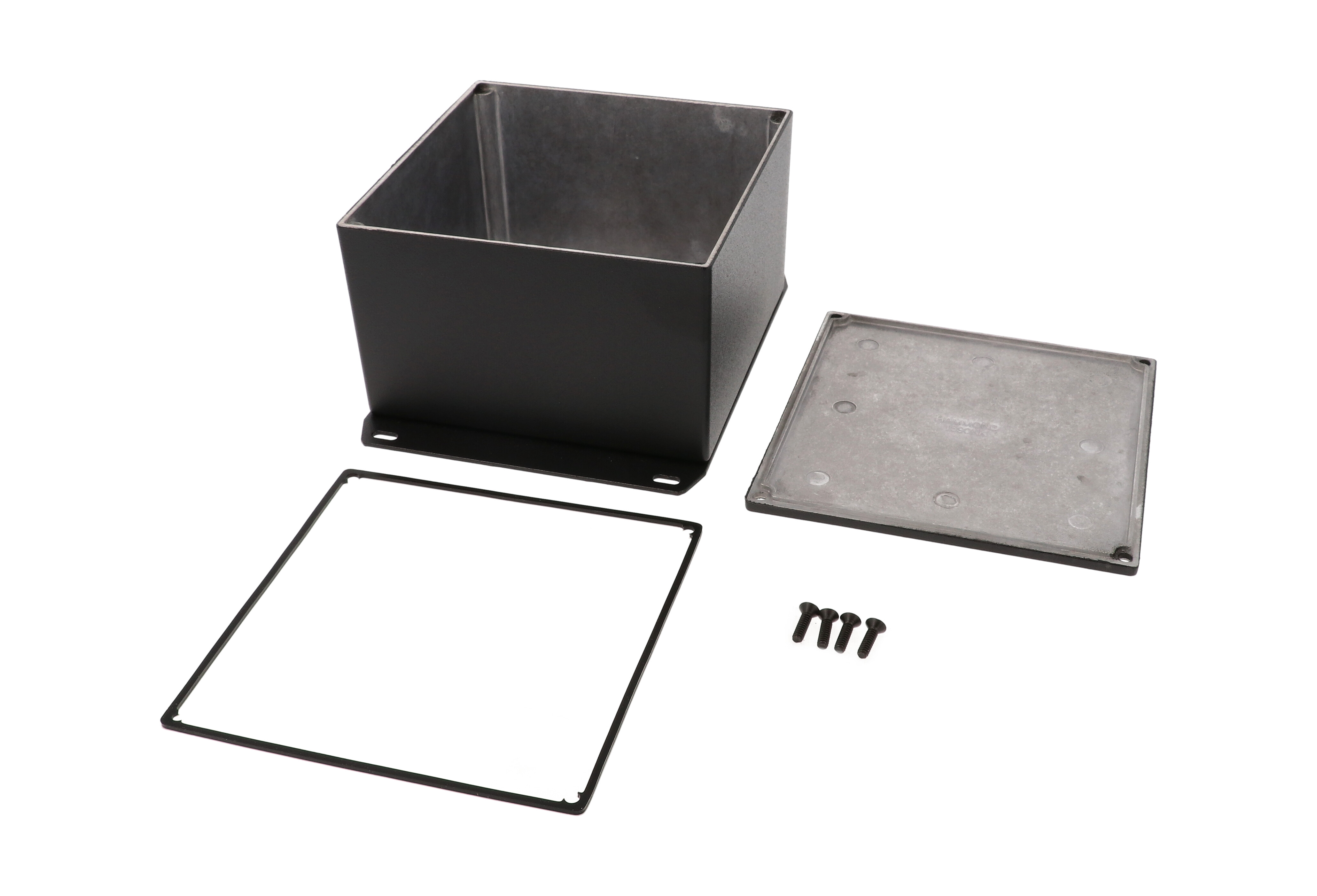

The purchased assembly includes the box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes. The silicone gasket ships loose inside the enclosure rather than pre-installed. Recommended lid screw torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket fitted. A replacement gasket kit is 1590KGASKET, and stainless steel cover screws with O-rings are offered as 1590WMS100 or 1590WMS100BK (black).
The 1590WKFBK is RoHS and REACH compliant, ships in shrink wrap, and carries UPC 623980282923. The equivalent non-gasketed IP54 version is 1590KFBK. Solid models are available in STEP or IGES, and the enclosure can be factory modified with milling, drilling or printing.
Ideal For
- Deep square electronic instrument enclosures
- PC board housings exposed to dust and splashing water
- OEM electronics that need a machinable diecast case
- IP65 general purpose electronics boxes
- Flange-mounted electronics housings
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-tight |
| Description | enclosure - watertight diecast |
| Part Number | 1590WKFBK |
| Mounting Style | Flanged bottom plate |
| Short Description | 1590K FLANGED WATERPROOF BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 118.10 mm [4.650 in] |
| Inside Height | 73.50 mm [2.894 in] |
| Inside Length | 118.10 mm [4.650 in] |
| Size L X W X H | 4.92 in x 4.92 in x 3.11 in (125 mm x 125 mm x 79 mm) |
| Max. P.C. Board Width | 116.1 mm |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 116.1 mm |
| Overall Width (Drawing) | 125.00 mm [4.921 in] |
| Overall Height (Drawing) | 80.50 mm [3.169 in] |
| Overall Length (Drawing) | 125.00 mm [4.921 in] |
| Overall Length Incl. Flange | 154.18 mm [6.070 in] |
| Flange Mounting Hole Spacing | 142.90 mm [5.626 in] x 100.58 mm [3.960 in] |
| Flange Mounting Hole Diameter | 3.96 mm [.156 in] |
| Nominal Size (Ordering Table) | 4.92 in (125 mm) x 4.92 in (125 mm) x 3.11 in (79 mm) |
Identifiers
| UPC | 623980282923 |
| UNSPSC | 39121301 |
| Related Versions (Same Size And Color) | 1590KBK, 1590WKBK, 1590KFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.16 lbs (0.53 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint construction where lid and box meet |
| Finish | Textured black polyester powder paint; black screws included |
| Gasket | Silicone, supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid and 4 cover screws; silicone gasket |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast Aluminum Alloy |
| Solid Models | Available in STEP or IGES |
| Bottom Flange | Welded |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Factory Modification | Milling, drilling, printing etc. available |
| Replacement Gasket Kit | 1590KGASKET (two pre-formed silicone gaskets with adhesive backing) |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
| Standard Cover Screws (Accessory) | 1590MS100 plated, 1590MS100BK black (Pkg 100, 6-32 x 1/2") |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Liquid Resistant Cover Screws (Accessory) | 1590WMS100 stainless steel, 1590WMS100BK black stainless steel (Pkg 100, 6-32 x 1/2" with O-ring) |
Environmental & Protection
| IP Rating | IP65 |
| Standard (Non-gasketed) Version Rating | IP54 (1590KFBK) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1590WKFBK have?▾
The 1590WKFBK is rated IP65. Watertight 1590 versions include a silicone gasket, while the standard 1590KFBK is designed to meet IP54. IP65 depends on the gasket being properly installed and the lid screws torqued to 25-30 cN.m (36-43 ozf.in).
Is the gasket already installed?▾
No. The silicone gasket is supplied loose inside the enclosure, not pre-installed. The gasket is applied to the lid, which lets you machine or paint the enclosure first and fit the gasket afterwards.
What are the inside dimensions of the 1590WKFBK?▾
Per the drawing, inside length is 118.10 mm [4.650 in], inside width 118.10 mm [4.650 in] and inside height 73.50 mm [2.894 in]. The listed maximum PC board figures are 116.1 mm and 116.1 mm.
How is this enclosure mounted?▾
It has a welded flanged bottom plate. With the flange the overall length is 154.18 mm [6.070 in], and the flange mounting holes are 142.90 mm [5.626 in] x 100.58 mm [3.960 in] apart and 3.96 mm [.156 in] in diameter.
What finish does it have?▾
It is black, coated with a tough textured polyester powder paint for a lasting finish even after machining, and black screws are included.
What is included and what torque should I use?▾
The purchased assembly includes the box, lid and 4 cover screws, plus a silicone gasket. Recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket.
