Hammond 1590WG 100x50x25mm Natural IP65 Watertight Diecast Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Slim 100 x 50 x 25 mm (3.94 x 1.97 x 1 in) water-tight diecast box
- IP65 rated; silicone gasket supplied loose inside the enclosure
- Inside 95.23 x 45.23 x 21.00 mm; max. P.C. board 44.23 x 94.23 mm
- Four cover screws in factory-tapped 6-32 UNC holes
- Unpainted vibra finish: smooth surface, no sharp edges
- Die-cast aluminum alloy, easy to machine; no mounting flanges
- RoHS and REACH compliant; replacement gasket kit 1590GGASKET
The 1590WG is the water-tight, natural aluminum version of the 1590G, a slim diecast aluminum enclosure measuring 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm). With no mounting flanges and a low profile, it suits compact sensor, interface and small instrument electronics where dust and splashing water are a concern.

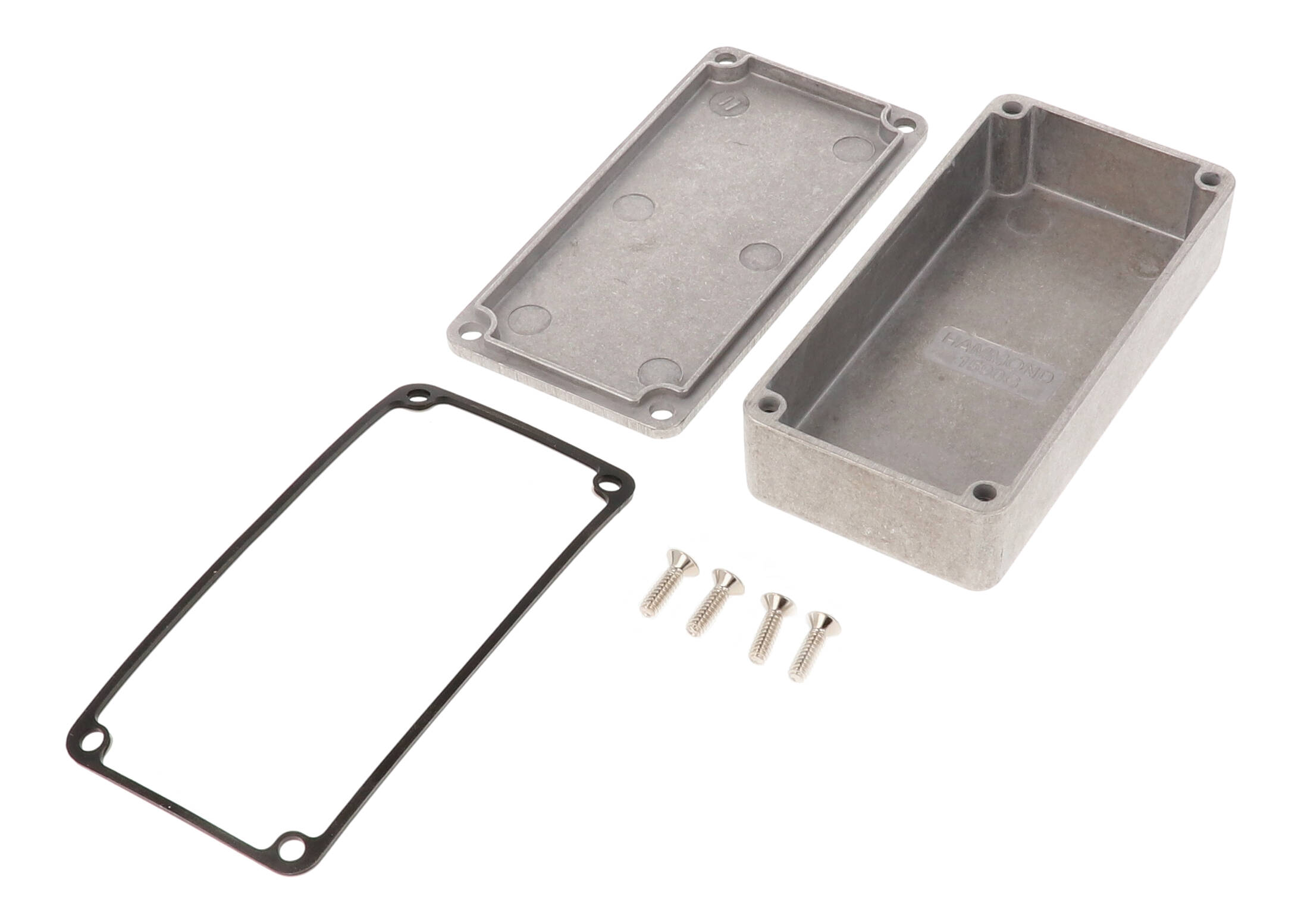

Box and lid are die-cast aluminum alloy, tough yet easy to machine, and meet in a lap joint. This version is designed to meet IP65 and comes with a silicone gasket supplied loose inside the enclosure, not pre-installed. The natural finish is unpainted and vibra finished for a smooth surface with no sharp edges.
The drawing shows an overall height of 25.50 mm [1.004 in] (the ordering table lists a nominal 1.02 in / 26 mm), with an inside box of 95.23 mm [3.749 in] long, 45.23 mm [1.781 in] wide and 21.00 mm [.827 in] high. Maximum P.C. board dimensions are listed as 44.23 mm and 94.23 mm, and side walls have a draft angle of 2° or less.
Four cover screws come threaded into factory-tapped 6-32 UNC holes. Recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket. Replacement gasket kit 1590GGASKET and 1590WMS100 stainless steel screws with O-ring are available. The 1590WG is RoHS and REACH compliant, ships shrink wrapped and weighs 0.23 lbs (0.10 kg).
Ideal For
- Compact sensor and interface housings
- Small electronic instrument enclosures
- Low-profile PC board assemblies
- Dust and splash exposed electronics
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Hardware
| Hardware Options | Replacement hardware; tamper-proof hardware upgrade (Torx w/ Pin) |
| Cover Screw Thread | 4X 6-32 UNC |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Cover Screws Included | 4 cover screws, threaded into factory-tapped holes |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel [6-32 x 1/2", With O-Ring] |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Part Number | 1590WG |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - watertight diecast |
| Short Description | 1590G WATERPROOF |
| Enclosure Size / Model | 1590G |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 45.23 mm [1.781 in] |
| Inside Height | 21.00 mm [.827 in] |
| Inside Length | 95.23 mm [3.749 in] |
| Size L X W X H | 3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm) |
| Nominal Size - Width | 1.97 in (50 mm) |
| Nominal Size - Height | 1.02 in (26 mm) |
| Nominal Size - Length | 3.94 in (100 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 25.50 mm [1.004 in] |
| Max. P.C. Board Width (Mm) | 94.23 |
| Max. P.C. Board Length (Mm) | 44.23 |
Identifiers
| UPC | 623980791814 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.23 lbs (0.10 kg) |
| Package Contents | Box, lid and 4 cover screws; silicone gasket |
Related Part Numbers
| Color Alternative | 1590WGBK |
| W/ Flanged Lid · Standard · Version | 1590GFL |
| W/ Flanged Lid · Water-Tight · Version | 1590WGFL |
| No Mounting Flanges · Standard · Version | 1590G |
| W/ Flanged Bottom Plate · Standard · Version | 1590GF |
| W/ Flanged Bottom Plate · Water-Tight · Version | 1590WGF |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy) |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
Environmental & Protection
| Gasket | Silicone gasket supplied with liquid resistant enclosure, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Optional Replacement Gasket Kit | 1590GGASKET |
| Replacement Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590WG dimensions?▾
3.94 in x 1.97 in x 1 in (100 mm x 50 mm x 25 mm) per the part page; the ordering table lists height as 1.02 in (26 mm) and the drawing shows 25.50 mm. Inside: 95.23 x 45.23 x 21.00 mm.
Is the 1590WG waterproof?▾
It is the water-tight version of the 1590G, rated IP65, with a silicone gasket supplied loose inside the enclosure.
How many screws does it use?▾
Four cover screws in factory-tapped 6-32 UNC holes, included. Torque to 25-30 cN.m [36-43 ozf.in] with the gasket.
Is a black or flanged version available?▾
The ordering table lists 1590WGBK (black), 1590WGFL (flanged lid) and 1590WGF (flanged bottom plate) as water-tight siblings; the standard version is 1590G.
What is the replacement gasket kit?▾
1590GGASKET.
