Hammond 1590TGASKET IP65 Silicone Lid Gasket Kit, 2-Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two pre-formed silicone gaskets per kit
- Upgrades 1590T size IP54 enclosures to IP65
- Adhesive backing; gasket is applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- Machine and/or paint the enclosure first, gasket later
- IP65 with lid screws torqued to 25-30 cN.m (36-43 ozf.in)
- RoHS and REACH compliant

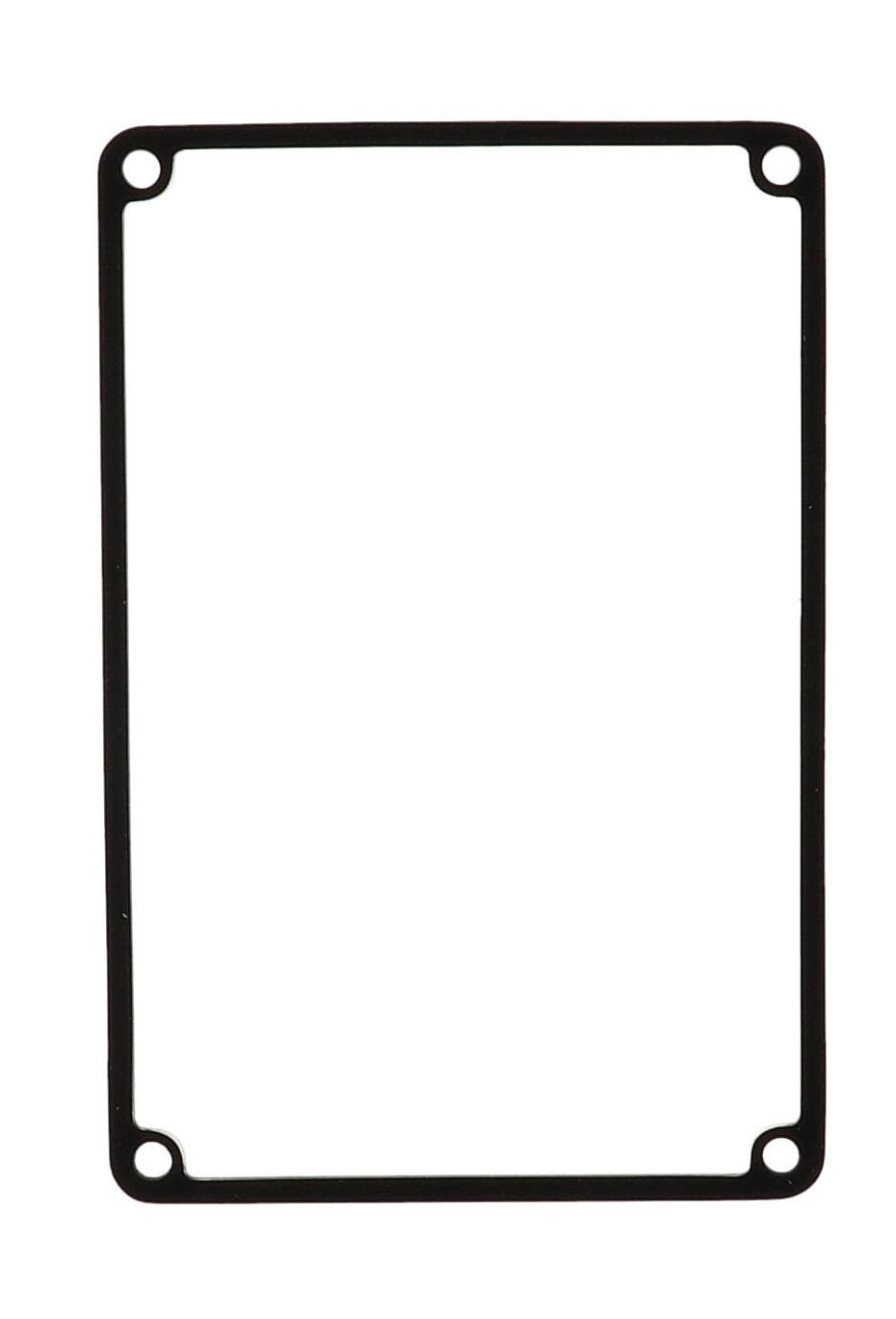

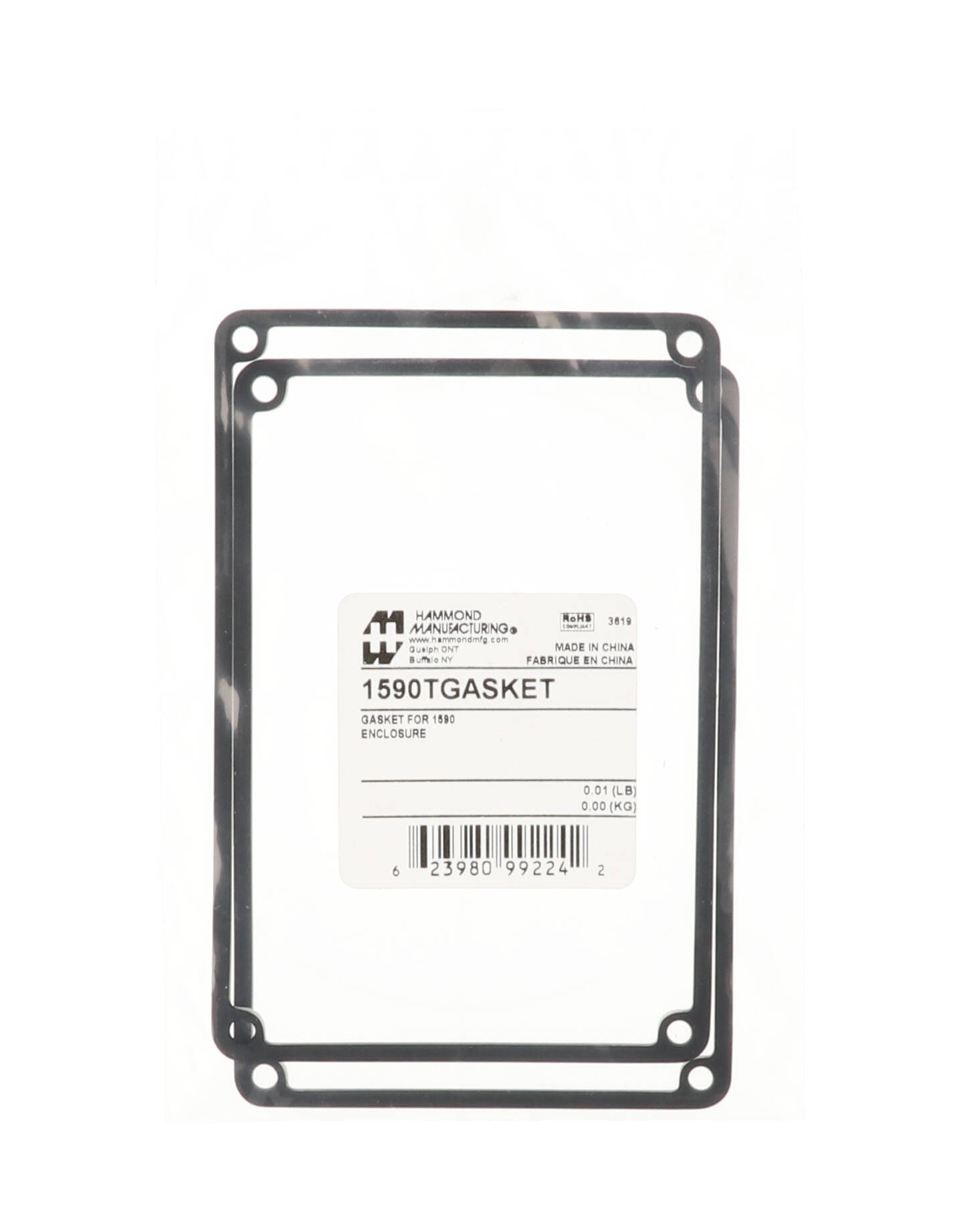

The 1590TGASKET is a replacement and upgrade gasket kit for 1590T size diecast aluminum enclosures (120 mm x 80 mm x 59 mm). Each kit includes two pre-formed silicone gaskets, giving builders and OEM teams a simple way to convert a standard IP54 enclosure into one designed to meet IP65, or to replace the gasket in a watertight box.
The gaskets carry an adhesive backing for easy installation and are applied to the lid. Because the gasket goes on afterwards, the enclosure can be machined and/or painted first and gasketed later, which keeps the seal clear of drilling swarf and paint.
The silicone gasket has a temperature rating of -40°C to 150°C (-40°F to 302°F). It is designed to meet IP65 when properly installed and the lid screws are torqued to 25-30 cN.m (36-43 ozf.in). When converting a standard enclosure to a watertight box, also order watertight cover screws: stainless steel with O-ring, 6-32 x 1/2", as 1590WMS100 or black 1590WMS100BK (Pkg 100).
The kit is listed as the optional replacement gasket for the 1590T, 1590TBK, 1590TF, 1590TFBK, 1590TFL and 1590TFLBK and their water-tight counterparts. It is RoHS and REACH compliant and ships in a bag with a shipping weight of 0.01 lbs.
Ideal For
- Converting IP54 1590T enclosures to IP65
- Replacing the gasket in water-tight 1590WT enclosures
- Sealing enclosures after machining or painting
Overview
| Type | Gasket |
| Kit Contents | Two pre-formed silicone gaskets |
| Fits Enclosures | 1590T, 1590TBK, 1590TFL, 1590TFLBK, 1590TF, 1590TFBK, 1590WT, 1590WTBK, 1590WTFL, 1590WTFLBK, 1590WTF, 1590WTFBK |
| Fits Enclosure Size | 4.72 in x 3.15 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Product Description | silicone gasket for 1590T enclosures, 2-pack |
| Manufacturer Description | SILICONE GASKET - 2 PACK |
Identifiers
| UPC | 623980992242 |
| UNSPSC | 39121301 |
| Part Number | 1590TGASKET |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Silicone |
| Installation | Adhesive backing; gasket is applied to the lid |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | Designed to meet IP65 with properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590TGASKET fit?▾
It is the replacement gasket kit for the 1590T size (120 mm x 80 mm x 59 mm): 1590T, 1590TF and 1590TFL in natural or black, plus the water-tight 1590WT versions.
How many gaskets are in the kit?▾
Each kit includes two pre-formed silicone gaskets.
How is the gasket installed?▾
The gaskets have adhesive backing and are applied to the lid. The enclosure can be machined and/or painted first and gasketed later.
Will it make my enclosure IP65?▾
It is designed to meet IP65 with a properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in). Watertight stainless steel screws with O-ring (1590WMS100) are recommended when converting a standard box.
What temperatures can the gasket handle?▾
The gasket has a temperature rating of -40°C to 150°C (-40°F to 302°F).
