Hammond 1590TFLBK 120x80x59 mm Black Diecast Box, Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- Nominal 120 x 80 x 59 mm (4.72 x 3.15 x 2.32 in); 149.00 mm across the flanged lid
- Inside 113.38 x 73.38 x 54.60 mm; PC boards up to 112.38 x 72.38 mm
- Designed to meet IP54; lap joint lid construction
- Textured black powder paint finish, black screws included
- Diecast aluminum alloy box and lid, easy to machine
- Includes 4 cover screws for factory-tapped 6-32 UNC holes

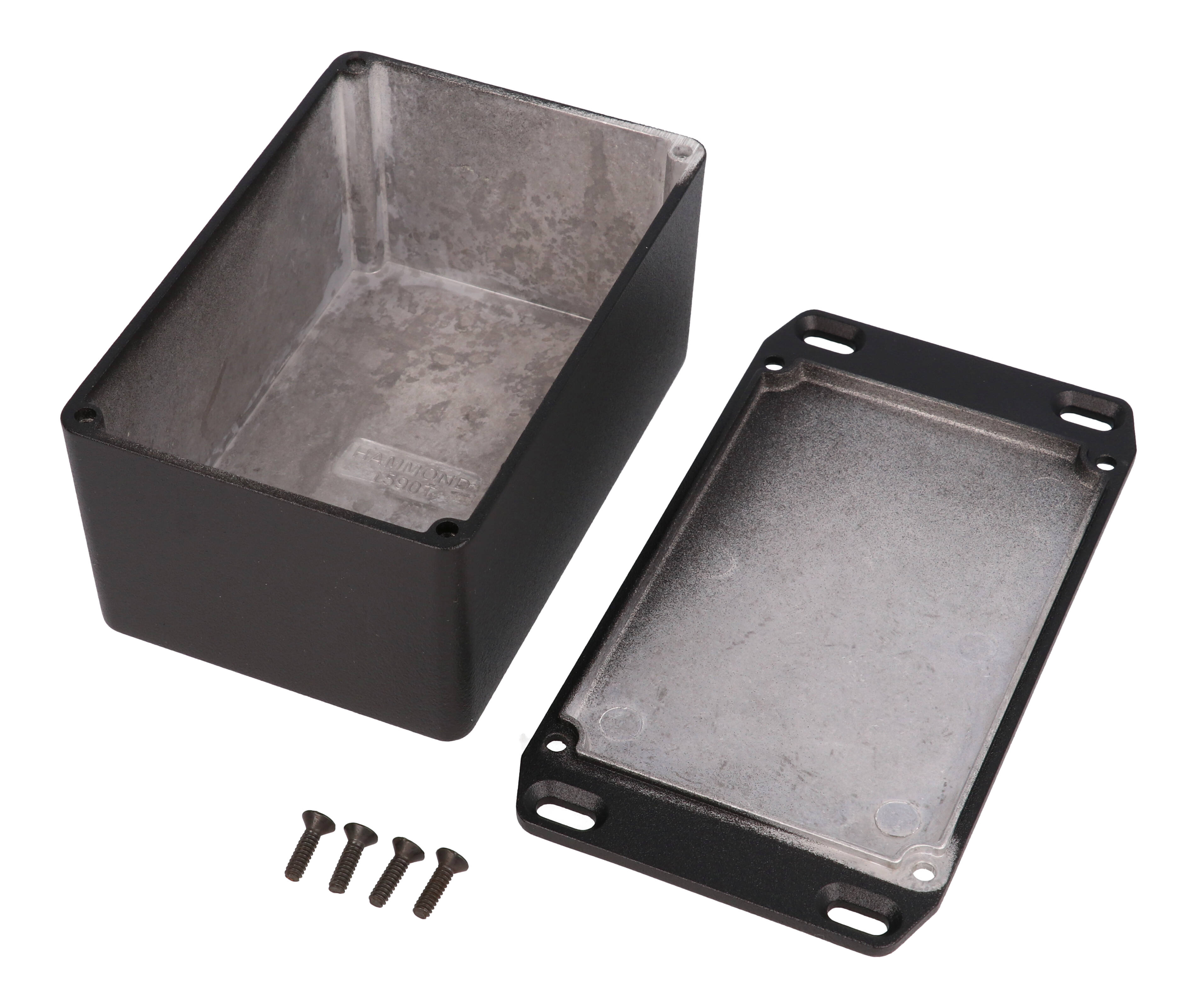

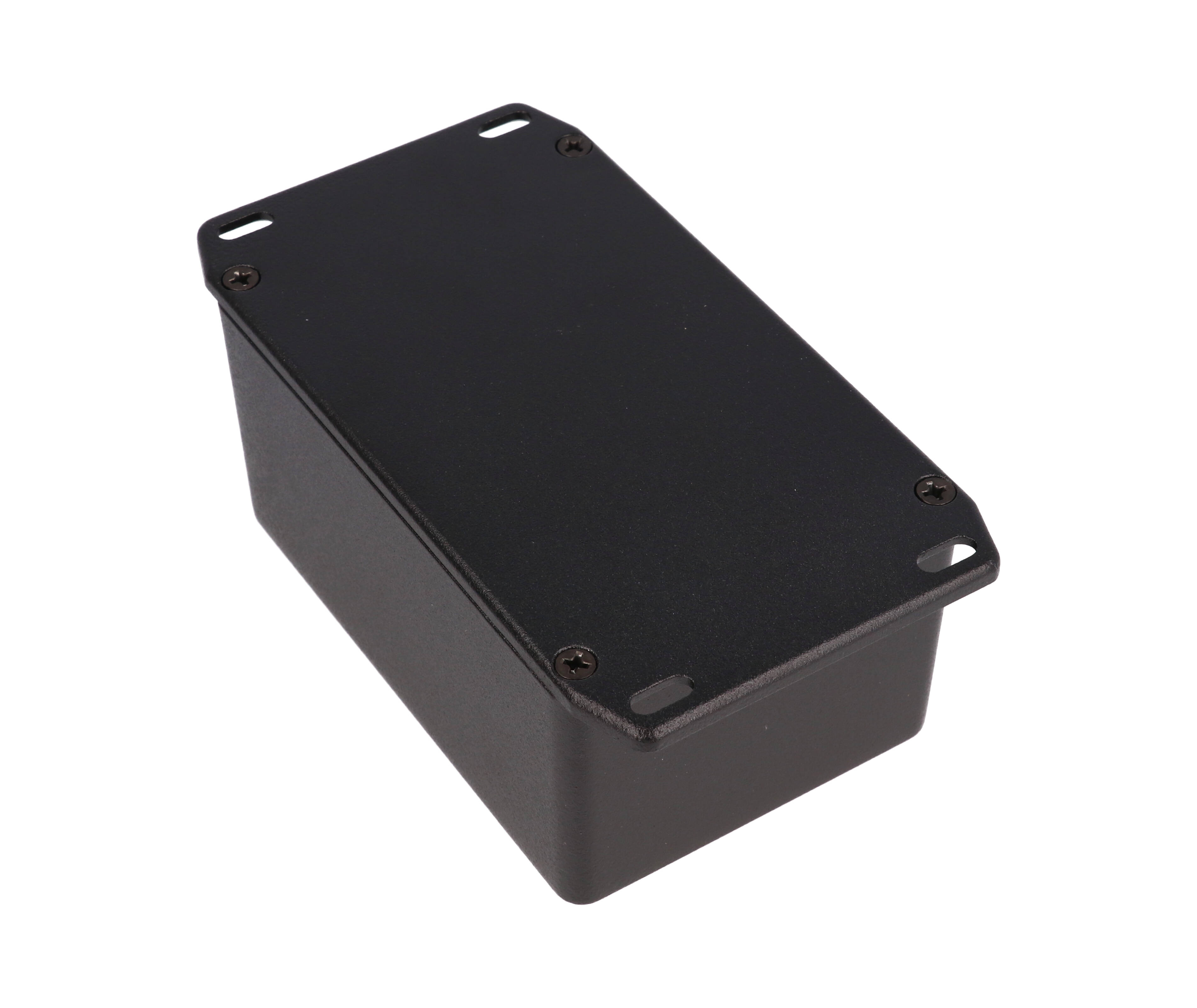

The 1590TFLBK is the flanged-lid version of the 1590T diecast aluminum enclosure in textured black. The wall-mounting flange is integrated into the lid, so the lid is fixed to the mounting surface and the box closes onto it. It is a practical choice for OEM engineers and electronics builders who want a compact metal housing that mounts flat against a wall or panel.
Box and lid are diecast aluminum alloy, tough yet easy to machine. The textured black version is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. The lap joint where lid and box meet guards against dust and splashing water, and this standard version is designed to meet IP54.
- Nominal size: 4.72 in x 3.15 in x 2.32 in (120 mm x 80 mm x 59 mm)
- Overall length across the flanged lid: 149.00 mm [5.866 in]; overall height 59.00 mm [2.323 in]
- Inside box: 113.38 mm x 73.38 mm x 54.60 mm
- Maximum PC board: 112.38 mm x 72.38 mm, with side wall draft of 2° or less
Four cover screws thread into factory-tapped 6-32 UNC holes; the recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] when a gasket is fitted. The 1590TGASKET kit upgrades this box to IP65, and a water-tight 1590WTFLBK is also offered. The 1590TFLBK is RoHS and REACH compliant, ships in shrink wrap and weighs 0.69 lbs.
Ideal For
- Wall-mounted electronics housing
- Panel-mounted control and sensor circuits
- Custom machined instrument enclosures
- Dust and splash protected installations
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| CAD Models | Solid models available in STEP or IGES |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Product Description | enclosure - diecast |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Manufacturer Description | 1590T FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 73.38 mm [2.889 in] |
| Inside Height | 54.60 mm [2.150 in] |
| Inside Length | 113.38 mm [4.464 in] |
| Size L X W X H | 4.72 in x 3.15 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
| Overall Height (Drawing) | 59.00 mm [2.323 in] |
| Max. P.C. Board Width (Mm) | 112.38 |
| Max. P.C. Board Length (Mm) | 72.38 |
| Nominal Size (Series Ordering Table) | 4.72 in (120 mm) x 3.15 in (80 mm) x 2.32 in (59 mm) |
| Overall Length Including Flange (Drawing) | 149.00 mm [5.866 in] |
Accessories
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Identifiers
| UPC | 623980676272 |
| UNSPSC | 39121301 |
| Part Number | 1590TFLBK |
Related Parts
| Standard Version, No Flanges | 1590TBK |
| Standard Version, Flanged Lid | 1590TFLBK |
| Optional Replacement Gasket Kit | 1590TGASKET |
| Water-Tight Version, No Flanges | 1590WTBK |
| Water-Tight Version, Flanged Lid | 1590WTFLBK |
| Standard Version, Flanged Bottom Plate | 1590TFBK |
| Water-Tight Version, Flanged Bottom Plate | 1590WTFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.69 lbs (0.31 kg) |
Construction & Finish
| Color | Black |
| Finish | Black textured polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Included In Assembly | Box, lid and 4 cover screws |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590TFLBK?▾
The wall-mounting flange is integrated into the lid. Overall length across the flanged lid is 149.00 mm [5.866 in].
What PC board fits in the 1590TFLBK?▾
Maximum PC board size is 112.38 mm x 72.38 mm. The inside box is 113.38 mm long, 73.38 mm wide and 54.60 mm high.
What IP rating does it have?▾
The standard 1590TFLBK is designed to meet IP54. Adding the 1590TGASKET kit, with lid screws torqued to 25-30 cN.m, allows it to meet IP65.
What is included?▾
Box, lid and 4 cover screws. Replacement screws are available as 1590MS100 (plated) and 1590MS100BK (black) in packs of 100.
What does it weigh?▾
Shipping weight is 0.69 lbs (0.31 kg).
