Hammond 1590SFLBK 110x82mm Black Diecast Aluminum Box, Wall-Mount Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- 110 x 82 x 44 mm nominal body; 138.50 mm overall across the lid flange
- Lid flange mounting holes on 126.00 mm (4.961 in) centres
- Interior 103.65 x 75.55 x 39.50 mm
- Designed to meet IP54; IP65 with the 1590SGASKET kit
- Textured black powder paint with matching black screws
- Four 6-32 UNC cover screws included

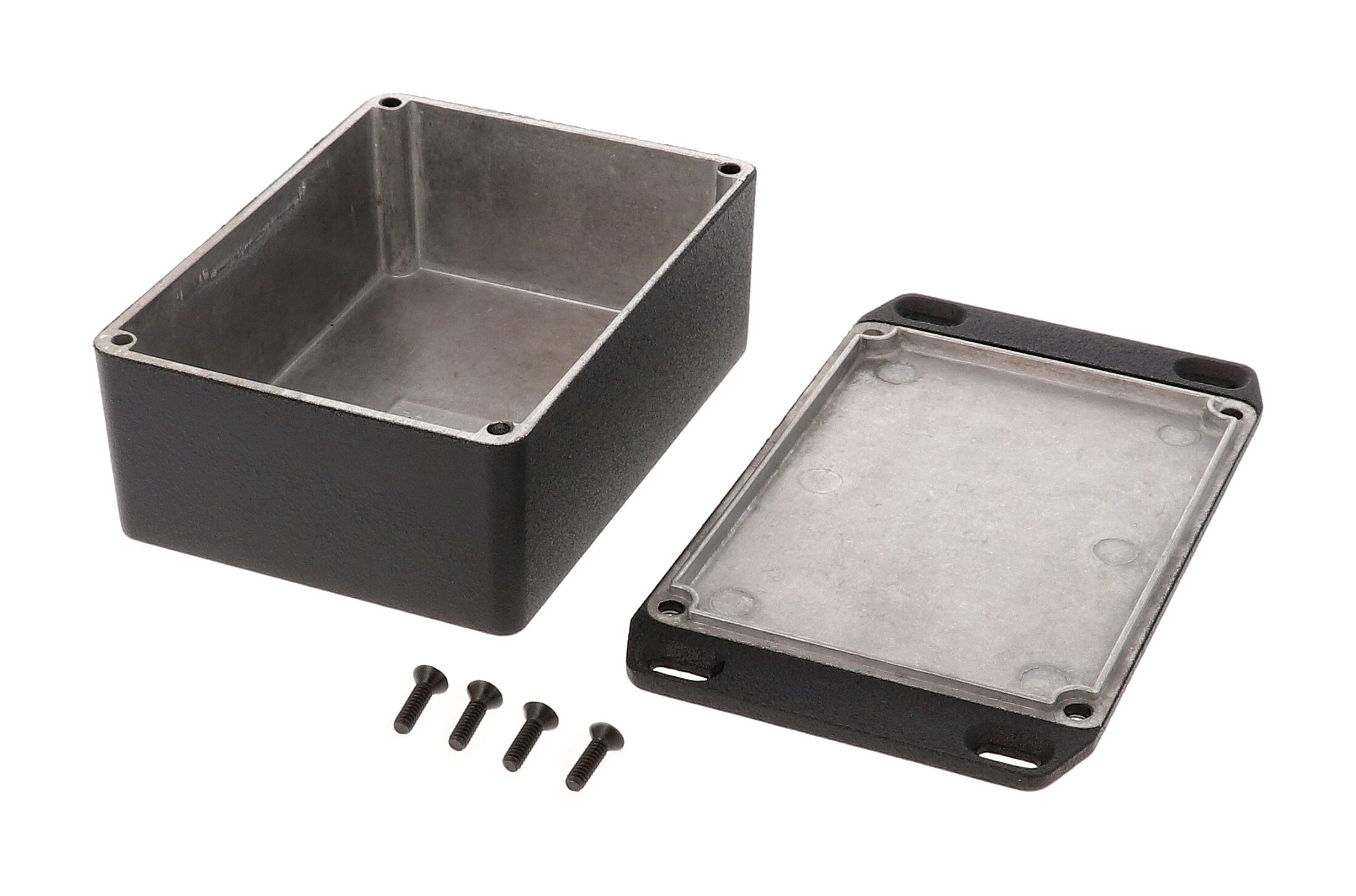

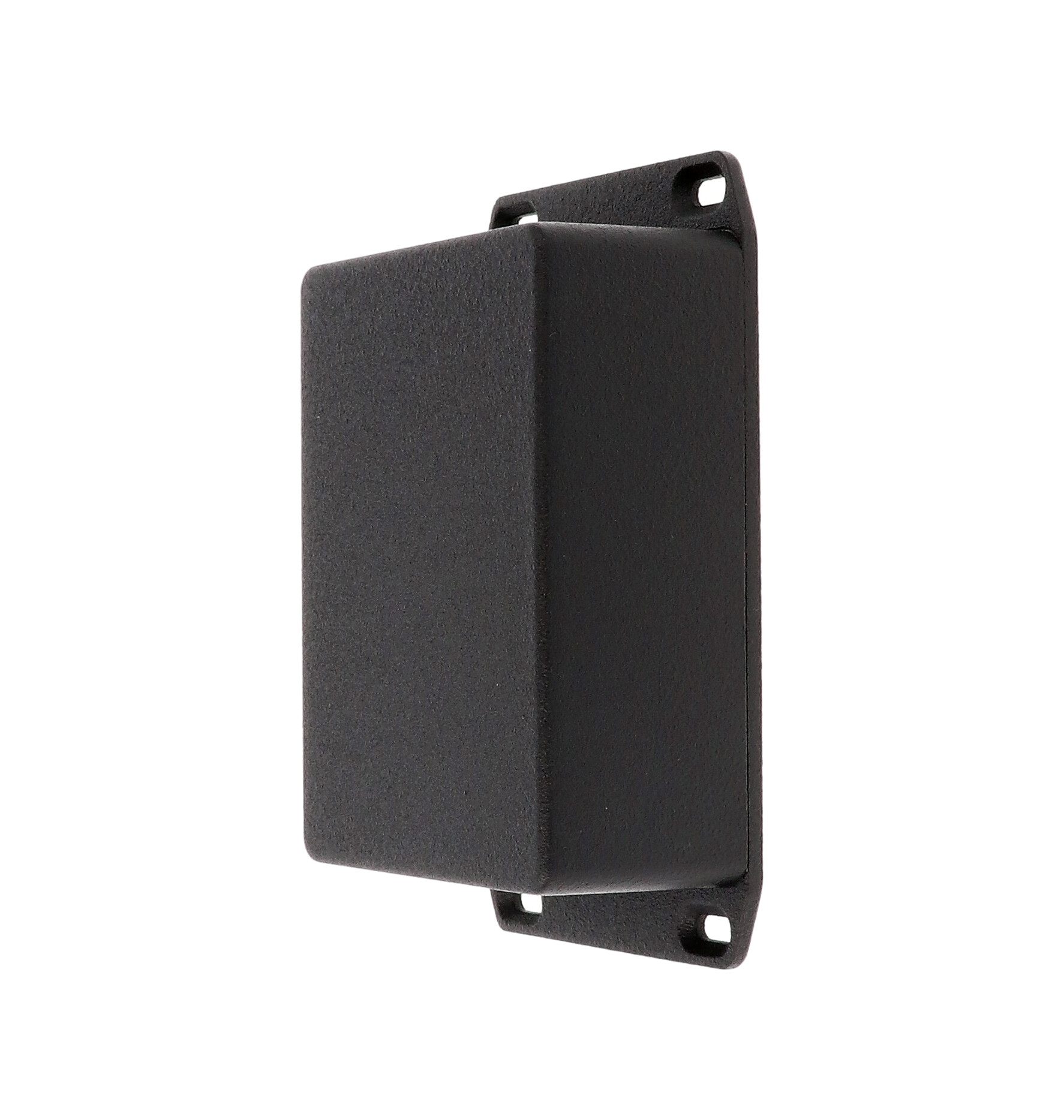

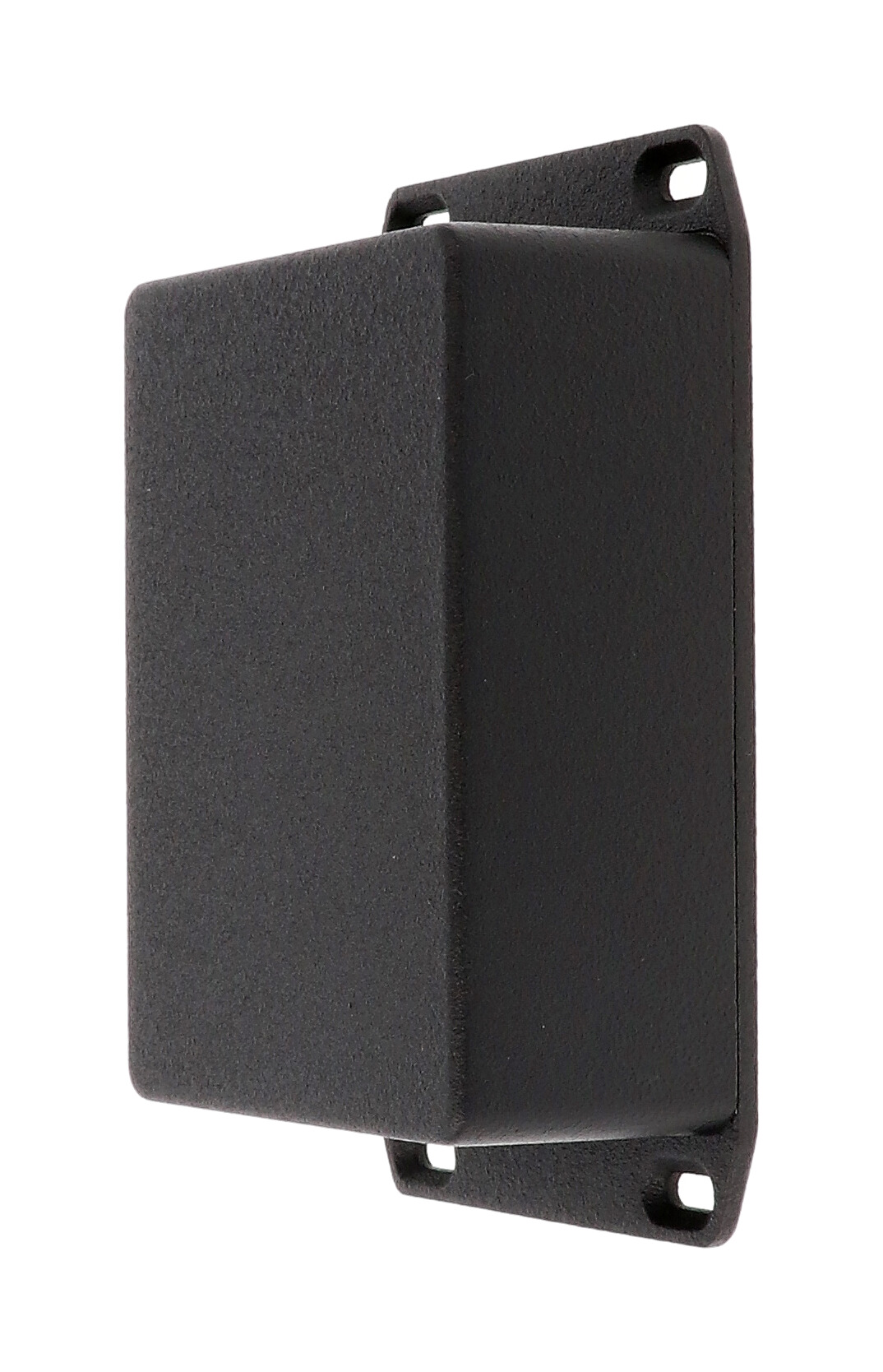

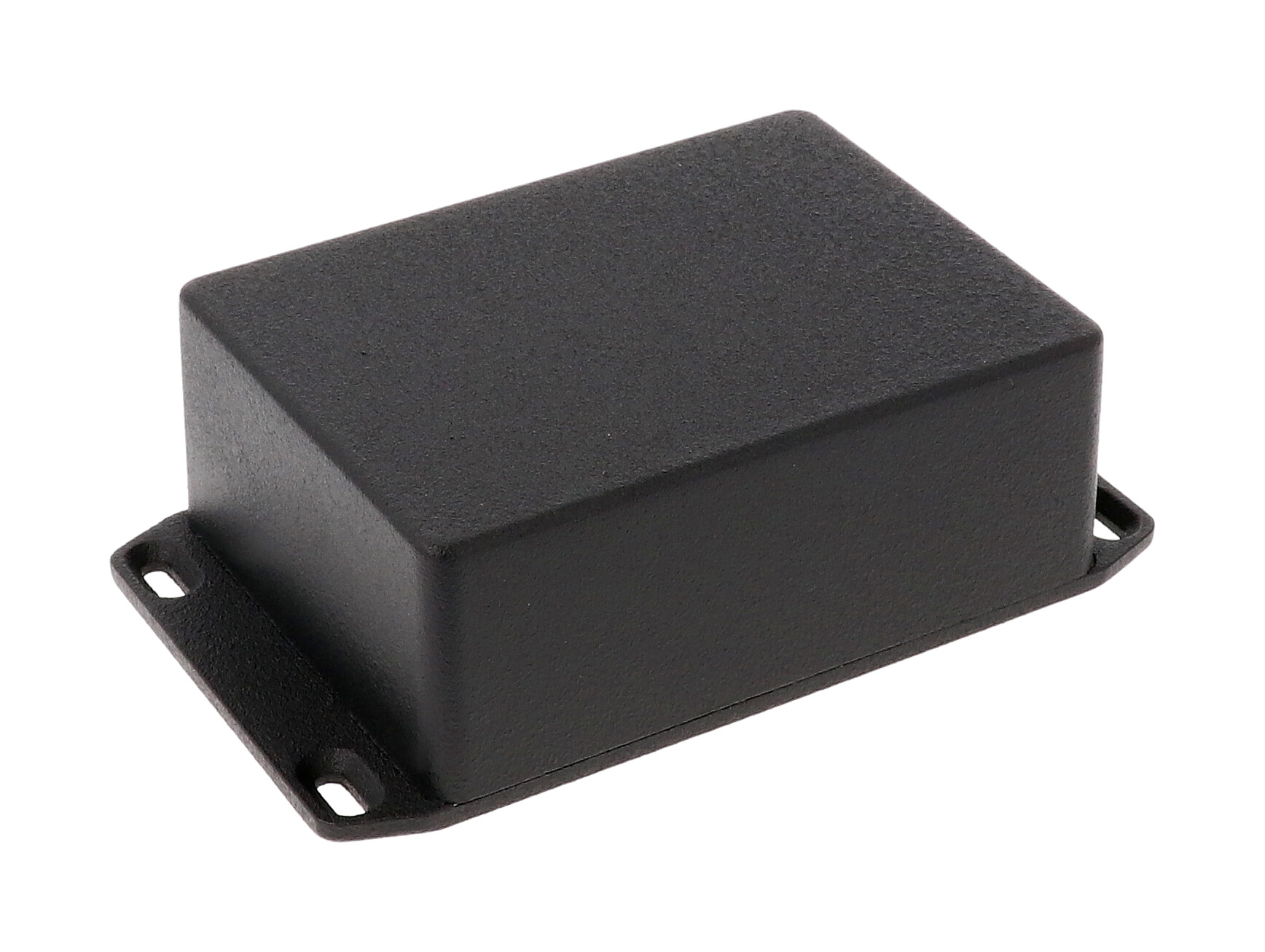

The 1590SFLBK is a black 1590 Series diecast aluminum enclosure whose wall-mounting flange is integrated into the lid. Built on the compact 4.35 x 3.24 x 1.73 in (110 x 82 x 44 mm) 1590S body, it is aimed at installers and OEM designers who want a small electronics box that fixes lid-side to a wall or panel.
The drawing shows 138.50 mm (5.453 in) overall across the lid flange, 44.00 mm (1.732 in) overall height, and flange mounting holes on 126.00 mm (4.961 in) centres. Box and lid are diecast aluminum alloy, with lap joint construction against dust and splashing water; the standard version is designed to meet IP54. The black finish is a textured polyester powder paint that lasts after machining, and black screws are provided.
The interior is 103.65 mm (4.081 in) long, 75.55 mm (2.974 in) wide and 39.50 mm (1.555 in) high on this flanged-lid drawing. Maximum P.C. board values are 74.68 mm (length) and 102.78 mm (width), and side walls have a draft angle of 2° or less.

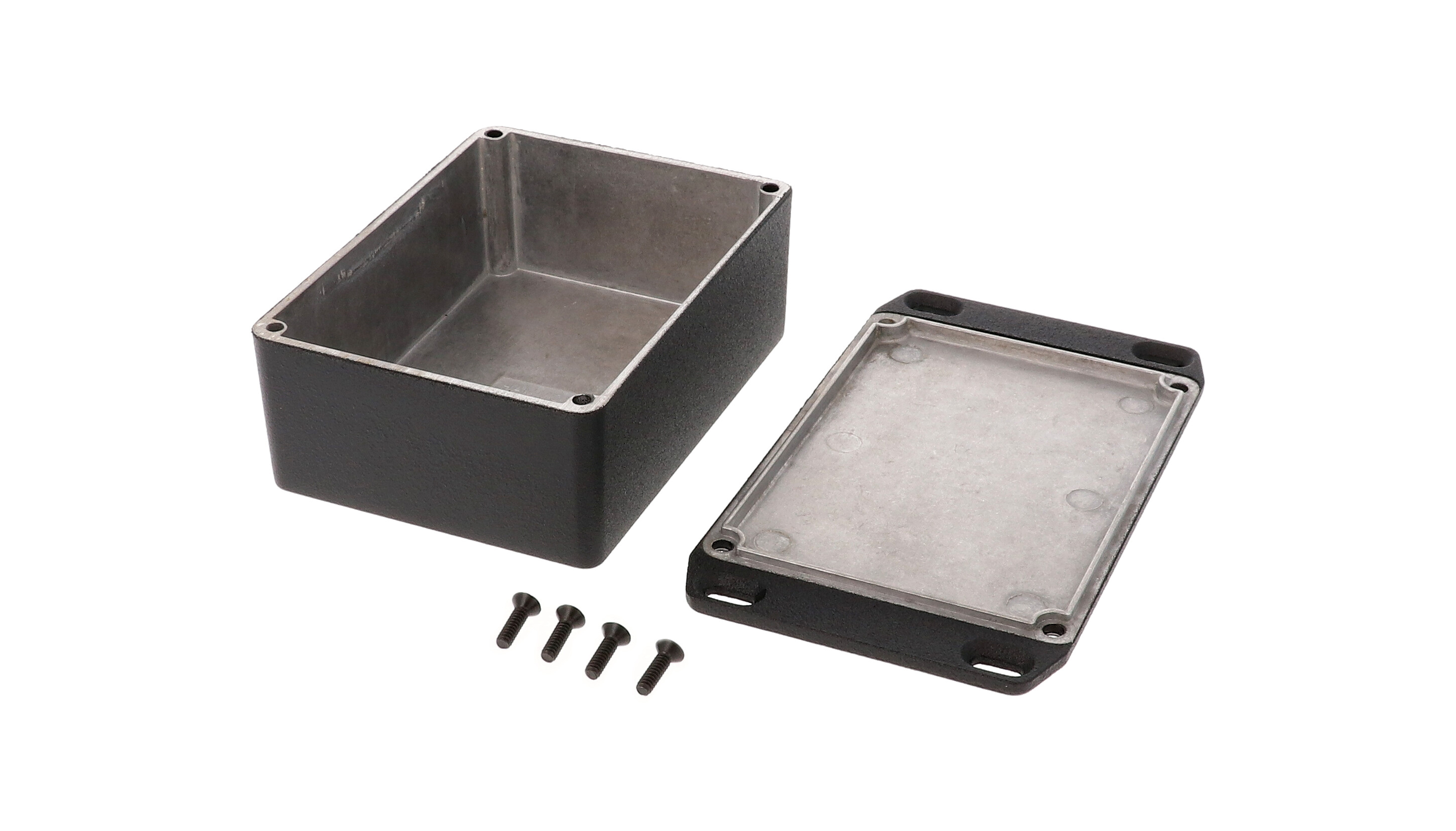

Four 6-32 UNC cover screws are included and thread into factory-tapped holes; recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. For IP65, choose the water-tight 1590WSFLBK or fit the 1590SGASKET kit. RoHS and REACH compliant; ships shrink wrapped at 0.56 lbs (0.25 kg).
Ideal For
- Wall-mounted sensor and control electronics
- Compact panel-mounted housings
- Small building and facility electronics boxes
- OEM electronics requiring a wall-mount lid
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws | 1590MS100BK (Pkg 100, 6-32 x 1/2") |
| Replacement Plated Cover Screws | 1590MS100 (Pkg 100, 6-32 x 1/2") |
| Liquid Resistant Stainless Steel Cover Screws | 1590WMS100 (Pkg 100, 6-32 x 1/2" with O-ring) |
| Liquid Resistant Black Stainless Steel Cover Screws | 1590WMS100BK (Pkg 100, 6-32 x 1/2" with O-ring) |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590SFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Manufacturer Description | 1590S FLANGED LID BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.55 mm [2.974 in] |
| Inside Height | 39.50 mm [1.555 in] |
| Inside Length | 103.65 mm [4.081 in] |
| Ordering Table Width | 3.23 in (82 mm) |
| Max. P.C. Board Width | 102.78 mm |
| Ordering Table Height | 1.73 in (44 mm) |
| Ordering Table Length | 4.37 in (111 mm) |
| Max. P.C. Board Length | 74.68 mm |
| Overall Width (Drawing) | 82.40 mm [3.244 in] |
| Nominal Size (L X W X H) | 4.35 in x 3.24 in x 1.73 in (110 mm x 82 mm x 44 mm) |
| Overall Height (Drawing) | 44.00 mm [1.732 in] |
| Flange Mounting Hole Centres (Drawing) | 126.00 mm [4.961 in] |
| Overall Length Incl. Lid Flange (Drawing) | 138.50 mm [5.453 in] |
Identifiers
| UPC | 623980676265 |
| UNSPSC | 39121301 |
Related Versions
| W/ Flanged Lid, Water-Tight | 1590WSFLBK |
| No Mounting Flanges, Standard | 1590SBK |
| No Mounting Flanges, Water-Tight | 1590WSBK |
| W/ Flanged Bottom Plate, Standard | 1590SFBK |
| W/ Flanged Bottom Plate, Water-Tight | 1590WSFBK |
Engineering Support
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.56 lbs (0.25 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WSFLBK (includes silicone gasket, supplied loose) |
| Replacement / Upgrade Gasket Kit | 1590SGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the flange on the 1590SFLBK?▾
It is a wall-mounting flange integrated into the lid, 138.50 mm overall with mounting holes on 126.00 mm centres per the drawing.
How does it compare to the 1590SBK?▾
The 1590SBK has no mounting flanges; the 1590SFLBK uses a flanged lid on the same 110 x 82 x 44 mm body.
What are the inside dimensions?▾
103.65 mm long, 75.55 mm wide and 39.50 mm high.
Can I make it water-tight?▾
Yes, with the 1590SGASKET kit and lid screws torqued to 25-30 cN.m [36-43 ozf.in], or by ordering the water-tight 1590WSFLBK, designed to meet IP65.
What is included?▾
The box, the lid and 4 cover screws.
