Hammond 1590SFBK 110x82mm Black Diecast Aluminum Box, Flanged Bottom
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for surface mounting
- 110 x 82 x 44 mm nominal body; 139.14 mm overall across the flange
- Flange mounting holes on 127.86 mm (5.034 in) centres
- Inside 103.65 x 75.55 x 39.25 mm
- Designed to meet IP54; IP65 with the 1590SGASKET kit
- Textured black powder paint with black screws
- Four 6-32 UNC cover screws included

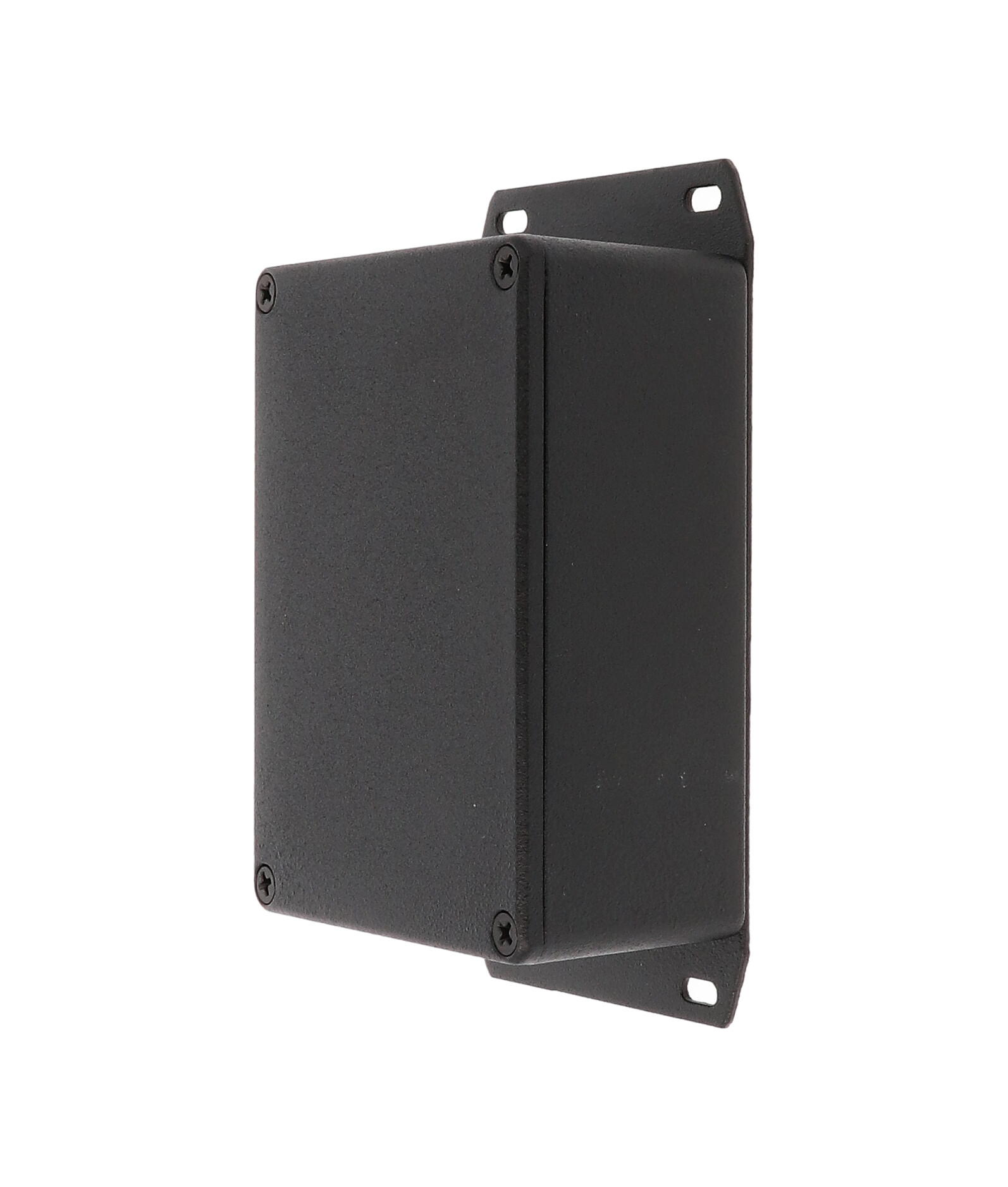

The 1590SFBK is the compact 1590S diecast aluminum enclosure, 4.35 x 3.24 x 1.73 in (110 x 82 x 44 mm), fitted with a welded flanged bottom plate. In black, it gives electricians, integrators and OEM builders a small electronics box that screws directly onto a panel, wall or piece of equipment.
The drawing shows 139.14 mm (5.478 in) overall across the flange, 45.50 mm (1.791 in) overall height with the bottom plate, and flange mounting holes on 127.86 mm (5.034 in) centres. Box and lid are diecast aluminum alloy joined by a lap joint that protects against dust and splashing water; the standard version is designed to meet IP54. It is coated in textured black polyester powder paint for a lasting finish after machining, and black screws are included.
Inside dimensions are 103.65 mm (4.081 in) long, 75.55 mm (2.974 in) wide and 39.25 mm (1.545 in) high. Maximum P.C. board values are listed as 74.68 mm (length) and 102.78 mm (width), and the side wall draft angle is 2° or less.

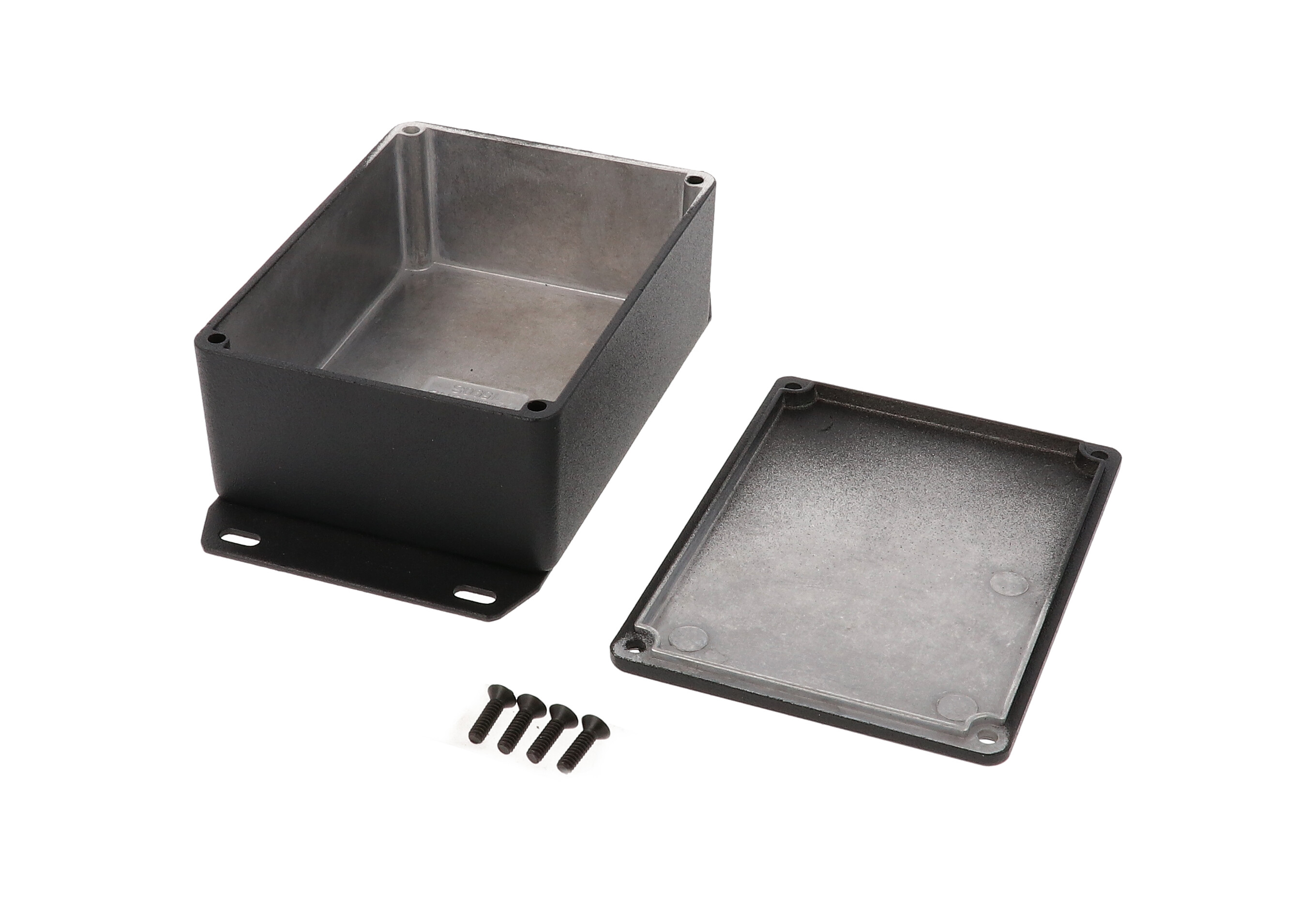

Four 6-32 UNC screws are included and thread into factory-tapped holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in] (25-30 cN.m [36-43 ozf.in] with a gasket). The water-tight 1590WSFBK is designed to meet IP65; the 1590SGASKET kit upgrades this version. RoHS and REACH compliant, shipped shrink wrapped at 0.61 lbs (0.28 kg).
Ideal For
- Panel- or equipment-mounted small electronics
- Wall-mounted sensor and interface boxes
- Compact control enclosures
- Dust- and splash-protected installations (IP54)
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws | 1590MS100BK (Pkg 100, 6-32 x 1/2") |
| Replacement Plated Cover Screws | 1590MS100 (Pkg 100, 6-32 x 1/2") |
| Liquid Resistant Stainless Steel Cover Screws | 1590WMS100 (Pkg 100, 6-32 x 1/2" with O-ring) |
| Liquid Resistant Black Stainless Steel Cover Screws | 1590WMS100BK (Pkg 100, 6-32 x 1/2" with O-ring) |
Overview
| Type | Die-cast box, flanged |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Part Number | 1590SFBK |
| Mounting Style | Flanged bottom plate (bottom flange is welded) |
| Long Description | enclosure - diecast |
| Manufacturer Description | 1590SBK WITH FLANGE |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 75.55 mm [2.974 in] |
| Inside Height | 39.25 mm [1.545 in] |
| Inside Length | 103.65 mm [4.081 in] |
| Ordering Table Width | 3.23 in (82 mm) |
| Max. P.C. Board Width | 102.78 mm |
| Ordering Table Height | 1.73 in (44 mm) |
| Ordering Table Length | 4.37 in (111 mm) |
| Max. P.C. Board Length | 74.68 mm |
| Overall Width (Drawing) | 82.40 mm [3.244 in] |
| Nominal Size (L X W X H) | 4.35 in x 3.24 in x 1.73 in (110 mm x 82 mm x 44 mm) |
| Overall Length Incl. Flange (Drawing) | 139.14 mm [5.478 in] |
| Flange Mounting Hole Centres (Drawing) | 127.86 mm [5.034 in] |
| Overall Height Incl. Bottom Plate (Drawing) | 45.50 mm [1.791 in] |
Identifiers
| UPC | 623980536996 |
| UNSPSC | 39121301 |
Related Versions
| W/ Flanged Lid, Standard | 1590SFLBK |
| W/ Flanged Lid, Water-Tight | 1590WSFLBK |
| No Mounting Flanges, Standard | 1590SBK |
| No Mounting Flanges, Water-Tight | 1590WSBK |
| W/ Flanged Bottom Plate, Water-Tight | 1590WSFBK |
Engineering Support
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.61 lbs (0.28 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Bottom Flange | Welded |
| Joint Construction | Lap joint where lid and box meet |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Equivalent | 1590WSFBK (includes silicone gasket, supplied loose) |
| Replacement / Upgrade Gasket Kit | 1590SGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How do I mount the 1590SFBK?▾
Through the welded flanged bottom plate; the drawing shows mounting holes on 127.86 mm (5.034 in) centres and 139.14 mm overall across the flange.
What is the difference from the 1590SBK?▾
The 1590SBK has no flanges; the 1590SFBK adds a welded bottom flange plate, making it 45.50 mm tall overall on the drawing.
How much room is inside?▾
103.65 mm long, 75.55 mm wide and 39.25 mm high.
What is the IP rating?▾
This standard version is designed to meet IP54. The water-tight 1590WSFBK is designed to meet IP65.
What does it weigh?▾
Shipping weight is 0.61 lbs (0.28 kg).
