Hammond 1590N1FBK 121x66x40mm Black Diecast Box, Welded Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black textured powder paint with black screws
- Welded bottom flange; 146.05 mm overall length
- 121 x 66 x 40 mm nominal box size
- Inside 115.91 x 60.21 x 35.30 mm
- IP54 lap joint lid; IP65 with 1590NGASKET
- Diecast aluminum alloy, easy to machine

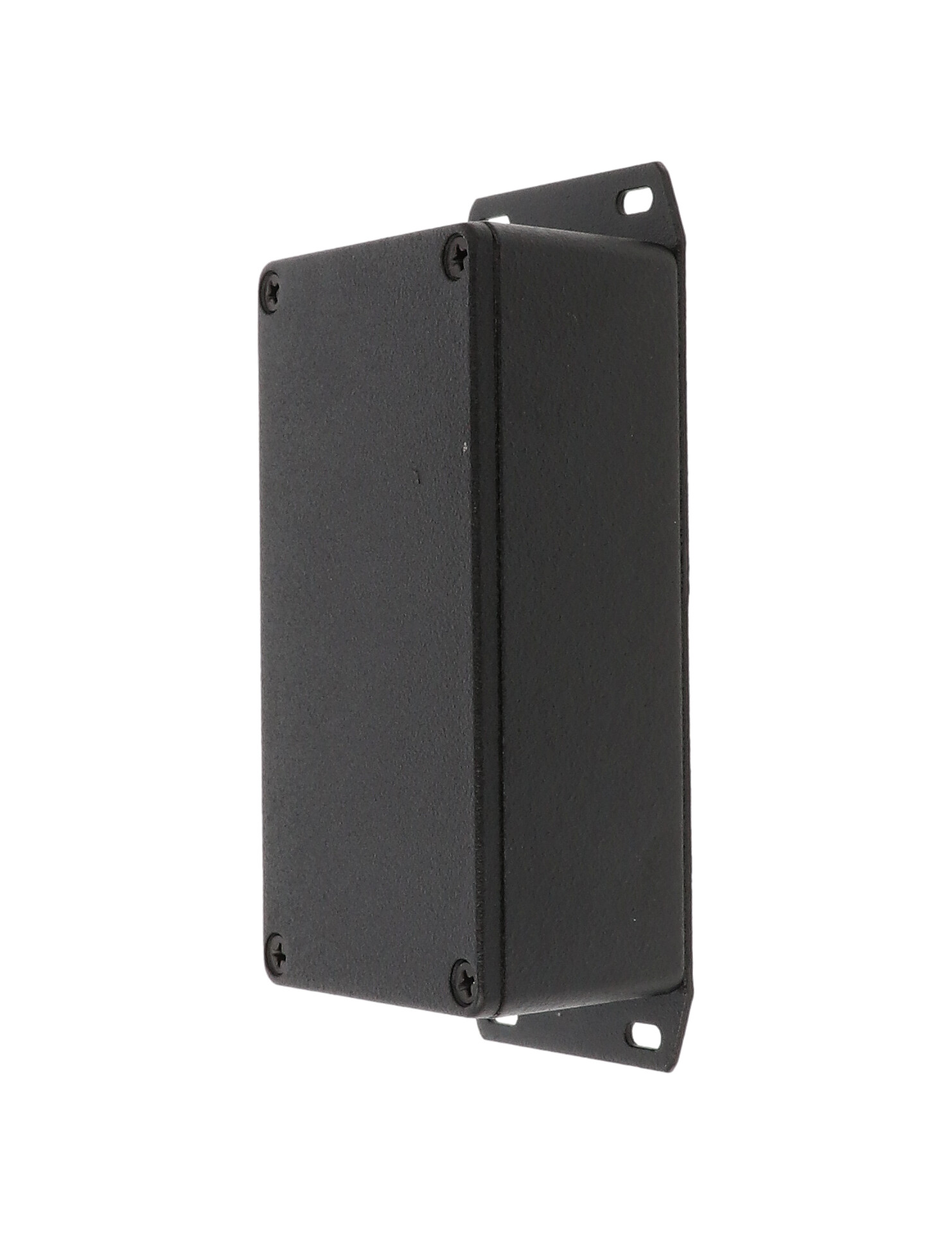

The 1590N1FBK combines the 121 x 66 x 40 mm 1590N1 body with a flanged bottom plate and a black textured finish. The flange provides a way to fasten the enclosure to a panel or wall, and the black coating gives a finished appearance for control boxes and instruments that will be seen.
The box and lid are diecast aluminum alloy with a tough polyester powder paint that is intended to last even after machining; black screws are included to enhance appearance. The bottom flange is welded on. A lap joint where lid and box meet protects against dust and splashing water, and this standard version is designed to meet IP54.
The drawing shows 146.05 mm [5.750 in] overall length across the flange, a 121.20 x 65.50 mm box and 41.30 mm [1.626 in] overall height. Usable inside space is 115.91 x 60.21 x 35.30 mm, and side walls have a draft of 2° or less for easier PC board mounting.

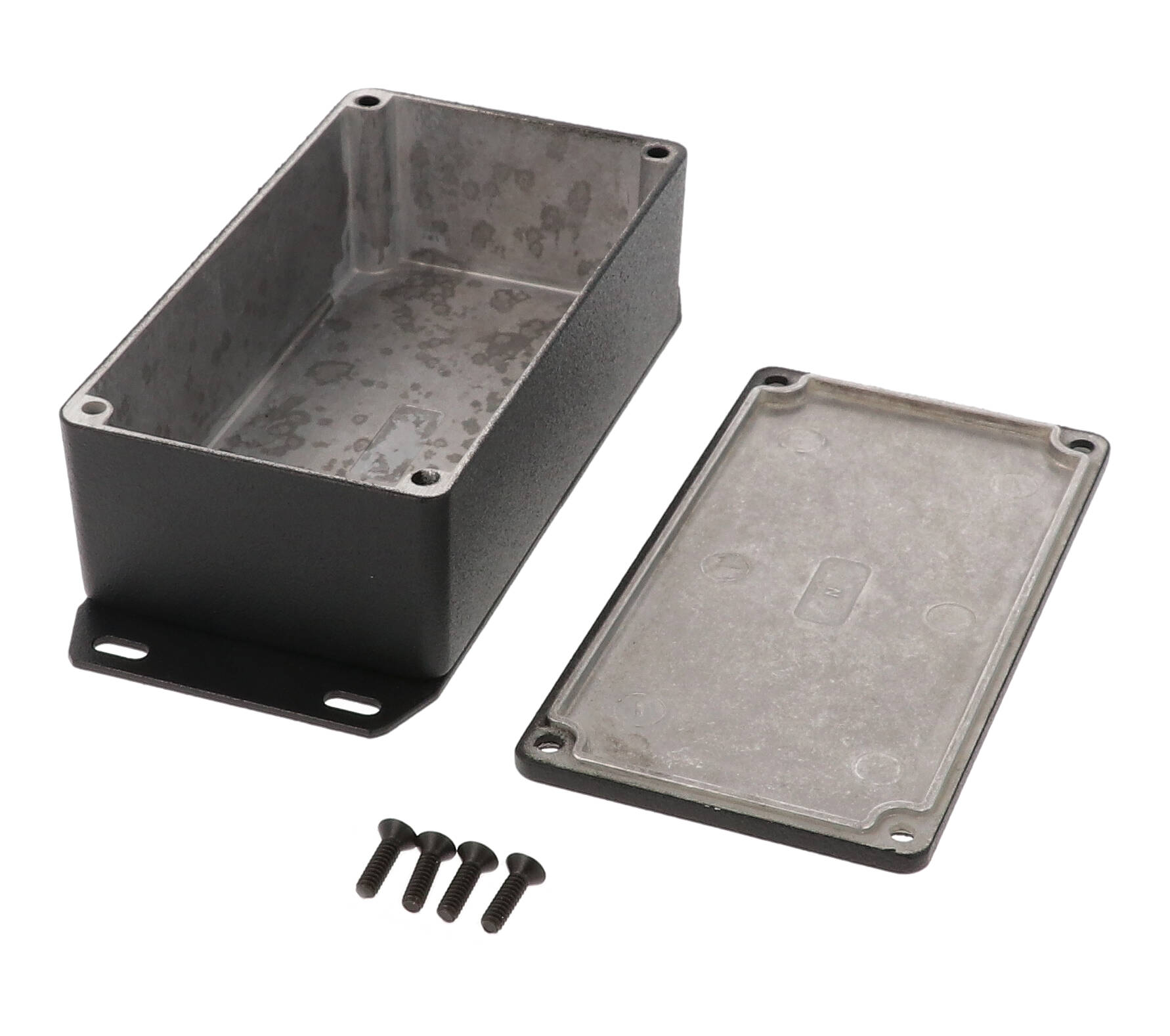

Each assembly includes box, lid and 4 cover screws that fit factory-tapped 6-32 UNC holes. For IP65, the water-tight black version is 1590WN1FBK, or add the 1590NGASKET kit. Shipping weight is 0.44 lbs (0.20 kg); RoHS and REACH compliant, packed in shrink wrap.
Ideal For
- Panel- or wall-mounted black control enclosure
- Chassis-mounted electronics housing
- Finished instrument enclosure
- Machined OEM box
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590N1FBK |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
| Short Description | 1590N1 FLANGED BOX BLACK |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.30 mm [1.390 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Size (L X W X H) | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Box Width (Drawing) | 65.50 mm [2.579 in] |
| Box Length (Drawing) | 121.20 mm [4.772 in] |
| Nominal Size (Width) | 2.60 in (66 mm) |
| Nominal Size (Height) | 1.57 in (40 mm) |
| Nominal Size (Length) | 4.76 in (121 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 41.30 mm [1.626 in] |
| Max. P.C. Board Width (Mm) | 115.91 |
| Max. P.C. Board Length (Mm) | 60.21 |
| Overall Length Incl. Flange (Drawing) | 146.05 mm [5.750 in] |
Identifiers
| UPC | 623980539874 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Bottom Flange | Welded |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WN1FBK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590N1FBK?▾
A black textured 121 x 66 x 40 mm diecast aluminum enclosure with a welded flanged bottom plate for mounting.
What are the outside dimensions with the flange?▾
146.05 mm overall length, with the box 121.20 mm long, 65.50 mm wide and 41.30 mm high per the drawing.
Does the powder coat survive machining?▾
The polyester powder paint is described as giving a lasting finish, even after machining.
What torque should I use on the lid screws?▾
50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket.
What is the part number of the water-tight version?▾
1590WN1FBK.
