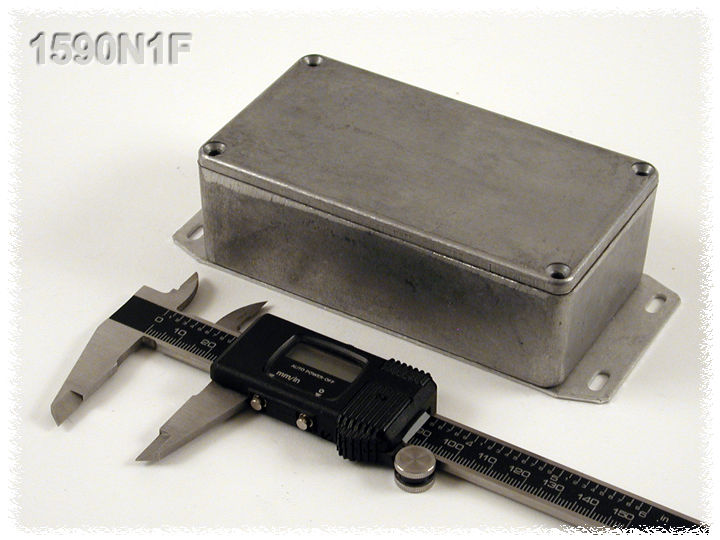

Hammond 1590N1F 121x66x40mm Diecast Aluminum Box, Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded bottom mounting flange; 146.05 mm overall length
- 121 x 66 x 40 mm nominal box (4.77 x 2.58 x 1.57 in)
- Natural vibra-finished diecast aluminum
- Inside 115.91 x 60.21 x 35.30 mm
- Lap joint lid designed to meet IP54
- 4 cover screws included; 6-32 UNC tapped holes
- Water-tight version 1590WN1F; gasket kit 1590NGASKET

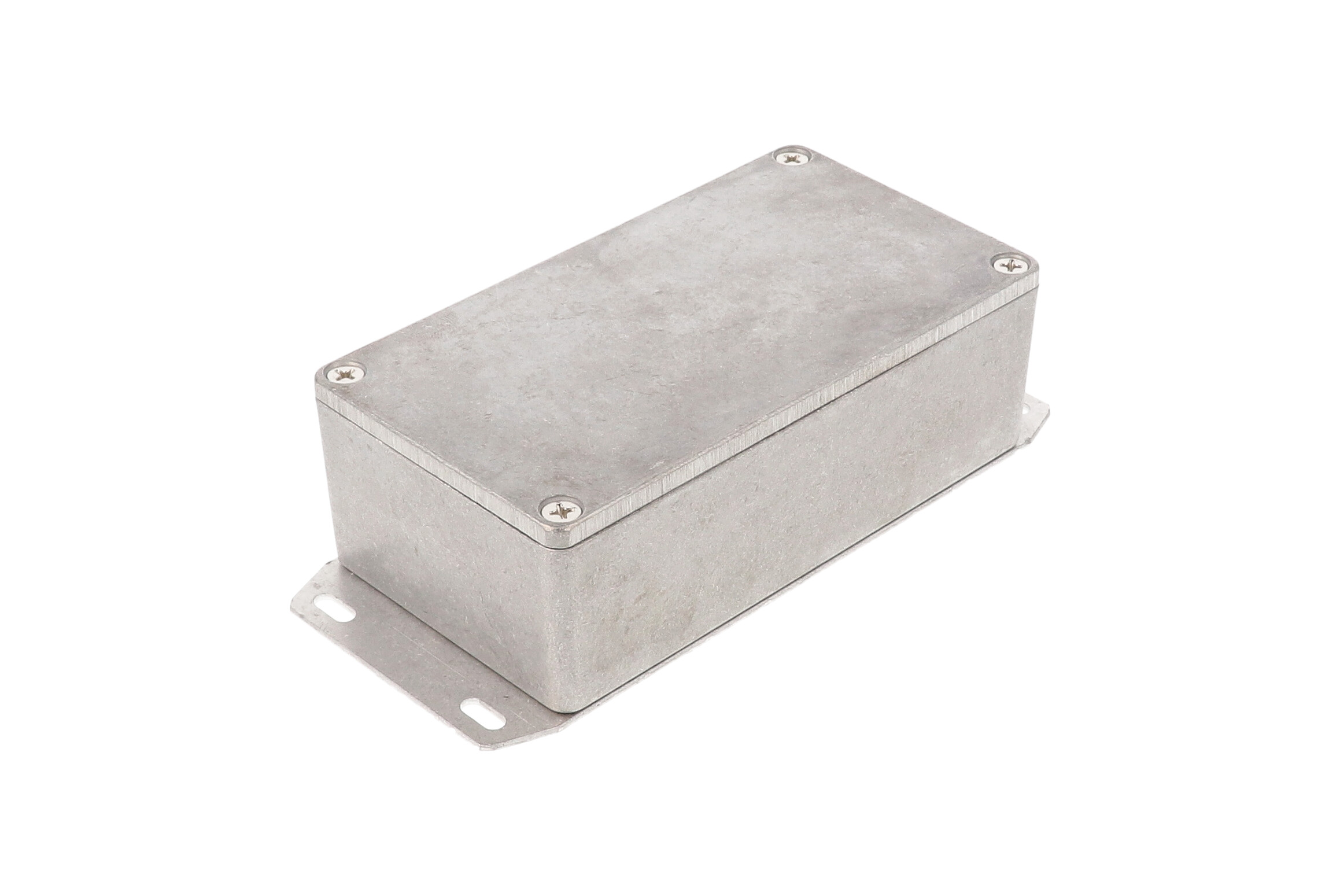

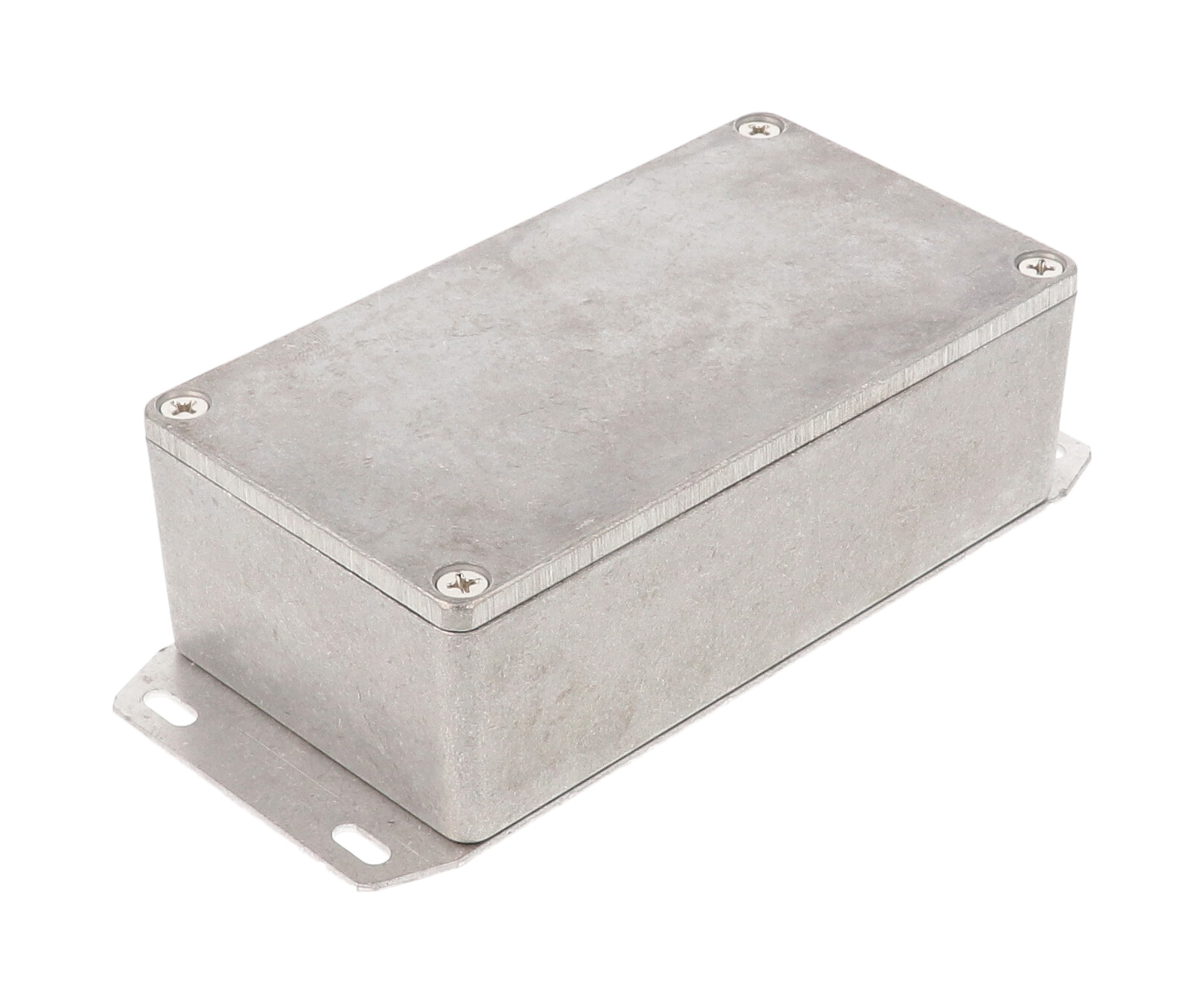

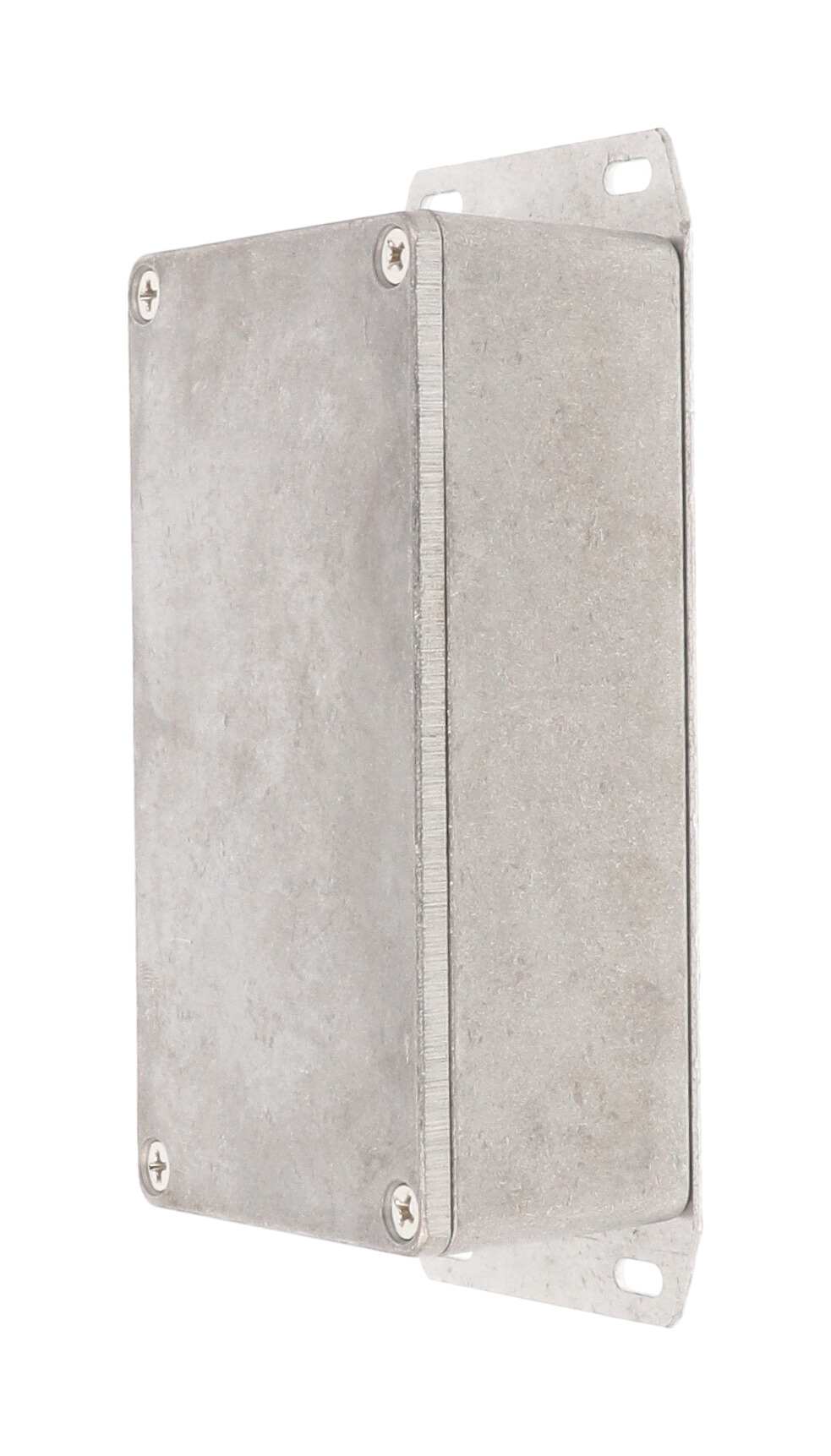

The 1590N1F is the 121 x 66 x 40 mm 1590N1 diecast aluminum enclosure with a flanged bottom plate, in natural aluminum. The flange lets you bolt the box to a surface, wall or chassis, which makes it useful for field-installed electronics, junction points and control circuits that must stay put.
Box and lid are diecast aluminum alloy, and the bottom flange is welded to the box. The unpainted version is vibra finished for a smooth surface with no sharp edges. Lap joint construction where the lid and box meet guards against dust and splashing water, and the enclosure is designed to meet IP54.
Across the flange, the drawing shows an overall length of 146.05 mm [5.750 in]; the box itself is 121.20 x 65.50 mm with an overall height of 41.30 mm [1.626 in]. Inside space is 115.91 x 60.21 x 35.30 mm, with maximum PC board dimensions listed as 115.91 and 60.21 mm.

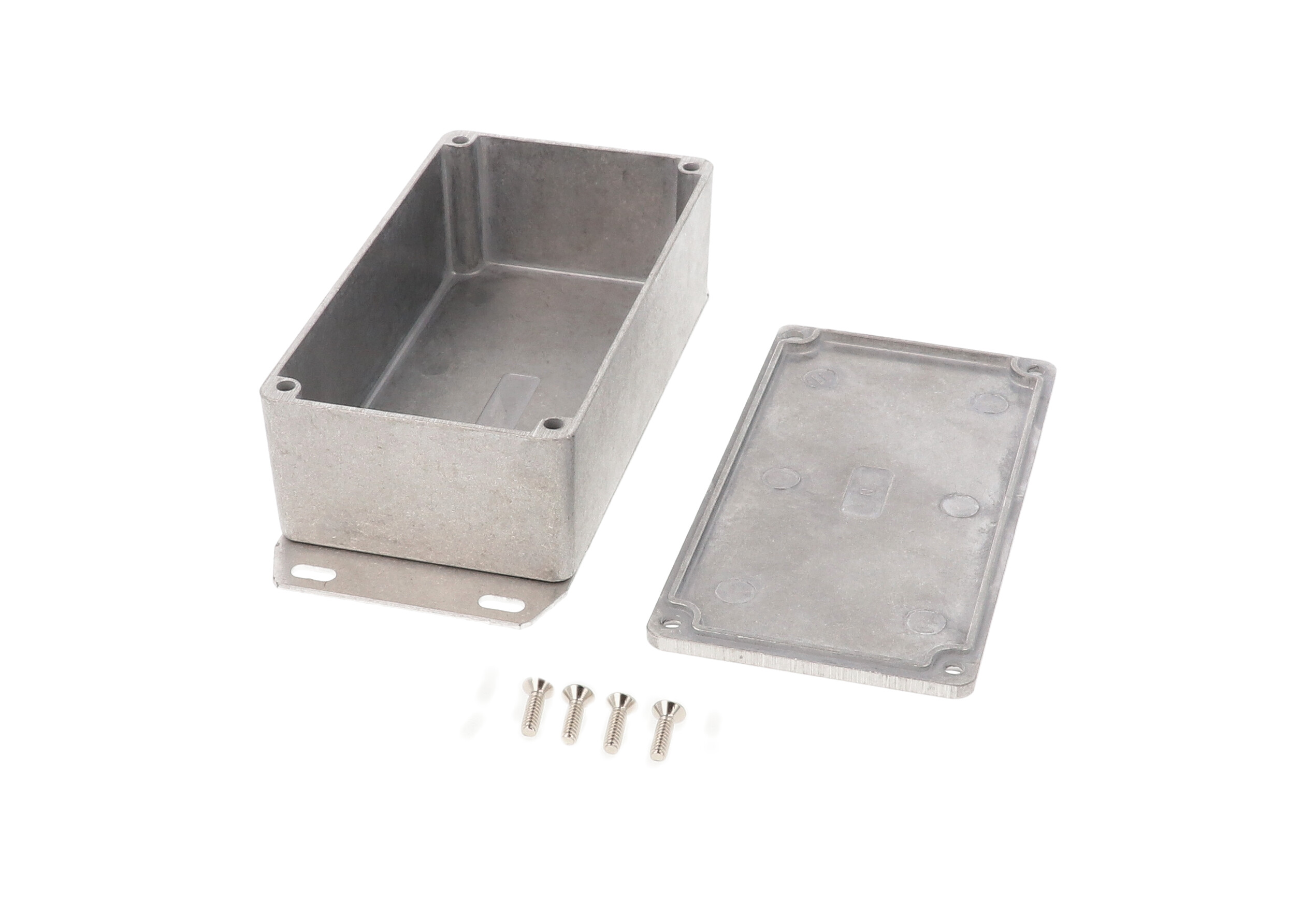

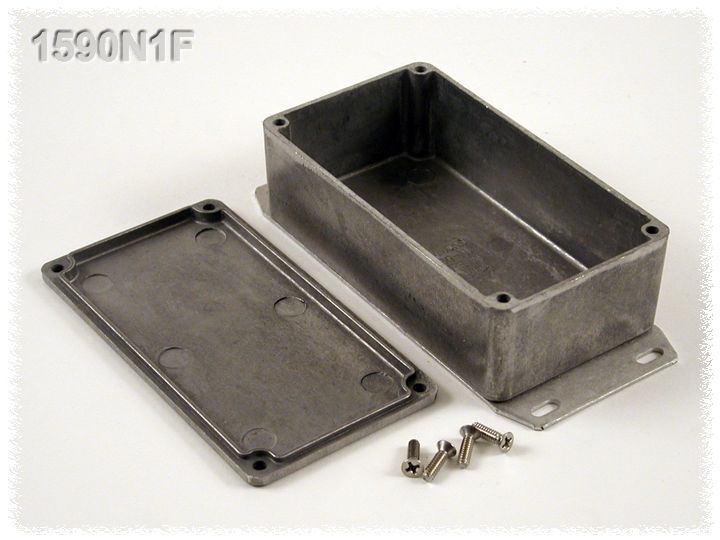

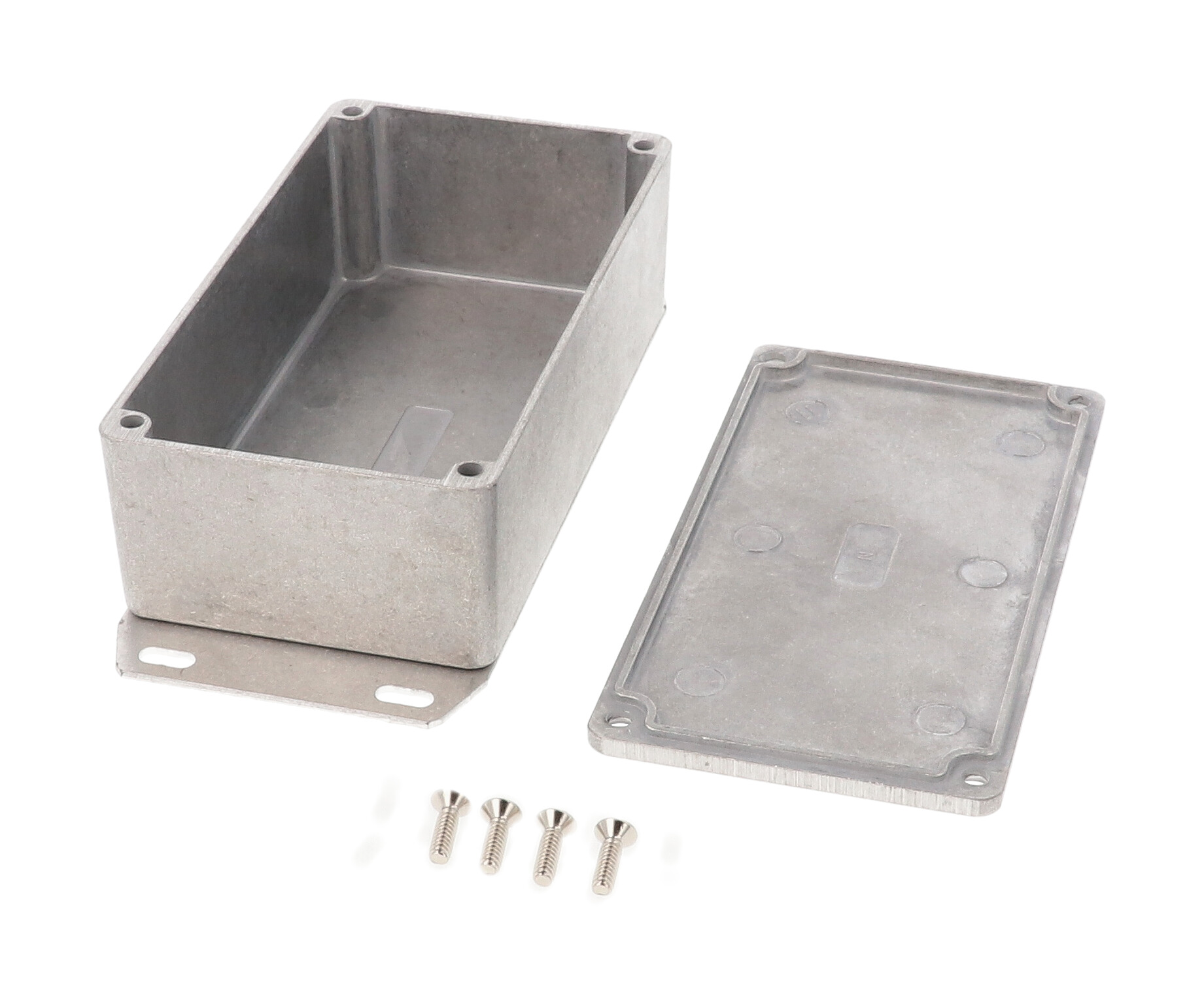

Included are the box, lid and 4 cover screws for the factory-tapped 6-32 UNC holes; recommended torque is 50-55 cN.m, or 25-30 cN.m with a gasket. The water-tight counterpart is 1590WN1F and the replacement gasket kit is 1590NGASKET. Shipping weight 0.43 lbs (0.20 kg); RoHS and REACH compliant.
Ideal For
- Surface- or chassis-mounted electronics housing
- Wall-mounted control or junction enclosure
- Instrument enclosure for boards up to 115.91 x 60.21 mm
- Machined OEM enclosure
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box, flanged |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590N1F |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
| Short Description | 1590N WITH FLANGED BOX |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.30 mm [1.390 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Size (L X W X H) | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Box Width (Drawing) | 65.50 mm [2.579 in] |
| Box Length (Drawing) | 121.20 mm [4.772 in] |
| Nominal Size (Width) | 2.60 in (66 mm) |
| Nominal Size (Height) | 1.57 in (40 mm) |
| Nominal Size (Length) | 4.76 in (121 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Height (Drawing) | 41.30 mm [1.626 in] |
| Max. P.C. Board Width (Mm) | 115.91 |
| Max. P.C. Board Length (Mm) | 60.21 |
| Overall Length Incl. Flange (Drawing) | 146.05 mm [5.750 in] |
Identifiers
| UPC | 623980539737 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.43 lbs (0.20 kg) |
Construction & Finish
| Finish | Natural, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Bottom Flange | Welded |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WN1F (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590N1F mounted?▾
It has a flanged bottom plate; the bottom flange is welded to the box for fastening to a surface.
What is the overall length including the flange?▾
146.05 mm [5.750 in] per the drawing. The box is 121.20 mm long and 65.50 mm wide.
How tall is it?▾
The drawing shows 41.30 mm [1.626 in] overall height; the nominal height is 40 mm (1.57 in).
Is it rated for outdoor or wet use?▾
This standard version is designed to meet IP54. The 1590WN1F is designed to meet IP65 with a silicone gasket.
What PC board size fits?▾
Maximum PC board dimensions are listed as 115.91 mm and 60.21 mm.
Related Products

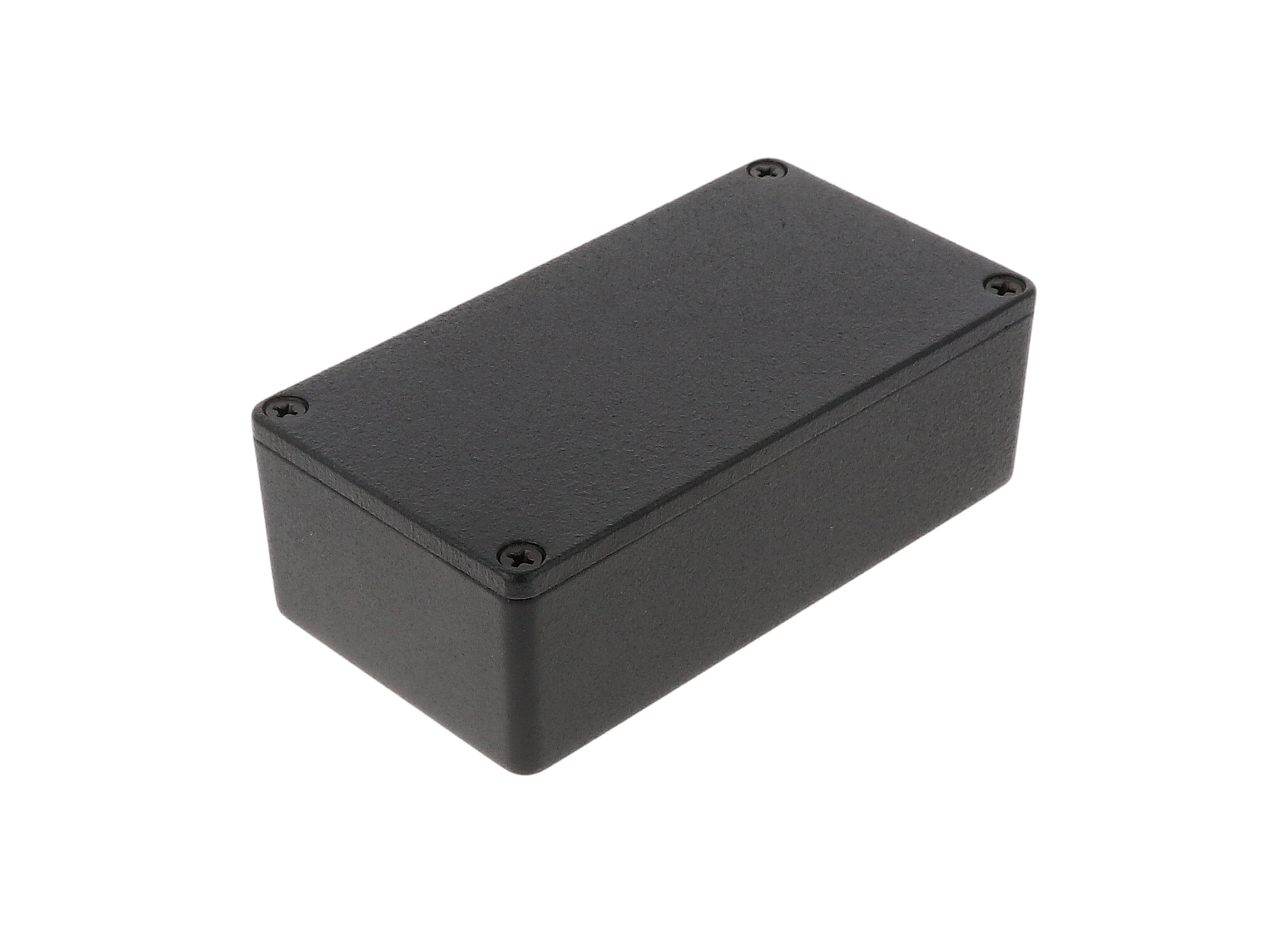

Save 52%1590N1BK — enclosure - diecast
