Hammond 1590N1BK 121x66x40mm Black Diecast Aluminum Box, No Flanges
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

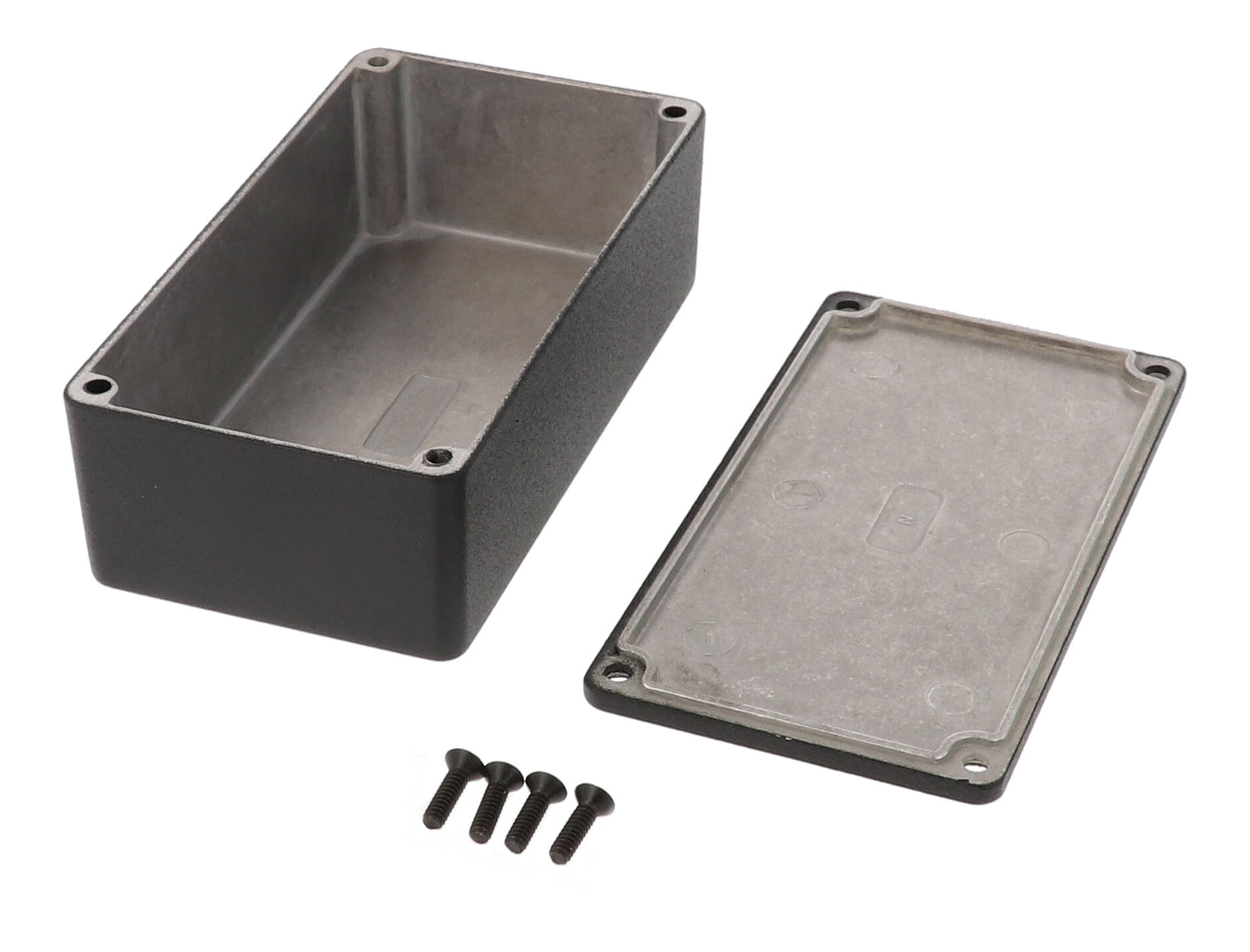

- Black textured polyester powder paint; black screws included
- 121 x 66 x 40 mm nominal (4.77 x 2.58 x 1.57 in)
- No mounting flanges: free-standing or internally mounted
- 115.91 x 60.21 x 35.30 mm inside
- Diecast aluminum alloy; finish lasts after machining
- Designed to meet IP54; IP65 upgrade with 1590NGASKET
The 1590N1BK is the black powder coat version of the 121 x 66 x 40 mm 1590N1 diecast enclosure, with no mounting flanges. It is suited to finished products and instruments where a black textured case looks better than bare metal, while keeping the machinability of diecast aluminum.
The coating is a tough polyester powder paint that gives a lasting finish even after machining, and black screws are included to enhance appearance. Underneath is a diecast aluminum alloy box and lid joined by a lap joint that protects against dust and splashing water; the standard version is designed to meet IP54.
Outside, the drawing measures 121.20 x 65.50 x 39.80 mm [4.772 x 2.579 x 1.567 in]; inside, 115.91 x 60.21 x 35.30 mm. Maximum PC board dimensions are listed as 115.91 and 60.21 mm, and a low side wall draft angle of 2° or less helps with board mounting. Lid height is 0.16 in (4 mm).
The purchased assembly includes box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes (50-55 cN.m recommended torque). The water-tight black version is 1590WN1BK; the 1590NGASKET kit can upgrade this box to IP65. Shipping weight is 0.36 lbs (0.16 kg), and the part is RoHS and REACH compliant.
Ideal For
- Black instrument or control enclosure
- Finished OEM electronics housing
- PCB enclosure up to 115.91 x 60.21 mm
- Machined audio or signal project case
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box |
| Color | Black |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590N1BK |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
| Short Description | 1590N1 BLACK POWDER COAT |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.30 mm [1.390 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Size (L X W X H) | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Nominal Size (Width) | 2.60 in (66 mm) |
| Nominal Size (Height) | 1.57 in (40 mm) |
| Nominal Size (Length) | 4.76 in (121 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Width (Drawing) | 65.50 mm [2.579 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 121.20 mm [4.772 in] |
| Max. P.C. Board Width (Mm) | 115.91 |
| Max. P.C. Board Length (Mm) | 60.21 |
Identifiers
| UPC | 623980539867 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.36 lbs (0.16 kg) |
Construction & Finish
| Finish | Black textured polyester powder paint |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Screw Finish | Black screws included |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WN1BK (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish does the 1590N1BK have?▾
Black textured polyester powder paint, with black screws included.
What are the inside dimensions?▾
115.91 mm long, 60.21 mm wide and 35.30 mm high per the drawing.
Can I machine it without ruining the finish?▾
The powder paint is described as giving a lasting finish, even after machining.
Is there a water-tight black version?▾
Yes, the 1590WN1BK, designed to meet IP65 with a gasket supplied loose.
What does it weigh?▾
Shipping weight is 0.36 lbs (0.16 kg).
