Hammond 1590N1 121x66x40mm Diecast Aluminum Box, No Flanges
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 121 x 66 x 40 mm nominal (4.77 x 2.58 x 1.57 in)
- No mounting flanges and no card guides: clean box for machining
- Natural aluminum, vibra finished with no sharp edges
- Inside 115.91 x 60.21 x 35.30 mm; low 2° side wall draft
- Lap joint lid designed to meet IP54
- Upgradeable to IP65 with 1590NGASKET

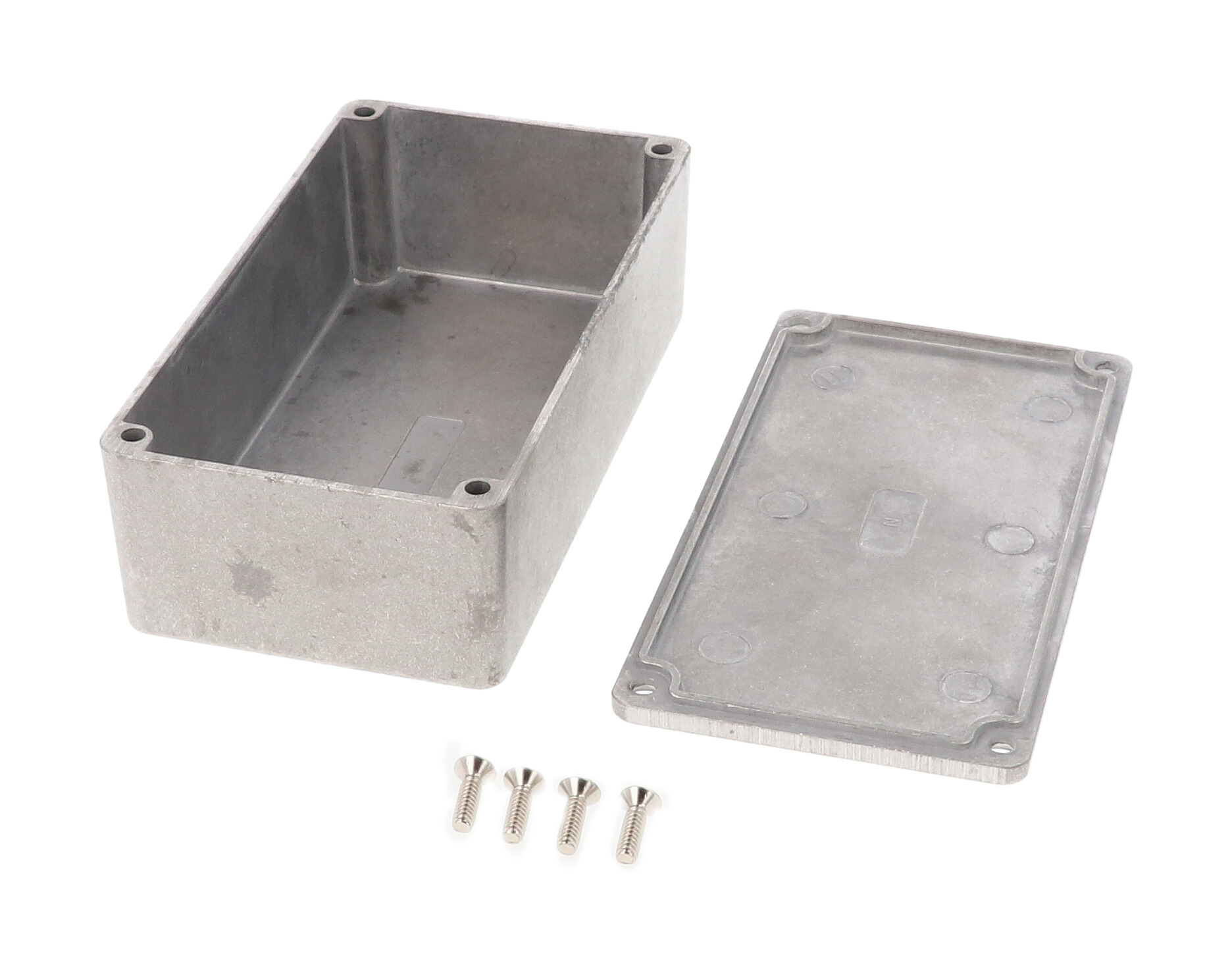

- Box, lid and 4 cover screws included (6-32 UNC)
The 1590N1 is a 121 x 66 x 40 mm diecast aluminum enclosure with no mounting flanges, in natural aluminum. Its short description notes no card guides, giving a plain interior for electronics designers, OEMs and hobby builders who want a rugged metal instrument case they can drill, mill and fit out themselves.
Box and lid are diecast aluminum alloy, which is tough yet easy to machine. The unpainted finish is vibra finished for a smooth surface with no sharp edges. The lid overlaps the box in a lap joint that protects against dust and splashing water, and this standard version is designed to meet IP54.
The drawing gives outside dimensions of 121.20 x 65.50 x 39.80 mm [4.772 x 2.579 x 1.567 in] and an inside of 115.91 x 60.21 x 35.30 mm. Maximum PC board dimensions are listed as 115.91 and 60.21 mm, and side walls have a draft angle of 2° or less to simplify board mounting. The lid is 0.16 in (4 mm) high.
Each assembly includes the box, lid and 4 cover screws in factory-tapped 6-32 UNC holes, with a recommended torque of 50-55 cN.m. Need a sealed box? The water-tight equivalent is 1590WN1, and 1590NGASKET upgrades this enclosure to IP65. Shipping weight is 0.35 lbs (0.16 kg); RoHS and REACH compliant.
Ideal For
- Electronic instrument enclosure
- Custom-machined OEM electronics housing
- PCB enclosure up to 115.91 x 60.21 mm
- Audio and signal-processing project box
Options
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
Hardware
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel (Pkg 100) or 1590WMS100BK black stainless steel (Pkg 100), 6-32 x 1/2" with O-ring |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Replacement Cover Screws | 1590MS100 plated (Pkg 100) or 1590MS100BK black (Pkg 100), 6-32 x 1/2" |
| Tamper-Resistant Screw Upgrade (Torx With Pin, 50-pack) | 1590MS50T (natural), 1590MS50TBK (black); screwdriver bit SCDRIVET10-2 |
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Standard |
| Part Number | 1590N1 |
| Mounting Style | No Mounting Flanges |
| Long Description | enclosure - diecast |
| Short Description | 1590N NO CARD GUIDES |
Dimensions
| Lid Height | 0.16" (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.30 mm [1.390 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Size (L X W X H) | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Nominal Size (Width) | 2.60 in (66 mm) |
| Nominal Size (Height) | 1.57 in (40 mm) |
| Nominal Size (Length) | 4.76 in (121 mm) |
| Side Wall Draft Angle | 2° or less |
| Overall Width (Drawing) | 65.50 mm [2.579 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 121.20 mm [4.772 in] |
| Max. P.C. Board Width (Mm) | 115.91 |
| Max. P.C. Board Length (Mm) | 60.21 |
Identifiers
| UPC | 623980539720 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Finish | Natural, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Lid/Box Joint | Lap joint construction |
| Included Items | Box, lid and 4 cover screws |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight Equivalent | 1590WN1 (IP65, silicone gasket supplied loose) |
| Optional Replacement Gasket Kit | 1590NGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590N1 dimensions?▾
Listed size is 4.77 x 2.58 x 1.57 in (121 x 66 x 40 mm). The drawing shows 121.20 x 65.50 x 39.80 mm outside and 115.91 x 60.21 x 35.30 mm inside.
Does it have card guides or mounting flanges?▾
No. It is the no-mounting-flange version, and its short description reads '1590N NO CARD GUIDES'.
How large a PC board fits?▾
Maximum PC board dimensions are listed as 115.91 mm and 60.21 mm.
Is it water-tight?▾
This standard version is designed to meet IP54. The 1590WN1 is designed to meet IP65, or you can add the 1590NGASKET kit.
What screws are used?▾
Four cover screws are included, threading into 6-32 UNC holes. Replacements are 1590MS100 (plated) or 1590MS100BK (black), 6-32 x 1/2 in.
Can Hammond machine it for me?▾
The drawing states enclosures can be factory modified (milling, drilling, printing etc.), and STEP or IGES models are available.
