Hammond 1590MS50T Torx Pin Tamper-Resistant Cover Screws, 50-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Torx with Pin tamper-resistant drive
- 50 screws per pack, natural finish
- Fits imperial 1590 series enclosures, 1590LLB through 1590BX
- Steel construction; IP54 rating listed
- Driver bit: SCDRIVET10-2
- Water-tight tamper version: 1590WMS50T

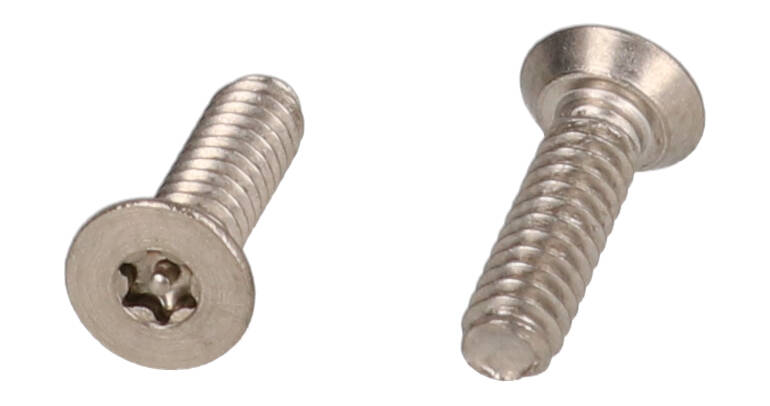

The 1590MS50T is a 50-pack of tamper-resistant screws for the imperial 1590 series of diecast aluminum enclosures. It is the natural-finish Torx with Pin option in the series hardware table, meant for installers who want to replace the standard Philips head cover screws on an enclosure that will be exposed to casual tampering.
The screws are steel and are listed with an IP54 rating, matching the standard (non-gasketed) 1590 versions. The series hardware table pairs them with screwdriver bit SCDRIVET10-2 for installation and removal.
- Compatible sizes include 1590LLB, 1590LB, 1590H, 1590Y, 1590A, 1590G, 1590G2, 1590S, 1590B, 1590B2, 1590BS, 1590B3, 1590BB, 1590BB2, 1590BBS, 1590Q, 1590U, 1590V, 1590C, 1590T, 1590N1, 1590KK, 1590K, 1590J, 1590XX, 1590X, 1590P1, 1590DD, 1590D, 1590E, 1590F, 1590R1, 1590BX2 and 1590BX.
- Most enclosures require four screws; 1590BX, 1590BX2, 1590D, 1590DD, 1590DE, 1590E, 1590EE and 1590R1 require six, and 1590F requires eight.
For a matching black look, choose 1590MS50TBK. If the enclosure is being sealed with a gasket, the water-tight tamper-resistant version is 1590WMS50T; the standard Philips head replacement is 1590MS100. The pack ships in a bag, weighs 0.11 lbs (0.05 kg), and is RoHS and REACH compliant.
Ideal For
- Tamper-resistant upgrade for diecast enclosures
- Public-access or field-installed electronics boxes
- Replacing Philips cover screws on 1590 enclosures
Overview
| Type | Screws, tamper resistant |
| Color | Natural |
| Drive | Torx with Pin |
| Part Number | 1590MS50T |
| Pack Quantity | 50 |
| Long Description | tamper resistant screws for imperial 1590 series, 50-pack |
| Short Description | 1590 TAMPER PROOF SCREW 50 PK |
Identifiers
| UPC | 623980845340 |
| UNSPSC | 39121301 |
Compatibility
| Screwdriver Bit | SCDRIVET10-2 |
| Compatible 1590 Sizes | 1590LLB, 1590LB, 1590H, 1590Y, 1590A, 1590G, 1590G2, 1590S, 1590B, 1590B2, 1590BS, 1590B3, 1590BB, 1590BB2, 1590BBS, 1590Q, 1590U, 1590V, 1590C, 1590T, 1590N1, 1590KK, 1590K, 1590J, 1590XX, 1590X, 1590P1, 1590DD, 1590D, 1590E, 1590F, 1590R1, 1590BX2, 1590BX |
| Screws Required Per Enclosure | Most sizes require 4; 1590BX, 1590BX2, 1590D, 1590DD, 1590DE, 1590E, 1590EE and 1590R1 require 6; 1590F requires 8 |
| Standard Philips Head Equivalent | 1590MS100 |
| Water-Tight Tamper-Resistant Equivalent | 1590WMS50T |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Material | Steel |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590MS50T fit?▾
It is listed for the imperial 1590 series, including 1590LLB, LB, H, Y, A, G, G2, S, B, B2, BS, B3, BB, BB2, BBS, Q, U, V, C, T, N1, KK, K, J, XX, X, P1, DD, D, E, F, R1, BX2 and BX.
What tool do I need?▾
The series hardware table lists screwdriver bit SCDRIVET10-2 for these Torx with Pin screws.
How many screws does one enclosure need?▾
Most sizes require four. 1590BX, 1590BX2, 1590D, 1590DD, 1590DE, 1590E, 1590EE and 1590R1 require six, and 1590F requires eight.
Are these suitable for a gasketed, water-tight enclosure?▾
These are the standard (IP54) version. The water-tight tamper-resistant version is 1590WMS50T.
Is a black version available?▾
Yes, 1590MS50TBK.
Related Products
Save 52%1590MS50BK — replacement screws for imperial 1590 series, BLACK, 50-pack
Hammond Manufacturing · 1590MS50BK
Save 52%1590MS50TBK — tamper resistant screws for imperial 1590 series, BLACK, 50-pack
Hammond Manufacturing · 1590MS50TBK
Save 52%1590MS100 — replacement screws for imperial 1590 series, 100-pack
Hammond Manufacturing · 1590MS100

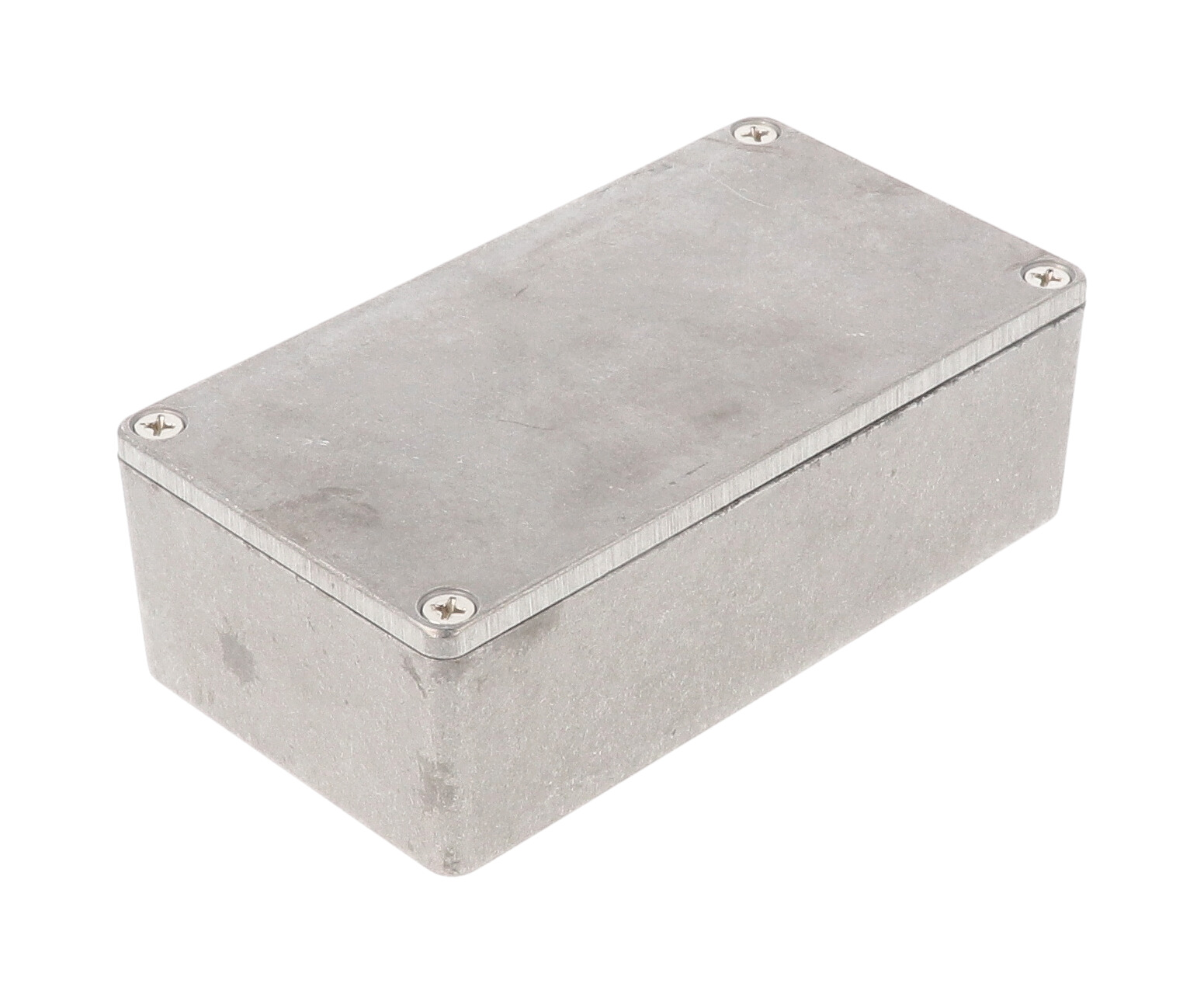

Save 52%1590N1 — enclosure - diecast
