Hammond 1590JF 145x95x49mm Diecast Enclosure, Welded Bottom Flange
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded bottom flange; 172.97 mm [6.810 in] overall length
- 3.96 mm [.156 in] mounting holes on 161.70 mm [6.366 in] centres
- Nominal 145 x 95 x 49 mm (5.71 x 3.74 x 1.93 in) diecast aluminum
- Inside 139.14 x 89.04 x 44.50 mm; max. P.C. board 138.14 x 88.04 mm
- Natural vibra finish with no sharp edges
- IP54 lap joint; IP65 via 1590WJF or 1590JGASKET
- Four 6-32 UNC cover screws included

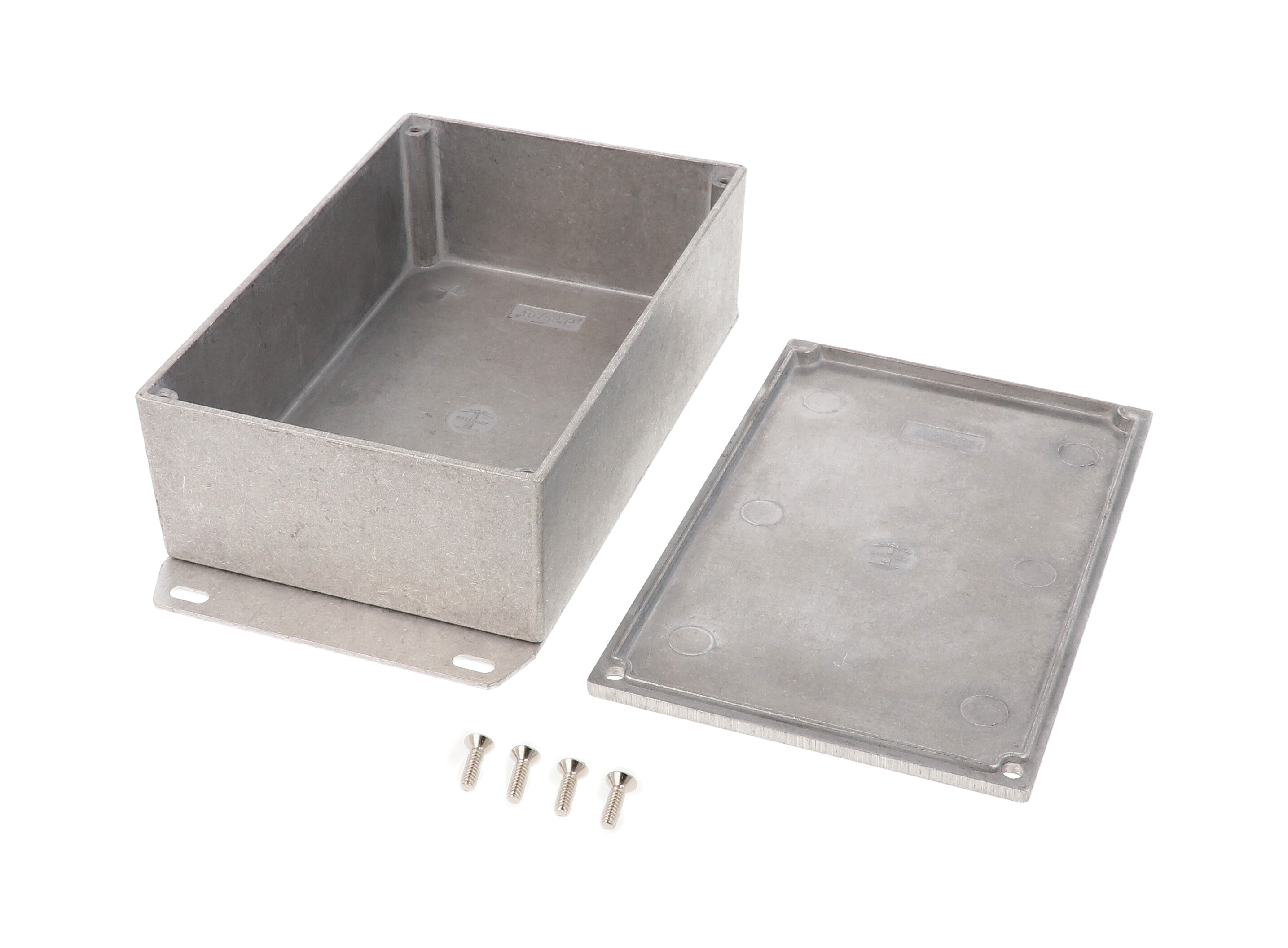

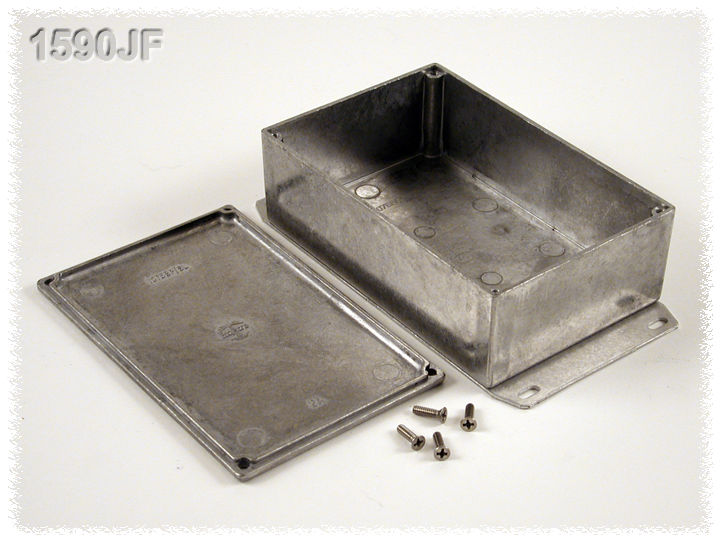

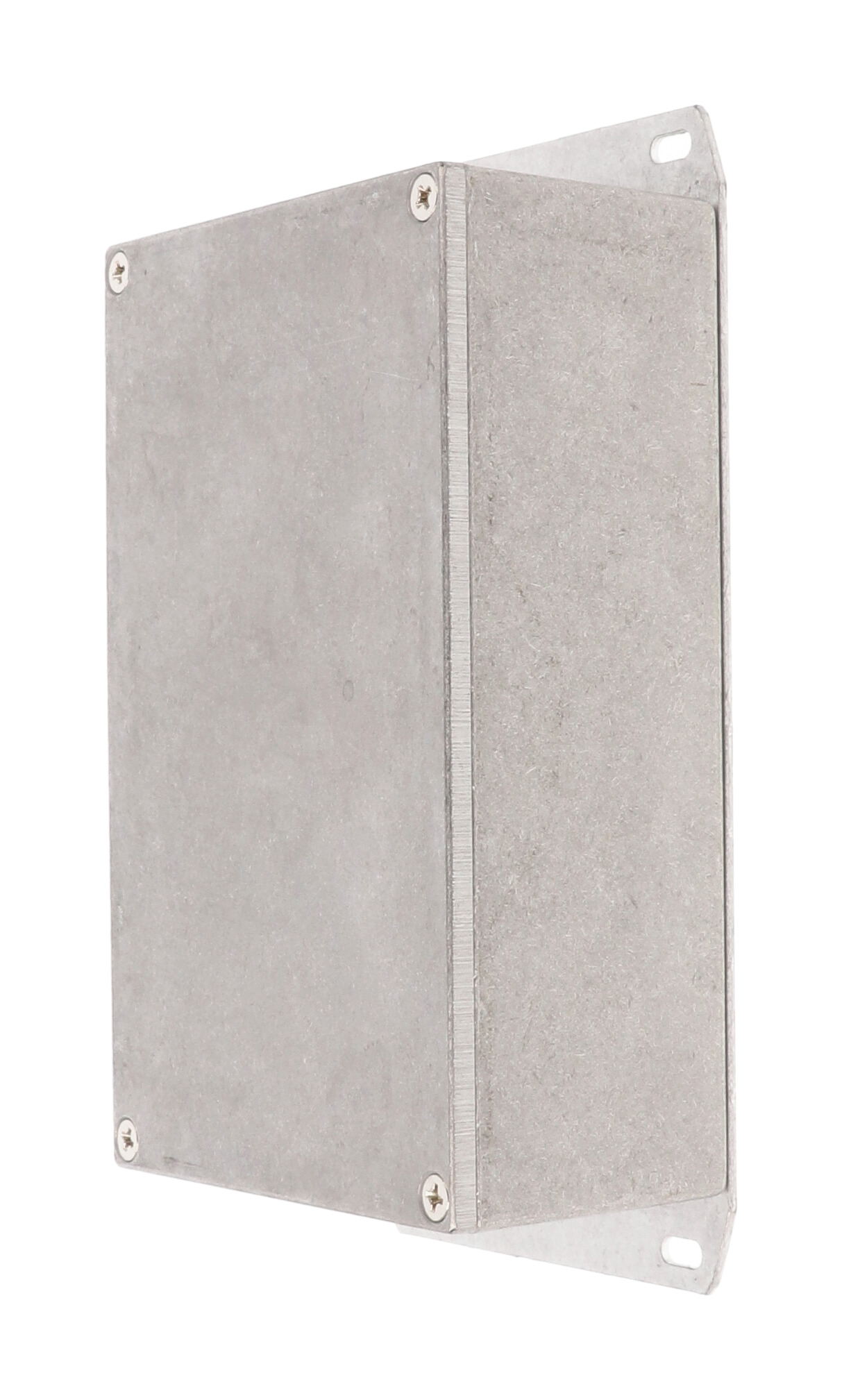

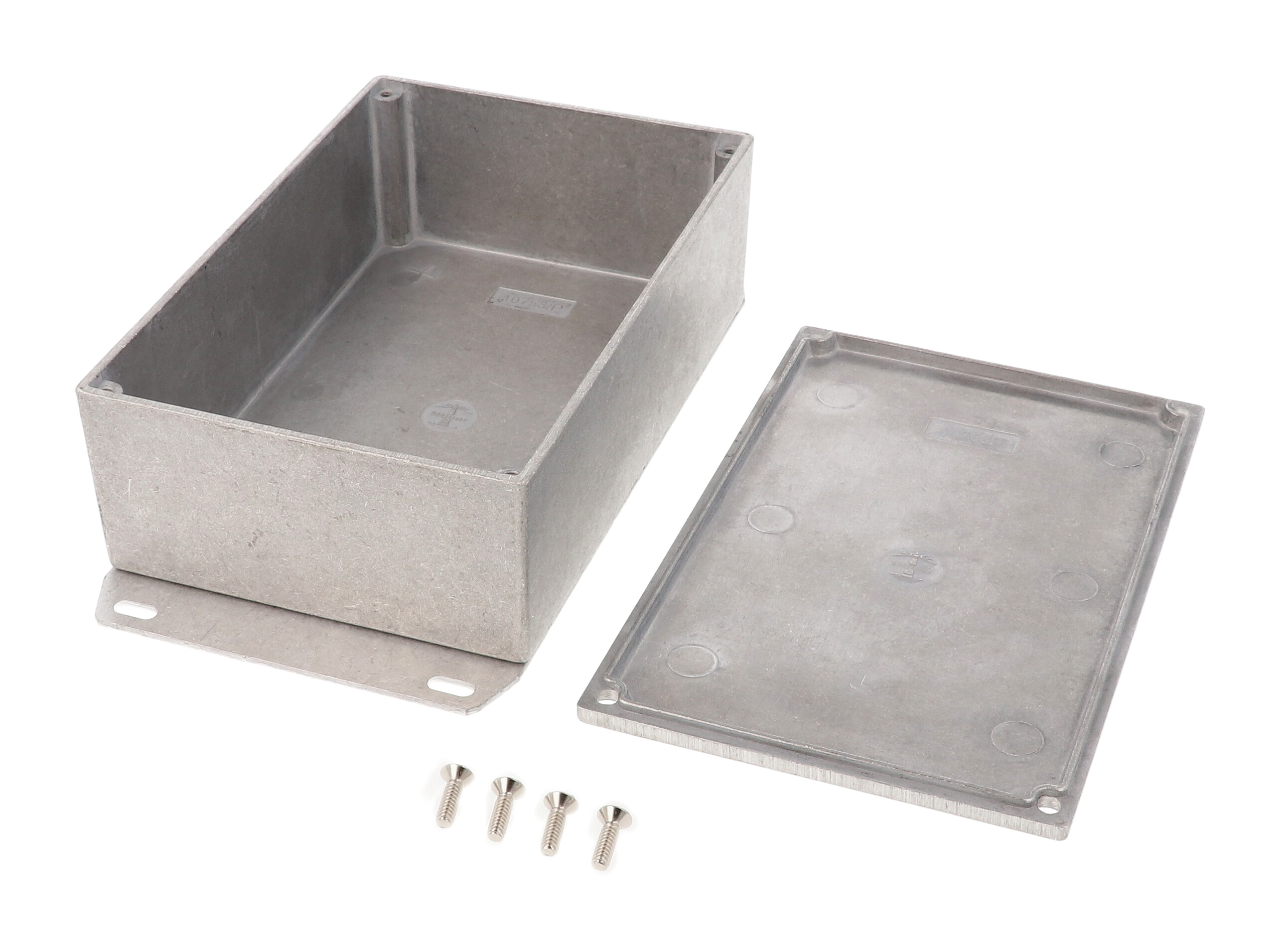

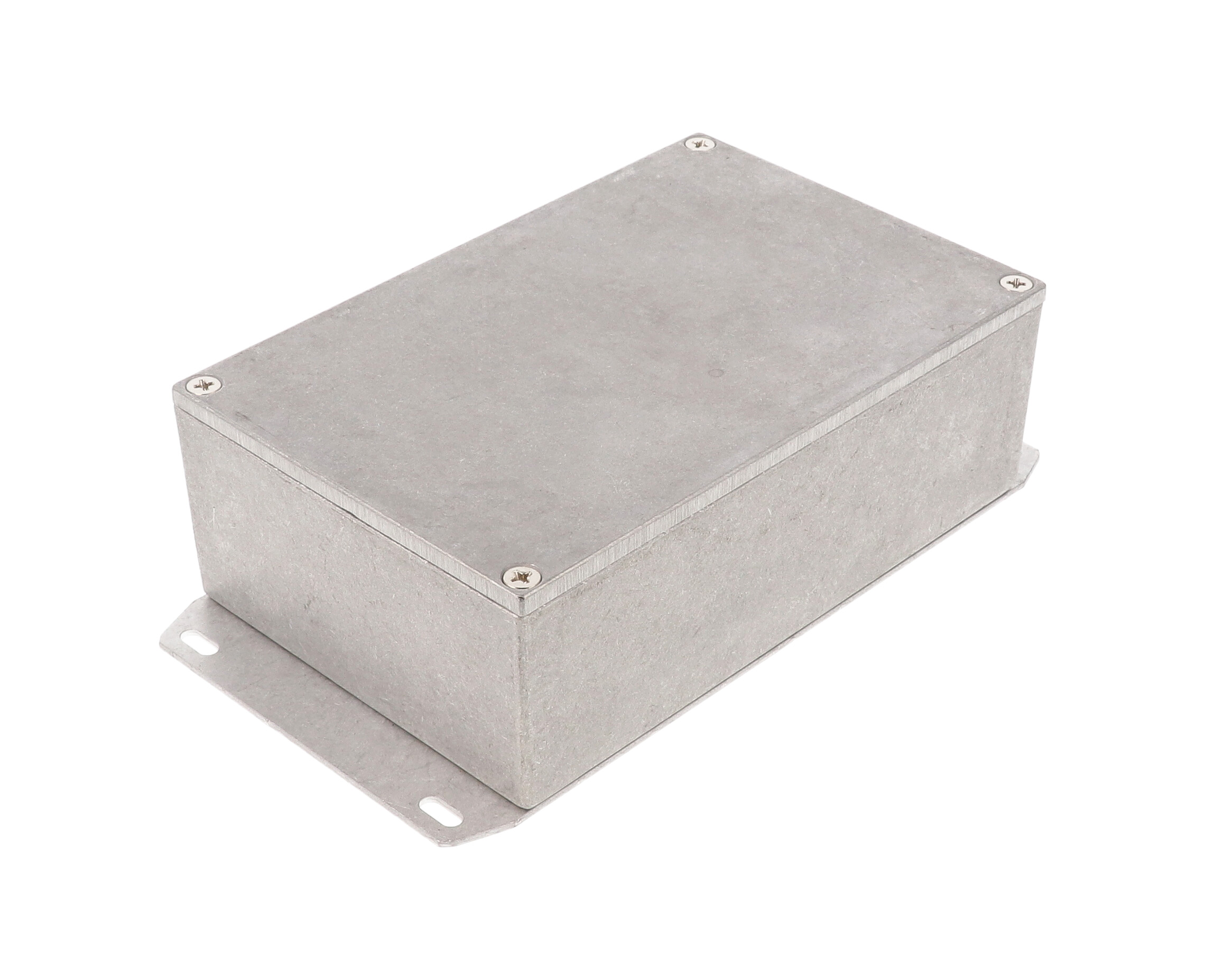

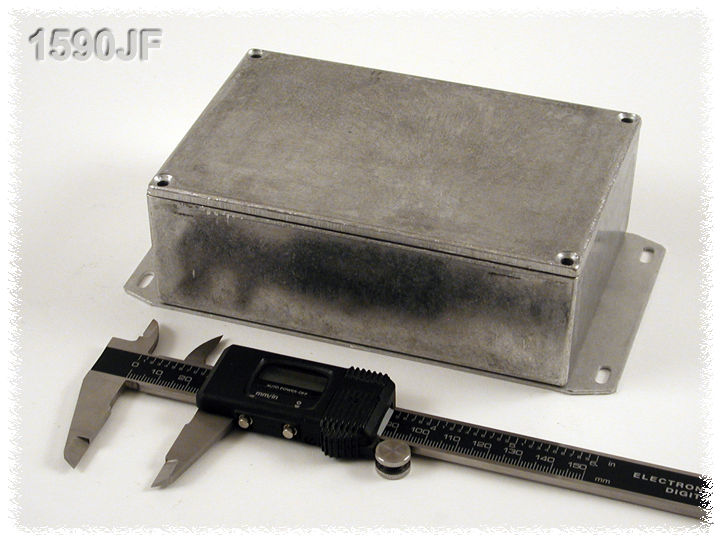

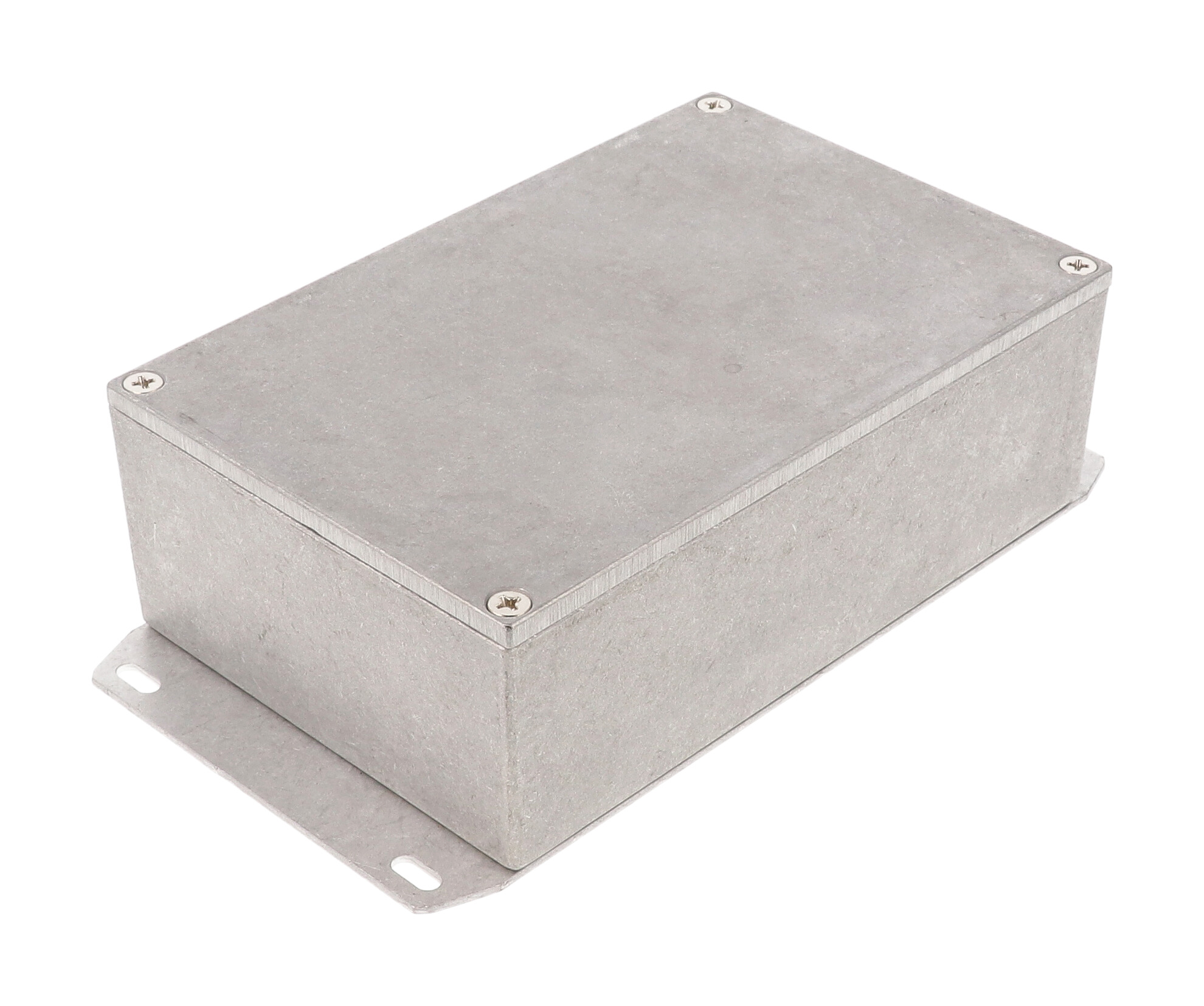

The 1590JF is the 1590J diecast aluminum enclosure, nominally 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm), with a flanged bottom plate for wall or panel mounting. It is aimed at integrators, facilities teams and OEM builders who need a mid-size metal housing they can fix securely in place.
The drawing notes that the bottom flange is welded. Overall length across the flange is 172.97 mm [6.810 in], with 3.96 mm [.156 in] mounting holes on 161.70 mm [6.366 in] centres and an overall height of 49.10 mm [1.933 in]. Inside, the box measures 139.14 mm [5.478 in] x 89.04 mm [3.505 in] x 44.50 mm [1.752 in], and the maximum P.C. board is 138.14 x 88.04 mm.
Box and lid are diecast aluminum alloy, tough and easy to machine. This natural version is unpainted and vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, the standard enclosure is designed to meet IP54, and side walls have a draft of 2° or less.
The 1590JF ships shrink wrapped with box, lid and four 6-32 UNC cover screws; recommended torque is 50-55 cN.m [71-78 ozf.in]. For IP65, choose the 1590WJF or add the 1590JGASKET kit. RoHS and REACH compliant, 0.86 lbs (0.39 kg).
Ideal For
- Wall- or panel-mounted instrument housings
- Bolt-down control and terminal enclosures
- Larger P.C. board housings
- Dust- and splash-resistant equipment
Other
| Solid Models | Available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Replacement Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Replacement Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Liquid Resistant Stainless Steel Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" with O-Ring] |
| Liquid Resistant Black Stainless Steel Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" with O-Ring] |
Mounting
| Flange Type | Welded bottom flange |
| Flange Mounting Hole Spacing (Drawing) | 161.70 mm [6.366 in] |
| Flange Mounting Hole Diameter (Drawing) | 3.96 mm [.156 in] |
Overview
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures (General Purpose, Wall-Mounting, Water-Tight, Colors) |
| Version | Standard |
| Description | 1590J FLANGED |
| Product Type | Die-cast box, flanged |
| Mounting Style | w/ Flanged Bottom Plate |
| Long Description | enclosure - diecast |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Max. P.C. Board Width | 138.14 mm |
| Inside Width (Drawing) | 89.04 mm [3.505 in] |
| Max. P.C. Board Length | 88.04 mm |
| Width (Ordering Table) | 3.74 in (95 mm) |
| Height (Ordering Table) | 1.93 in (49 mm) |
| Inside Height (Drawing) | 44.50 mm [1.752 in] |
| Inside Length (Drawing) | 139.14 mm [5.478 in] |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Nominal Size (L X W X H) | 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) |
| Overall Height With Bottom Flange (Drawing) | 49.10 mm [1.933 in] |
| Overall Length Including Bottom Flange (Drawing) | 172.97 mm [6.810 in] |
Identifiers
| UPC | 623980282824 |
| UNSPSC | 39121301 |
| Part Number | 1590JF |
Related Versions
| No Mounting Flanges (Natural) | 1590J |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.86 lbs (0.39 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Water-Tight (IP65) Version | 1590WJ |
| Optional Replacement Gasket Kit | 1590JGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590JF mount?▾
By its welded bottom flange, which has 3.96 mm [.156 in] holes on 161.70 mm [6.366 in] centres.
What is the overall length including the flange?▾
172.97 mm [6.810 in], per the manufacturer drawing.
How much room is inside?▾
139.14 mm [5.478 in] long, 89.04 mm [3.505 in] wide and 44.50 mm [1.752 in] high.
Is a black version available?▾
Yes, 1590JFBK.
What gasket kit fits?▾

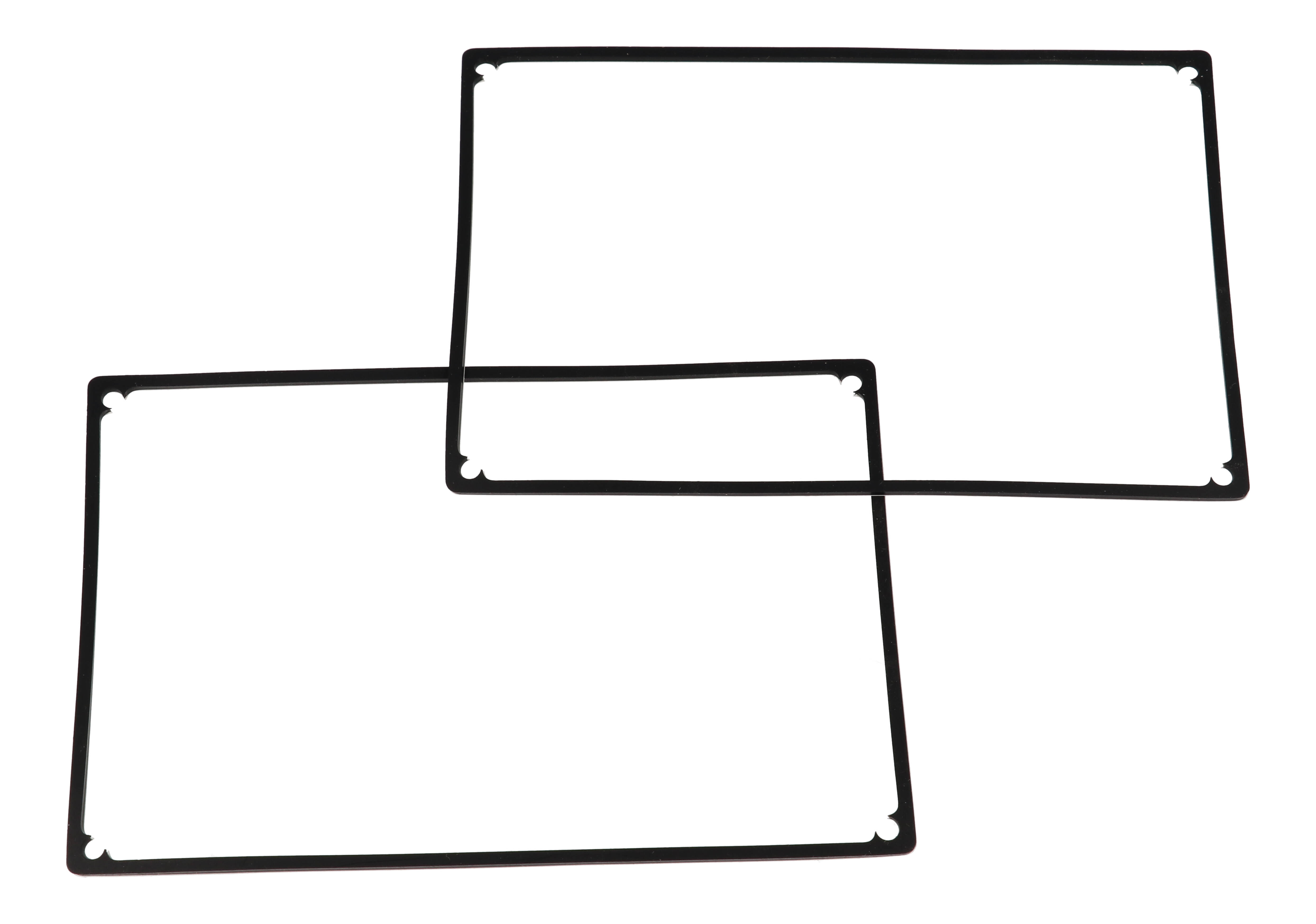

1590JGASKET, a two-pack of silicone gaskets for 1590J enclosures.
