Hammond 1590BBRD Red 120x94x34mm Diecast Stomp Box Enclosure

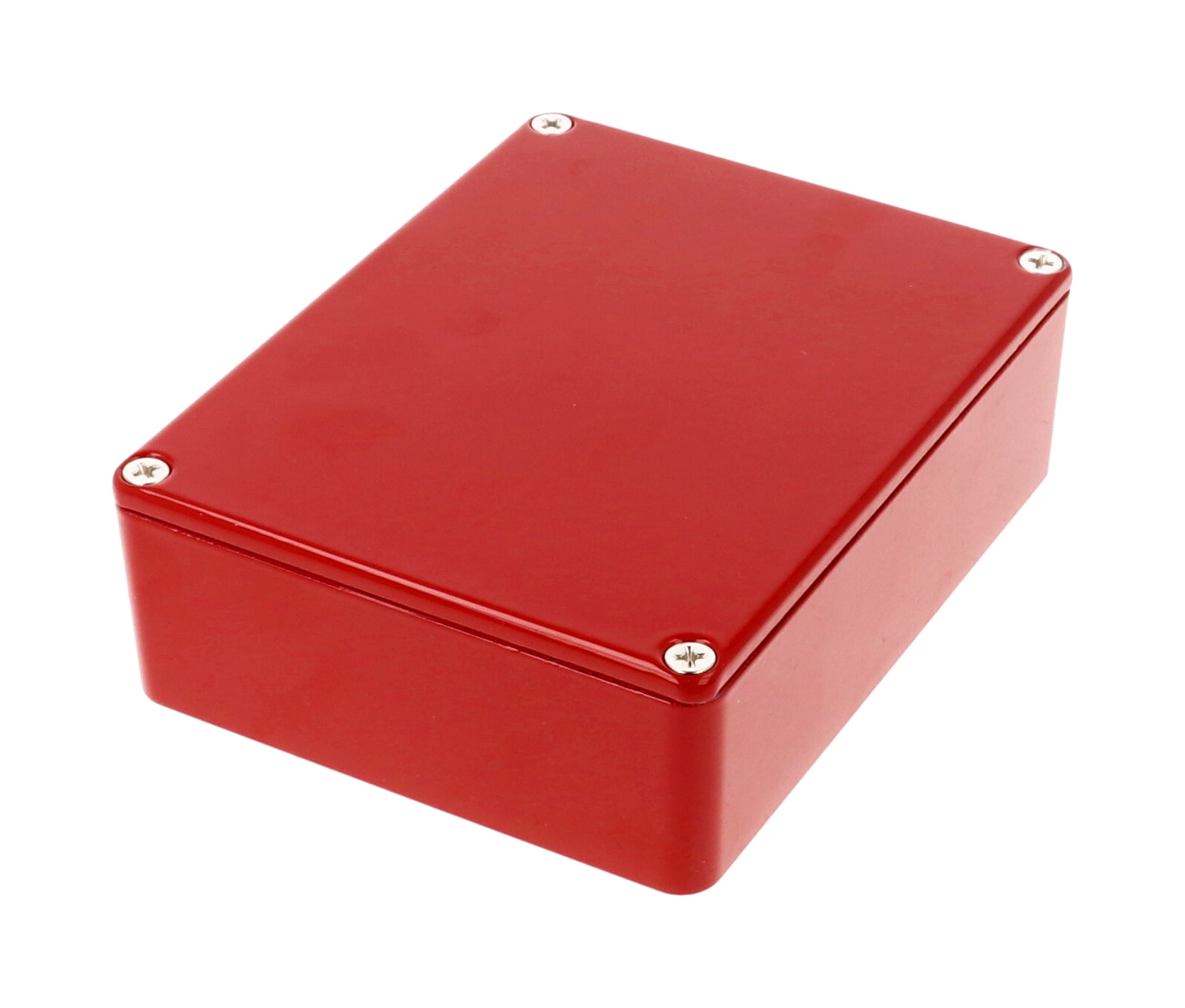

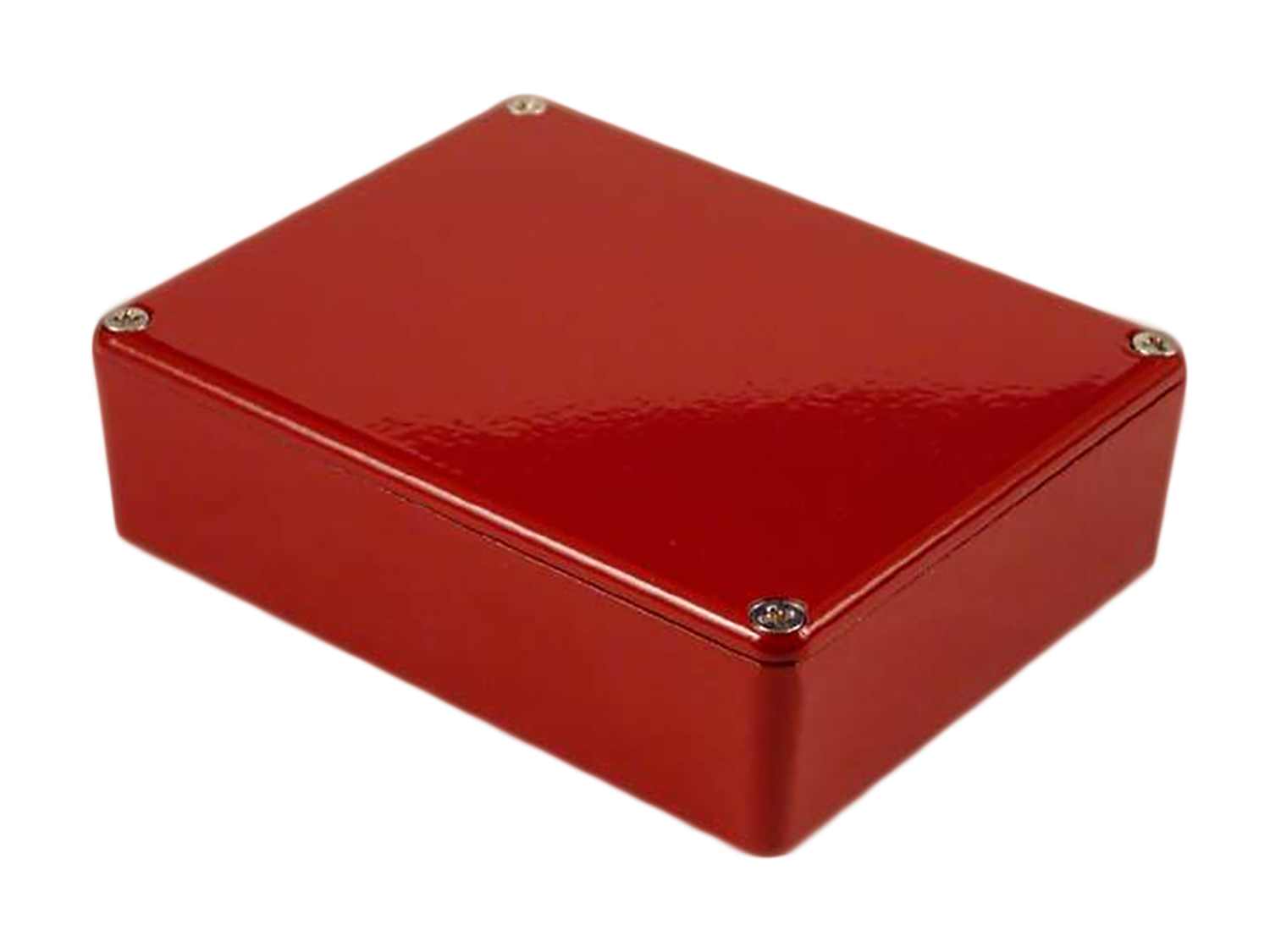

The 1590BBRD is a painted diecast aluminum stomp box enclosure from the 1590-STOMP series, finished in Red and built for stomp box manufacturers and experimenters who want an enclosure that arrives already powder coated. It is the 1590BB body: a wide 120 x 94 mm footprint in the lowest height listed for that footprint in the 1590-STOMP range (34 mm), for projects that need a large top face in a slim case.

The box and lid are made from diecast aluminum alloy, which is tough yet easy to machine. The enclosure is factory powder coated with a smooth, glossy polyester powder coat that keeps a lasting finish even after machining, and the smooth surface allows easy adhesion of labels or silk screens. The finish is Red, matched to RAL 3011, a standard RAL colour that can be quoted by number when matching knobs, labels or artwork.

The series ordering table lists this size at 4.72 in (120 mm) long, 3.70 in (94 mm) wide and 1.34 in (34 mm) high; the part page gives 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm). The drawing shows 119.50 mm [4.705 in] x 94.00 mm [3.701 in] x 34.00 mm [1.339 in] overall, with an inside length of 112.66 mm [4.435 in], inside width of 87.16 mm [3.432 in] and inside height of 29.75 mm [1.171 in]. Maximum P.C. board size is listed as 85.16 mm x 110.66 mm, and a low side wall draft angle of 2° or less makes PC board mounting easier.

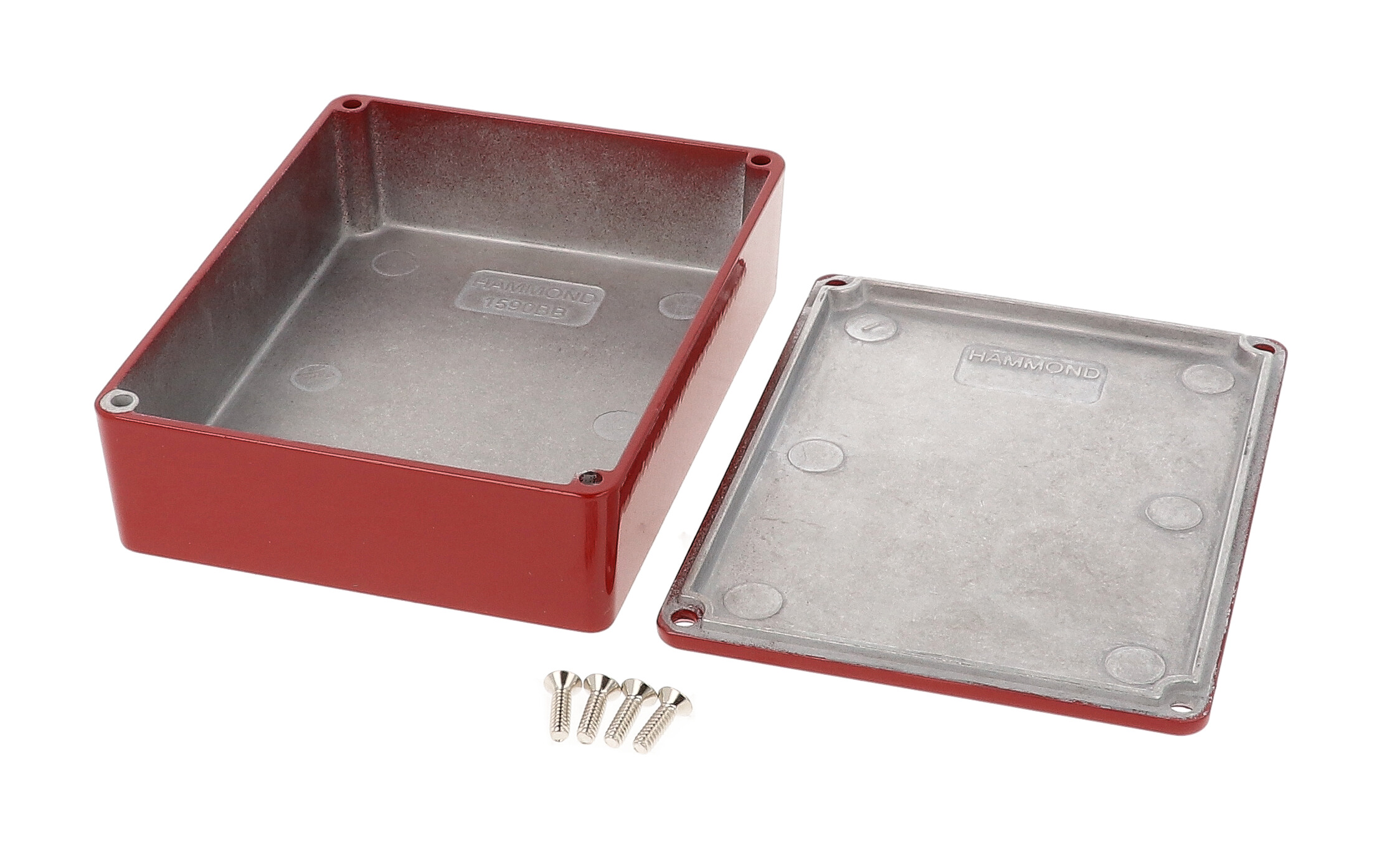

Each purchased assembly includes the box, lid and 4 cover screws (6-32 UNC). Lap joint construction protects against access of dust and splashing water, and the enclosure is designed to meet IP54. To reach IP65, add the optional 1590BBGASKET gasket together with water-tight screws. Recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with a gasket. The 1590BBRD is RoHS and REACH compliant and ships in shrink wrap.
