Hammond 1590BBLG Light Gray 120x94x34mm Painted Diecast Stomp Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light Gray glossy polyester powder coat matched to RAL 7035, applied at the factory
- Nominal 4.72 in (120 mm) x 3.70 in (94 mm) x 1.34 in (34 mm) (120 x 94 x 34 mm) rectangular diecast body
- Inside space 112.66 mm x 87.16 mm x 29.75 mm (L x W x H) per drawing
- Diecast aluminum alloy box and lid: tough yet easy to machine
- Designed to meet IP54; IP65 with optional 1590BBGASKET gasket kit and water-tight screws
- Low side wall draft angle (2° or less) for easy PC board mounting
- Includes box, lid and 4 cover screws; RoHS and REACH compliant

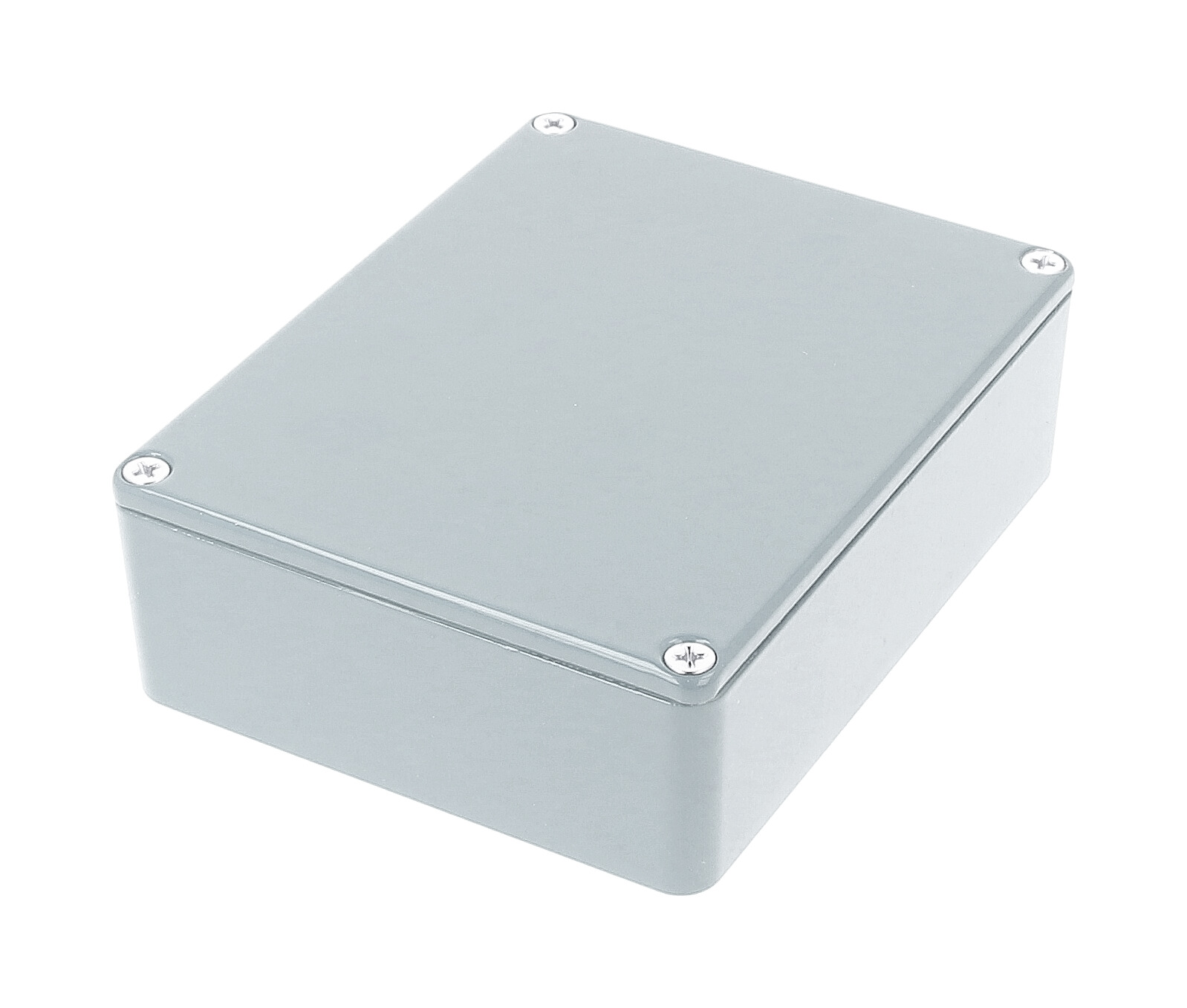

The 1590BBLG is a Light Gray (RAL 7035) painted diecast stomp box enclosure in the 1590BB size: 4.72 in (120 mm) long, 3.70 in (94 mm) wide and 1.34 in (34 mm) high. It shares the 120 x 94 mm footprint of the 1590BB2 at a lower 34 mm height, suiting stomp box manufacturers and experimenters who want a large lid area in a slimmer housing.
Box and lid are cast from aluminum alloy that is rugged but easy to machine. The enclosure is factory powder coated with a smooth, glossy polyester finish that lasts even after drilling and takes labels or silk screens well. Its colour is matched to RAL 7035.
The drawing gives overall dimensions of 119.50 x 94.00 x 34.00 mm [4.705 x 3.701 x 1.339 in]. Inside length is 112.66 mm, inside width 87.16 mm and inside height 29.75 mm, and the maximum PC board dimensions are listed as 85.16 mm and 110.66 mm. Side walls use a draft angle of 2° or less for straightforward board mounting. Shipping weight is 0.5 lbs (0.23 kg).
Lap joint construction protects the 1590BBLG against dust and splashing water, and it is designed to meet IP54. Pair it with the optional 1590BBGASKET gasket kit and water-tight screws to reach IP65. Supplied as box, lid and 4 cover screws (6-32 UNC); recommended torque is 50-55 cN.m, or 25-30 cN.m with a gasket. RoHS and REACH compliant and shipped in shrink wrap.
Ideal For
- Effects pedal (stomp box) enclosures
- Experimenter and hobbyist electronics builds
- Stomp box manufacturing runs
- Electronic instrument enclosures
- Projects finished with labels or silk-screened graphics
Overview
| Type | Die-cast box |
| Series | 1590-STOMP Painted Diecast Stomp Box Enclosures |
| Description | enclosure - diecast |
| Enclosure Shape | Rectangular |
Dimensions
| Inside Width | 87.16 mm [3.432 in] |
| Inside Height | 29.75 mm [1.171 in] |
| Inside Length | 112.66 mm [4.435 in] |
| Nominal Width | 3.70 in (94 mm) |
| Nominal Height | 1.34 in (34 mm) |
| Nominal Length | 4.72 in (120 mm) |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm) |
| Max. PC Board Width | 110.66 mm |
| Max. PC Board Length | 85.16 mm |
| Overall Width (Drawing) | 94.00 mm [3.701 in] |
| Overall Height (Drawing) | 34.00 mm [1.339 in] |
| Overall Length (Drawing) | 119.50 mm [4.705 in] |
Identifiers
| UPC | 623980403984 |
| UNSPSC | 39121301 |
| Part Number | 1590BBLG |
| Short Description | DIECAST BOX 4.7X3.7X1.2 GREY |
Related Parts
| Black Textured Enclosure | 1590BBBK |
| Natural Finish Enclosure | 1590BB |
| Black Cover Screws #6-32 X 1/2" (Pkg 100) | 1590MS100BK |
| Plated Cover Screws #6-32 X 1/2" (Pkg 100) | 1590MS100 |
| Black Replacement Screws #6-32 X 1/2" (Pkg 50) | 1590MS50BK |
| Tamper-Resistant Screws, Black #6-32 X 1/2" (Pkg 50) | 1590MS50TBK |
| Liquid Resistant Enclosure, Natural (Silicone Gasket) | 1590WBB |
| Liquid Resistant Enclosure, Black Textured (Silicone Gasket) | 1590WBBBK |
| Tamper-Resistant Screws, Nickel Plated #6-32 X 1/2" (Pkg 50) | 1590MS50T |
| Stainless Steel Liquid Resistant Cover Screws, 6-32 X 1/2" With O-Ring (Pkg 100) | 1590WMS100 |
| Black Stainless Steel Liquid Resistant Cover Screws, 6-32 X 1/2" With O-Ring (Pkg 100) | 1590WMS100BK |
Packaging & Shipping
| Included | Box, lid and 4 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Color | Light Gray |
| Finish | Smooth glossy polyester powder coat, factory applied |
| Material | Aluminum (Die-Cast Alloy) |
| RAL Number | RAL 7035 |
| Solid Models | Available in STEP or IGES |
| Joint Construction | Lap joint |
| Cover Screw Threads | 4X 6-32 UNC |
| Box And Lid Material | Diecast Aluminum Alloy |
| Factory Modification | Milling, drilling, printing etc. available by quote from the factory |
| Side Wall Draft Angle | 2° or less |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Option | Optional 1590BBGASKET gasket kit; IP65 also requires water-tight screws |
| Optional Gasket | 1590BBGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1590BBLG?▾
The ordering table lists 4.72 in (120 mm) long, 3.70 in (94 mm) wide and 1.34 in (34 mm) high. The part page gives 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm), and the drawing shows 119.50 mm [4.705 in] x 94.00 mm [3.701 in] x 34.00 mm [1.339 in] overall with inside dimensions of 112.66 mm [4.435 in] x 87.16 mm [3.432 in] x 29.75 mm [1.171 in].
What colour is it exactly?▾
The 1590BBLG is Light Gray, matched to standard RAL 7035, in a smooth glossy polyester powder coat applied at the factory.
Is this enclosure waterproof?▾
It is designed to meet IP54 thanks to its lap joint construction, which protects against dust and splashing water. To reach IP65 you need the optional 1590BBGASKET gasket kit and water-tight screws.
What comes in the package?▾

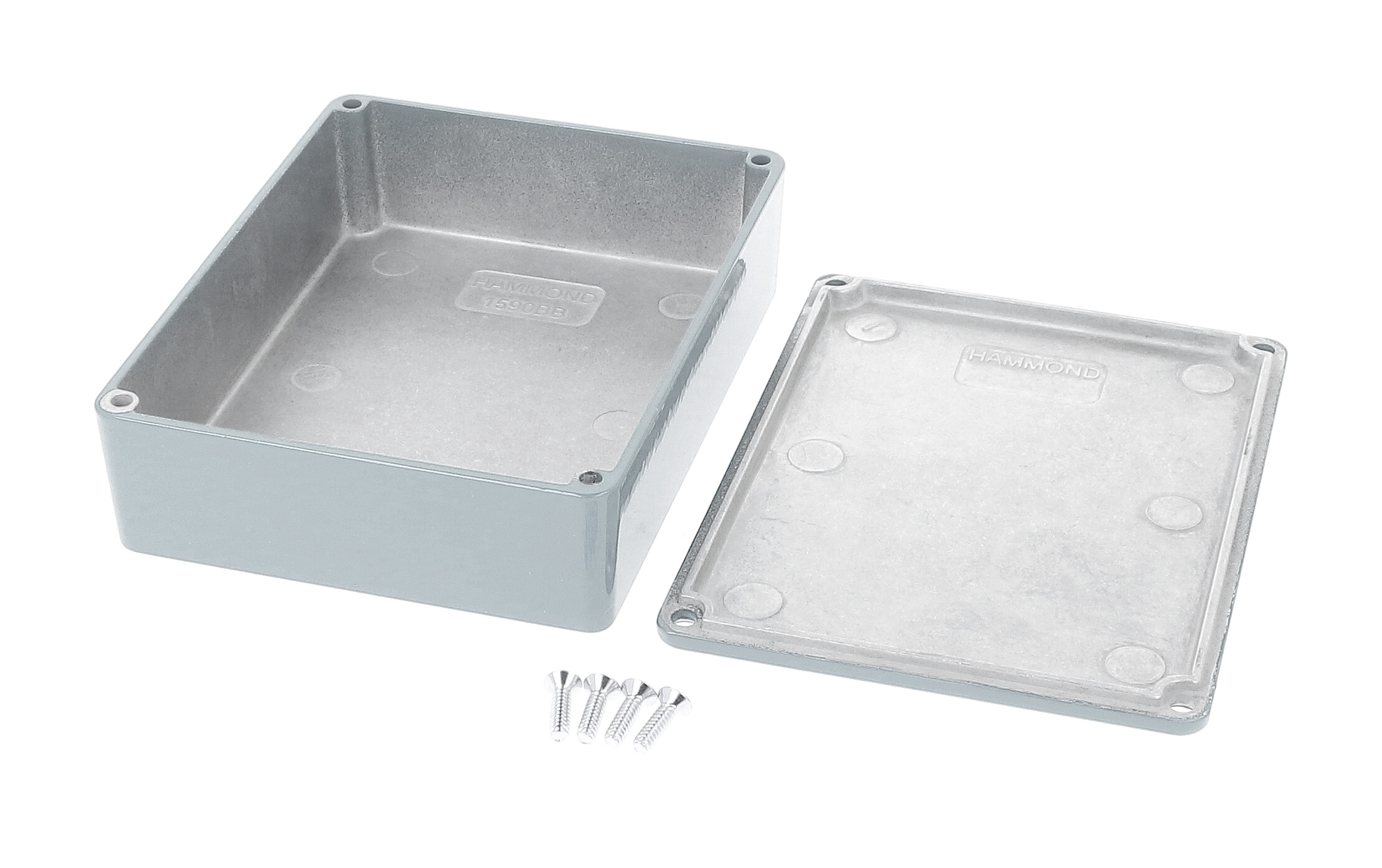

The purchased assembly includes the box, the lid and 4 cover screws. Box and lid are made from diecast aluminum alloy, and the part ships shrink wrapped.
How large a circuit board will fit?▾
The maximum PC board dimensions are listed as 85.16 mm and 110.66 mm, and the side walls have a draft angle of 2° or less for easy board mounting.
Can I drill it without ruining the finish?▾
Diecast aluminum is tough yet easy to machine, and the polyester powder coat is specified to give a lasting finish even after machining. Factory modification (milling, drilling, printing) is also offered by quote.
