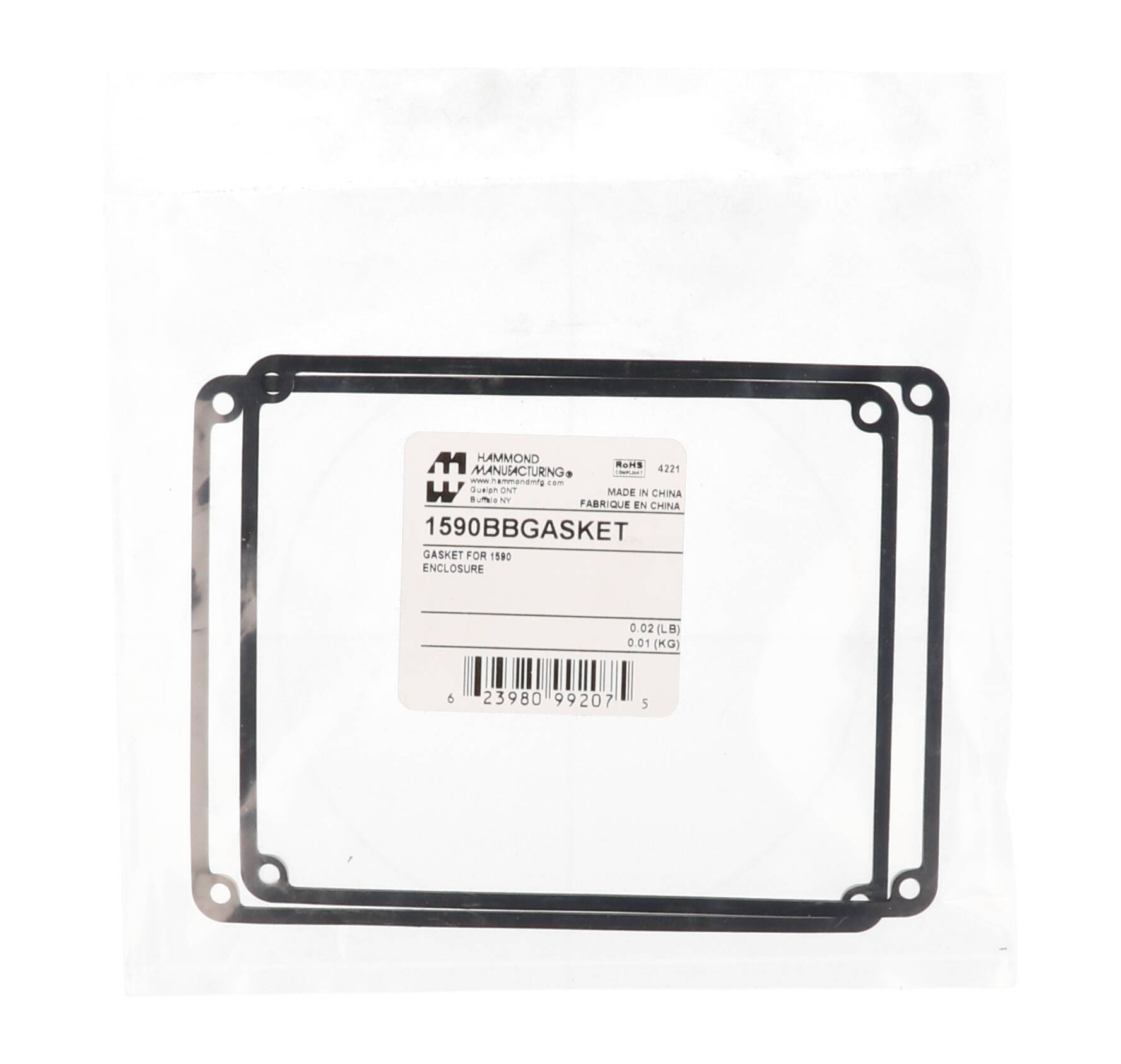

Hammond 1590BBGASKET IP65 Silicone Lid Gasket Kit, Adhesive-Backed 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

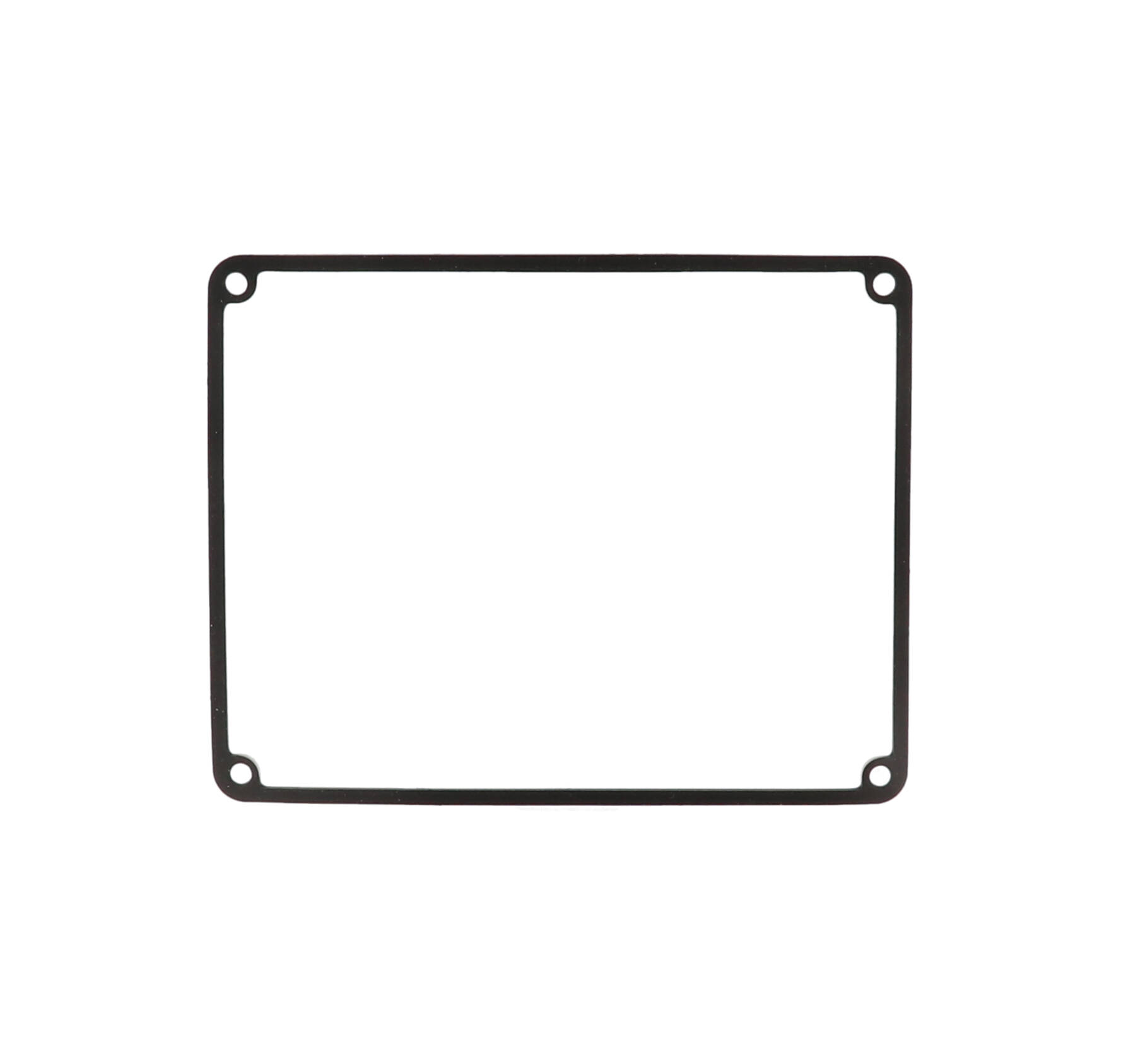

- Two pre-formed silicone gaskets per pack
- Upgrades standard IP54 1590BB, 1590BB2, 1590BBS and 1590C enclosures to IP65
- Adhesive backing for easy installation; applied to the lid
- Temperature rating -40°C to 150°C (-40°F to 302°F)
- IP65 with lid screws torqued to 25-30 cN.m (36-43 ozf.in)
- Lets you machine and/or paint the enclosure first and gasket it later
- RoHS and REACH compliant
The 1590BBGASKET is a two-pack of pre-formed silicone gaskets used to convert a standard IP54 1590 Series diecast aluminum enclosure into one designed to meet IP65. It is the replacement gasket kit listed for the 120 x 94 mm footprint enclosures in the series ordering table: the 1590BB, 1590BB2, 1590BBS and 1590C sizes, in every mounting style and colour, including the water-tight versions.
Each gasket has an adhesive backing for easy installation and is applied to the lid. Because the gasket goes on separately, you can machine and/or paint the enclosure first and gasket it later, which keeps paint and cutting fluid away from the seal. Water-tight 1590 enclosures already ship with a gasket supplied loose inside; this kit lets you upgrade a standard box or replace a gasket.
The silicone gasket has a temperature rating of -40°C to 150°C (-40°F to 302°F). The enclosure is designed to meet IP65 with the gasket properly installed and the lid screws torqued to 25-30 cN.m (36-43 ozf.in), lower than the 50-55 cN.m used without a gasket. When converting a standard enclosure, the series notes also recommend the stainless steel cover screws with O-ring.
- Two pre-formed silicone gaskets per pack
- Adhesive-backed, applied to the lid
- IP65 with correct installation and torque
- RoHS and REACH compliant; packed in a bag, shipping weight 0.02 lbs (0.01 kg)
Ideal For
- Upgrading IP54 1590BB-size enclosures to IP65
- Replacement gaskets for water-tight 1590WBB, 1590WBB2 and 1590WBBS boxes
- Sealing enclosures after machining or painting
- Outdoor or washdown electronics housings
Overview
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | silicone gasket for 1590BB enclosures, 2-pack |
| Kit Contents | Two pre-formed silicone gaskets |
| Product Type | Gasket |
| Short Description | SILICONE GASKET- 2 PACK |
Identifiers
| UPC | 623980992075 |
| UNSPSC | 39121301 |
| Part Number | 1590BBGASKET |
Compatibility
| 1590C (4.72 X 3.70 X 2.24 In / 120 X 94 X 57 Mm) | 1590C, 1590WC, 1590CFL, 1590WCFL, 1590CF, 1590WCF, 1590CBK, 1590WCBK, 1590CFLBK, 1590WCFLBK, 1590CFBK, 1590WCFBK |
| 1590BB (4.72 X 3.70 X 1.34 In / 120 X 94 X 34 Mm) | 1590BB, 1590WBB, 1590BBFL, 1590WBBFL, 1590BBF, 1590WBBF, 1590BBBK, 1590WBBBK, 1590BBFLBK, 1590WBBFLBK, 1590BBFBK, 1590WBBFBK, 1590BBCB, 1590BBGR, 1590BBLG, 1590BBOR, 1590BBPR, 1590BBRD, 1590BBYL |
| 1590BB2 (4.72 X 3.70 X 1.50 In / 120 X 94 X 38 Mm) | 1590BB2, 1590WBB2, 1590BB2FL, 1590WBB2FL, 1590BB2F, 1590WBB2F, 1590BB2BK, 1590WBB2BK, 1590BB2FLBK, 1590WBB2FLBK, 1590BB2FBK, 1590WBB2FBK, 1590BB2CB, 1590BB2GR, 1590BB2LG, 1590BB2OR, 1590BB2PR, 1590BB2RD, 1590BB2YL |
| 1590BBS (4.72 X 3.70 X 1.65 In / 120 X 94 X 42 Mm) | 1590BBS, 1590WBBS, 1590BBSFL, 1590WBBSFL, 1590BBSF, 1590WBBSF, 1590BBSBK, 1590WBBSBK, 1590BBSFLBK, 1590WBBSFLBK, 1590BBSFBK, 1590WBBSFBK, 1590BBSCB, 1590BBSGR, 1590BBSLG, 1590BBSOR, 1590BBSPR, 1590BBSRD, 1590BBSYL |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Backing | Adhesive backing for easy installation |
| Material | Silicone |
| Applied To | Enclosure lid |
Environmental & Protection
| IP Rating | IP65 |
| IP65 Condition | With properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in) |
| Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590BBGASKET fit?▾
The series ordering table lists it as the replacement gasket kit for the 1590BB, 1590BB2, 1590BBS and 1590C enclosures, including their flanged lid, flanged bottom plate, water-tight, black and colour versions.
How many gaskets are in the pack?▾
Each kit includes two pre-formed silicone gaskets.
Will this make my enclosure IP65?▾
The enclosure is designed to meet IP65 with a properly installed gasket and lid screws torqued to 25-30 cN.m (36-43 ozf.in). Standard versions without a gasket are designed to meet IP54.
What temperature range can the gasket handle?▾
The gasket has a temperature rating of -40°C to 150°C (-40°F to 302°F).
How is the gasket installed?▾
The gasket has an adhesive backing and is applied to the lid, so you can machine and/or paint the enclosure first and add the gasket afterwards.
