Hammond 1590BB2YL Yellow 120x94x38mm Painted Diecast Stomp Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Yellow glossy polyester powder coat matched to RAL 1021, applied at the factory
- Nominal 4.72 in (120 mm) x 3.70 in (94 mm) x 1.50 in (38 mm) (120 x 94 x 38 mm) rectangular diecast body
- Inside space 113.77 mm x 88.27 mm x 33.50 mm (L x W x H) per drawing
- Diecast aluminum alloy box and lid: tough yet easy to machine
- Designed to meet IP54; IP65 with optional 1590BBGASKET gasket kit and water-tight screws
- Low side wall draft angle (2° or less) for easy PC board mounting
- Includes box, lid and 4 cover screws; RoHS and REACH compliant

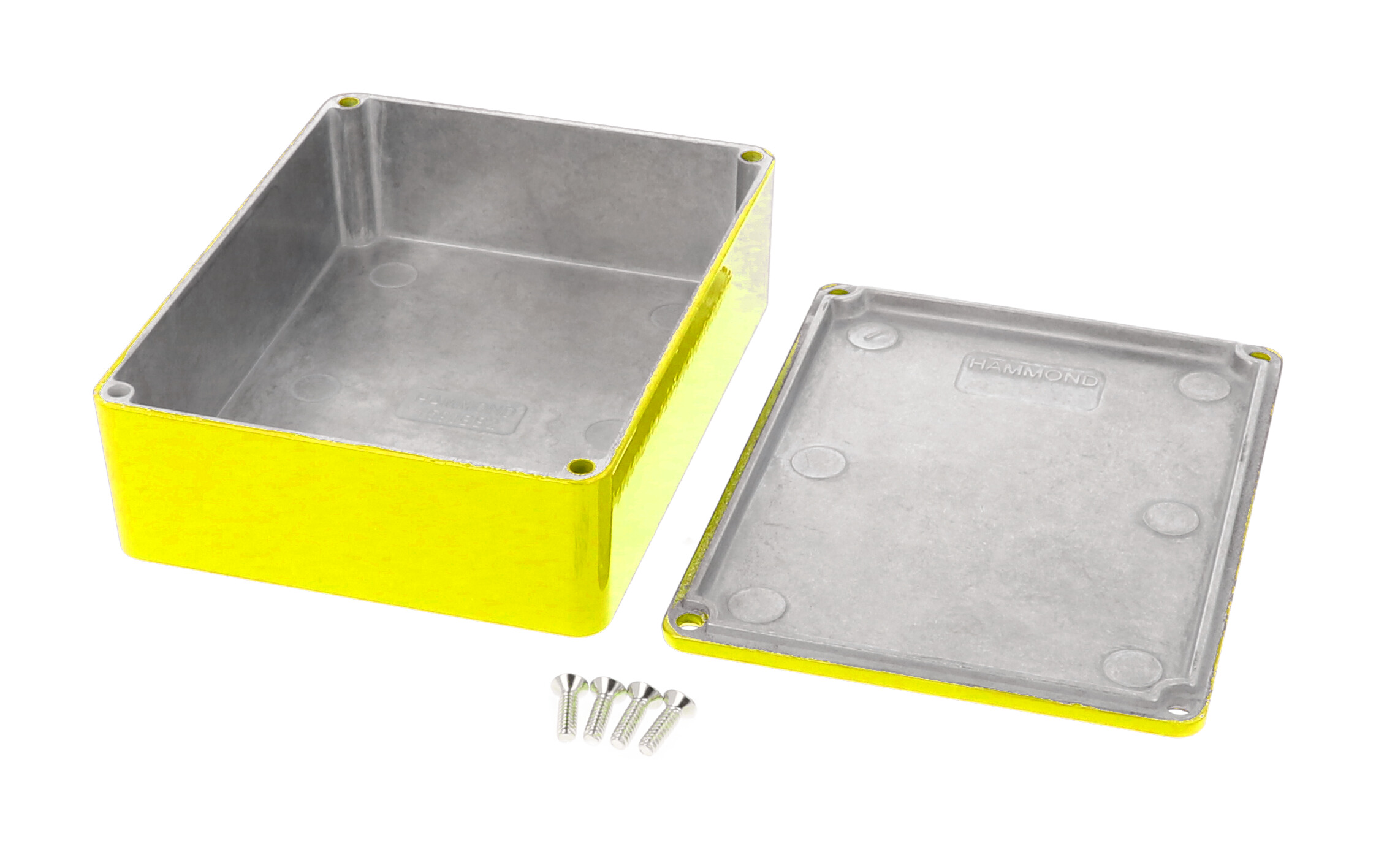

The 1590BB2YL is a 1590BB2-size painted diecast enclosure in Yellow (RAL 1021), built for stomp box manufacturers, DIY pedal builders and electronics experimenters. At 4.72 in (120 mm) long, 3.70 in (94 mm) wide and 1.50 in (38 mm) high, it is the taller 38 mm version of the 120 x 94 mm footprint, giving 4 mm more height than the 34 mm 1590BB.
The box and lid are diecast aluminum alloy, tough yet easy to machine. A smooth glossy polyester powder coat is applied at the factory, saving time and cost for builders while providing a lasting finish after machining and an easy surface for labels or silk screens. The yellow finish is matched to RAL 1021.
Drawing dimensions are 119.50 x 94.00 x 37.75 mm [4.705 x 3.701 x 1.486 in] overall, with 113.77 mm inside length, 88.27 mm inside width and 33.50 mm inside height. Maximum PC board dimensions are listed as 84.83 mm and 110.33 mm, and a side wall draft angle of 2° or less keeps board mounting simple. Shipping weight is 0.52 lbs (0.24 kg).
Lap joint construction resists dust and splashing water and the 1590BB2YL is designed to meet IP54; the optional 1590BBGASKET gasket kit plus water-tight screws brings it to IP65. It ships as box, lid and 4 cover screws (6-32 UNC), with a recommended torque of 50-55 cN.m, or 25-30 cN.m when a gasket is fitted. RoHS and REACH compliant; shrink-wrap packaging.
Ideal For
- Effects pedal (stomp box) enclosures
- Experimenter and hobbyist electronics builds
- Stomp box manufacturing runs
- Electronic instrument enclosures
- Projects finished with labels or silk-screened graphics
Overview
| Type | Die-cast box |
| Series | 1590-STOMP Painted Diecast Stomp Box Enclosures |
| Description | enclosure - diecast |
| Enclosure Shape | Rectangular |
Dimensions
| Inside Width | 88.27 mm [3.475 in] |
| Inside Height | 33.50 mm [1.319 in] |
| Inside Length | 113.77 mm [4.479 in] |
| Nominal Width | 3.70 in (94 mm) |
| Nominal Height | 1.50 in (38 mm) |
| Nominal Length | 4.72 in (120 mm) |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.49 in (119 mm x 94 mm x 38 mm) |
| Max. PC Board Width | 110.33 mm |
| Max. PC Board Length | 84.83 mm |
| Overall Width (Drawing) | 94.00 mm [3.701 in] |
| Overall Height (Drawing) | 37.75 mm [1.486 in] |
| Overall Length (Drawing) | 119.50 mm [4.705 in] |
Identifiers
| UPC | 623980810348 |
| UNSPSC | 39121301 |
| Part Number | 1590BB2YL |
| Drawing Revision | 25.05.2020 |
| Short Description | DIECASTBOX 4.7X3.7X1.49 YELLOW |
Related Parts
| Black Textured Enclosure | 1590BB2BK |
| Natural Finish Enclosure | 1590BB2 |
| Black Cover Screws #6-32 X 1/2" (Pkg 100) | 1590MS100BK |
| Plated Cover Screws #6-32 X 1/2" (Pkg 100) | 1590MS100 |
| Black Replacement Screws #6-32 X 1/2" (Pkg 50) | 1590MS50BK |
| Tamper-Resistant Screws, Black #6-32 X 1/2" (Pkg 50) | 1590MS50TBK |
| Liquid Resistant Enclosure, Natural (Silicone Gasket) | 1590WBB2 |
| Liquid Resistant Enclosure, Black Textured (Silicone Gasket) | 1590WBB2BK |
| Tamper-Resistant Screws, Nickel Plated #6-32 X 1/2" (Pkg 50) | 1590MS50T |
| Stainless Steel Liquid Resistant Cover Screws, 6-32 X 1/2" With O-Ring (Pkg 100) | 1590WMS100 |
| Black Stainless Steel Liquid Resistant Cover Screws, 6-32 X 1/2" With O-Ring (Pkg 100) | 1590WMS100BK |
Packaging & Shipping
| Included | Box, lid and 4 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.52 lbs (0.24 kg) |
Construction & Finish
| Color | Yellow |
| Finish | Smooth glossy polyester powder coat, factory applied |
| Material | Aluminum (Die-Cast Alloy) |
| RAL Number | RAL 1021 |
| Solid Models | Available in .stp or .x_t |
| Joint Construction | Lap joint |
| Cover Screw Threads | 4X 6-32 UNC |
| Box And Lid Material | Diecast Aluminum Alloy |
| Factory Modification | Milling, drilling, printing etc. available by quote from the factory |
| Side Wall Draft Angle | 2° or less |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| IP Rating | IP54 |
| IP65 Option | Optional 1590BBGASKET gasket kit; IP65 also requires water-tight screws |
| Optional Gasket | 1590BBGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1590BB2YL?▾
The ordering table lists 4.72 in (120 mm) long, 3.70 in (94 mm) wide and 1.50 in (38 mm) high. The part page gives 4.7 in x 3.7 in x 1.49 in (119 mm x 94 mm x 38 mm), and the drawing shows 119.50 mm [4.705 in] x 94.00 mm [3.701 in] x 37.75 mm [1.486 in] overall with inside dimensions of 113.77 mm [4.479 in] x 88.27 mm [3.475 in] x 33.50 mm [1.319 in].
What colour is it exactly?▾
The 1590BB2YL is Yellow, matched to standard RAL 1021, in a smooth glossy polyester powder coat applied at the factory.
Is this enclosure waterproof?▾
It is designed to meet IP54 thanks to its lap joint construction, which protects against dust and splashing water. To reach IP65 you need the optional 1590BBGASKET gasket kit and water-tight screws.
What comes in the package?▾
The purchased assembly includes the box, the lid and 4 cover screws. Box and lid are made from diecast aluminum alloy, and the part ships shrink wrapped.
How large a circuit board will fit?▾
The maximum PC board dimensions are listed as 84.83 mm and 110.33 mm, and the side walls have a draft angle of 2° or less for easy board mounting.
Can I drill it without ruining the finish?▾
Diecast aluminum is tough yet easy to machine, and the polyester powder coat is specified to give a lasting finish even after machining. Factory modification (milling, drilling, printing) is also offered by quote.
