Hammond 1590BB 120x94x34mm Natural Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 120 x 94 x 34 mm diecast aluminum box, no mounting flanges
- Inside 112.66 x 87.16 x 29.75 mm [4.435 x 3.432 x 1.171 in]
- Natural vibra finish with no sharp edges
- Designed to meet IP54; lap joint lid construction
- Box, lid and 4 cover screws in factory-tapped 6-32 UNC holes
- Water-tight 1590WBB; 1590BBGASKET kit fits
- Draft angle of 2° or less for easy PC board mounting
- RoHS and REACH compliant; 0.49 lbs (0.22 kg)

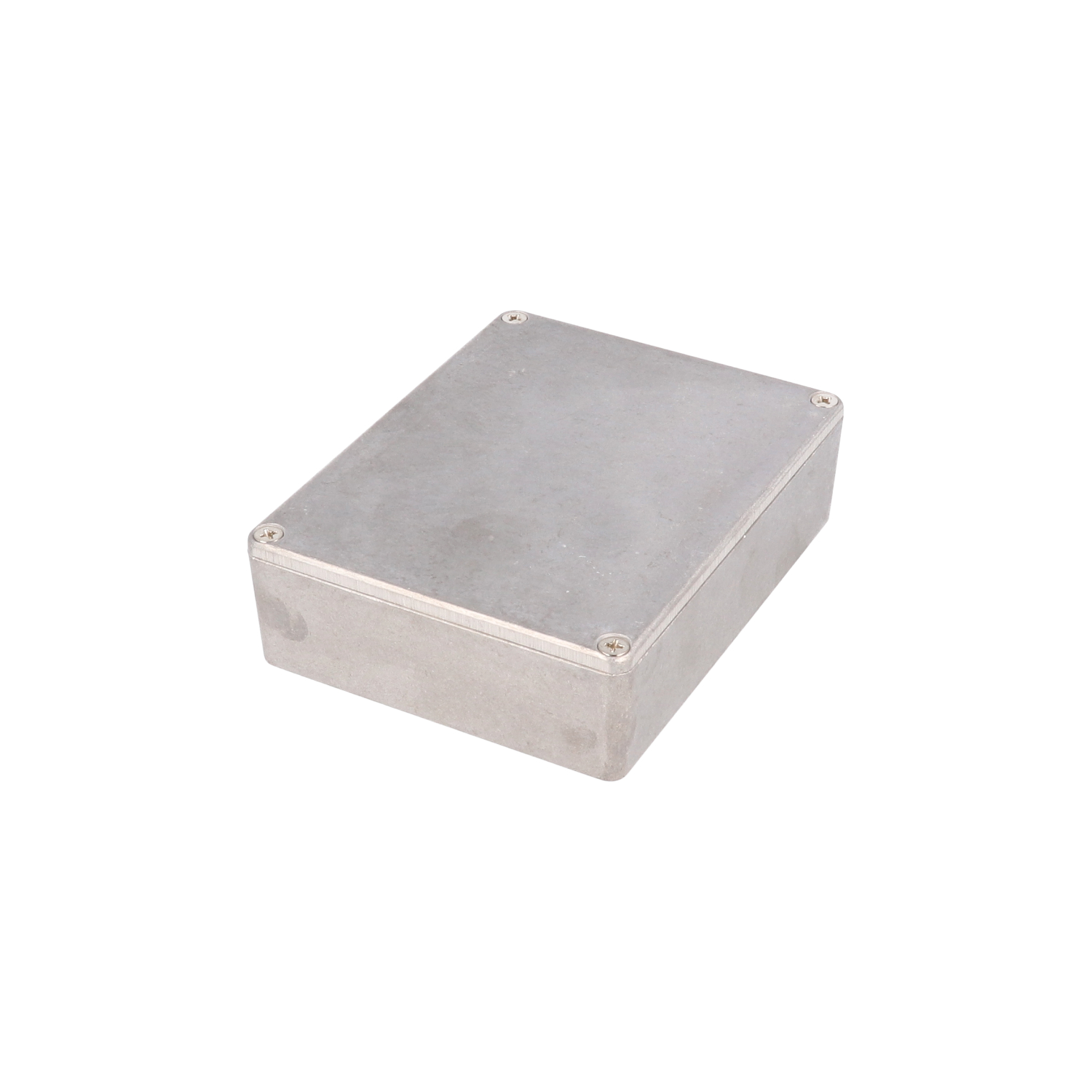

The 1590BB is a natural finish diecast aluminum enclosure with a nominal size of 120 x 94 x 34 mm and no mounting flanges. Its wide, low footprint makes it a practical general-purpose electronic instrument housing for OEM engineers, technicians and integrators who need a rugged, machinable box.
Box and lid are made from diecast aluminum alloy, tough yet easy to machine. The unpainted version is vibra finished for a smooth surface with no sharp edges, and lap joint construction where lid and box meet protects against access of dust and splashing water. The standard 1590BB is designed to meet IP54.
The part page lists 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm); the series table gives a nominal 4.72 x 3.70 x 1.34 in (120 x 94 x 34 mm). The drawing measures 119.50 x 94.00 x 34.00 mm [4.705 x 3.701 x 1.339 in] outside and 112.66 x 87.16 x 29.75 mm [4.435 x 3.432 x 1.171 in] inside. Listed maximum PC board values are 85.16 mm and 110.66 mm, and the side wall draft angle is 2° or less.

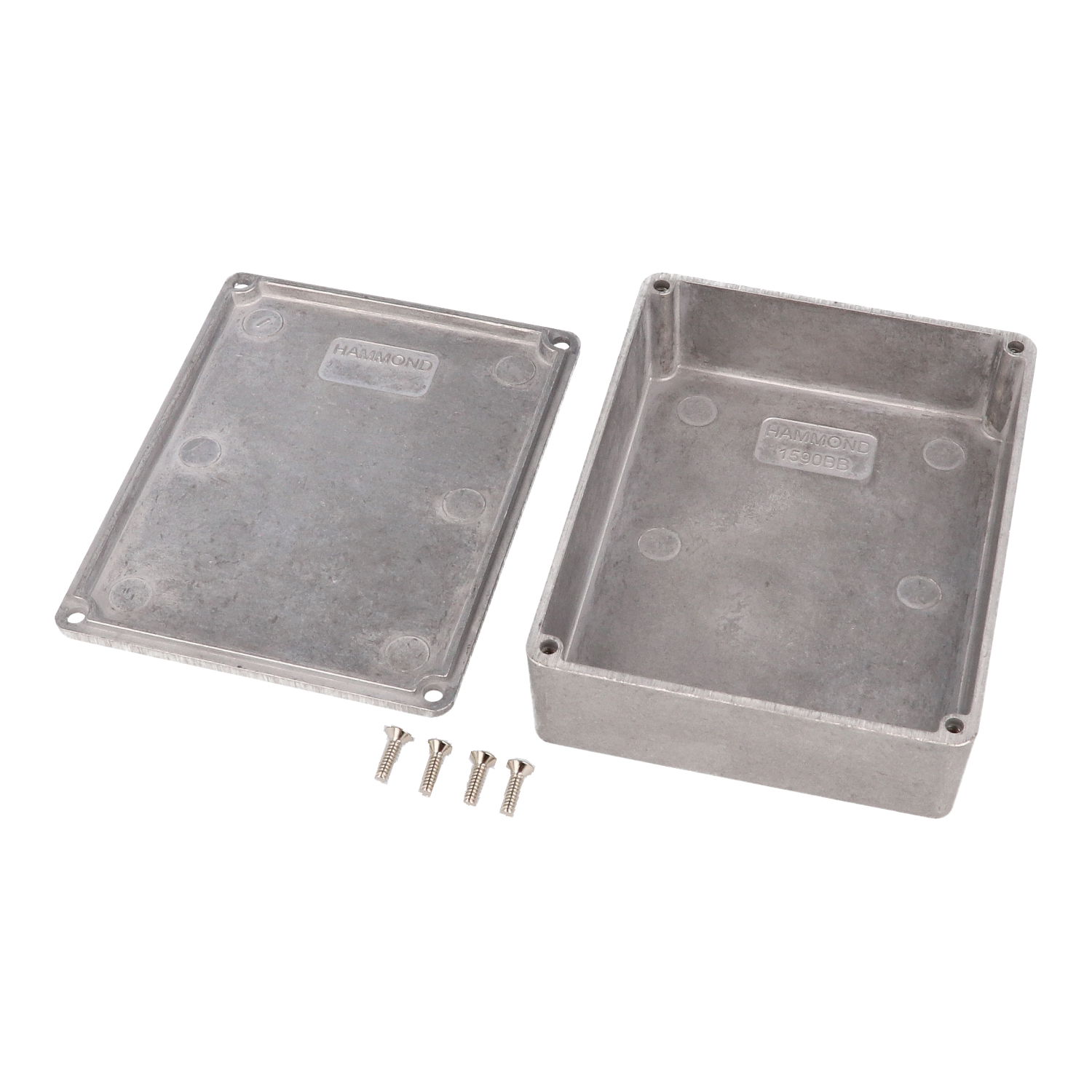

The assembly includes box, lid and 4 cover screws in factory-tapped 6-32 UNC holes at a recommended 50-55 cN.m [71-78 ozf.in]. The water-tight version is 1590WBB, and the 1590BBGASKET kit fits this size. Factory modification and STEP or IGES models are available.
Ideal For
- General purpose electronic instrument enclosure
- Wide, low-profile PC board housings
- Custom drilled and machined project boxes
- Dust and splash resistant electronics
Hardware
| Included Items | Box, lid and 4 cover screws |
| Cover Screw Holes | 4X 6-32 UNC, factory-tapped |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Hardware Upgrade Option | Tamper-proof hardware (Torx w/ Pin) |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 [6-32 x 1/2" With O-Ring] |
| Black Stainless Steel Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100BK [6-32 x 1/2" With O-Ring] |
Overview
| Type | Die-cast box |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Description | DIECAST BOX 4.7X3.7X1.2 |
| Part Number | 1590BB |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Series Table Color | Natural |
Services
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 87.16 mm [3.432 in] |
| Inside Height | 29.75 mm [1.171 in] |
| Inside Length | 112.66 mm [4.435 in] |
| Nominal Width | 3.70 in (94 mm) |
| Nominal Height | 1.34 in (34 mm) |
| Nominal Length | 4.72 in (120 mm) |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm) |
| Overall Width (Drawing) | 94.00 mm [3.701 in] |
| Overall Height (Drawing) | 34.00 mm [1.339 in] |
| Overall Length (Drawing) | 119.50 mm [4.705 in] |
| Max. P.C. Board Width (Mm) | 110.66 |
| Max. P.C. Board Length (Mm) | 85.16 |
Identifiers
| UPC | 623980538907 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.49 lbs (0.22 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast Aluminum Alloy |
| Lid-to-Box Joint | Lap joint construction |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
| Optional Replacement Gasket Kit | 1590BBGASKET |
| Liquid Resistant (Water-Tight) Version | 1590WBB (silicone gasket supplied) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590BB?▾
The part page lists 4.7 in x 3.7 in x 1.34 in (119 mm x 94 mm x 34 mm); the drawing gives 119.50 x 94.00 x 34.00 mm outside.
What are the inside dimensions?▾
Inside length 112.66 mm [4.435 in], inside width 87.16 mm [3.432 in] and inside height 29.75 mm [1.171 in].
What PC board size fits?▾
Listed maximum P.C. board length is 85.16 mm and maximum width is 110.66 mm.
Is the 1590BB water-tight?▾
The standard version is designed to meet IP54. The water-tight 1590WBB includes a silicone gasket, and the 1590BBGASKET kit can upgrade an IP54 enclosure to IP65.
Is there a taller version?▾
Yes, the 1590BB2 shares the footprint with a nominal height of 38 mm.
