Hammond 1583T8D1BK 1U 8-Outlet 15A Rear-Facing Rack PDU
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Eight rear-facing NEMA 5-15R outlets for power distribution from the back of the rack (0 front, 8 rear).
- 1U horizontal 19-inch rackmount format: 1.72 in H x 19.00 in W x 2.66 in D (44 x 483 x 68 mm).
- Rated 125 VAC, 60 Hz, 15 Amps with a resettable 15 A, 125 VAC circuit breaker against overload.
- 15 ft heavy-duty 14/3 SJT cord with integral moulded plug; series table and drawing specify locking NEMA L5-15P.
- Red power indicator (pilot) light instead of an on/off rocker switch.
- Black painted steel front and back, RAL9005 black powder coat meeting Greenguard indoor air quality guidelines.
- UL Recognized to UL1363 and CSA Certified to C22.2 No. 21-95 / 42-99, UL file E166039.
- TAA-compliant for federal GSA schedule purchases in the USA; USMCA, RoHS and REACH compliant.

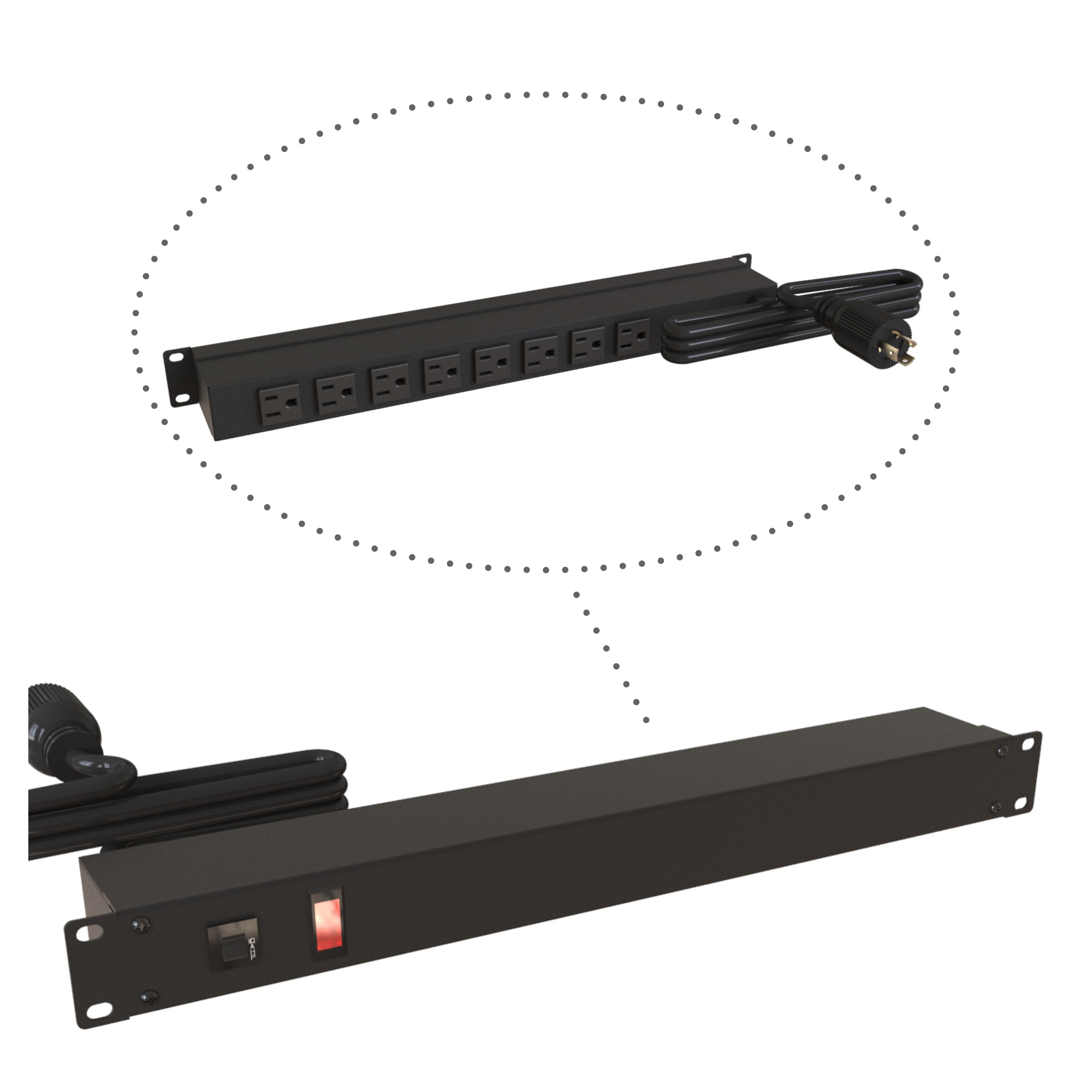

The 1583T8D1BK is a 1U horizontal 19-inch rack mount basic PDU (outlet strip) with eight NEMA 5-15R receptacles, all facing the rear of the unit. It is intended for IT, AV, broadcast and industrial integrators who need straightforward single-phase 125 VAC power distribution behind rack-mounted equipment, with cabling kept out of the front working area. This version carries a red power indicator (pilot) light rather than an illuminated on/off rocker switch, so connected loads stay energised whenever the cord is plugged in.
Construction is painted steel, black front and back, in the series' RAL9005 black powder coat, which complies with the Greenguard guidelines for indoor air quality. Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep, with the drawing showing a 17.500 in mounting-hole span across the front flange and an overall body length of 461.98 mm (18.188 in). Shipping weight is 4.37 lbs (1.98 kg).
Power comes in through a heavy-duty 14 gauge, 14/3 SJT cord with an integral moulded plug rated for extreme temperature ranges. The cord on the 1583T8D1BK is 15 ft long and the drawing and series ordering table specify a locking NEMA L5-15P plug, while the part attributes list the plug as 5-15P; confirm the plug style required for your receptacle before ordering. A resettable 15 Amp, 125 VAC circuit breaker on the front guards against accidental overload.
- Rated 125 VAC, 60 Hz, 15 Amps (rated voltage listed as 120 VAC on the part attributes)
- No surge protection, no shielded cord, no ammeter, non-rotated outlets, not hospital grade
1583T8D1BK is UL Recognized to UL1363 and CSA Certified to C22.2 (No. 21-95, 42-99), UL file E166039, and is TAA-compliant, USMCA, RoHS and REACH compliant. Manufactured in North America.
Ideal For
- Rear-of-rack power distribution in server and network cabinets
- 1U horizontal power strip for 19-inch AV and broadcast racks
- Powering rack-mounted equipment from a locking 125 V branch circuit
- Federal GSA schedule and TAA-compliant rack build-outs
Overview
| Series | 1583 Series Rack Mount Basic PDU |
| Metered | No |
| Part Number | 1583T8D1BK |
| Switch Type | No Switch. Power Indicator Light |
| Hospital Grade | No |
| Long Description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 15 ft cord, Black |
| Surge Protection | No |
| Outlet Strip Type | 1U 19in Rack Mount |
| Short Description | 19" RACK MOUNT, 8 REC ON REAR |
Dimensions
| Corner Radius | R3.18 mm [0.125 in] |
| Overall Depth | 2.66 in (68 mm) |
| Overall Width | 19.00 in (483 mm) |
| Overall Height | 1.72 in (44 mm) |
| Body Length (Drawing) | 461.98 mm [18.188 in] |
| Panel Height (Drawing) | 43.64 mm [1.718 in] |
| Depth (Drawing, Side View) | 67.58 mm [2.661 in] |
Electrical
| Phase | Single-phase |
| Indicator | Pilot light (red power indicator) |
| Cord Length | 15 ft |
| Outlet Type | NEMA 5-15R |
| Cord Included | Yes |
| Rated Current | 15 A |
| Shielded Cord | No |
| Total Outlets | 8 |
| Outlets (Rear) | 8 |
| Outlets (Front) | 0 |
| Rotated Outlets | No |
| Rating (Drawing) | 125 VAC, 60 Hz, 15 Amps |
| Cord Construction | Heavy-duty 14 gauge, 14/3 SJT type for extreme temperature ranges, integral moulded plug |
| Overcurrent Protection | Resettable 15 Amp, 125 VAC circuit breaker |
| Plug Type (Part Attributes) | 5-15P |
| Rated Voltage (Part Attributes) | 120 VAC |
| Plug Type (Series Table & Drawing) | NEMA L5-15P, locking blade type |
Identifiers
| UPC | 623980998282 |
| UNSPSC | 39121710 |
| GTIN-14 | 00623980998282 |
| UPC W/o Check Digit | 62398099828 |
Rack Mounting
| Rack Space | 1U |
| Rack Width | 19 inch (1U horizontal rackmount installation) |
| Mounting Orientation | Horizontal, designed for power distribution from the rear of the unit |
| Mounting Hole Span (Drawing) | 444.50 mm [17.500 in] |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 8537.10.9170 |
| Shipping Weight | 4.37 lbs (1.98 kg) |
| Country Of Origin | CA |
Construction & Finish
| Color | Black |
| Finish | Black painted steel; RAL9005 black powder coat |
| Material | Painted steel (front and back) |
| Manufacturing Location | Manufactured in North America |
Environmental & Protection
| Indoor Air Quality | Complies with Greenguard guidelines for indoor air quality |
Compliance & Certifications
| UL File # | E166039 |
| RoHS Compliant | Yes |
| TAA Compliance | TAA-compliant for federal GSA schedule purchases within the USA |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Standards Listed | cRUus, TAA-compliant |
| Series Recognition | UL/cUL recognized Standard UL1363 and CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04 |
| Approvals (Drawing) | CSA Certified Standards C22.2 (No. 21-95, 42-99); UL Recognized Standard UL1363 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1583T8D1BK have an on/off switch?▾
No. This version has a red power indicator (pilot) light and no switch. The equivalent model with an illuminated on/off rocker switch is 1583H8D1BK.
Which way do the outlets face?▾
All eight NEMA 5-15R outlets face the rear of the unit (0 front, 8 rear), so it is designed for power distribution from the back of the rack.
What plug is on the cord?▾
The 15 ft, 14/3 SJT cord is shown in the drawing and the series ordering table as a locking NEMA L5-15P plug, while the part attribute table lists the plug type as 5-15P. Verify the plug style needed for your source receptacle before ordering.
How much rack space does it take up?▾
One rack unit. Overall dimensions are 1.72 in (44 mm) high, 19.00 in (483 mm) wide and 2.66 in (68 mm) deep, for horizontal 19-inch rackmount installation.
Is there overload protection or surge suppression?▾
It includes a resettable 15 Amp, 125 VAC circuit breaker. This model is not surge protected, not metered and does not have a shielded cord.
Is this part suitable for U.S. federal purchases?▾
The series is TAA-compliant for federal GSA schedule purchases within the USA, and the part is listed as USMCA, RoHS and REACH compliant with country of origin CA.
