Hammond 1583H6A1 1U 15A Gray PDU, 6 Rear 5-15R Outlets

The 1583H6A1 is a 1U horizontal 19-inch rack mount outlet strip (basic PDU) rated 15 A at 120 VAC, designed for power distribution from the rear of the unit. It suits IT, AV and industrial racks where equipment cords land at the back of the enclosure and a single switched feed is wanted at the front.

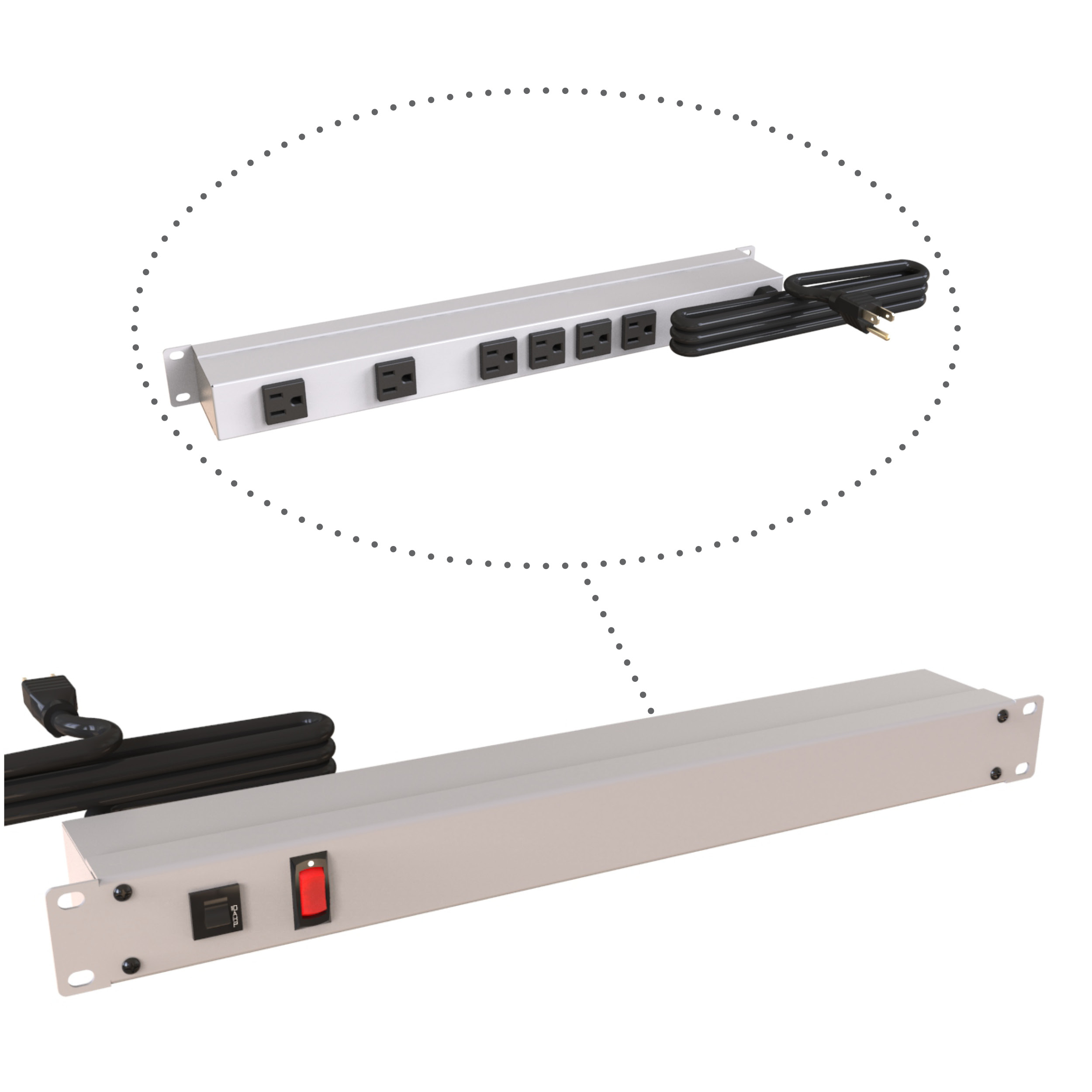

This part number is finished in ASA 61 gray powder coat on both the front and back panels over painted steel, and the drawing identifies a lighted on/off power switch and a resettable circuit breaker on the front face. The series specification notes a 15 Amp, 125 VAC circuit breaker to prevent accidental overload, and a heavy-duty 14 gauge 14/3 SJT cord with integral moulded plug for extreme temperature ranges. The finish complies with the Greenguard guidelines for indoor air quality.

Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide by 2.66 in (68 mm) deep, with the drawing showing 17.500 in mounting hole centres across the 19.000 in panel and a 1.718 in panel height. Shipping weight is 1.6 lbs (0.73 kg). Six 5-15R outlets are provided, fed by a 6 ft cord with a NEMA 5-15P straight blade plug.

The 1583H6A1 is supplied without surge protection, without a shielded cord, without rotated outlets and without metering; other configurations in the 1583 series cover those options. Approvals shown for this part include CSA Certified Standards C22.2 (No. 21-95, 42-99) and UL Recognized Standard UL1363, under UL file E166039. The unit is RoHS and REACH compliant, USMCA compliant, TAA-compliant for federal GSA schedule purchases within the USA, and manufactured in North America.
