Hammond 1554VA2GYCL 240x160x90mm IP68 Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid secured by six cover screws
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13 per part page
- 240 x 160 x 90 mm; inside 231.29 x 147.29 x 83.30 mm
- UL94 V-0; cUL and UL 508A listed, file E65324
- UV stabilized, IK08, -40°C to +110°C

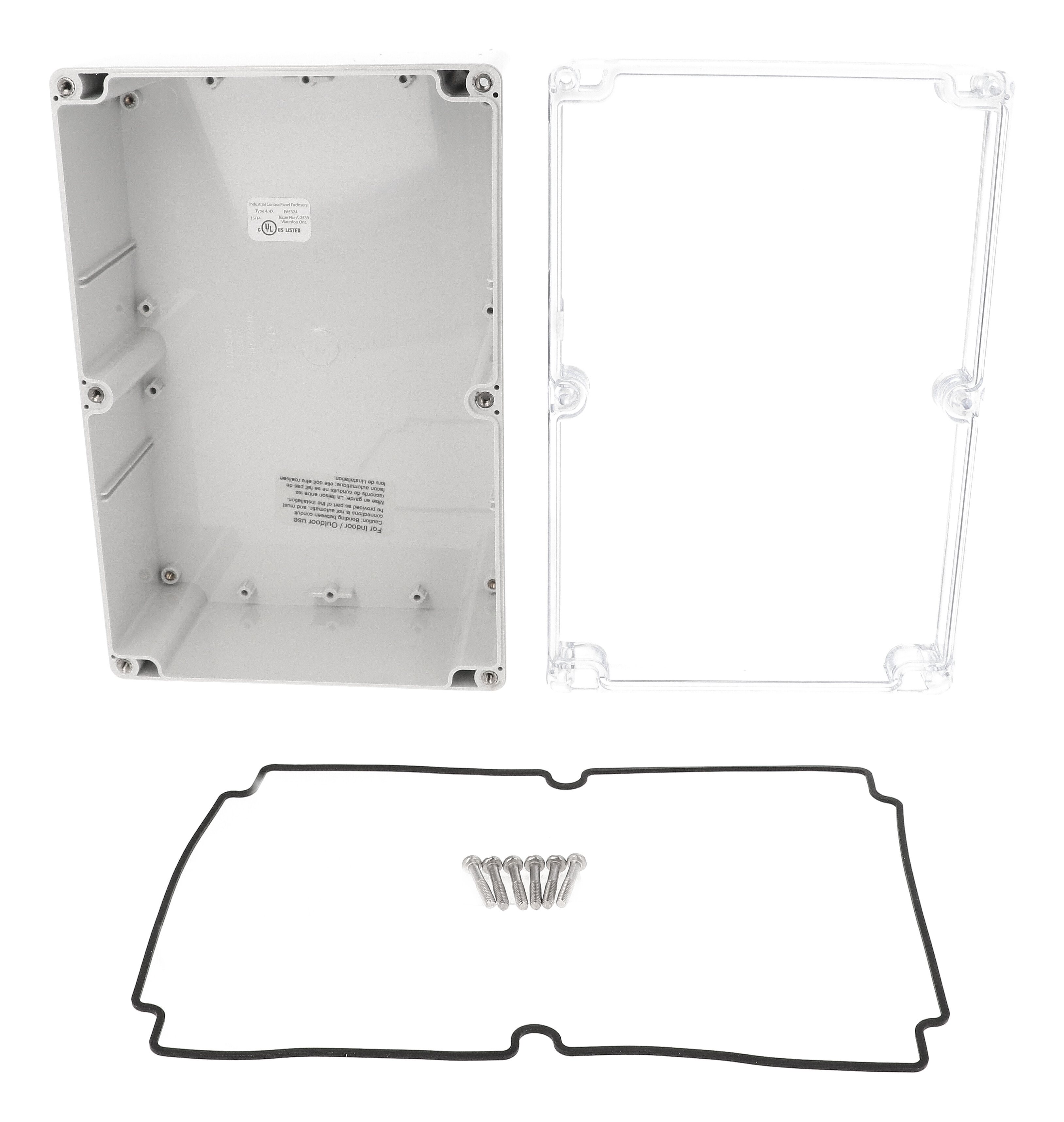

- Includes box, lid, 6 cover screws and preformed gasket
- PC boards up to 145.5 x 226.82 mm
The 1554VA2GYCL is a 240 x 160 x 90 mm polycarbonate enclosure with a clear polycarbonate lid held down by six cover screws. It suits outdoor and wet-location builds where displays, meters or status lights inside must be read without opening the cover, and where IP68 protection is required.
The part page lists IP68, a NEMA rating of 4, 4X, 6, 6P, 12 & 13, a UL94 V-0 flame rating and a color attribute of Clear. Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, IK08 impact rated per IEC 62262:2021 and recommended for -40°C to +110°C. The drawing is marked Type 4, 4X, 6, 6P.
- Inside: 231.29 x 147.29 mm, 83.30 mm high
- Maximum P.C. board dimensions (part page): 145.5 mm and 226.82 mm
- Six M4-0.7 x 25 mm stainless cover screws; torque 71-85 oz f-in (50-60 cN-m)
- Four Ø4.50 mm wall mounting holes outside the gasket channel
The drawing notes that the purchase includes the box, lid, six cover screws and a preformed silicone gasket; the tongue and groove lid protects against oil, dust and water. DIN rail tabs, card guides for 1.5 mm boards and M3 brass inserts are molded in, and the 1554VAPL inner panel, 1554FT foot kit, 1554VAGASKET and SC583-50 are the matching accessories. The 1554VA2GYCL ships shrink wrapped at 1.35 lbs (0.61 kg).
Ideal For
- Outdoor instrumentation with visible displays
- Wet-location controls requiring IP68
- Monitoring electronics with status indicators
- UL 508A control sub-enclosures
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Lid Version | Clear polycarbonate lid |
| Part Number | 1554VA2GYCL |
| Short Description | 240X160X90MM P/C NEMA CLR LID |
Dimensions
| Inside Width | 147.29 mm [5.80 in] |
| Inside Height | 83.30 mm [3.28 in] |
| Inside Length | 231.29 mm [9.11 in] |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Overall Height (Drawing) | 90.00 mm [3.54 in] |
| Total Height (Ordering Table) | 3.54 in (90 mm) |
| Overall Length X Width (Drawing) | 240.00 mm [9.45 in] x 160.00 mm [6.30 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554VAPL |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Screws (50-pk) | SC583-50 (stainless steel cover screws, M4-0.7 x 25 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980401423 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554VA (Rev 28.02.2020) |
| ABS Gray Lid Version | 1554VAGY |
| Polycarbonate Gray Lid Version | 1554VA2GY |
| Polycarbonate Clear Lid Version | 1554VA2GYCL |
| Polycarbonate Smoked Lid Version | 1554VA2GYSL |
Packaging & Shipping
| Included | Box, lid, 6 cover screws, and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.35 lbs (0.61 kg) |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Clear |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 6 |
| Enclosure Color | Light gray (RAL 7035) |
| Cover Screw Size | M4-0.7 x 25 mm (stainless steel) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
| Recommended Cover Screw Torque | 71-85 oz f-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| Series Flammability Note | Solid gray polycarb UL94-5VA; clear and smoked lids UL94V-0 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| Independently Tested Ratings (Spec Sheet) | IP66, IP67, IP68; NEMA Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cUL US Listed, File #E65324, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554VAPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.50 mm [Ø.18 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Can I read displays through the 1554VA2GYCL lid?▾
Yes, it has a clear polycarbonate lid.
Is it submersible?▾
The part page lists IP68 and a NEMA rating that includes 6 and 6P.
What cover screw torque is recommended?▾
71-85 oz f-in (50-60 cN-m) for the M4-0.7 x 25 mm stainless screws.
What flame rating does the clear lid have?▾
UL94 V-0 per the part page.
Which gasket replaces the original?▾
1554VAGASKET, a black pre-formed silicone gasket in a package of 2.
Related Products
Save 52%1554VA2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554VA2GY
Save 52%1554VA2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554VA2GYSL
Save 52%1554V2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554V2GYSL
Save 52%1554VACL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554VACL

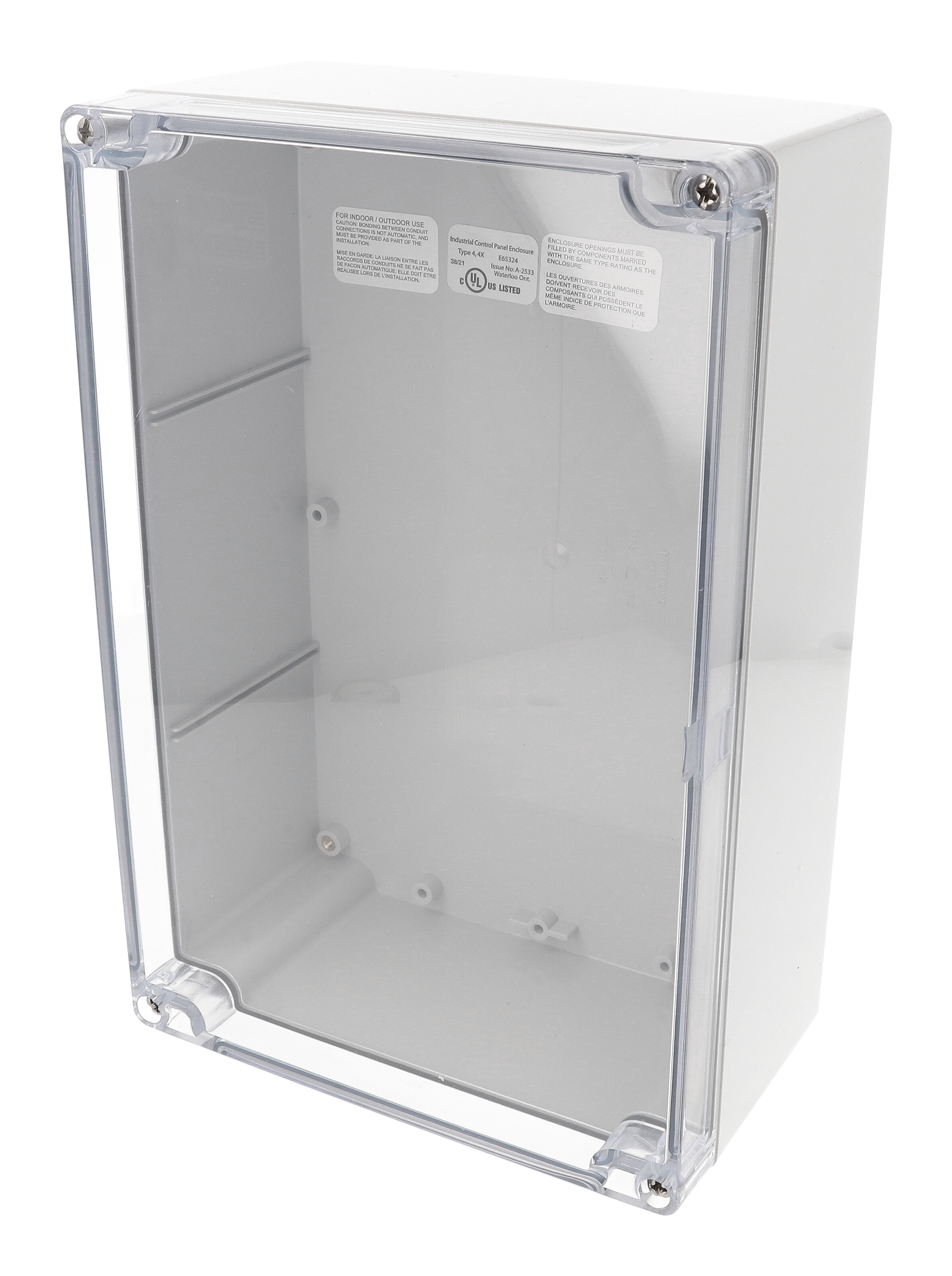

Save 52%1554V2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
