Hammond 1554S2GYCL 160x160x90mm Clear Lid Polycarbonate NEMA Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid on a light gray RAL 7035 polycarbonate box
- 160 x 160 x 90 mm nominal, 91 mm total height
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 per part page
- UL94 V-0; cUL and UL 508A listed under file E65324
- UV stabilized for outdoor use; IK08 impact rating
- PC boards up to 147.4 x 150.95 mm; 84.00 mm inside height
- Ships with box, lid, 4 cover screws and preformed silicone gasket

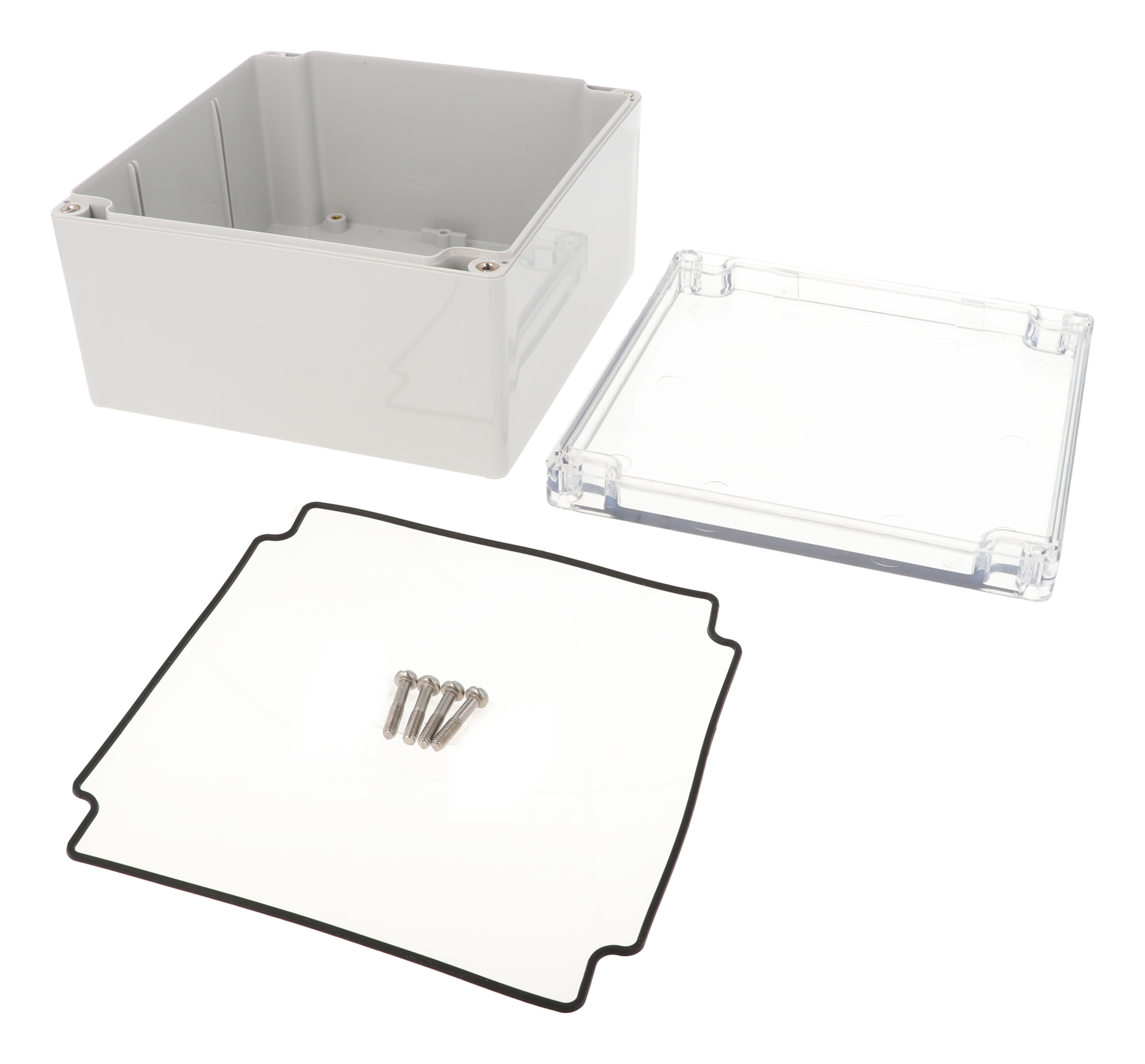

When you need to see what is inside without opening it, the 1554S2GYCL pairs a RAL 7035 light gray polycarbonate box with a clear polycarbonate lid. This deep square size measures 160 x 160 x 90 mm nominal (6.3 x 6.3 x 3.5 in; 91 mm total height), making it a fit for integrators and OEM designers mounting meters, displays, status LEDs or DIN rail devices that must stay visible.
The part page lists a UL94 V-0 flame rating, which the series assigns to clear lids, along with IP68 and NEMA 4, 4X, 6, 6P, 12 & 13. Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, IK08 impact rated per IEC 62262:2021, and recommended for -40°C to +110°C.
Inside the 1554S2GYCL there is 84.00 mm (3.31 in) of height and 152.13 mm (5.99 in) of length per the drawing, with room for a PC board up to 147.4 x 150.95 mm. DIN rail tabs, M3 brass inserts and card guides for 1.5 mm boards are molded in, and a 1554RPL steel inner panel can be ordered separately.
The purchased assembly includes the box, lid, four cover screws and a preformed silicone gasket. The two piece tongue and groove lid seals on the loose-supplied silicone gasket and is held by four self-captivating M4 stainless steel screws; the drawing recommends 43-57 oz f-in (30-40 cN-m) of torque. Shipping weight is 0.98 lbs (0.44 kg), shrink wrapped.
Ideal For
- Outdoor meter and display housings
- Enclosures with visible status indicators
- DIN rail controls needing visual inspection
- Wet-location electronics
Overview
| Lid | Clear polycarbonate lid |
| Type | Water-tight |
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Short Description | 160X160X90MM P/S NEMA CLR LID |
Dimensions
| Inside Height | 84.00 mm [3.31 in] |
| Inside Length | 152.13 mm [5.99 in] |
| Mounting Holes | 4X [.16 in] |
| Size L X W X H | 6.3 in x 6.3 in x 3.5 in (160 mm x 160 mm x 89 mm) |
| Max. P.C. Board Width | 150.95 mm |
| Max. P.C. Board Length | 147.4 mm |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Nominal Width (Ordering Table) | 6.30 in (160 mm) |
| Nominal Length (Ordering Table) | 6.30 in (160 mm) |
| Steel Inner Panel Size (Drawing) | 147.40 x 108.03 mm [5.80 x 4.25 in] |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554RGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Lid Screws (50-pk) | SC576-50 (stainless steel, M4-0.7 x 20 mm) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Inner Panel (Order Separately) | 1554RPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980842462 |
| UNSPSC | 39121301 |
| Part Number | 1554S2GYCL |
| Drawing Revision | 28.02.2020 |
| Same-Size Versions | ABS gray lid 1554SGY; polycarbonate gray lid 1554S2GY; clear lid 1554S2GYCL; smoked lid 1554S2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.98 lbs (0.44 kg) |
Construction & Finish
| Color | Clear |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | Qty 4, M4 stainless steel machine screws (included), self-captivating |
| Wall Mounting | Wall-mounting holes located outside the gasket channel |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts and/or standoffs accepting #6 self-tapping screws; vertical PC card guides for 1.5 mm thick PC boards |
| Lid Screw Inserts | M4 corrosion resistant inserts/bushings |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Flame Rating (Series) | Solid gray polycarbonate carries UL94-5VA; clear and smoked lids carry UL94 V-0 |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| IP Ratings (Series Testing) | IP66, IP67, IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Ratings (Series Testing) | Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | C-UL-US Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What flame rating does the clear lid version carry?▾
The part page lists UL94 V-0. In the series, clear and smoked lids carry UL94 V-0 while solid gray polycarbonate carries UL94-5VA.
Is the 1554S2GYCL rated for outdoor installation?▾
Polycarbonate versions are UV stabilized for outdoor use, with a recommended operating range of -40°C to +110°C (-40°F to +230°F).
What is the largest PC board it accepts?▾
The maximum PC board is 147.4 mm long by 150.95 mm wide.
Is there a version with a solid lid in the same size?▾
Yes. The same size comes as 1554S2GY (gray polycarbonate lid), 1554S2GYSL (smoked lid) and 1554SGY (ABS).
Can the enclosure be machined?▾
The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in .stp or .x_t.
