Hammond 1554S2GY 160x160x90mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- All-gray UV stabilized polycarbonate, RAL 7035
- 160 x 160 x 90 mm nominal (91 mm total height) deep square body
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13 per part page
- cUL and UL 508A listed, file E65324; UL94 5VA material
- 84.00 mm inside height; PC boards up to 147.4 x 150.95 mm
- IK08 impact rating and -40°C to +110°C operating range

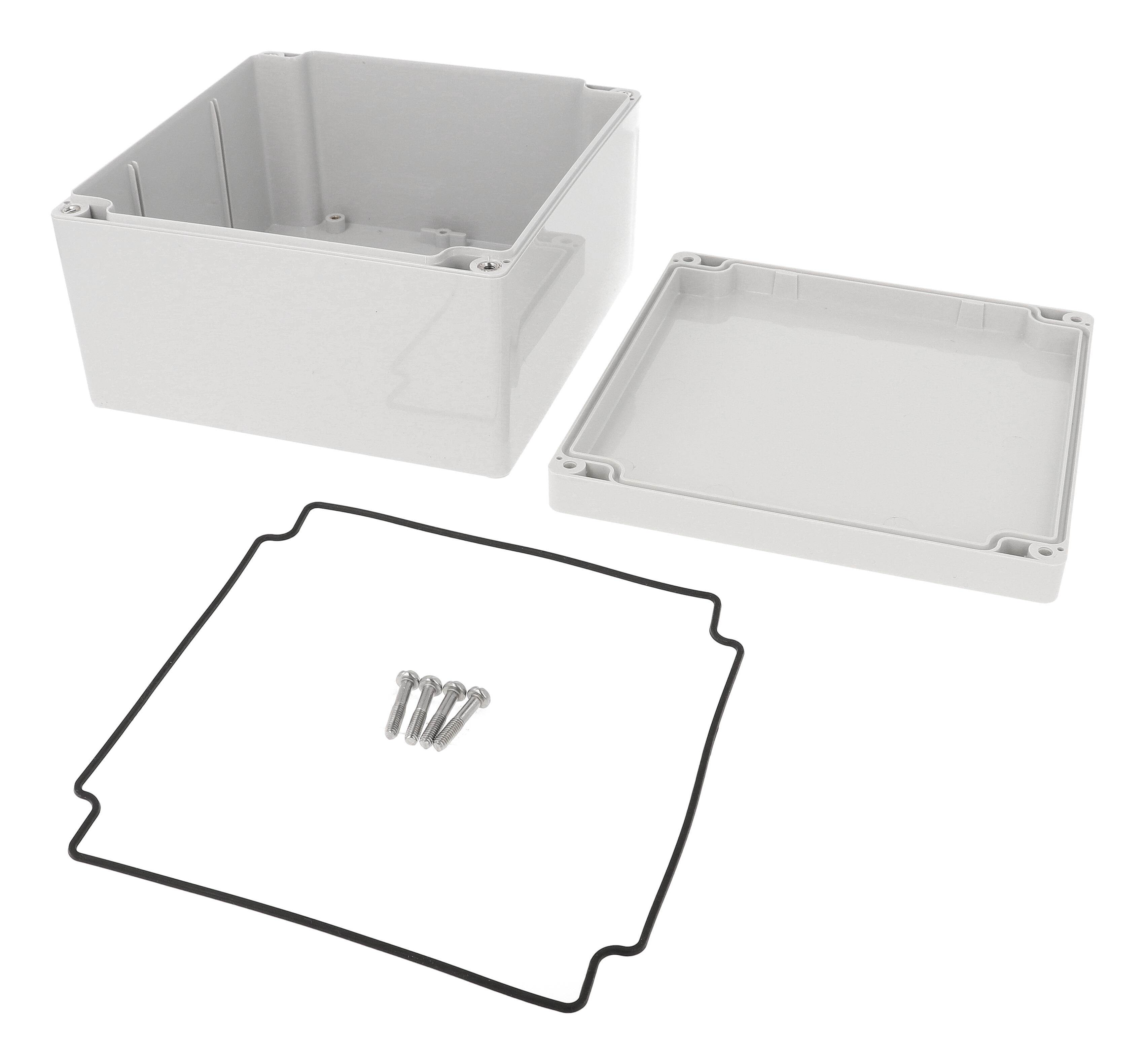

- Includes box, lid, 4 cover screws and preformed silicone gasket
The 1554S2GY is a deep, square 1554 Series enclosure molded entirely in RAL 7035 light gray polycarbonate. Nominally 160 x 160 x 90 mm (6.3 x 6.3 x 3.5 in), with a total height of 91 mm in the ordering table, it gives electrical contractors and OEM engineers room for taller components, DIN rail devices or stacked PC boards in outdoor and washdown locations.
The solid gray polycarbonate carries a UL94 5VA rating (5VA @ 3 mm on the drawing), is UV stabilized for outdoor use and is cUL and UL 508A listed under file E65324. The part page lists IP68 and NEMA 4, 4X, 6, 6P, 12 & 13; the series adds IP66/IP67 test results, IK08 impact resistance per IEC 62262:2021 and a -40°C to +110°C recommended operating range.
The drawing gives 84.00 mm (3.31 in) of inside height and 152.13 mm (5.99 in) of inside length, with a maximum PC board of 147.4 x 150.95 mm. Molded DIN rail tabs, M3 brass inserts or standoffs for #6 self-tapping screws, and vertical card guides for 1.5 mm boards are built in; the 1554RPL steel inner panel is ordered separately.
The purchased assembly includes the box, lid, four cover screws and a preformed silicone gasket. The gasket ships loose, and the four M4 stainless steel lid screws are self-captivating and seat in corrosion resistant inserts; recommended cover screw torque is 43-57 oz f-in (30-40 cN-m). Wall-mounting holes sit outside the gasket channel and also accept the 1554FT foot kit. The 1554S2GY ships shrink wrapped at 0.98 lbs (0.44 kg).
Ideal For
- Outdoor junction and control boxes
- Washdown and wet-location equipment
- DIN rail terminal and relay housings
- Deep PC board and instrument enclosures
Overview
| Lid | Gray polycarbonate lid |
| Type | Water-tight |
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Short Description | 160X160X90MM POLYCARB NEMA ENC |
Dimensions
| Inside Height | 84.00 mm [3.31 in] |
| Inside Length | 152.13 mm [5.99 in] |
| Mounting Holes | 4X [.16 in] |
| Size L X W X H | 6.3 in x 6.3 in x 3.5 in (160 mm x 160 mm x 89 mm) |
| Max. P.C. Board Width | 150.95 mm |
| Max. P.C. Board Length | 147.4 mm |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Nominal Width (Ordering Table) | 6.30 in (160 mm) |
| Nominal Length (Ordering Table) | 6.30 in (160 mm) |
| Steel Inner Panel Size (Drawing) | 147.40 x 108.03 mm [5.80 x 4.25 in] |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554RGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Lid Screws (50-pk) | SC576-50 (stainless steel, M4-0.7 x 20 mm) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Inner Panel (Order Separately) | 1554RPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304144 |
| UNSPSC | 39121301 |
| Part Number | 1554S2GY |
| Drawing Revision | 28.02.2020 |
| Same-Size Versions | ABS gray lid 1554SGY; polycarbonate gray lid 1554S2GY; clear lid 1554S2GYCL; smoked lid 1554S2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.98 lbs (0.44 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | Qty 4, M4 stainless steel machine screws (included), self-captivating |
| Wall Mounting | Wall-mounting holes located outside the gasket channel |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts and/or standoffs accepting #6 self-tapping screws; vertical PC card guides for 1.5 mm thick PC boards |
| Lid Screw Inserts | M4 corrosion resistant inserts/bushings |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| Flame Rating | UL94 5VA |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Flame Rating (Drawing) | UL94-5VA @ 3 mm |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| IP Ratings (Series Testing) | IP66, IP67, IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Ratings (Series Testing) | Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | C-UL-US Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How deep is the 1554S2GY inside?▾
The drawing shows 84.00 mm (3.31 in) of inside height; the ordering table lists a total height of 3.58 in (91 mm).
What is included?▾
The purchased assembly includes the box, lid, four cover screws and a preformed silicone gasket. The gasket is supplied loose, not pre-installed.
What torque should the cover screws get?▾
The drawing recommends 43-57 oz f-in (30-40 cN-m).
Is it suitable for outdoor use?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use, with a recommended operating temperature of -40°C to +110°C.
Which accessories fit this size?▾
Steel inner panel 1554RPL, foot kit 1554FT, replacement gasket 1554RGASKET, replacement screws SC576-50, plus 1591MM100 M3 and 1598ATS100 #6 self-tapping panel screws.
