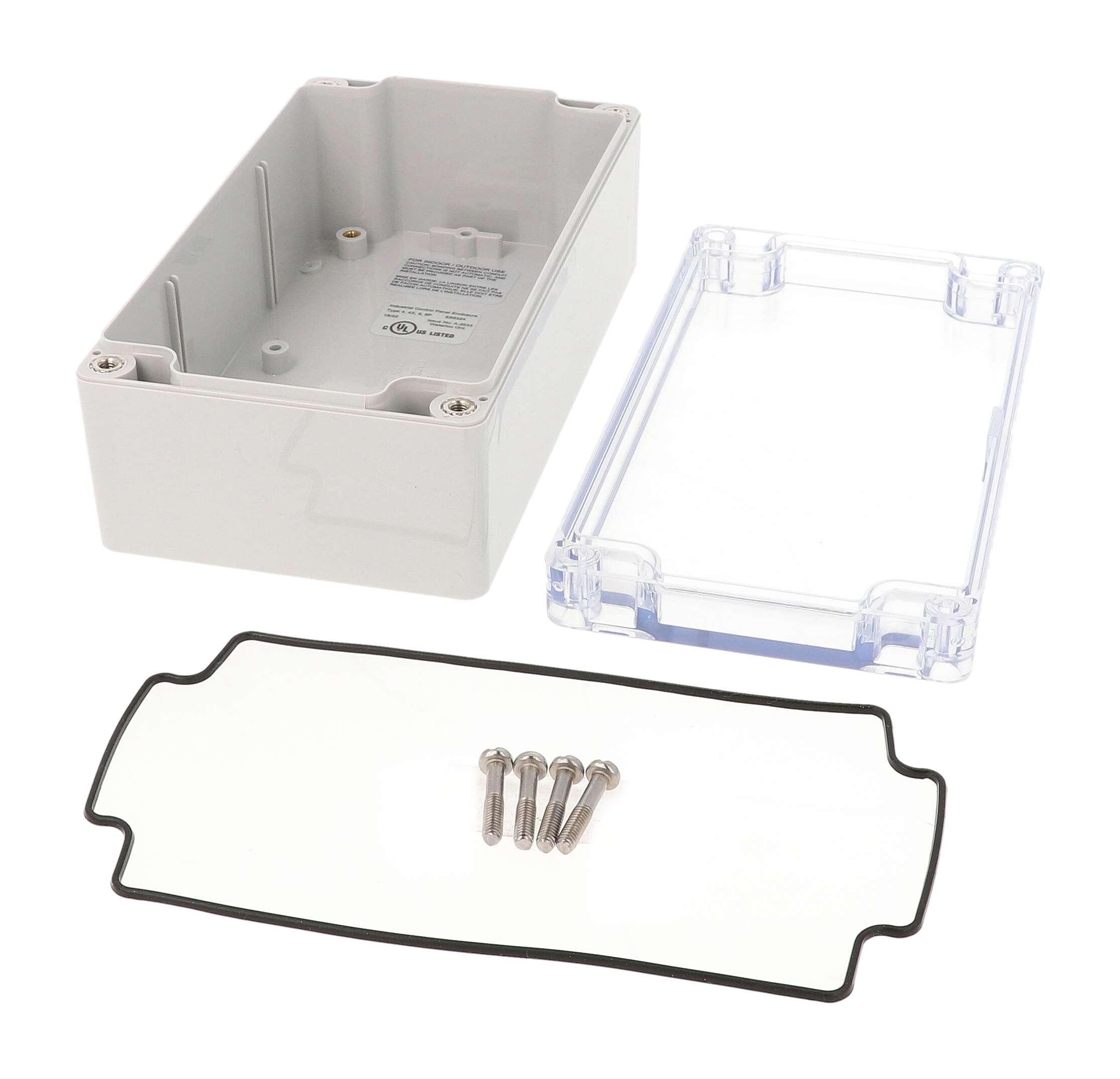

Hammond 1554J2GYCL 160x90x61mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94V-0) for viewing internal components
- 160 x 90 x 61 mm with about 54.50 mm inside height
- IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12, 13 tested
- cUL and UL 508A listed under file #E65324
- UV stabilized for outdoor use; IK08 impact rating
- Fits PC boards up to 77.47 x 147.32 mm
- Captive M4 stainless lid screws in corrosion resistant bushings
With a clear polycarbonate lid over a RAL 7035 grey polycarbonate box, the 1554J2GYCL lets you see meters, LEDs and labels inside a sealed 160 x 90 x 61 mm enclosure. It is well matched to field instrumentation, data loggers and control electronics that need visual checks without opening the lid.
The clear lid carries a UL94V-0 flame rating. As a polycarbonate 1554 model it is UV stabilized for outdoor use, cUL and UL 508A listed under file #E65324, and independently tested to IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 and 13. Impact rating is IK08 per IEC 62262:2021, with a recommended operating temperature of -40°C to +110°C (-40°F to +230°F).
The interior offers about 152.91 x 77.00 x 54.50 mm and fits a PC board up to 77.47 x 147.32 mm. Choose from these built-in mounting provisions:
- Molded internal DIN rail mounting tabs
- Threaded M3 integral brass inserts
- Standoffs for #6 self-tapping screws
- Vertical PC card guides for 1.5 mm boards
The lid seals through two-piece tongue and groove construction and a replaceable one-piece silicone gasket shipped loose. Four self-captivating M4 stainless steel screws fasten into corrosion resistant bushings at a recommended 43-57 ozf-in (30-40 cN-m). The 1554JPL inner panel and 1554FT foot kit are listed accessories. Shipping weight is 0.53 lbs (0.24 kg).
Ideal For
- Instrument and meter housings needing a view window
- Outdoor data logger and sensor enclosures
- UL 508A control panels with visible indicators
- Washdown-area electronics
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Clear polycarbonate lid on RAL 7035 grey polycarbonate box |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Enclosure Type | Water-tight |
| Short Description | 160X90X60MM P/C NEMA CLR LID |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 77.00 mm [3.03 in] |
| Nominal Size | 160 x 90 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 152.91 mm [6.02 in] |
| Size L X W X H | 6.3 in x 3.5 in x 2.4 in (160 mm x 89 mm x 61 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT |
| Related Versions | ABS gray lid 1554JGY; polycarbonate gray lid 1554J2GY; clear lid 1554J2GYCL; smoked lid 1554J2GYSL |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554JPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304229 |
| UNSPSC | 39121301 |
| Part Number | 1554J2GYCL |
| Drawing Revision | 28.02.2020 |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Lid | Clear polycarbonate (UL94V-0) |
| Color | Clear |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.00 mm [.16 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilization | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | cULus Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What color is the 1554J2GYCL?▾
The box is RAL 7035 grey polycarbonate and the lid is clear polycarbonate; the part page lists the color attribute as Clear.
Does the clear lid reduce the environmental rating?▾
No. The part is listed with IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, the same as the gray-lid polycarbonate model.
What flame rating does the clear lid have?▾
UL94V-0.
What replacement parts are listed?▾
Replacement gasket 1554JGASKET and replacement cover screws SC576-50 (50-pack).
Can I get the same size without a clear lid?▾
Yes. The ordering table lists 1554J2GY (gray polycarbonate lid), 1554J2GYSL (smoked lid) and 1554JGY (ABS).
