Hammond 1554J2GY 160x90x61mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 90 x 61 mm solid gray polycarbonate enclosure
- UL94-5VA material; cUL and UL 508A listed under file #E65324
- Tested to IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12, 13
- UV stabilized for outdoor use; -40°C to +110°C operating range
- Accepts PC boards up to 77.47 x 147.32 mm
- DIN rail tabs, M3 brass inserts and 1.5 mm card guides
- IK08 impact rating per IEC 62262:2021

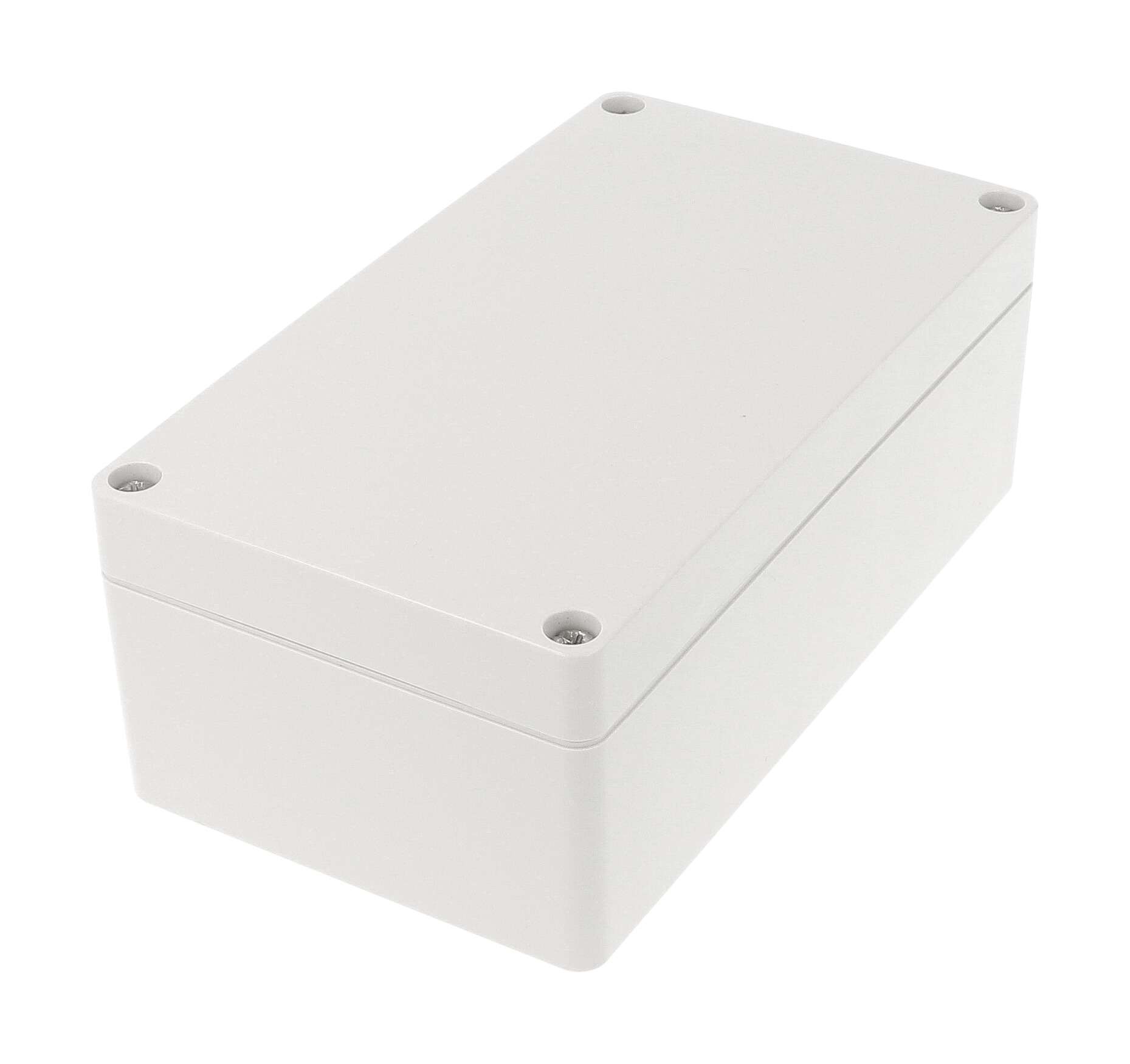

The 1554J2GY is a 160 x 90 x 61 mm watertight enclosure molded entirely in RAL 7035 light gray polycarbonate. Its narrow 90 mm width suits elongated circuit boards, terminal strips and DIN rail modules for OEM, industrial and outdoor electronics builds.
The solid gray polycarbonate is rated UL94-5VA. This model is cUL and UL 508A listed under file #E65324, UV stabilized for outdoor use, and independently tested to IP66, IP67 and IP68 and to NEMA Type 4, 4X, 6, 6P, 12 and 13. It carries an IK08 impact rating per IEC 62262:2021; the recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Per the drawing, the interior measures about 152.91 mm long, 77.00 mm wide and 54.50 mm high, and the largest PC board it accepts is 77.47 x 147.32 mm. DIN rail tabs, threaded M3 brass inserts, #6 self-tapping standoffs and vertical card guides for 1.5 mm boards are molded in; the 1554JPL steel inner panel is sold separately.
Four self-captivating M4 stainless steel screws clamp the tongue and groove lid onto a one-piece silicone gasket, threading into corrosion resistant bushings built for repeated service. Wall-mounting holes sit outside the gasket channel and double as the fixing points for the 1554FT foot kit. Shipping weight is 0.53 lbs (0.24 kg).
Ideal For
- Outdoor electronics and sensor housings
- UL 508A industrial control enclosures
- Narrow PC board and terminal strip housings
- NEMA 4X washdown locations
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Solid gray polycarbonate lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 160X90X60MM POLYCARB NEMA ENCL |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 77.00 mm [3.03 in] |
| Nominal Size | 160 x 90 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 152.91 mm [6.02 in] |
| Size L X W X H | 6.3 in x 3.5 in x 2.4 in (160 mm x 89 mm x 61 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT |

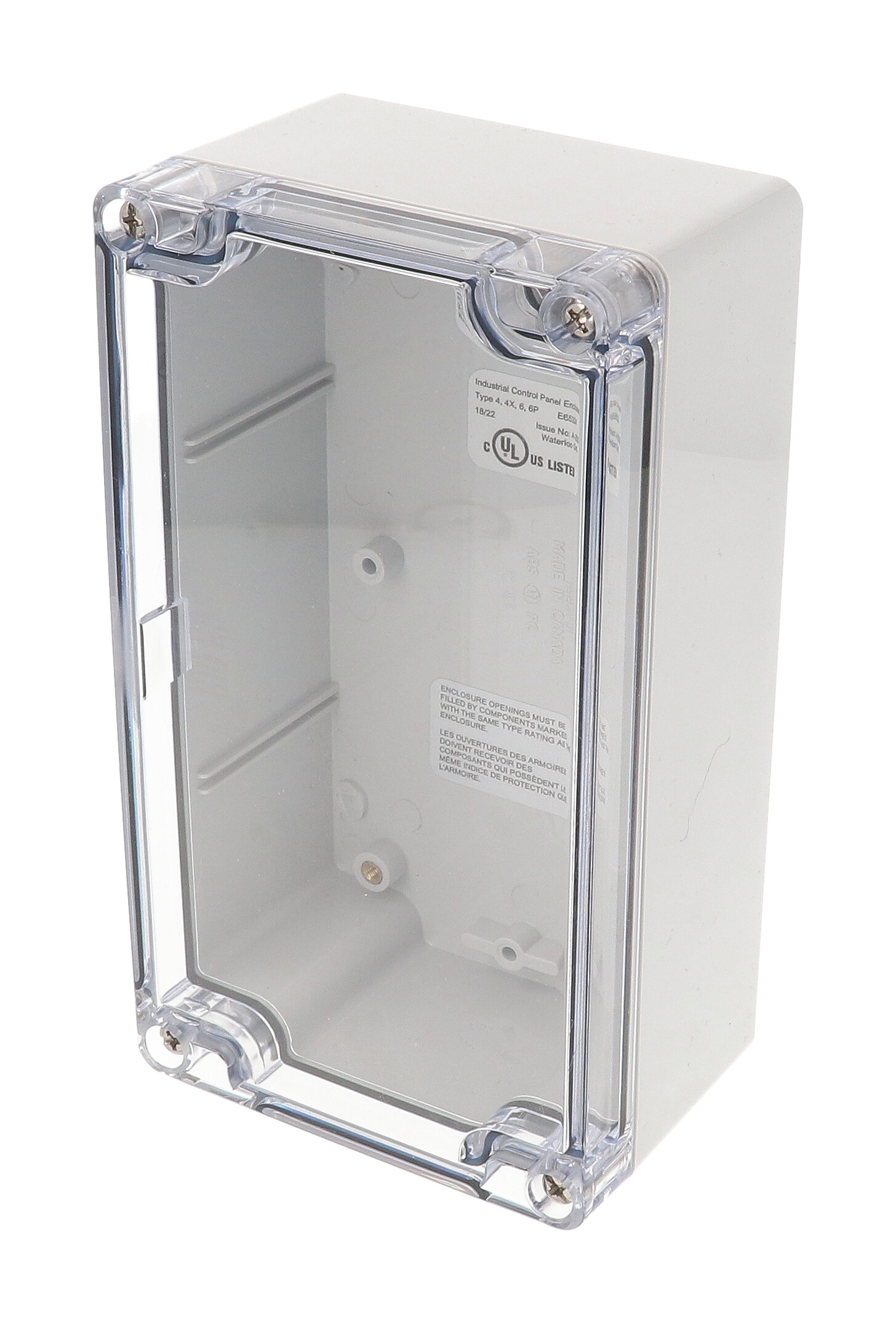

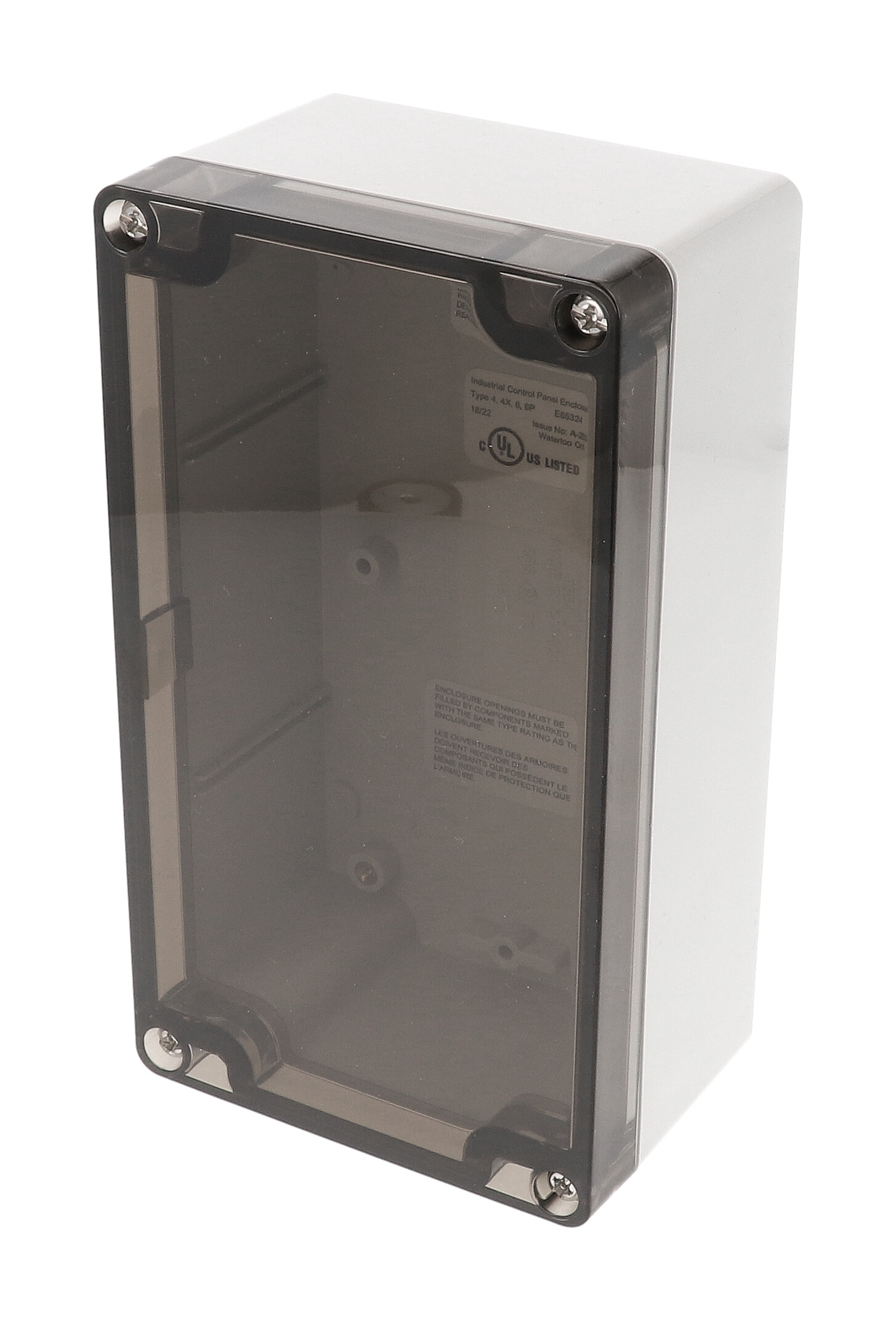

| Related Versions | ABS gray lid 1554JGY; polycarbonate gray lid 1554J2GY; clear lid 1554J2GYCL; smoked lid 1554J2GYSL |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554JPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304069 |
| UNSPSC | 39121301 |
| Part Number | 1554J2GY |
| Drawing Revision | 28.02.2020 |
Packaging & Shipping

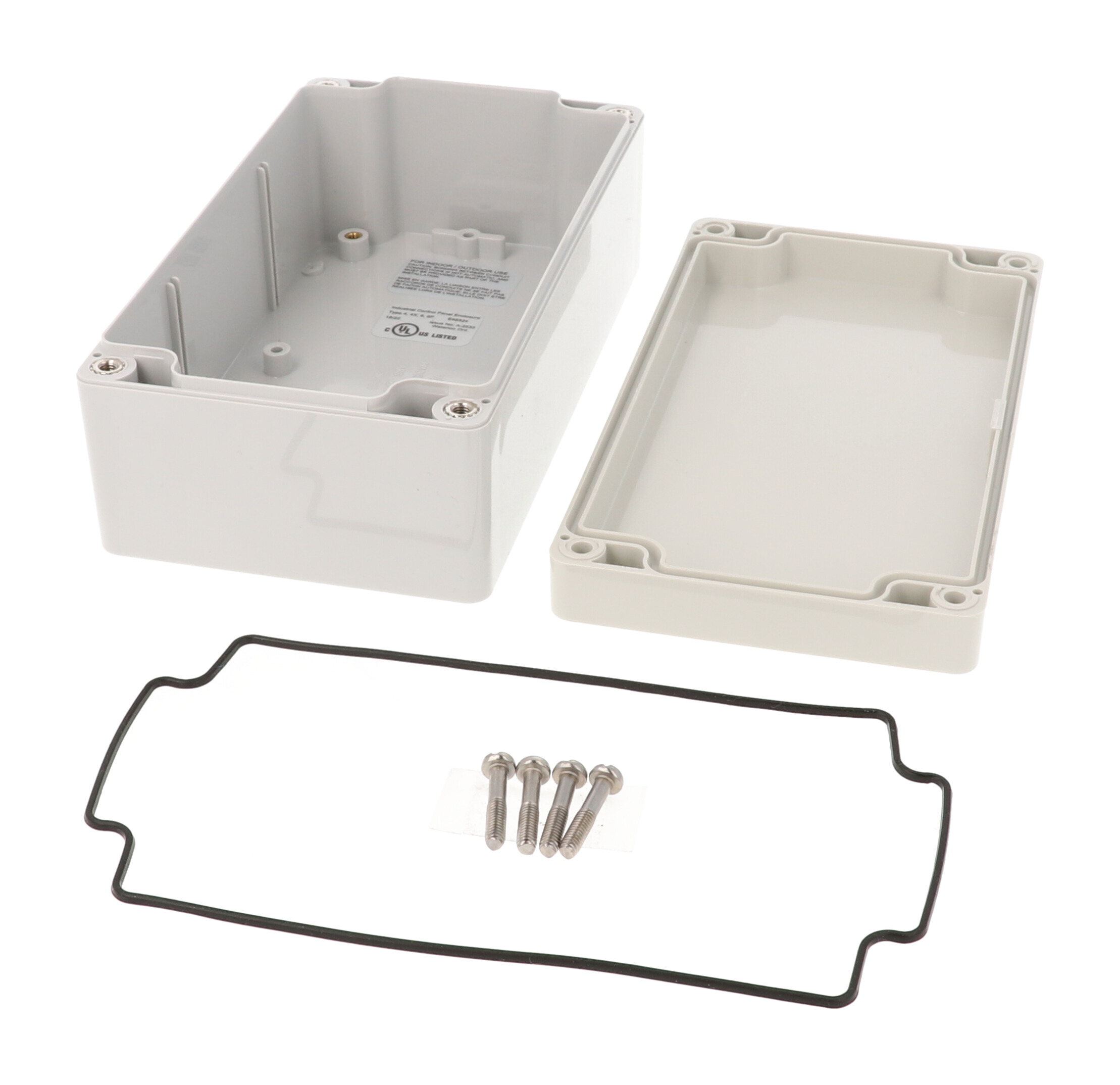

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Lid | Solid gray polycarbonate (UL94-5VA) |
| Color | Light Gray |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.00 mm [.16 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilization | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | cULus Listed, File #E65324, Type 4, 4X, 6, 6P |
