Hammond 1554BGY 65x65x41 mm Gray Abs IP66 Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS in light gray RAL 7035, for indoor use
- Nominal 65 x 65 x 41 mm; inside 58.44 x 58.44 x 34.50 mm
- Tested to and meets IP66; IK07 impact
- -20°C to +60°C recommended operating temperature
- 4 self-captivating M4 stainless lid screws included
- Fits P.C. boards up to 55.45 x 55.96 mm; 1554FT foot kit compatible

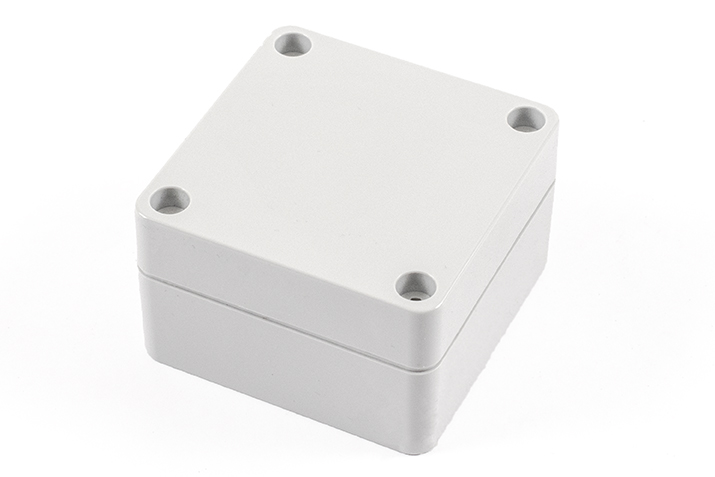

The 1554BGY is the general purpose ABS model of the square 1554B enclosure, listed at 2.6 in x 2.6 in x 1.6 in (66 mm x 66 mm x 41 mm) and nominally 65 x 65 x 41 mm. It is a cost-conscious choice for indoor electronics, small controls and terminations where a gasketed, screw-cover box is wanted.
The body is light gray RAL 7035 ABS rated UL94 HB. ABS versions are for indoor use; they are not UL listed but have been tested to and meet IP66. The impact rating is IK07 per IEC 62262:2021 and the recommended operating temperature is -20°C to +60°C (-4°F to +140°F).
Inside, the drawing shows 58.44 mm x 58.44 mm with 34.50 mm inside height, and the maximum P.C. board is 55.45 mm x 55.96 mm. Posts accept #6 self-tapping screws, and the 1554BPL steel inner panel is available separately. Internal DIN rail mounting tabs are molded into all sizes except C and D.

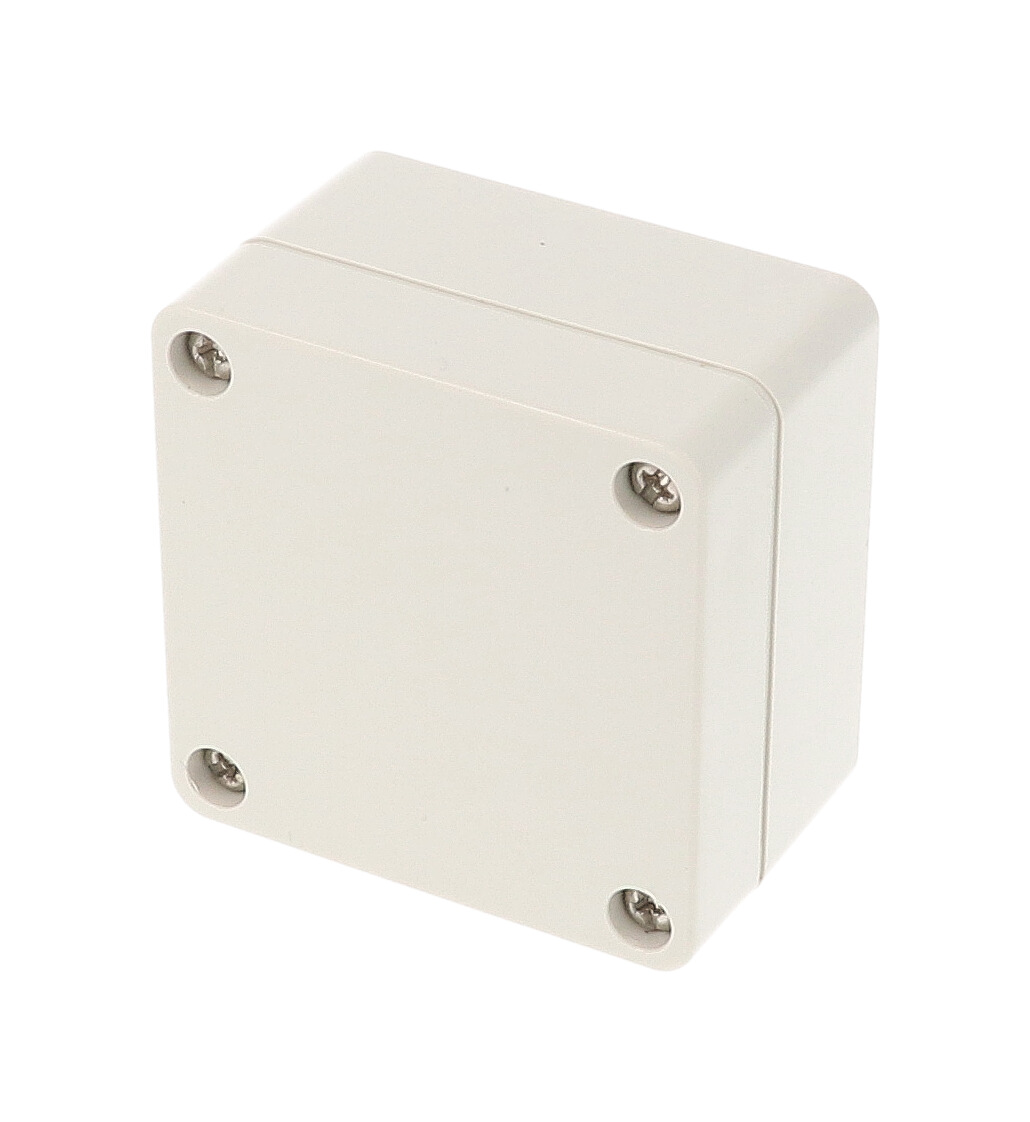

Four included M4 stainless steel lid screws are self-captivating and thread into corrosion resistant bushings (43-57 ozf-in / 30-40 cN-m recommended). The one-piece silicone gasket ships loose. Two 4.00 mm mounting holes outside the gasket channel also accept the 1554FT foot kit. The 1554BGY ships in shrink wrap at 0.17 lbs (0.08 kg).
Ideal For
- Indoor PC board enclosures
- Small indoor control and junction boxes
- DIN rail component housings indoors
- OEM electronics projects
Mounting
| Foot Kit | 1554FT |
| Wall Mounting Holes | 2X 4.00 mm [.16 in], located outside of the gasket channel |
Overview
| Lid | Gray ABS lid |
| Type | Water-tight |
| Color | Light Gray |
| Series | 1554 Series Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Part Number | 1554BGY |
| Enclosure Size | B |
| Enclosure Color | Light gray (RAL 7035) |
| Related Versions | 1554BGY (ABS gray lid), 1554B2GY (polycarbonate gray lid), 1554B2GYCL (polycarbonate clear lid), 1554B2GYSL (polycarbonate smoked lid) |
| Short Description | 65X65X40MM ABS NEMA ENCL |
Dimensions
| Inside Width | 58.44 mm [2.30 in] |
| Inside Height | 34.50 mm [1.36 in] |
| Inside Length | 58.44 mm [2.30 in] |
| Nominal Width | 2.56 in (65 mm) |
| Nominal Length | 2.56 in (65 mm) |
| Size (L X W X H) | 2.6 in x 2.6 in x 1.6 in (66 mm x 66 mm x 41 mm) |
| Nominal Total Height | 1.61 in (41 mm) |
| Max. P.C. Board Width | 55.96 mm |
| Max. P.C. Board Length | 55.45 mm |
Accessories
| Foot Kit | 1554FT |
| Steel Inner Panel (Order Separately) | 1554BPL |
| Silicone Pre-formed Gasket Black (Pkg 2) | 1554BGASKET |
| Stainless Steel Cover Screws [M4-0.7 X 20mm] (Pkg 50) | SC576-50 |
| Steel Panel / P.C. Board Screw [M3-0.5 X 8mm Plated] (Pkg 100) | 1591MM100 |
| Steel Panel / P.C. Board Self Tapping Screw [#6 X 1/4" (6.4mm) Plated] (Pkg 100) | 1598ATS100 |
Identifiers
| UPC | 623980303840 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 28.02.2020 |
Packaging & Shipping

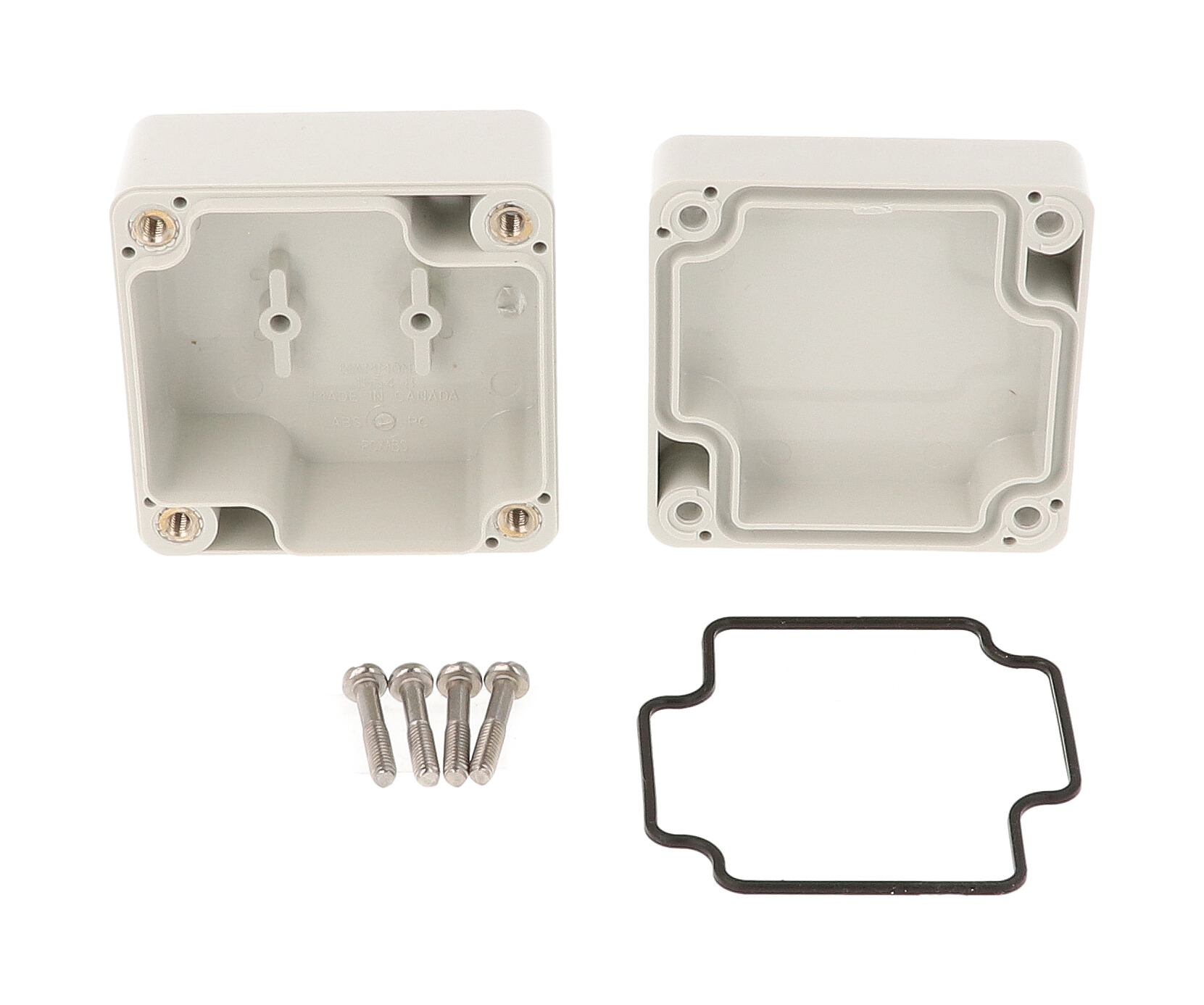

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Gasket | One-piece replaceable gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | 4 x included M4 stainless steel machine screws (M4-0.7 x 20mm) threaded into corrosion resistant bushings; self-captivating, lid holes threaded on first installation |
| Solid Models | Available in .stp or .x_t |
| DIN Rail Tabs | Internal DIN rail mounting tabs molded into most models, except sizes C and D |
| Lid Construction | Gasketed lid with two piece tongue and groove construction; protects against access of oil, dust and water |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
| Brass Inserts / Card Guides | Threaded M3 brass inserts and vertical PC card guides are not molded into the smallest sizes (A and B) |
| Internal Mounting (Drawing) | Posts accept #6 self-tapping screw; M4 corrosion resistant inserts for the lid screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Use | For indoor use |
| IP Rating | IP66 |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and incompatible greases or oils |
| Series Rating (ABS) | Not UL listed; tested to and meets IP66 |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | General purpose ABS version is not UL approved (material UL94-HB) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Listed On Part Page) | E65324 (series file; applies to the polycarbonate versions) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Documentation
Frequently Asked Questions
What is the 1554BGY made from?▾
General purpose ABS rated UL94 HB, in light gray RAL 7035.
Is the 1554BGY UL listed?▾
No. ABS versions are not UL listed; they are tested to and meet IP66. The polycarbonate 1554B2GY is the UL 508A listed version.
Where can it be used?▾
ABS versions are specified for indoor use, with a recommended operating temperature of -20°C to +60°C.
What are the inside dimensions?▾
58.44 mm x 58.44 mm, with 34.50 mm inside height per the drawing.
What is the shipping weight?▾
0.17 lbs (0.08 kg).
