Hammond 1553TBKBAT Black 210 mm Handheld Enclosure, 4x AA Battery
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Battery compartment for (4) AA or (2) 9V batteries
- 8x AA clips and 2x 9V (PP3) clips per the series
- 210 x 100 x 32 mm (8.27 x 3.94 x 1.26 in) overall
- Recessed display and keyboard areas for membrane devices
- Flame retardant ABS, UL94 V-0
- M3 machine screws into brass bushings for repeated assembly
- Dark grey TPE overmold soft grip
- Removable top end panel for easy modification

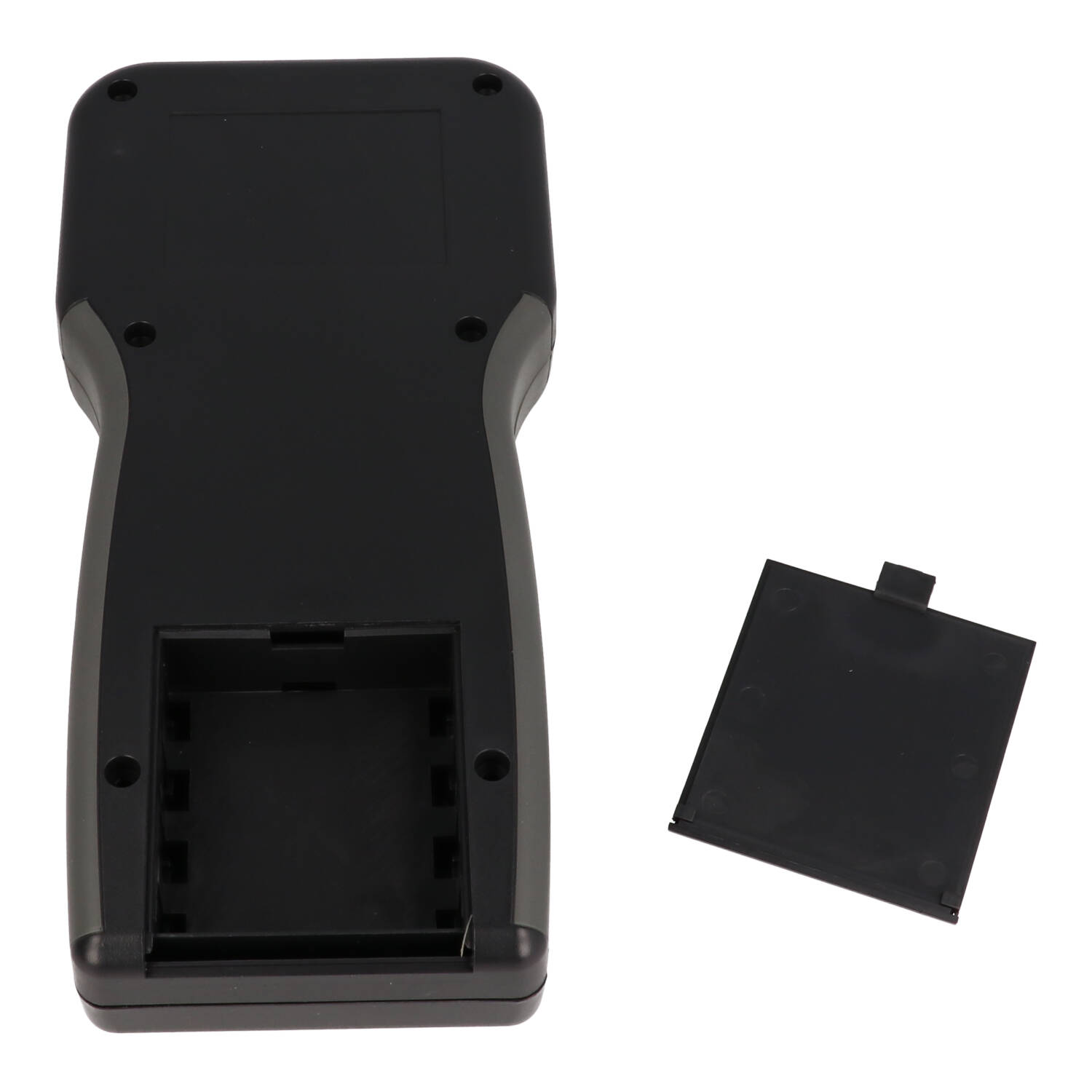

The 1553TBKBAT is the battery door and compartment version of the large 1553T hand-held "T" enclosure in black. It keeps the recessed display and keyboard areas of the standard model and adds a battery compartment sized for (4) AA or (2) 9V batteries, making it a ready housing for portable instruments and mobile data devices with a keypad and display.
Overall dimensions are 8.27 x 3.94 x 1.26 in (210 x 100 x 32 mm), with a 3.94 in (100 mm) display section and a 3.39 in (86 mm) keyboard section. The part page lists maximum P.C. board figures of 92.22 mm and 134 mm, and the drawing shows a battery holder 66.62 mm long, an inner box height of 25.00 mm and 8 PCB posts on top and 10 on the bottom.

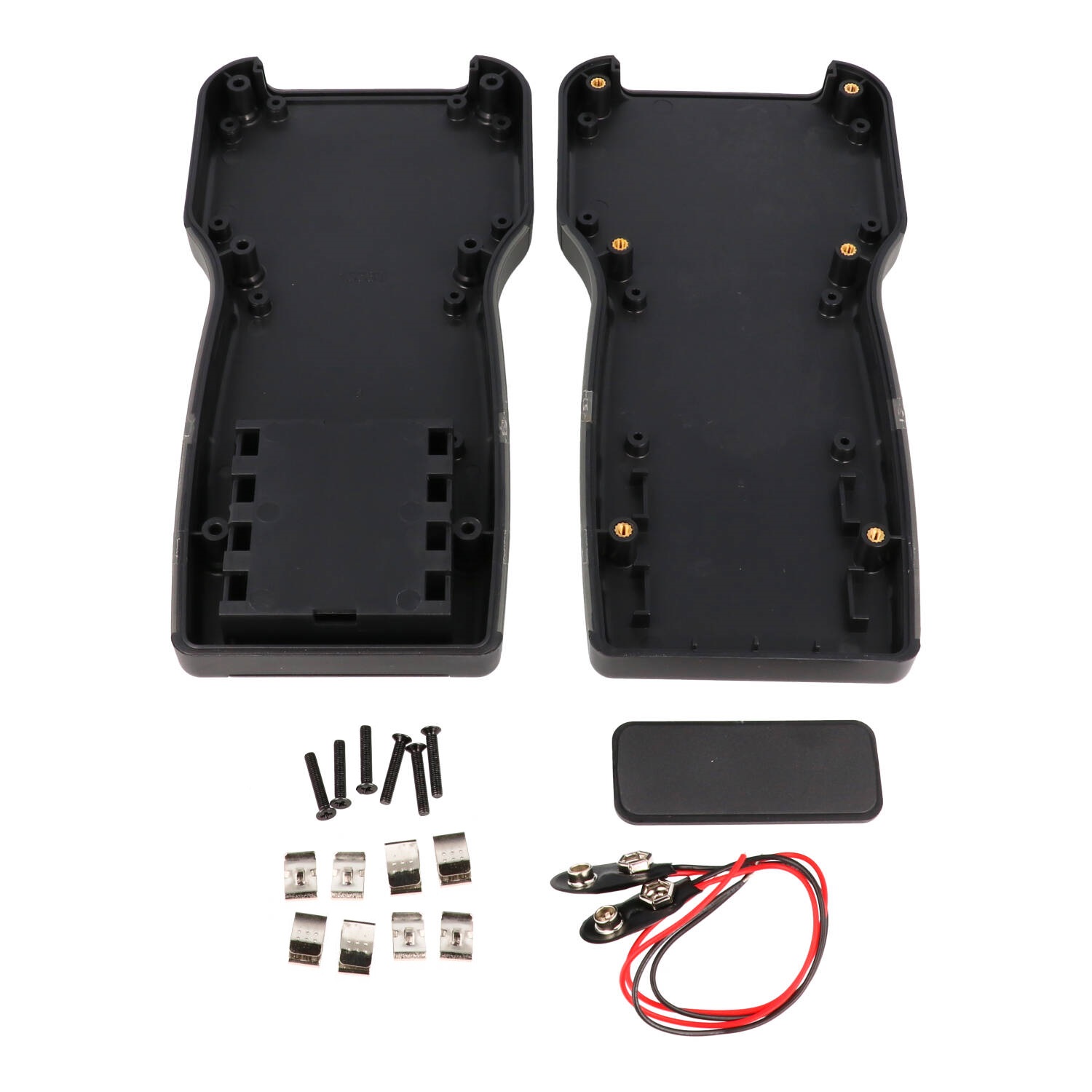

Per the series, 1553T "BAT" versions include 8x battery clips for 4x AA batteries and 2x 9 volt (PP3) battery clips, and use a long-life three point battery door. Extra clip kits are listed as 1553HDR-BKIT for AA and BS61 for 9V, and spare doors come as 53TBATDOORBK-5.

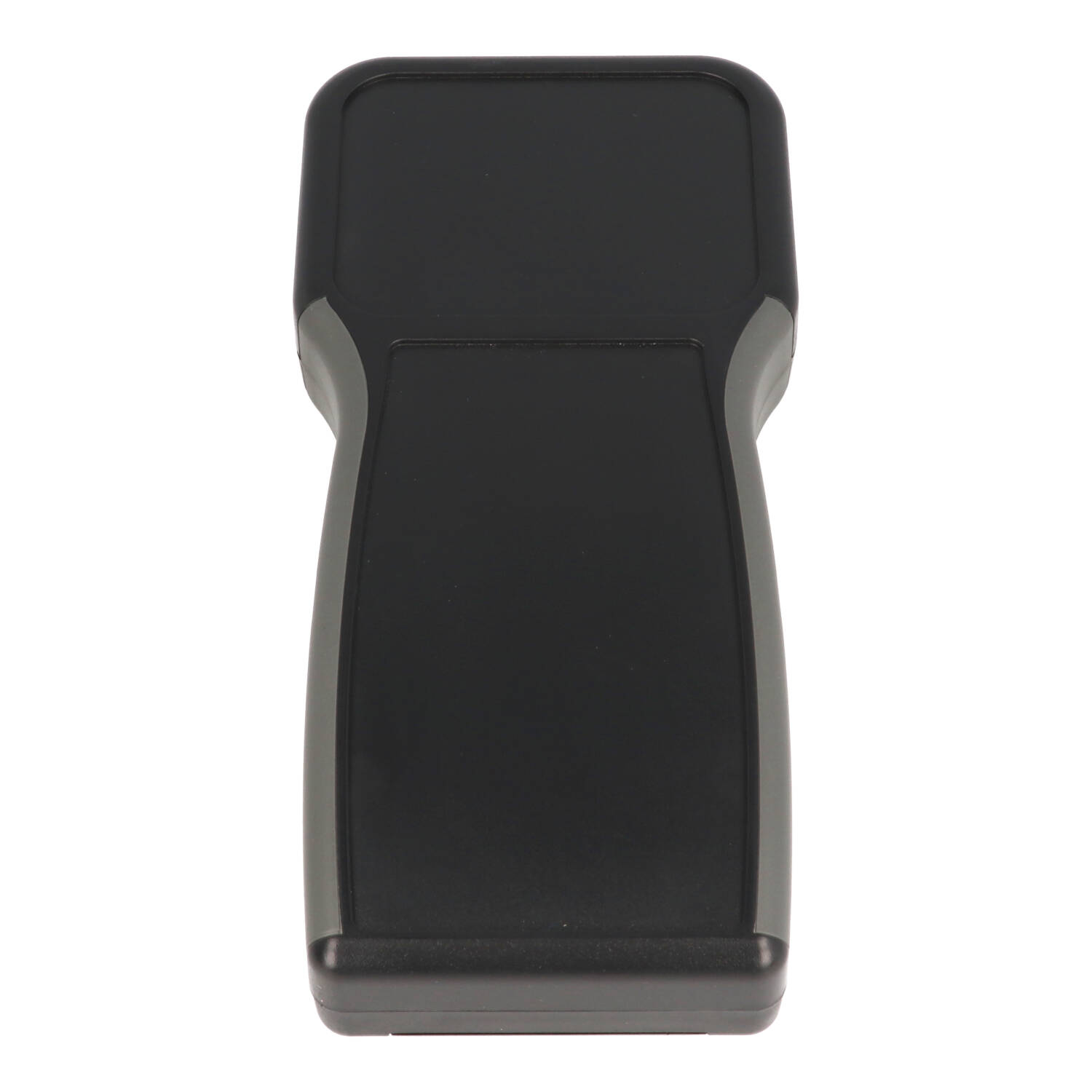

The enclosure is molded from flame retardant ABS rated UL94 V-0, with a dark grey TPE overmold on the handheld section. Assembly uses M3-0.5 x 18 mm Philips head machine screws into factory-inserted brass bushings; 6 cover screws are included and recommended torque is 2.5 lbf-in (30 cN-m). The battery version has a removable top end panel only. The 1553TBKBAT is RoHS and REACH compliant and ships shrink wrapped at 0.5 lbs (0.23 kg).
Ideal For
- Battery powered instrument enclosures
- Mobile data devices with keypad and display
- Portable handheld electronics on AA or 9V power
- Handheld units opened for battery service
Overview
| Type | Hand-held, soft sided, battery |
| Series | 1553T Series Hand-Held "T" Soft Side Enclosures |
| Battery Type | (4) AA or (2) 9V |
| Short Description | 1553 SOFT TOUCH CASE BAT |
| Removable Top End Panel | Yes |
| Removable Bottom End Panel | No |
Dimensions
| Length | 8.27 in (210 mm) |
| Rear Inlay | 42.00 mm [1.65 in] x 56.00 mm [2.20 in] |
| Wall Thickness | 2.75 mm [.11 in] |
| Enclosure Depth | 1.26 in (32 mm) |
| Top Inlay Depth | 1.50 mm [.06 in] |
| Inner Box Height | 25.00 mm [.98 in] |
| Rear Inlay Depth | .50 mm [.02 in] |
| Size (L X W X H) | 8.27 in x 3.94 in x 1.26 in (210 mm x 100 mm x 32 mm) |
| Battery Holder Length | 66.62 mm [2.62 in] |
| Display Section Width | 3.94 in (100 mm) |
| Keyboard Section Width | 3.39 in (86 mm); drawing 85.9 mm [3.38 in] |
| Top Inlay (Display Area) | 124.24 mm [4.89 in] x 83.24 mm [3.28 in] |
| Top Inlay (Keyboard Area) | 63.95 mm [2.52 in] x 69.05 mm [2.72 in] |
| Nominal Size (Long Description) | 8.25 x 4.00 x 1.25 |
| Max. P.C. Board Width (Part Page) | 134 mm |
| Max. P.C. Board Length (Part Page) | 92.22 mm |
Accessories
| 9V Battery Kit | BS61 |
| Belt Or Pocket Clip | 1599CLIP (black), 1599CLIPGY (gray) |
| Replacement End Panels (10-pack) | 1553TPLBK-10 / 1553TPLGY-10 |
| Replacement Battery Doors (5-pack) | 53TBATDOORBK-5 / 53TBATDOORGY-5 |
| Cover Screw (Pkg 100), M3-0.5 X 18 Mm | 1594MS100 (silver), 1594MS100BK (black) |
| AA Battery Clip Kit (4 Positive And 4 Negative) | 1553HDR-BKIT |
| P.C. Board Self Tapping Screw (#4 X 1/4" (6.4 Mm) Plated) | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) |
Identifiers
| UPC | 623980027791 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Joint | Lap joint construction |
| Material | ABS Plastic (FR ABS, UL 94-V0) |
| Overmold | Dark grey TPE overmold on handheld section for a soft grip |
| PCB Posts | 8 PCB posts on top, 10 PCB posts on bottom |
| Solid Models | Available in STEP or IGES |
| Brass Inserts | M3 brass inserts factory pre-installed in top half of enclosure |
| Recessed Areas | Display and keyboard areas recessed for membrane devices |
| Assembly Screws | M3-0.5 x 18 mm Philips head machine screws threaded into integral brass bushings |
| Enclosure Color | Black (part page: Black) |
| Battery Provision | Battery door and compartment; 8x battery clips (for 4x AA batteries) and 2x 9 volt (PP3) battery clips |
| P.C. Board Mounting | PC board standoffs molded into top and bottom halves; PCB posts accept #4 x 1/4" self tap screw |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Included In Assembly | Top, bottom, front plastic panel, battery door, battery clips and 6 cover screws; M3 brass inserts pre-installed |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries fit the 1553TBKBAT?▾
The ordering table lists (4) AA or (2) 9V; the series says 1553T BAT versions include 8x battery clips for 4x AA batteries and 2x 9 volt (PP3) battery clips.
Is the battery version IP54?▾
The series states versions without a battery door are designed to meet IP54; no IP rating is listed for this battery version.
How large is the enclosure?▾
8.27 x 3.94 x 1.26 in (210 x 100 x 32 mm).
Which end panels are removable?▾
The top end panel is removable; the bottom end panel is not on battery versions.
Where do I get a spare battery door?▾
Black 1553T battery doors are sold in a 5-pack as 53TBATDOORBK-5.
What cover screws does it use?▾
M3-0.5 x 18 mm machine screws; replacements are 1594MS100 (silver) or 1594MS100BK (black) in packs of 100.
