Hammond 1553DIR-BULK Infrared-Transparent 1553D End Panel, Dark Red
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

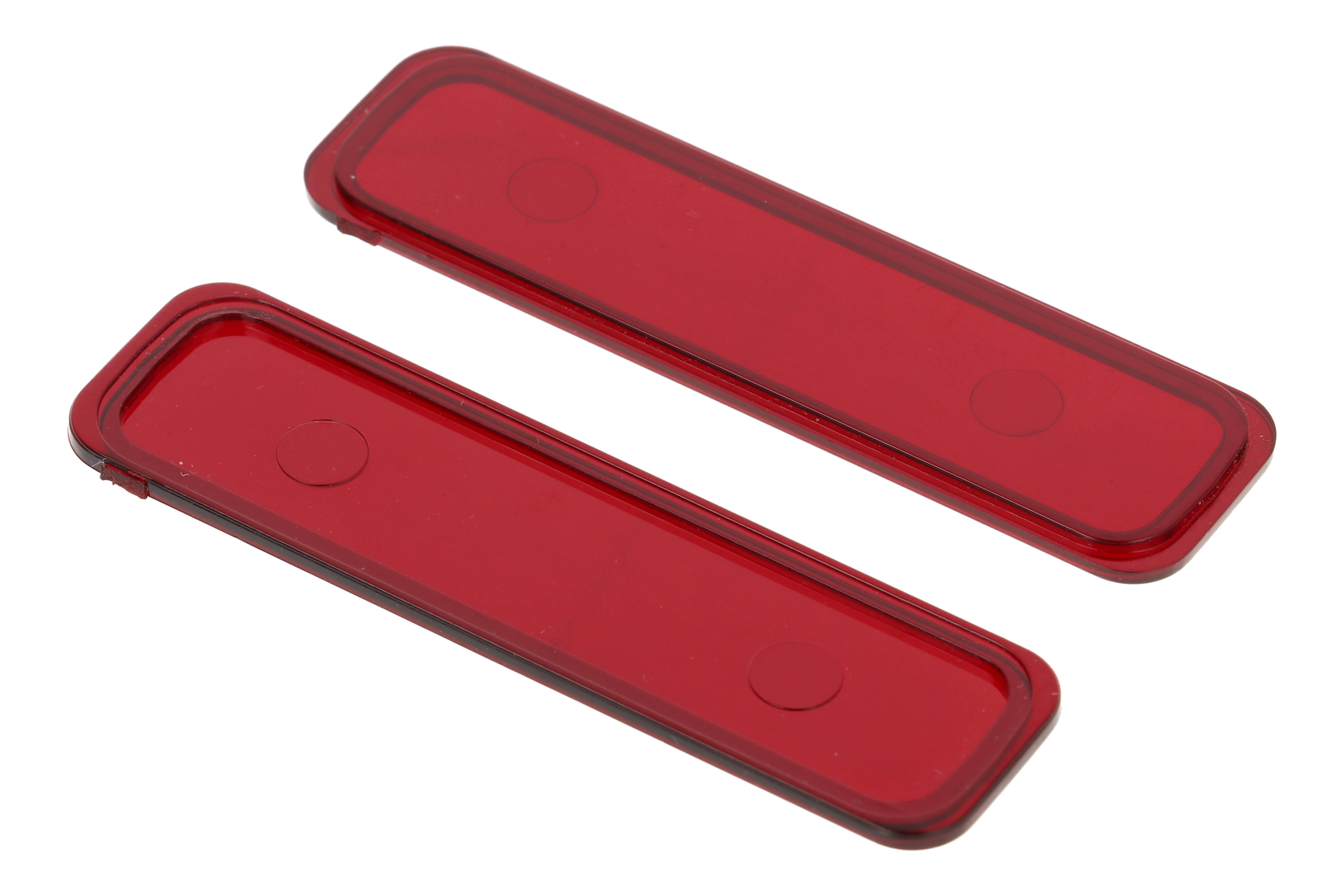

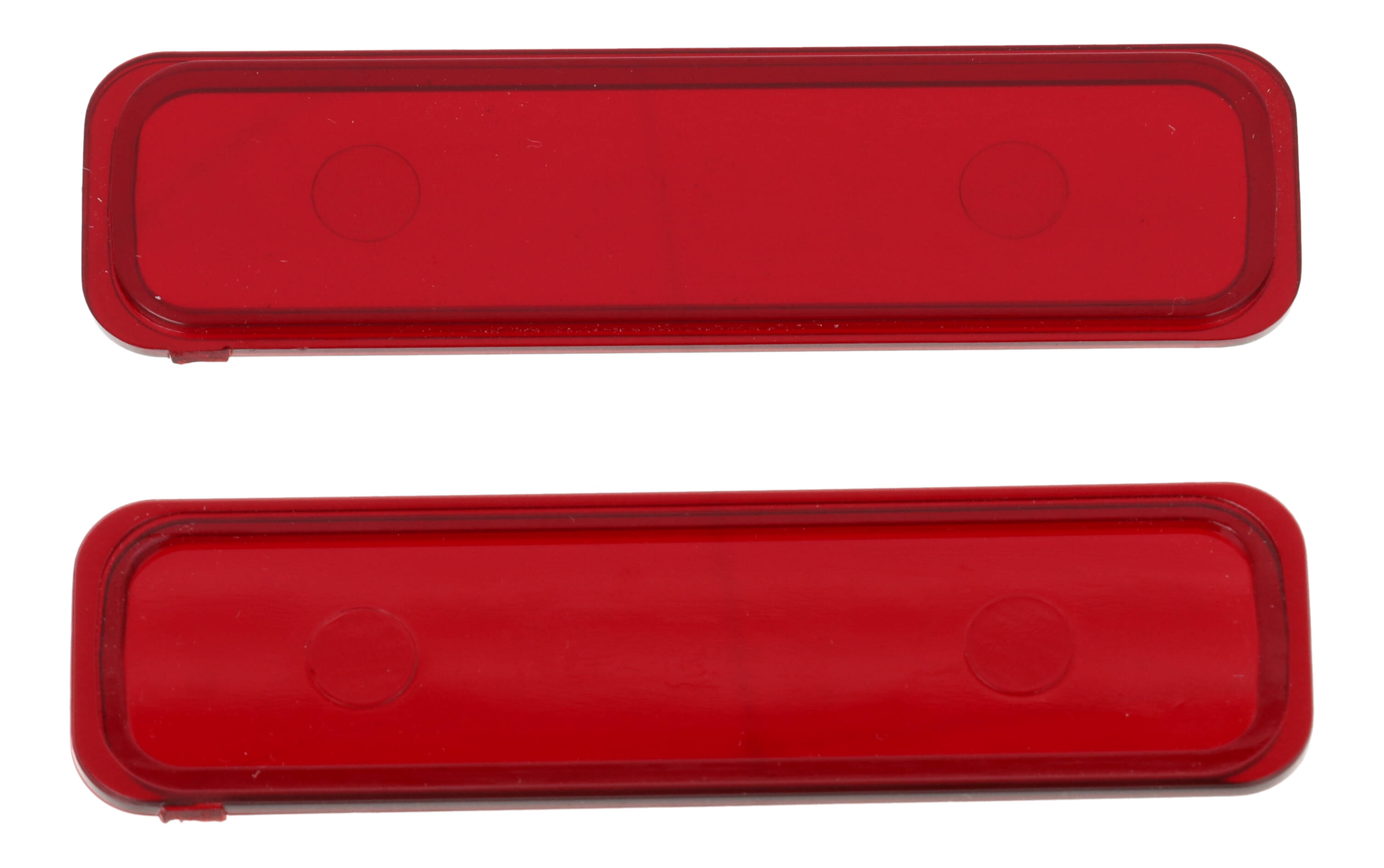

- Dark red plastic filter that is transparent to IR
- Replaces the existing front plastic panel
- Fits all 1553 size D enclosures
- Polycarbonate, UL94 V-0 flame rating
- 65 x 19 x 3 mm (2.56 x 0.73 x 0.11 in)
- Sold singly; RoHS and REACH compliant
The 1553DIR-BULK is an infrared end panel for size D enclosures in the 1553 Series of soft-sided handheld cases. It is intended for handheld remotes, IR transmitters and receivers, and other devices that need to send or receive infrared signals through the end of the case.
The panel replaces the existing front plastic panel of the enclosure. It is a dark red plastic filter that is transparent to IR, molded from polycarbonate with a UL94 V-0 flame rating. The series lists it for all 1553 "D" sized enclosures, and it is sold singly.
It measures 2.56 x 0.73 x 0.11 in (65 x 19 x 3 mm) and has a shipping weight of 0.02 lbs (0.01 kg). The 1553DIR-BULK is RoHS and REACH compliant and ships in shrink wrap.
Polycarbonate can be sensitive to certain chemicals. The manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, strong solvents or cleaners, and thread-locking compounds; use only cleaners listed as plastic safe, and clear chips with an air blast rather than cutting fluid when making modifications.
Pair it with any 1553D enclosure, such as the black 1553DBK, grey 1553DGY or battery versions like the 1553DBKBAT, to hide IR components behind a finished panel while leaving the IR path open.
Ideal For
- Handheld IR remote controls
- IR transmitter and receiver windows
- 1553D enclosures needing an infrared window
- Handheld data devices with IR links
Overview
| Fits | All 1553 "D" sized enclosures |
| Type | End Panels, Infrared |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Function | Replaces existing front plastic panel; dark red plastic filter is transparent to IR |
| Quantity | Sold singly |
| Long Description | IR panel for 1553D series enclosures, sold singly |
| Short Description | INFRA RED END PANELS |
Dimensions
| Size L X W X H | 2.56 in x 0.73 in x 0.11 in (65 mm x 19 mm x 3 mm) |
Identifiers
| UPC | 623980035796 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Color | Red |
| Material | Polycarbonate |
Environmental & Protection
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1553DIR-BULK fit?▾
All 1553 "D" sized enclosures, per the series accessories list.
How does it install?▾
It replaces the existing front plastic panel of the enclosure.
What material is it?▾
Polycarbonate, in red, with a UL94 V-0 flame rating. The dark red filter is transparent to IR.
How many panels come per order?▾
The part is sold singly.
Is there an IR panel for smaller 1553 enclosures?▾
The series lists 1553BIR-BULK for all 1553 "B" sized enclosures.
