Hammond 1553DBPCB 1553D Battery Case Prototyping PCB, FR4
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

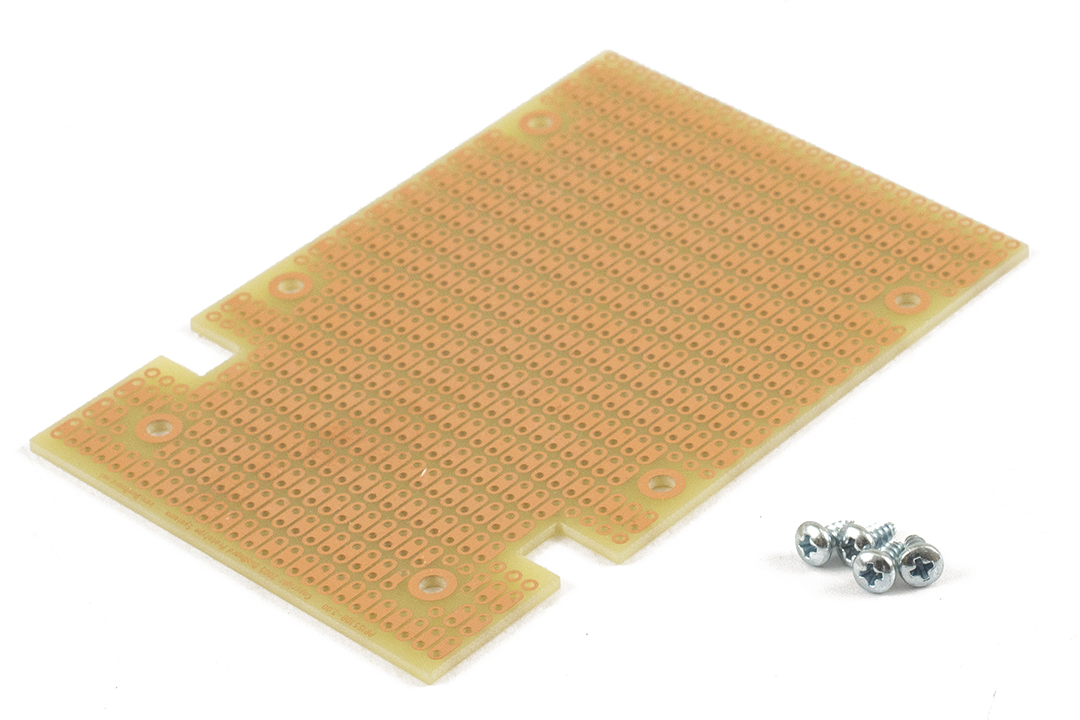

- Prototyping board sized for 1553D battery enclosures; mounting holes pre-positioned, no cutting required
- High-quality FR4 glass epoxy, single-sided 1 oz/ft2 copper
- 0.042 in holes on 0.1 in centers in a 2-hole ProtoBoard pattern
- Lead free etched copper with anti-tarnish coating for easy soldering

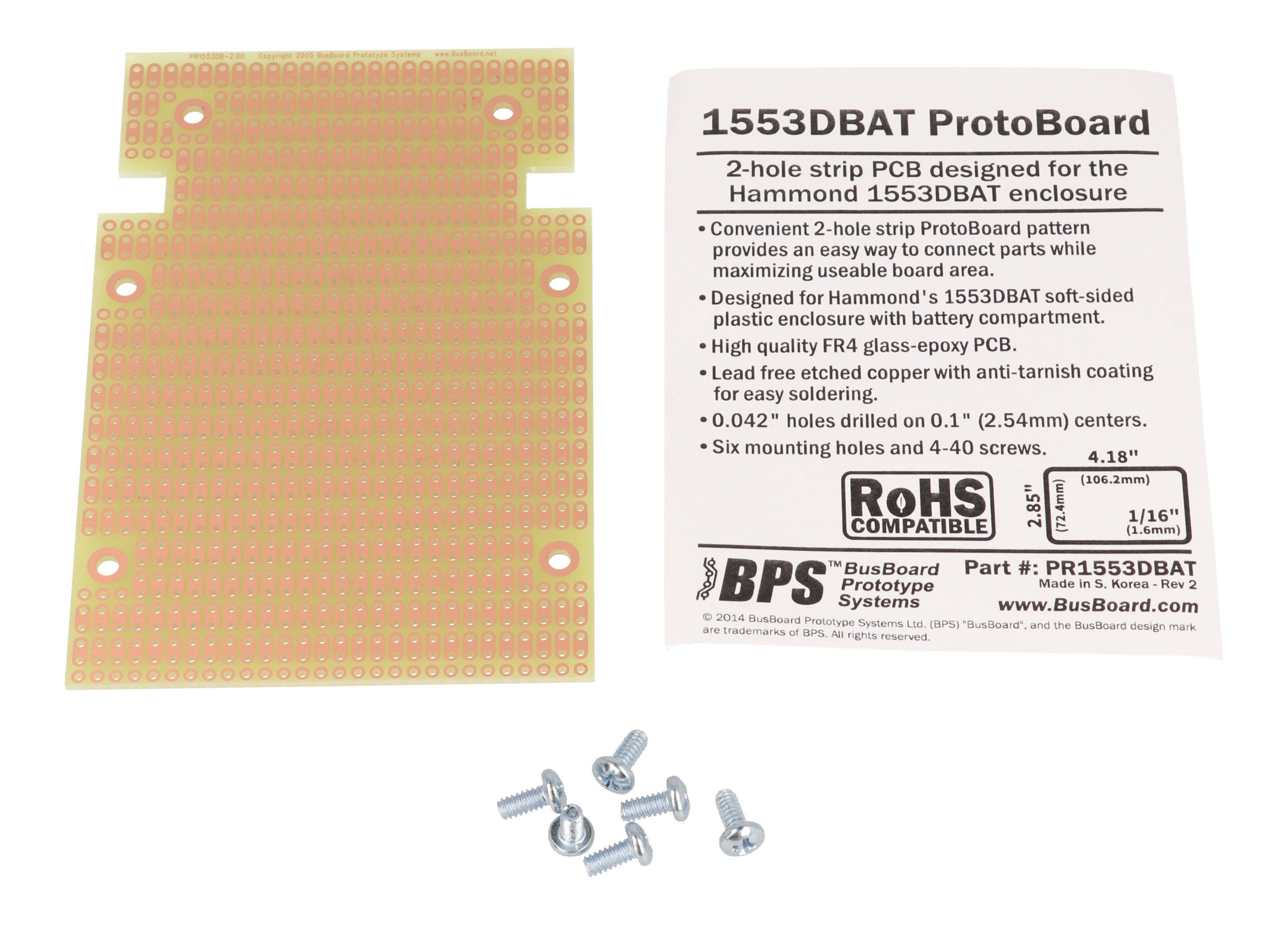

- Six 4-40 PCB mounting screws provided
- PCB size 2.850 x 4.175 in (72 x 106 mm)
- RoHS and REACH compliant
The 1553DBPCB is a printed circuit prototyping board sized for 1553D enclosures in the 1553 Series of soft-sided handheld cases. Its data sheet describes it as designed for the 1553DxBAT soft-sided handheld case with battery compartment, so engineers can build circuits for a battery-powered handheld without cutting a board to fit.
It is a high-quality FR4 glass epoxy board with single-sided, 1 oz/ft2 copper. The lead free etched copper has an anti-tarnish coating for easy soldering, and 0.042 in holes are drilled on 0.1 in centers in a 2-hole ProtoBoard pattern that makes it easy to connect parts while keeping usable board area.
The mounting holes are already in the right spots for the case, so no cutting is required, and six 4-40 PCB mounting screws are provided. The data sheet gives the PCB size as 2.850 x 4.175 in (72 x 106 mm); the part page lists a size of 4.18 x 2.65 x 0.06 in (106 x 67 x 2 mm).
The enclosure is not included. The matching battery cases listed are 1553DBKBAT, 1553DGYBAT, 1553DBKBKBAT, 1553DTBUBKBAT, 1553DRDBKBAT and 1553DYLBKBAT, which provide a battery compartment for 2x AA or 9V batteries.
The 1553DBPCB is RoHS and REACH compliant, ships in shrink wrap and weighs 0.07 lbs (0.03 kg).
Ideal For
- Prototyping circuits for 1553D battery handheld enclosures
- Low-volume handheld device builds
- Hobby and lab handheld projects
- Proof-of-concept battery-powered handhelds
Overview
| Type | Printed Circuit Board |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Designed For | 1553D enclosures; data sheet: 1553DxBAT soft-sided handheld case with battery compartment |
| Long Description | printed circuit board designed to fit 1553D enclosures |
| Short Description | 1553D BAT PROTO PCB |
| Enclosure Included | No |
| Compatible Enclosures (Data Sheet) | 1553DBKBAT, 1553DGYBAT, 1553DBKBKBAT, 1553DTBUBKBAT, 1553DRDBKBAT, 1553DYLBKBAT |
Dimensions
| PCB Size (Data Sheet) | 2.850 x 4.175 in (72 x 106 mm) |
| Nominal Size (L X W X H) | 4.18 in x 2.65 in x 0.06 in (106 mm x 67 mm x 2 mm) |
Electrical
| Copper | Single sided, 1 oz/ft2 copper; lead free etched copper |
| Pattern | 2-hole ProtoBoard pattern |
| Hole Size And Pitch | 0.042" holes drilled on 0.1" centers |
Identifiers
| UPC | 623980132297 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Six 4-40 PCB mounting screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.07 lbs (0.03 kg) |
Construction & Finish
| Coating | Anti-tarnish coating for easy soldering (series sheet: flux coating) |
| Material | FR4 Glass Epoxy |
| Mounting Holes | Pre-positioned for the enclosure; no cutting required |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1553DBPCB fit?▾
The part page says it is designed to fit 1553D enclosures, and its data sheet describes it as designed for the 1553DxBAT battery-compartment case (1553DBKBAT, 1553DGYBAT, 1553DBKBKBAT, 1553DTBUBKBAT, 1553DRDBKBAT, 1553DYLBKBAT).
Is the enclosure included?▾
No, the box is not included with the board.
What is the hole pattern?▾
0.042 in holes drilled on 0.1 in centers, in a 2-hole ProtoBoard pattern.
Are mounting screws included?▾
Yes, six 4-40 PCB mounting screws are provided.
What is the board made of?▾
High-quality FR4 glass epoxy with single-sided 1 oz/ft2 lead free etched copper and an anti-tarnish coating.
