Hammond 1553BPCB Prototype PCB for 1553B and 1553C Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed for 1553 sizes B and C handheld enclosures
- FR4 glass epoxy, lead free etched copper with flux coating
- 0.042 in holes on 0.1 in centers
- 4.3 x 2.4 x 0.06 in (109 x 61 x 2 mm)
- Mounting screws included
- Not compatible with battery compartment versions
- RoHS and REACH compliant

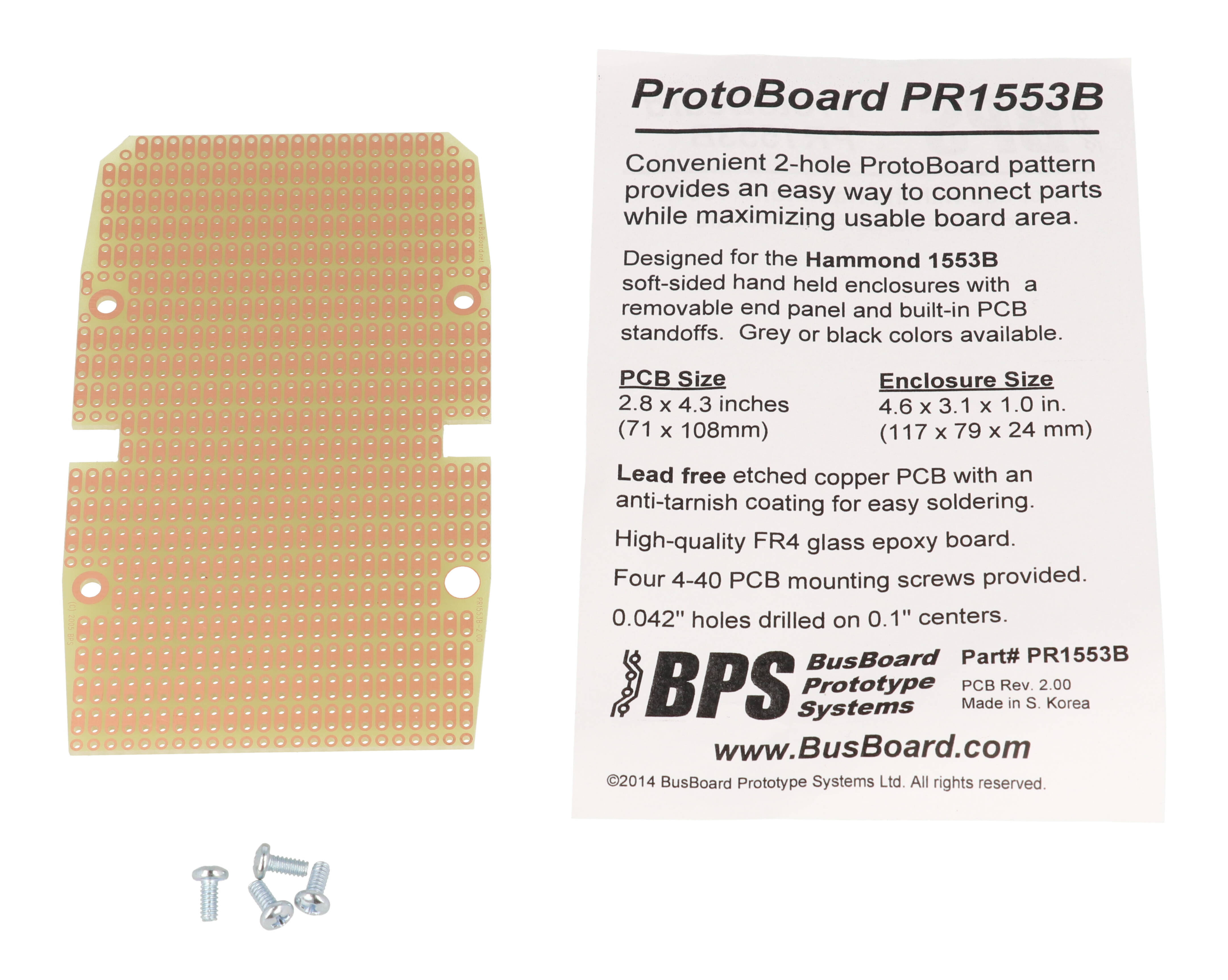

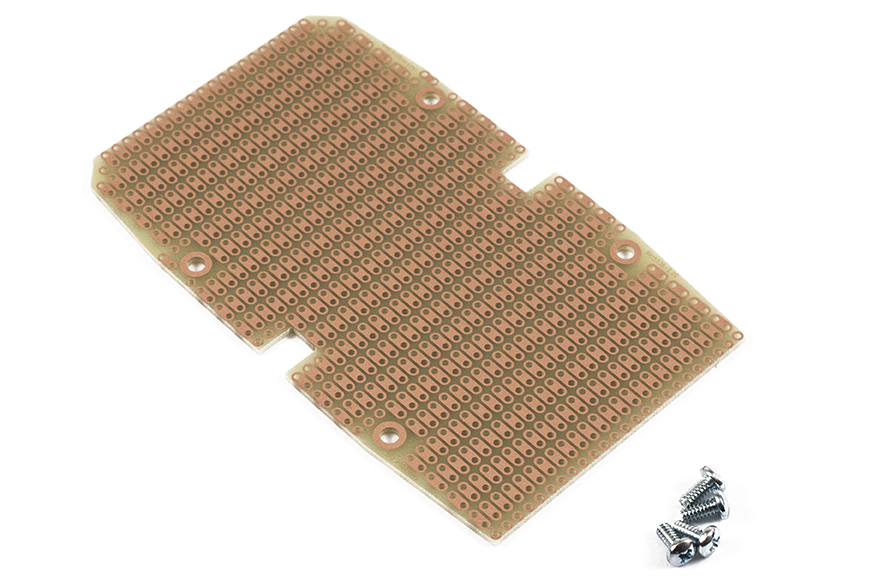

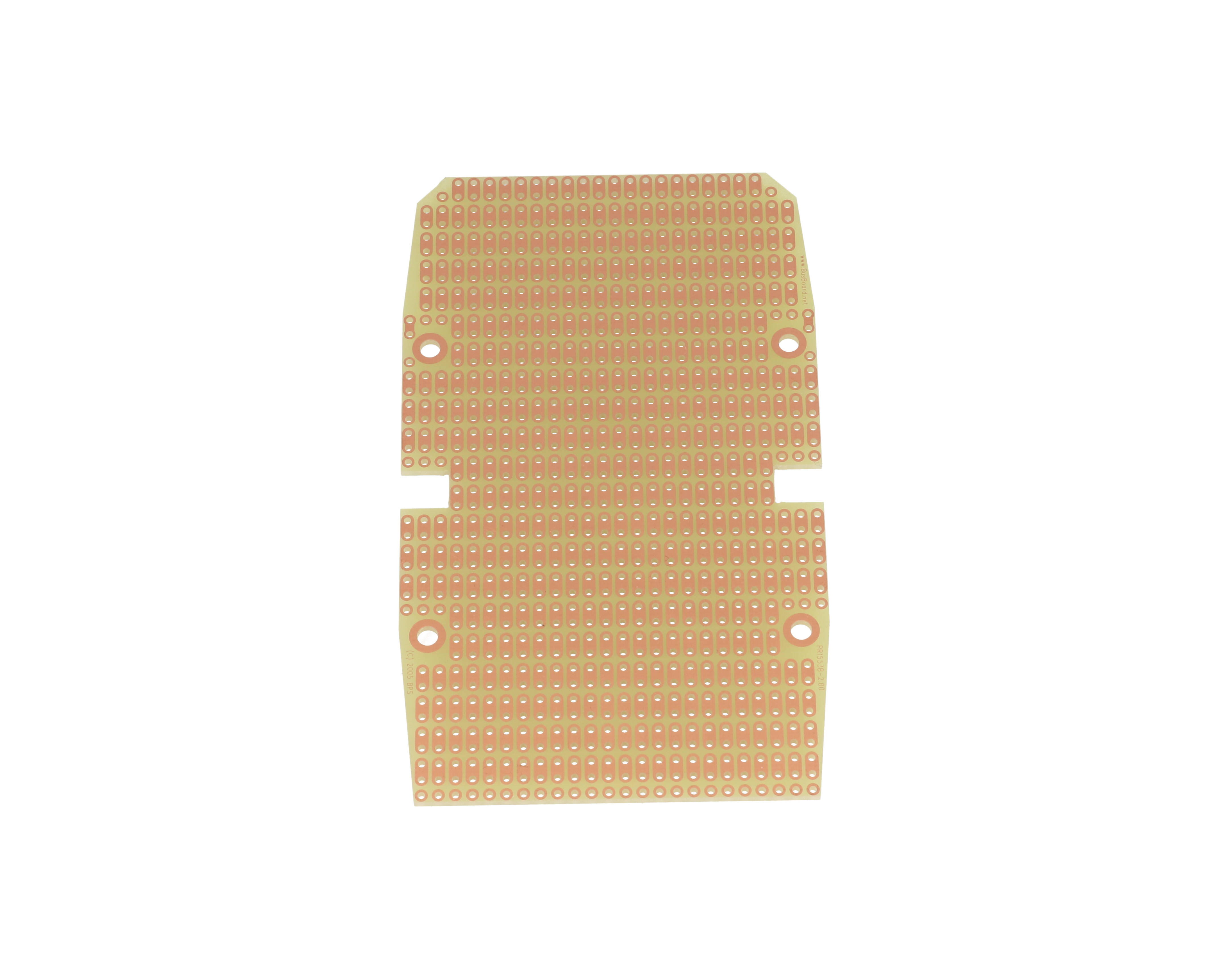

The 1553BPCB is a prototype printed circuit board shaped to fit 1553 series handheld enclosures in sizes "B" and "C". Electronics developers and hobbyists use it to build and test circuits that drop straight onto the enclosure's molded PCB bosses without cutting a custom board.
The board is high quality FR4 glass epoxy, with lead free etched copper and a flux coating for easy soldering. Holes of 0.042 in are drilled on 0.1 in centers for standard through-hole parts, and mounting screws are included. The part page lists the size as 4.3 x 2.4 x 0.06 in (109 x 61 x 2 mm); the drawing outline is 109.14 x 60.86 mm with 3.20 mm mounting holes.
Note the compatibility limit: the 1553BPCB is not compatible with battery compartment versions of the enclosure. It suits the regular 1553B single end panel models and the 1553C size. The series notes the board comes from BusBoard Prototype Systems (BPS).
It ships shrink wrapped with a shipping weight of 0.05 lbs (0.02 kg) and is RoHS and REACH compliant. For 1553 size "D" enclosures, the matching board is 1553DBPCB.
Ideal For
- Prototyping circuits for 1553B enclosures
- Prototyping circuits for 1553C enclosures
- Through-hole builds for handheld devices
Overview
| Type | Printed Circuit Board |
| Part Number | 1553BPCB |
| Board Source | BusBoard Prototype Systems (BPS) |
| Related Part | 1553DBPCB for all 1553 size "D" |
| Compatibility | 1553 sizes "B" and "C"; not compatible with battery compartment versions |
| Long Description | printed circuit board designed to fit 1553B enclosures |
| Short Description | 1553B PROTO PCB |
Dimensions
| Size L X W X H | 4.3 in x 2.4 in x 0.06 in (109 mm x 61 mm x 2 mm) |
| Mounting Hole Diameter | 3.20 mm [.13 in] |
| Board Outline (Drawing) | 109.14 x 60.86 mm [4.30 x 2.40 in] |
Identifiers
| UPC | 623980132280 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.05 lbs (0.02 kg) |
Construction & Finish
| Copper | Lead free etched copper with a flux coating for easy soldering |
| Included | Mounting screws |
| Material | FR4 Glass Epoxy |
| Hole Pattern | 0.042" holes drilled on 0.1" centers |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1553BPCB fit?▾
1553 sizes "B" and "C". It is not compatible with battery compartment versions.
What is the hole pattern?▾
0.042 in holes drilled on 0.1 in centers.
Are mounting screws included?▾
Yes, mounting screws are included.
What material is the board?▾
FR4 glass epoxy with lead free etched copper and a flux coating.
What size is the board?▾
4.3 x 2.4 x 0.06 in (109 x 61 x 2 mm); the drawing outline is 109.14 x 60.86 mm.
