Hammond 1553BIR-BULK Infrared End Panel for 1553B Handheld Enclosures
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IR end panel for all 1553 B sized enclosures
- Replaces the existing front plastic panel
- Dark red plastic filter transparent to IR
- Red polycarbonate, UL94 V-0 flame rating
- Sold singly; 0.02 lbs (0.01 kg)
- RoHS and REACH compliant

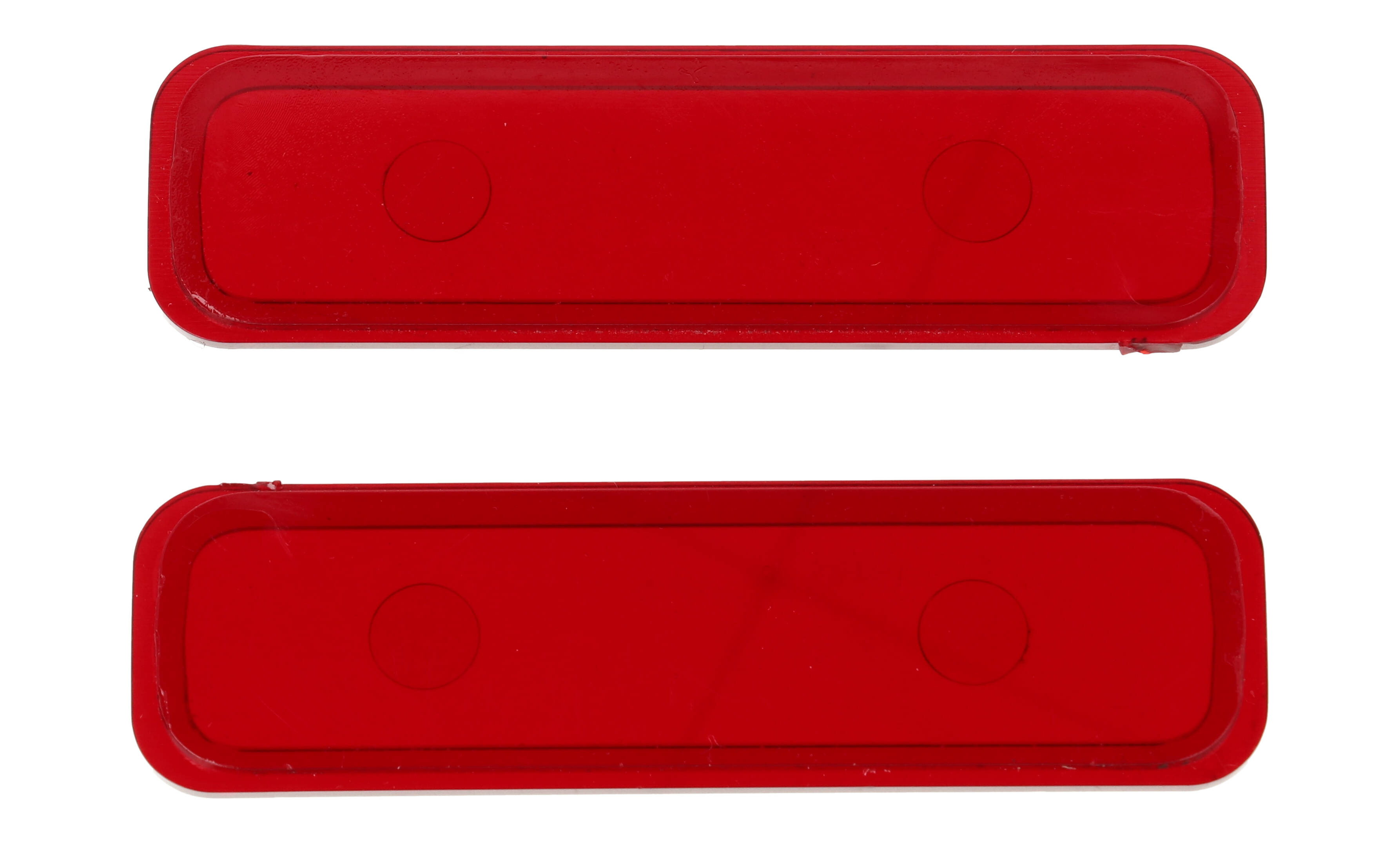

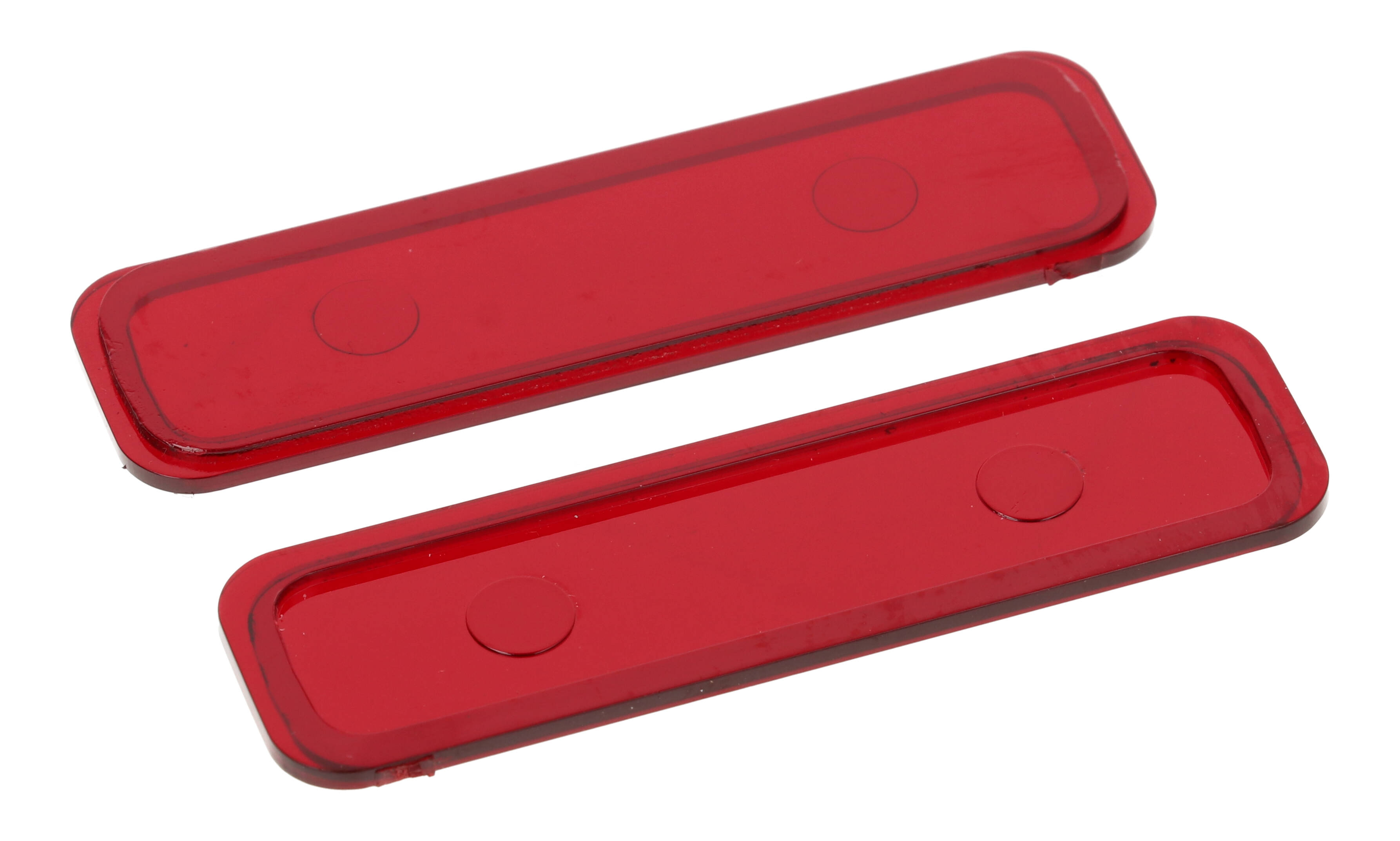

The 1553BIR-BULK is an infrared (IR) end panel for 1553B series hand held enclosures. It is used by designers of remote controls and IR-linked handheld devices who need an IR emitter or receiver to see out through the end of the case.
The panel replaces the existing front plastic panel of the enclosure and is made from a dark red plastic filter that is transparent to IR. The part page lists the material as polycarbonate in red, with a UL94 V-0 flame rating. The series identifies this part number for all 1553 "B" sized enclosures.
The 1553BIR-BULK is sold singly, shrink wrapped, with a shipping weight of 0.02 lbs (0.01 kg). It is RoHS and REACH compliant. For 1553 "D" sized enclosures the series lists a separate part, 1553DIR-BULK.
Because it swaps directly for the standard front panel, it lets you keep the soft-sided 1553B case while adding an IR window at the end, a common need for handheld remotes and data transfer devices. Other accessories the series lists for the B size include the 1553BPCB prototype circuit board (sizes B and C, not battery versions) and the 1599CLIP or 1599CLIPGY belt or pocket clip.
Ideal For
- Handheld IR remote controls
- IR data transfer windows in handheld devices
- IR sensor or emitter windows on 1553B enclosures
Overview
| Type | End Panels, Infrared |
| Function | Replaces existing front plastic panel; dark red plastic filter is transparent to IR |
| Part Number | 1553BIR-BULK |
| Related Part | 1553DIR-BULK for all 1553 "D" sized enclosures |
| Compatibility | All 1553 "B" sized enclosures |
| Long Description | IR panel for 1553B series enclosures, sold singly |
| Short Description | INFRA RED END PANELS |
Identifiers
| UPC | 623980035789 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Quantity | Sold singly |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Color | Red |
| Material | Polycarbonate |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1553BIR-BULK fit?▾
All 1553 "B" sized enclosures, per the series accessories list.
How is it installed?▾
It replaces the existing front plastic panel of the enclosure.
What is it made of?▾
Red polycarbonate, a dark red plastic filter that is transparent to IR, rated UL94 V-0.
How many come in a package?▾
It is sold singly.
Is there a version for the D size?▾
Yes, 1553DIR-BULK is listed for all 1553 "D" sized enclosures.
